USER GUIDE
FOR
M
V
AP 2400
ONDO
FOR ADDITIONAL INFORMATION
PLEASE CALL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 2400 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for MONDOVAP 2400

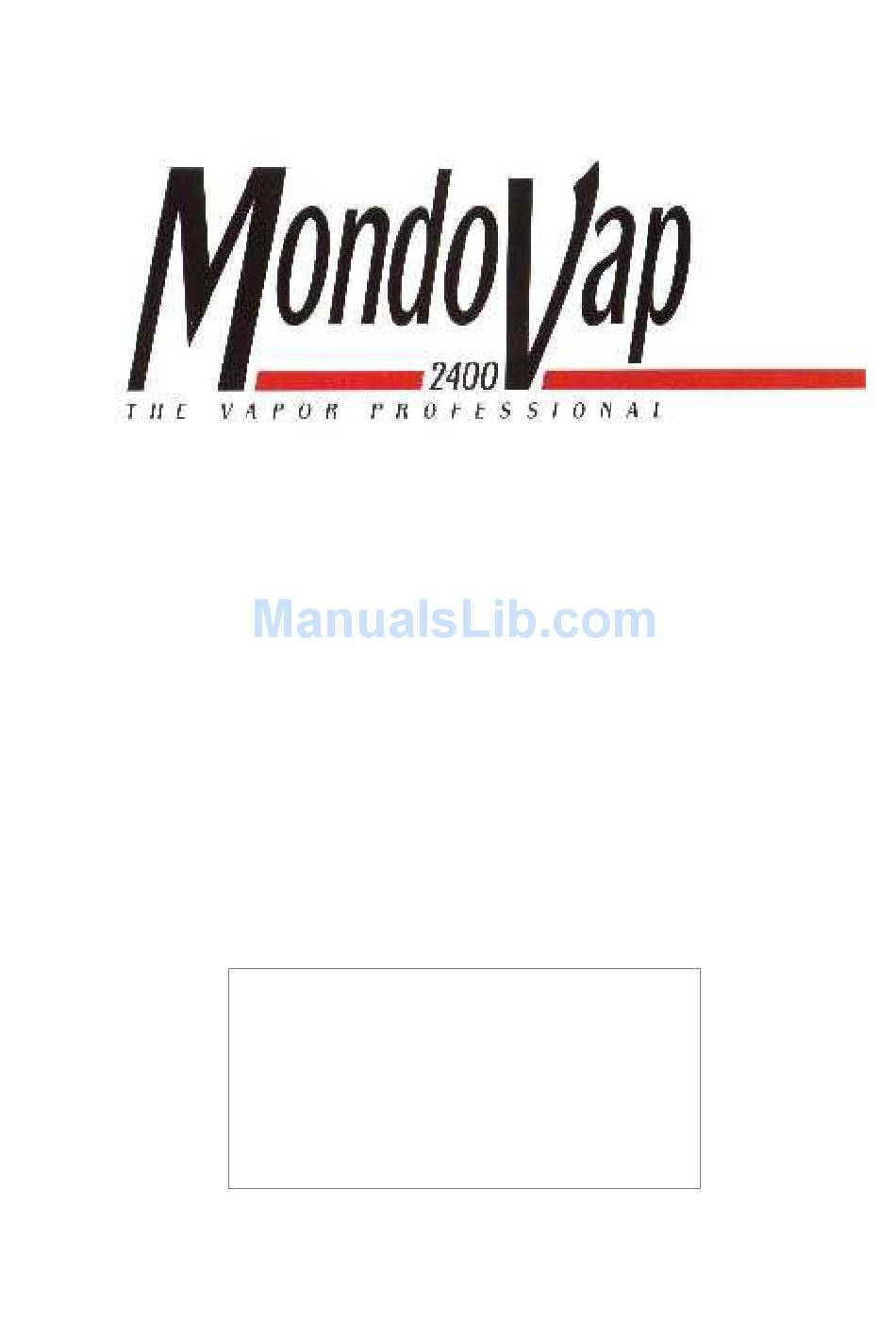

  • Page 1 USER GUIDE AP 2400 ONDO FOR ADDITIONAL INFORMATION PLEASE CALL...
  • Page 4 ACCESSORIES    ...
  • Page 5 ACCESSORIES PART NUMBER REFERENCE LIST REF NEW PART DESCRIPTION 8006010.2 HOSE ASSEMBLY COMPLETE ~ MondoVap 8006229.0 5 METER HOSE ASSEMBLY (2400 SERIES ONLY) 8006005.2 EXTENSION HANDLES 8006008.1 TRIANGLE BRUSH COMPLETE BLACK BRISTLES 8006015.1 TRIANGLE BRUSH COMPLETE RED BRISTLES 5206056.0 TRIANGLE BRISTLE PAD ONLY - BLACK 5206063.0 TRIANGLE BRISTLE PAD ONLY - RED...
  • Page 7 SAFETY INSTRUCTIONS FOR USING A STEAM VAPOR SYSTEM (This sheet should be attached to and left with the system at all times.) The Steam Vapor System is an electrical appliance used to generate high temperature, low moisture steam vapor that is safe and easy to use. The system is designed to be used for sanitation and cleaning a wide variety of surface types using the heat contained within the steam vapor as the functional agent.
  • Page 9 HOW TO START UP A COLD MONDOVAP 2400R a) Be sure system is unplugged and the power switch is in the “off” position. b) Remove the reservoir cap and fill the tank with potable water, using the funnel supplied. NOTE: Use only potable water to fill reservoir. Never put soap or any other chemical in reservoir tank.
  • Page 10 II HOW TO REFILL A WORKING MONDOVAP 2400 You may add water to the reservoir anytime you wish. Your MondoVap is low on water when you hear an audio signal and the “add water” light blinks. The system will automatically shut down the steam flow until water is added to the reservoir.

  • Page 11: Temperature Control

    High volumes are available for use on an intermittent basis and best suited to limited use when working on cracks, crevices or pre-steaming heavily soiled areas. Using high volumes of steam continually will actually reduce the steam temperature and reduce the effectiveness of your work.
  • Page 12 DOING SO WILL VOID WARRANTY AND COULD RESULT IN MALFUNCTION OR DAMAGE TO THE SYSTEM. For most jobs you do not need to use chemicals with the MondoVap system. When you do need chemicals, PRETREAT the area of concern and avoid harsh, toxic chemicals. Use mild, biodegradable detergents, such as regular dishwashing liquids, or use chemical substitutes –...
  • Page 13 CHEMICAL SUBSTITUTES Bleach Lemon juice is a good bleach, plus it will soften hard water deposits in the bathroom areas. Ammonia Use a solution of vinegar, salt and water, or use baking soda and water. Glass Cleaner Use white vinegar. Oven Cleaner Use a paste of baking soda, salt and water.
  • Page 14 REFRIGERATORS/ NOTE: No need to shut down refrigerators, walk in freezers or coolers while FREEZERS cleaning with the MondoVap. WALLS Use triangular brush on low to medium volume to clean walls with a textured surface. Immediately wipe dirt with a towel before it freezes.
  • Page 15 Use the large rectangular brush with 2 towels on low to medium volume and mop. Work quickly. NOTE: The MondoVap will melt and remove the thin top layer of wax that has the dirt in it. Use large rectangular brush with towel attached.
  • Page 16 MAINTENANCE Use large rectangular brush with 2 towels, preheat towels off the surface, mop without steam. If floor is heavily soiled spray mild detergent on towel. Follow up with a clean towel to remove soap residue. WAXING Use large rectangular brush with 2 towels on low volume. Apply liquid wax directly onto front of towel.
  • Page 17 CLAY & NATURAL Use large rectangular brush with 2 towels, on medium volume and mop. STONE If surface is heavily soiled presteam or pretreat with soap before mopping. BASEBOARDS/ Use triangular brush with black scrubber pad attached on medium WAX BUILDUP volume.
  • Page 18 REOCCURRING If a spot comes up again and again, it has a “reservoir” under or in the SPOTS padding. Before removing the stain, it is necessary to dry it out first. Press drying agents such as talcum powder, a mixture of cornstarch and cornmeal or clean unscented, uncolored cat litter into the fibers –...
  • Page 19 SILK & OTHER Use large rectangular brush with 2 towels, preheat and wipe with no steam. DELICATE CARPETS Wait a few minutes. To dry, use a large rectangular brush with 1 towel, without steam, and wipe with vertical and diagonal strokes. 5.
  • Page 20 7. WINDOWS & FRAMES CAUTION: ALWAYS PREHEAT ENTIRE GLASS WITH THE SQUEEGEE 2 – 3 INCHES FROM SURFACE BEFORE CLEANING! DO NOT CLEAN GLASS WHEN TEMPERATURES ARE BELOW FREEZING! AVOID WINDOWS AND MIRRORS WITH CRACKS. GLASS/MIRRORS MAINTENANCE Use window squeegee on medium volume and go over window top to bottom.
  • Page 21 9. DRAPES SHEER, ONE PLY FABRIC Use small rectangular brush with towel, on low volume, on one side of pleat and use the large rectangular brush with towel on the other side. Move both brushes at the same time from top to bottom at medium speed. The steam will go through the fabric and remove the dirt both sides.
  • Page 22 11. WOOD SURFACES CAUTION: DO NOT CLEAN WOOD SURFACES TOO OFTEN. EXCESSIVE HEAT AND MOISTURE MAY REMOVE WAX, VERATHANE AND/OR STAIN. Use triangular brush with towel. Preheat towel and wipe with no steam. Check for discoloring on towel. After deep cleaning, wood should be reconditioned.
