RF Technology LIO LIOP Series User Manual

A drive-thru listen-in-only audio system
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

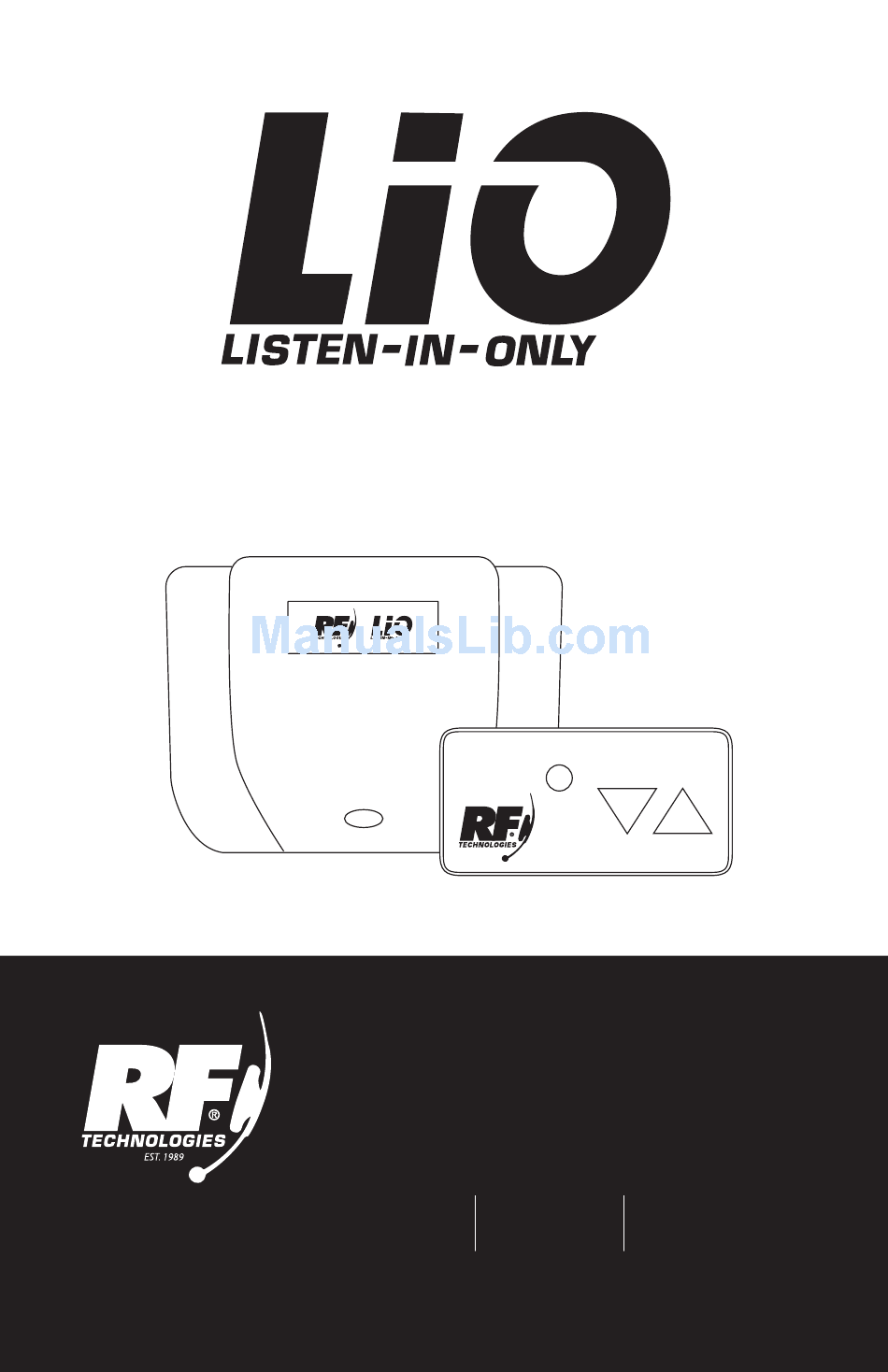

A DRIVE-THRU LISTEN-IN-ONLY AUDIO SYSTEM
#LIOP & #LIODP Series
TM
DRIVE-THRU • SURVEILLANCE • ENTERTAINMENT
800.598.2370 • rftechno.com
NATIONWIDE REPAIRS & ON-SITE SERVICE
330 Lexington Dr.
Buffalo Grove,
IL 60089
TM
542 S. Prairie
555 W. Allen Ave.,
Bethalto,
Unit 5, San Dimas,
IL 62010
CA 91773
MT16010_REV03

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LIO LIOP Series and is the answer not in the manual?

Questions and answers

Summary of Contents for RF Technology LIO LIOP Series

  • Page 1 A DRIVE-THRU LISTEN-IN-ONLY AUDIO SYSTEM #LIOP & #LIODP Series MT16010_REV03 DRIVE-THRU • SURVEILLANCE • ENTERTAINMENT 800.598.2370 • rftechno.com NATIONWIDE REPAIRS & ON-SITE SERVICE 330 Lexington Dr. 542 S. Prairie 555 W. Allen Ave., Buffalo Grove, Bethalto, Unit 5, San Dimas, IL 60089 IL 62010 CA 91773...

  • Page 2: Warnings And Disclaimers

    WARNINGS AND DISCLAIMERS • Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type. • To reduce the risk of electric shock, do not perform any servicing other than that contained in the operating instructions. •...

  • Page 3: Specifications

    SPECIFICATIONS Operating Frequency (RX/TX) 1920-1930 MHz Power Supply 5VDC, 1000mA Battery Characteristics 3.7V 1100mAH 4.1Wh Dimensions 5.5” x 4” x 1.4” Weight .36lbs Contains FCC ID Y82SC14D Contains IC ID 9576A-SC14D (Table 1) *NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules.

  • Page 4: Installation

    INSTALLATION Please call 618.717.7026 with any troubleshooting questions. We can help! 1.1 Placement The LIO Base should be placed near the current drive-thru system base station that offers the greatest line-of-sight in the intended use areas. Available power outlets should be taken into consideration when determining location to mount LIO Base.
  • Page 5 Use provided Screwdriver RED wire to secure Audio Cable to positive WIRE (+) terminal of kitchen speaker output. (Figure 4) Secure black wire to kitchen speaker negative (-) terminal of kitchen speaker output. (Figure 5) To enable your drive- thru system’s kitchen (Figure 4) speaker, please visit: www.rftechno.com/...
  • Page 6 1.4 Registering LIO Belt Pack to LIO Base Turn off all other LIO Belt Packs (even if they have not been registered yet). Unplug power from LIO Base and plug back in. Hold down the power button on LIO Base for approximately 3-seconds.

  • Page 7: Troubleshooting

    1.5 LIO Operation: LIO/Base-LED Indicator Blink Pattern Blink Speed Status Indicated Solid Solid on LIO Belt Pack/Base is connected to at least one LIO Base/Belt Pack Slow blink 1 second on, 1 second off LIO Belt Pack/Base is registered to at least one LIO Base/Belt Pack, but is not connected Fast blink 0.2 second on, 0.2 second off...
  • Page 8 CONNECTING LIO TO YOUR DRIVE-THRU SYSTEM RFT IS A FAMILY-OWNED, INDEPENDENT MANUFACTURER OF AFTERMARKET PARTS AND IS NOT AFFILIATED WITH OR ENDORSED BY HME, NOR ARE RFT PARTS APPROVED BY HME FOR USE WITH HME DRIVE-THRU SYSTEMS. HME 2000 Remove center module by sliding up and away from wall. Locate green terminal block on back of the center module.
  • Page 9 Press MENU button on bottom left hand of screen. Press VOLUME ADJUST button on bottom left hand of screen. Press CEILING SPEAKER. 10. Highlight INBOUND AUDIO. Use UP arrow to raise volume to 15. Press BACK button 3 times to show the main screen. Panasonic UltraPlex Press and release on top of center module cover to unlatch.
  • Page 10 Panasonic Attune II (450 Headset) Gently push in and pull down to remove cover and expose wires. Feed audio cable behind center module. Locate “AUX SP (8Ω) CLASS 2 WIRING.” Using the small, flathead screwdriver, secure red wire into positive (+) terminal. Using the small, flathead screwdriver, secure black wire into negative (-) terminal.

  • Page 11: Warranty Statement

    WARRANTY STATEMENT R.F. Technologies, Inc. warrants that for a period of one (1) year following delivery, the LIO base and belt pack will (a) perform in accordance with published specifications, and (b) will be free from defects in materials or workmanship. In the event an R.F. Technologies, Inc. product does not meet this warranty, subject to the conditions set forth in these terms and conditions, R.F.
  • Page 12 DRIVE-THRU • SURVEILLANCE • ENTERTAINMENT 800.598.2370 • rftechno.com NATIONWIDE REPAIRS & ON-SITE SERVICE 330 Lexington Dr. 542 S. Prairie 555 W. Allen Ave., Buffalo Grove, Bethalto, Unit 5, San Dimas, IL 60089 IL 62010 CA 91773...

This manual is also suitable for:

Lio liodp series
