Anybus HMSI-27-201 Installation Manual

Wireless bridge ethernet-wlan

Advertisement

Quick Links

Anybus
®
Wireless Bridge
Ethernet-WLAN
INSTALLATION GUIDE
HMSI-27-201 SP2107 2.2 ENGLISH

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HMSI-27-201 and is the answer not in the manual?

Questions and answers

Summary of Contents for Anybus HMSI-27-201

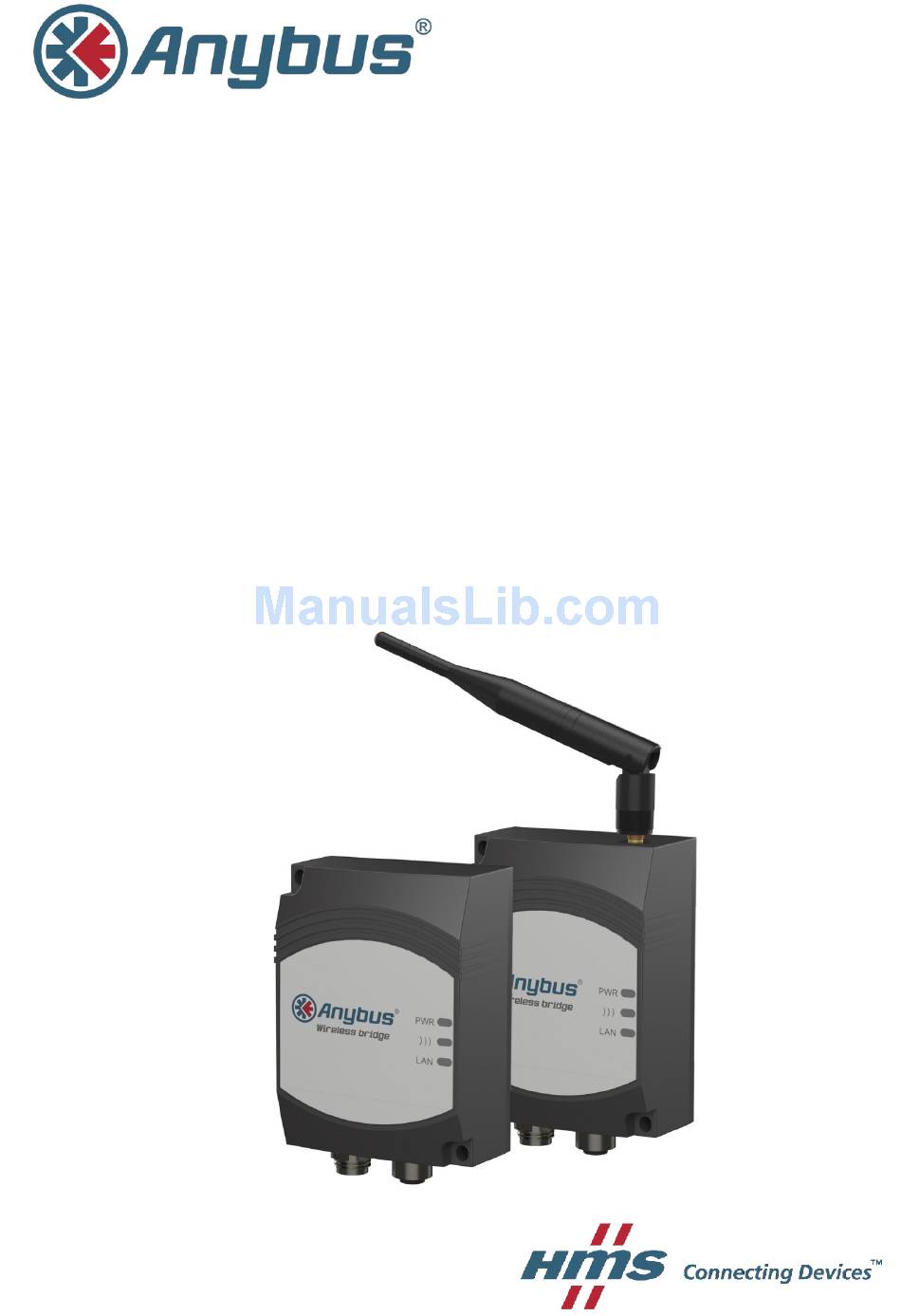

  • Page 1 Anybus ® Wireless Bridge Ethernet-WLAN INSTALLATION GUIDE HMSI-27-201 SP2107 2.2 ENGLISH...
  • Page 2: Important User Information

    ® is a registered trademark of HMS Industrial Networks AB. All other trademarks are the property of their respective holders. Copyright © 2016 HMS Industrial Networks AB. All rights reserved. Anybus ® Wireless Bridge Ethernet-WLAN Installation Guide HMSI-27-201 SP2107 2.2...
  • Page 3: Installation

    Make sure that you have all the necessary information about the capabilities and restrictions of your local network environment before installing the Anybus Wire- less Bridge. Contact your network administrator if in doubt. For optimal reception devices should be oriented front-to-front with a line of sight between them clear of obstructions.
  • Page 4 Installation 4 (12) Anybus ® Wireless Bridge Installation Guide HMSI-27-201 SP2107 2.2...
  • Page 5: Led Indicators

    Link Quality LED Indicators Press MODE to check wireless signal quality in infrastructure mode. All 4 LEDs lit = excellent signal quality. Keeping MODE pressed for more than 5 seconds will reboot the unit. Anybus ® Wireless Bridge Installation Guide HMSI-27-201 SP2107 2.2...
  • Page 6 IP layer. UDP Tunnel Ethernet packages are encapsulated in UDP packages and transferred transparently between two units. This mode has significantly lower throughput than the Sin- gle Client and Multiclient modes. Anybus ® Wireless Bridge Installation Guide HMSI-27-201 SP2107 2.2...
  • Page 7 PROFINET network traffic will be prioritized. Advanced Configuration Advanced configuration can be carried out using the settings in the built-in web interface and/or by issuing AT commands. For more information, see the Anybus Wireless Bridge User Manual available at www.anybus.com/support. Anybus ®...
  • Page 8 When the Wireless Bridges have connected successfully the ))) LED on both units will show a steady blue light. The first unit will have IP address 192.168.0.98 and the second 192.168.0.99. Anybus ® Wireless Bridge Installation Guide HMSI-27-201 SP2107 2.2...
  • Page 9 The first unit will now have IP address 192.168.0.98 and the second 192.168.0.99. The units will be operating in ad-hoc mode. For more use cases and advanced configuration examples, see the Anybus Wireless Bridge User Manual available at www.anybus.com/support. Anybus ®...
  • Page 10: Technical Data

    69.0 69.1 Idle + 4 x Mode LEDs 74.2 74.3 Connecting 63.2 63.9 Connected, Data 63.2 64.8 Connected, Data, Ethernet 73.4 75.5 Connected, Data, Ethernet, 4 x Mode LEDs 78.6 80.7 Anybus ® Wireless Bridge Installation Guide HMSI-27-201 SP2107 2.2...
  • Page 11 This page intentionally left blank...
