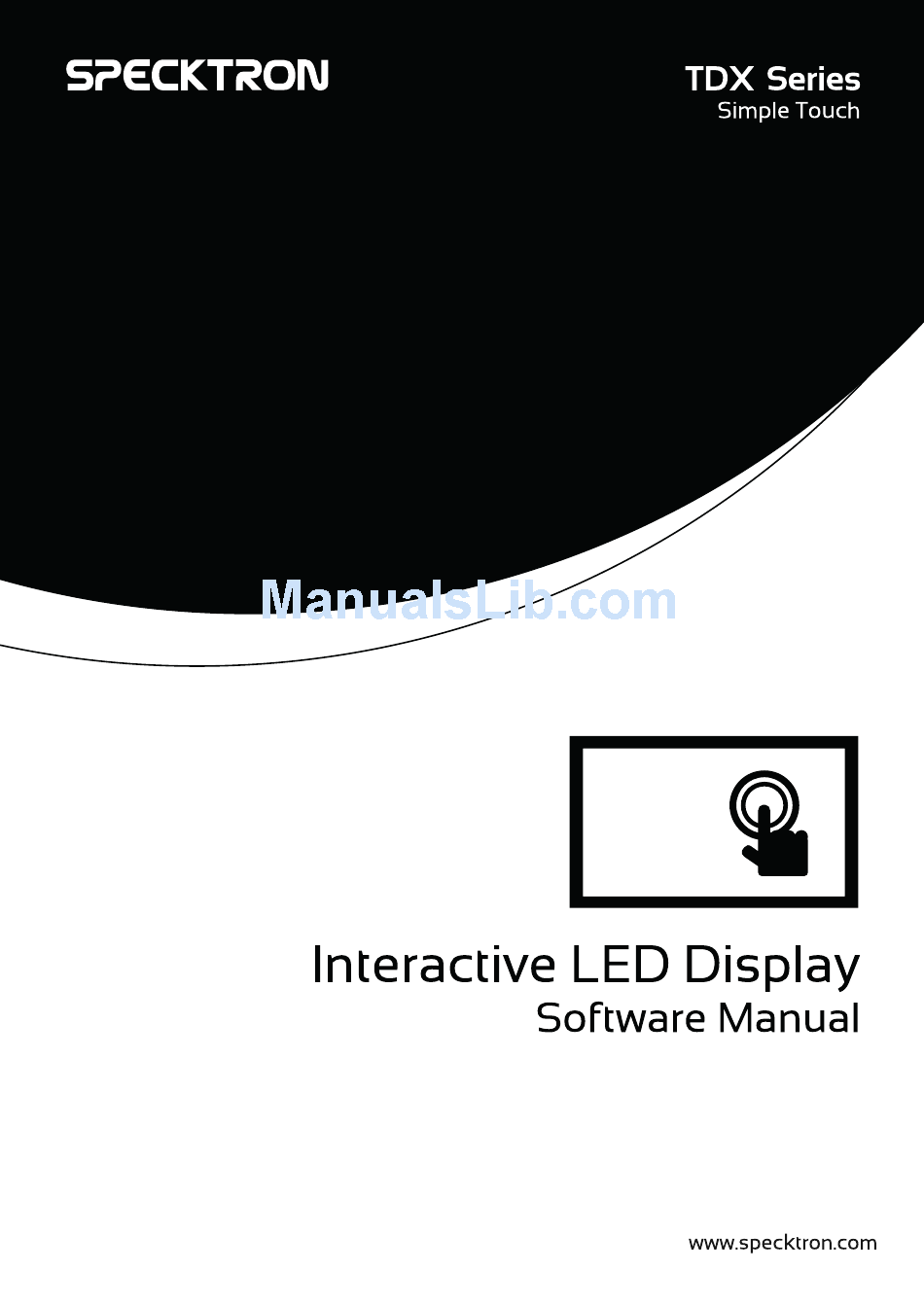

Specktron SIMPLE TOUCH TDX SERIES Software Manual

Interactive led display
Hide thumbs

Advertisement

Quick Links

Advertisement

loading
Need help?

Need help?

Do you have a question about the SIMPLE TOUCH TDX SERIES and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Specktron SIMPLE TOUCH TDX SERIES

  • Page 2: Table Of Contents

    Contents Safety Instructions Installation Connections and Settings Menu Operation Simple troubleshooting Maintenance Display Mode...

  • Page 3: Safety Instructions

    Safety Instructions Before using the machine, please read the instructions carefully and keep the manual safe for future review Placement Do not put the machine on places that are unstable, easy to tilt and fall. Do not put the machine on places with direct sunlight, or places near hot objects such as electric heater or other sources of heat and strong light source.

  • Page 4: Installation

    Installation 1 Contents 1) Accessories: Quick start guide, remote control, batteries, power cord, VGA cable, headphone cable, USB cable, touch pen,DVD, AV cable Quick Start Guide Remote control Touch pen Batteries Power Cord Headphone Cable VGA Cable Cable AV Cable...
  • Page 5 2).Stand (optional) shall be subject to actual article. 3).Mount (optional) shall be subject to actual article. 2、 Installation 1).Check Stand Installation Instruction for installation of foot stool. 2).Check Wall Mount Installation Instruction for installation of wall hanging. 3 Control Panel Items Function description Tap to enter EnergySaving mode...
  • Page 6 4 Terminal Interface HDMI4(4K2K) Items Function description Connect USB devices such as mobile hard disk, U disk, USB keyboard and mouse, USB drives, etc High-definition multimedia interface signal input, connect to PC (personal computer) with HDMI output, set-top box, or other video device can also realize touch function (HDMI3 can realize MHL function HDMI4 can realize 4K2K function.
  • Page 7 5 Remote control 1). Remote control button instruction...
  • Page 8 Detailed function description of remote control buttons Press this button to enter standby when power is on; Click this button to switch on in standby condition Mute switch Built-in computer Windows key Built-in computer Space key Built-in computer spacebar Alt + Tab Built-in computer program window close button Numeric keys: TV digital channels input keys...
  • Page 9 2).Remote control instruction Install Batteries 1 Open back cover of battery component on the back of remote control 2 Install AAA type battery according to the corresponding electrode, make sure battery positive and negative pole are correct ("+"to"+", "-" to "-"), please do not mix using old and new batteries 3 After battery is installed, close the back cover of battery components, and make the following clip buckled to the bottom Range of remote control Remote control can work normally within the range of 8 meters distance, 30 degrees left and right...

  • Page 10: Connections And Settings

    Connection and Setting For the safety of you and the machine, please do not connect any power plug before connection 1. External Computer and Touch Connection USB Cable Audio Cable VGA Cable Computer (1)Use VGA line to connect to VGA output port of external computer, and meanwhile use headphone audio line to connect to external computer audio output interface.
  • Page 11 2. Audio and video equipment Set-top Camera Video Game Video recorder Satellite TV receiver AV cable (1).Use AV audio and video lines to connect audio and video equipments with AV output (yellow for video, red for right sound channel, and white for left sound channel) (2).After line connection, plug in power cord, and switch power On (3).Press to turn equipment on...
  • Page 12 3. Coaxial connection Audio line Power amplifier/stereo equipment (1).Use coaxial line to connect audio device with coaxial input (2). After line connection, plug in power cord, and switch power On (3).Press to turn equipment on 4. Video output connection 1). VGA output connection Projector Computer Computer...
  • Page 13 5. USB Equipment connection USB Equipment 6. Network cable connection Router and other network signal output 7. Microphone connection USB line Network cable Audio line 8. WAN Connection Network cable Internet...
  • Page 14 11. USB Equipment connection Serial port line Computer After using serial port line to connect central control equipment and machine, certain function of the machine can be controlled via central control equipment, such as: machine ON/off, and adjustment of sound volume, etc PC operations：...

  • Page 15: Menu Operation

    Menu Operation One Touch menu operation Call up method Take middle point position on the bottom of display screen as starting point, use touch pen to drag towards screen center position to call up touch menu, as shown below. Note: "Touch A Method" mentioned in this manual to call up touch menu method is shown above. Setting menu Input setting Input...
  • Page 16 Brightness Setting Input Light Volume More Backlight Press INPUT button on remote control or via touch A method to call up Input Setting menu; Press button on remote control or directly click “Light”icon with touch pen to enter Brightness Setting menu; Press button on remote control or drag brightness adjustment progress bar with touch pen to adjust brightness;...
  • Page 17 More Settings (advanced setting) 1. Android channel Sound Sound Mode Standard Movie Classroom Meeting Custom Ethernet cheching Sound Balance Display Storage Apps Language&input Date&time About device Under Android channel, press INPUT button on remote control or via touch A method to call up Setting menu;...
  • Page 18 2. VGA Channel H Position 水 平位移 V Position Phase Clock 缩放 Zoom Auto Adjust Under VGA channel, press INPUT button on remote control or via touch A method to call up setting menu; Press button on remote control under setting menu or directly click“More Settings”icon with touch pen or directly press Menu on remote control under VGA channel to enter advanced setting menu;...
  • Page 19 3. Screen Setting Brightness Contrast Tone Sharpness Color Temp Cold Warm Standard Under channels other than Android, press Menu button on remote control or via touch A method to call up setting menu; Press button on remote control or directly click“More Settings”icon with touch pen or directly press Menu on remote control to enter advanced setting menu;...
  • Page 20 4. Annotation menu Fig.1 Fig.2 Place two fingers on the screen(about 20~50m ) and stay more than two seconds under s unde any c hannel to call up annotation menu (Figure 1); In annotation, menu is shown in Figure 2. In annotation state, input only by touch pen, and remote control cannot perform notation operation Annotation menu icon...
  • Page 21 Android System Interface Main Interface SimpleTouch Browser DisplaySettings Apps Finder Switch to Android channel to display main interface as show above; Press key on remote control to select icon below, and press Enter key to enter corresponding program, or directly click icon with touching pen to enter program; In any program, press Home button on remote control or <Home key>...
  • Page 22 Image import icon Click to import required image from memory card Click to select Whiteboard writing symbols, Select icon can click or check to select Click to write, press long for three seconds to enter setting Brush icon screen, to set brush color and thickness Click to erase writing symbols, can be erased by box selection Eraser icon Click to cancel previous step operation...
  • Page 23 Browser loading... http://www.google.com/ In connected network state, enter web browsing for surfing the internet, click on "X" symbol in the upper left corner to close it SimpleTouch DisplaySettings Apps Finder Browser Enter channel browse to pop up picture-in-picture interface in displayed image (as shown in Figure 1) Press button on remote control or directly click picture-in-picture display interface point "4"...
  • Page 24 Apps Setting Browser Finder SimpleTouch Kingsoft Office SimpleTouch Finder Browser DisplaySettings Apps Setting See page 15 Browser See page 21 Finder See page 20 SimpleTouch See page 19-20 Kingsoft Office Office application software Three Multimedia File Playback Interface Image play Plying Setting animation effect playing interval ti..
  • Page 25 Audio play Close current audio file played Play previous audio file Play/pause Play next audio file Playlist Loop play Random play Single play Video play Close current video file played Play previous video file Fast backward Play/pause Fast Forward Play next audio file Playlist...

  • Page 26: Simple Troubleshooting

    Simple troubleshooting Machine fails to work normally 1.Check whether there are other objects between remote control and television remote control receiving window, thus leading to failure of remote control. Remote control 2.Check whether the battery electrode in the remote control is correct. failure 3.Check whether remote control needs to replace battery.

  • Page 27: Maintenance

    Maintenance Proper maintenance can avoid many early faults; regular careful cleaning can keep the device running like new; please unplug the power plug before cleaning and during maintenance to prevent electric shock. Clean screen Please mix and stir even a little fabric softener or tableware detergent with warm water. Please use a soft cloth to be completely soaked in the mixture.
