Summary of Contents for AMPLITRAIN AmpliCube

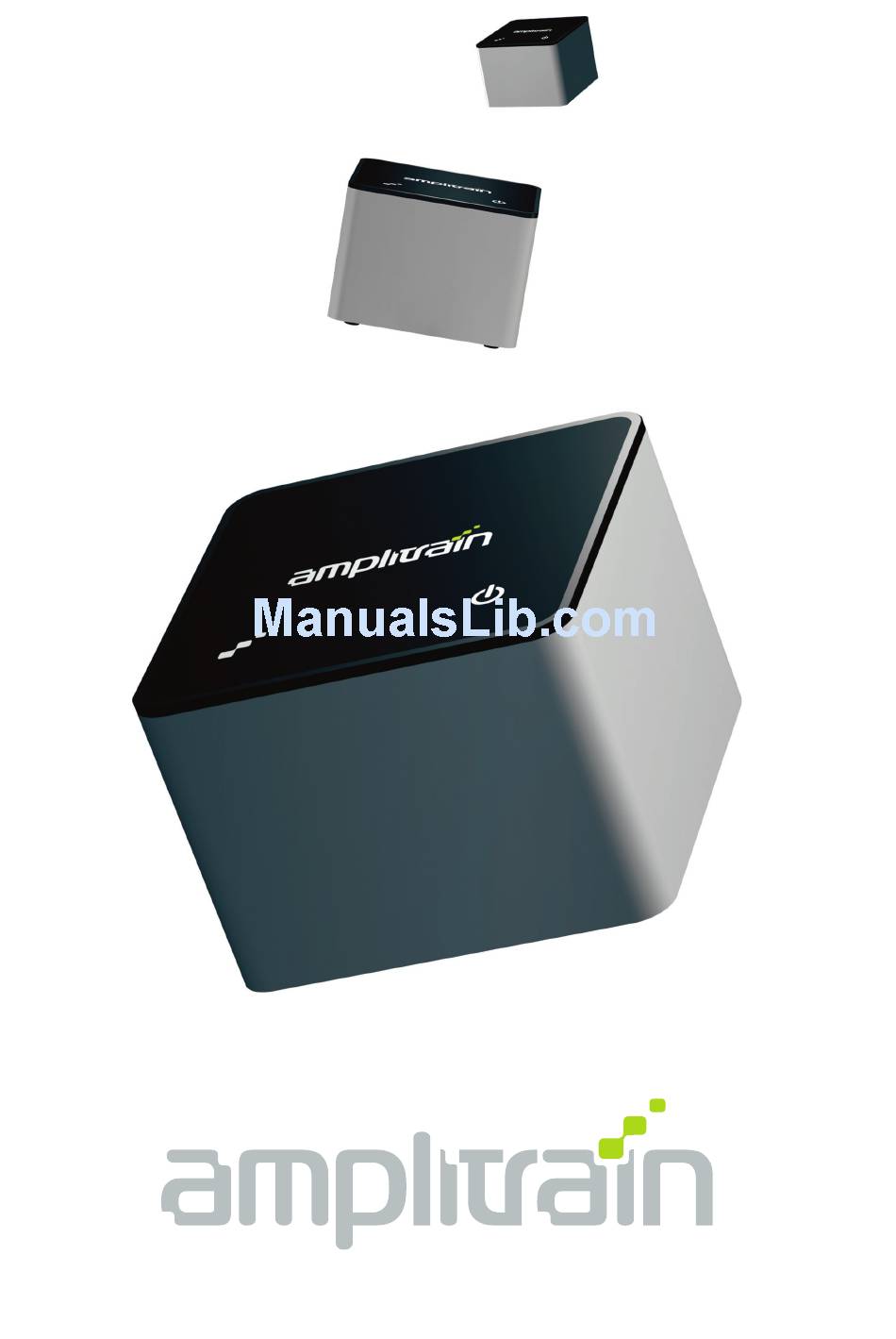

- Page 1 AmpliCube User Manual...
-
Page 2: Table Of Contents
Modifications and repairs .................8 Warranty ....................8 Guarantee ....................8 Scope of delivery ..................8 Accessories ....................9 2.10 Manufacturer and distributor ..............10 Preliminary information..........10 The AmpliCube ............11 Commissioning the unit ................11 Scope of delivery ..................11 4.2.1 AmpliCube ....................11 4.2.2 Control panel ....................12 4.2.3 Left side of device ..................12... - Page 3 Information about training ........18 Initial training ....................18 6.1.1 Basic understanding of the intensity ............19 6.1.1.1 Index ......................19 6.1.1.2 Which intensity for which training or training programme ......19 Troubleshooting ............20 Possible errors ..................20 AmpliApp ....................21 7.2.1 Start screen ....................21 7.2.2 Training screen ..................22 7.2.3...
-
Page 4: General Information
70%. • Do not allow the AmpliCube to fall, do not handle it incorrectly and do not expose it to extreme temperatures. Only use the device indoors and only at temperatures between 10 ˚C and 40 ˚C. -
Page 5: Technical Information
Technical Information Graphical symbols Manufacturer Caution, please note! Hazard sign for electrostatically sensitive components Date of manufacture Order number Serial number Environmental protection Do not put the unit in the normal household rubbish at the end of its lifetime. Take it to a recycling centre or official collection point. -
Page 6: Technical Details
Technical details Operating voltage: 14,4 VDC approx. 0.32 A at RL = 500 Ω Power consumption at minimum load Power consumption at maximum load approx. 1.91 A at RL = 500 Ω Max. output voltage at load 65 Vss (+/- 6Vss) at RL = 500 Basic modulation Pulse shape: dual-phase, symmetrical square... -
Page 7: Safety Checks
Safety checks In the case of industrial or commercial use, it is recommended to carry out safety inspections of the AmpliCube every 12-24 months. The older the unit, the more regular safety inspections are recommended. The technical inspections entail: Checking the accompanying papers to make sure the user manual exists... -
Page 8: Modifications And Repairs
Do not make any independent modifications or repairs to the AmpliCube. The manufacturer only bears responsibility for the safety and performance of the AmpliCube when new installations, mo- difications and repairs are carried out by someone they have authorised and when the AmpliCube is used in accordance with the user manual. -
Page 9: Accessories
Accessories The AmpliCube unit may only be used with the following accessories: Product no. Product Product no. Product 30029 AmpliShort suit size 4 30100 Cable for AmpliStrap 30030 AmpliShort suit size 6 30101 Distribution cable Cube 30031 AmpliShort suit size 8... -
Page 10: Manufacturer And Distributor
Never use the device for any purpose other than that which is specified and ensure pro- per handling. Never allow minors to train with or handle the AmpliCube. After malfunction of the AmpliCube or after a longer period of not being in use, have it checked by an authorised specialised company before restarting it. -

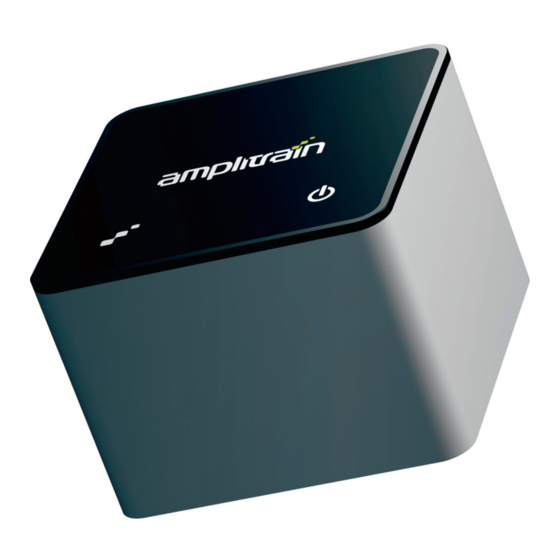

Page 11: The Amplicube
AmpliCube. The battery can be charged directly on the AmpliCube or over an external charger, which is available as an accessory. To charge the AmpliCube, place the battery on the charging unit at the bottom of the AmpliCube and connect the AmpliCube using the provided power adapter to the mains socket. -
Page 12: Control Panel
4.2.2 Control panel The control panel is at the top of the AmpliCube. When switched off, the control panel is black - you can only see the Amplitrain logo in the centre and in the bottom-right corner, there is an on/ off field to couple the AmpliCube via Bluetooth with the AmpliApp (or with the AmpliTab or Amp- liStation). -
Page 13: The Distributor
AmpliCu- be. During normal training, the battery of the AmpliCube lasts 120 to 200 mi- nutes. The battery’s charging status is dis- played in the AmpliApp. -
Page 14: The Amplitroden
Please read the safety instructions and user manual of the respective AmpliTroden. The following also applies: To AmpliCube needs electrodes to bring electricity to the body of the person who is training. The- se are referred to below as AmpliTroden. The electrodes of the AmpliCube are made from a speci- al textil that contains silver. - Page 15 Fig. 2) If the Ohm value has increased, the AmpliTrode has worn. From 80 Ohm, the AmpliTrode should longer be used. Fig. 3) You can check the electricity properly flows into the electrode by measuring the connection. To do so, place a contact pin at the output point of the plug connection and check the area of the AmpliTrode using the other...
-
Page 16: Care Instructions
The suits Two versions of AmpliTroden suits are offered for training sessions with the AmpliCube. The AmpliSkin version and the AmpliShort version. The only difference between both versions is that the legs are longer on the AmpliSkin, to the knee, and the leg electrodes are integrated into the suit. -
Page 17: Attaching The Cable
AmplITroden as well as the cable. This is also thoroughly addressed and practised in the practical training from the company amplitrain systems GmbH: If there are any doubts about how to attach the suits, AmpliTroden, cables or any other area covered by the training, please contact amplitrain systems GmbH before starting to use the device and take the time to have everything explained in detail again. -
Page 18: Putting On The Amplitroden Suits And The Amplitroden
Information about training Please only use the AmpliCube in the way that is specified in this user manual and only for the purposes that are mentioned in the programmes. It is always preferable to use the AmpliCube for a full-body workout and to use all 7 possible outputs. -
Page 19: Basic Understanding Of The Intensity
AmpliShort. To start the training, first turn on the AmpliCube at the bottom of the device. Start the AmpliApp. Now touch the on/off field at the bottom-right corner of hte AmpliCube control panel. AmpliCube and AmpliApp are now coupled. -
Page 20: Troubleshooting
When troubleshooting, only one person, who is familiar with the training, the electricity sensations and handling of the device, and who has been trained in troubleshooting by specialist staff (as part of practical training at amplitrain systems GmbH), should be connected. -
Page 21: Ampliapp
To the right, specify whether the training is to be done with or without the 8th channel. The 8th channel is normally not used. This can be directly connected to the AmpliCube over a so-cal- led Y cable. The Y cable is included in the AmpliCube delivery. -
Page 22: Training Screen
7.2.2 Training screen When you reach the training screen, you can simply start a training session using the main inten- sity controller (HI). The HI (1) makes it possible to regulate the intensity on all channels. The field of the HI is divided into three areas, which are marked here with the numbers 2, 3 and 4. -
Page 23: Emergency Off
AmpliApp screen or if this no longer responds. Practise taking off the distributor before starting each training and always demonstrate to your customers who train with the AmpliCube the pulling off of the distributor as an important part before each training unit. - Page 24 GmbH Besselstr. 2-4 68219 Mannheim Tel.: +49 (0) 621 150 216 0 Fax: +49 (0) 621 150 216 16 mail@amplitrain.de www.amplitrain.de...
