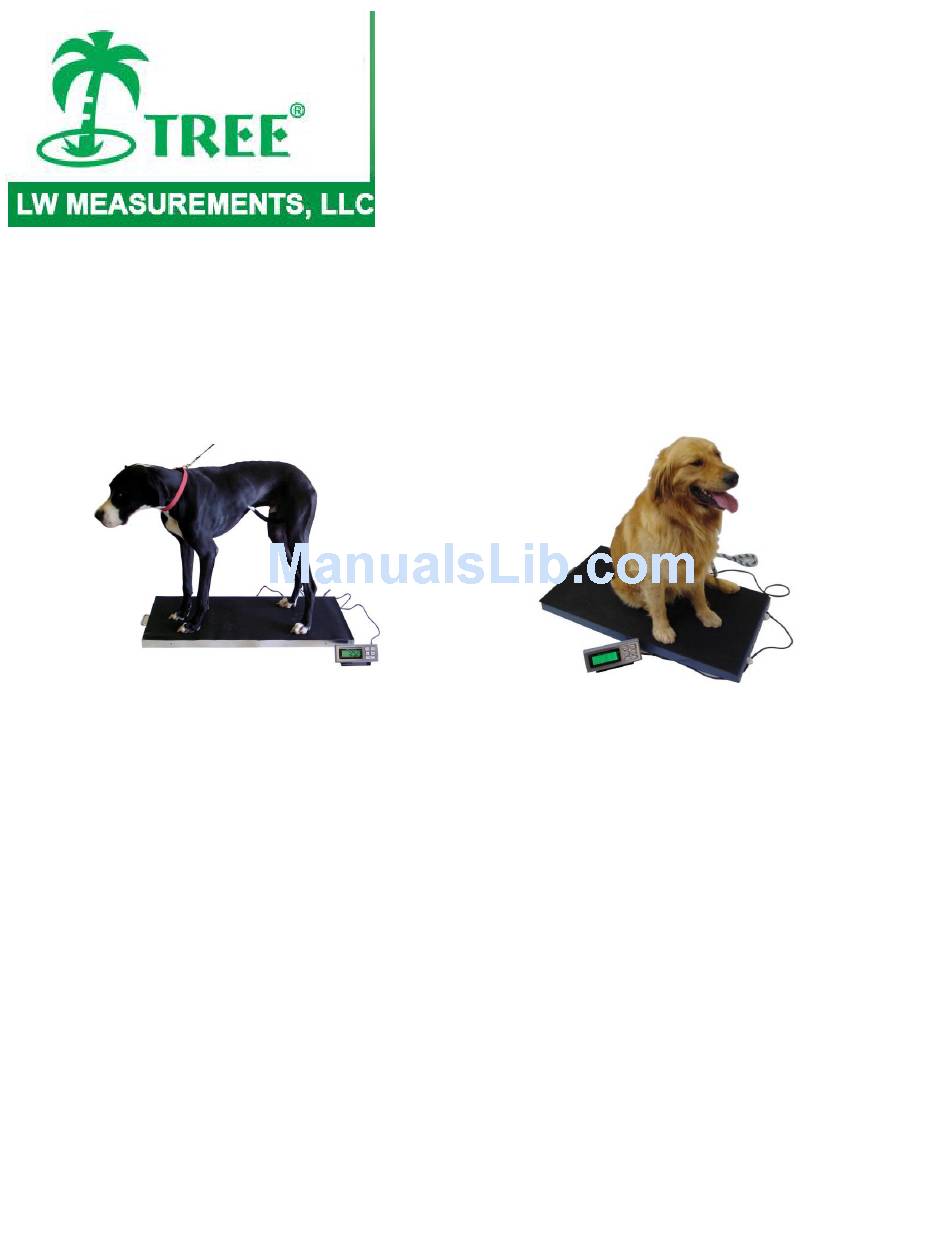

- Page 1 Professional Weighing Equipment VET Scales LVS / LVS-XL LC-VS Operation Manual...
-
Page 2: Table Of Contents
Table of Contents Section Page Declaration of Conformity Customer Service Introduction Safety Weight Scale Functions Features Application & Conformity RS232 Data Getting Started Delivery Assembly & Installation Application Menu Program Option Calibration 14-15 Maintenance & Service Transportation & Storage Warranty Rev 2, 1.14.2016... -
Page 3: Declaration Of Conformity
LVS-XL 700 LVS-XL 350k LC-VS 400 LC-VS 180k Mark applied EU Directive Standards 2004/108/EC EN 61326-1: 2006 Signature: Boon Lim, R & D Manager Date: 14. 11. 2012 LW Measurements LLC, 620 Carlson Court, Rohnert Park, CA 94928 Rev 2, 1.14.2016... -
Page 4: Customer Service
LW Measurements LLC, 620 Carlson Court, Rohnert Park, CA 94928 Tel: (707) 542-2185 FAX: (707) 542-3285 http://lwmeasurements.com EUROPE LW Measurements Europe Ltd Chalkwell Park House 700 London Road Westcliff-on-Sea Essex SS0 9HQ United Kingdom Tel: 01702-476700 Fax: 01702-477380 http://lwmeasurements.com Introduction What you should know about these Operating Instructions: Tree®... -
Page 5: Safety
Safety Representations and symbols Important instructions, which involve safety, are highlighted with the appropriate mark: Safety recommendations When using the weighing equipment in surroundings with increased safety requirements, the corresponding regulations must be observed. The weighing scale may only be used with the power adapter supplied. Before connecting the power adapter to the scale, the user must ensure that the operating voltage stated on the power adapter is compliant with the mains voltage. -
Page 6: Weight Scale
Weight Scale Construction & Functions The weighing scale consists of the following parts; The Scale body (1) The indicator (2) Rubber Mat (3) The adapter (4) Operation manual. Figure 2.1 Your weighing machine Rev 2, 1.14.2016... -
Page 7: Functions
400 lb 0.1 lb 38 x 20 inches / 96 x 50 cm LVS 700: 40 lb / 53 lb (18 kg / 24 kg) Net/gross weight LVS-XL 700: 44lb / 48lb ( 20kg / 22kg) LC-VS 400: 24 lb / 31 lb (11 kg / 14 kg) -
Page 8: Features
Features Auto backlight Auto shut-off Display options: 5 digital LCD ZERO range ( 0% - 4% of full capacity) TARE range ( 4% - 100% of full capacity) Hold function Animal weighing mode ... -
Page 9: Rs232 Data
RS232 Data interface 1. Connector: DB9 SCALE 2. Transmissions Settings Mode: Simplex Asynchronous Serial Baud Rate: 9600 Data Bit: 8 Parity Bit: None Stop Bit: 1 Data Format: ASCII 3. Transmission Information Format： 20 Byte ，blank=20H 4~13 14~18 ‘W: ’ DATA UNIT Start of Data Transmission=57H+3AH... -
Page 10: Getting Started
Getting Started The scale is packaged in an environmentally-friendly carton, which provides optimum protection for the balance during transportation. We suggest that you keep the original packaging in order to avoid damage if you are shipping or transporting the scale to a different location. It is also the best way to keep it in the best conditions if it will not be used for an extended period of time. -
Page 11: Assembly & Installation
Assembly & Installation The weighing scale is delivered in a partly dismantled condition. Assemble the individual components in the following sequence: Place your machine on a level, clean, and dry surface to obtain accurate readings. Connecting the AC Adapter The following Safety recommendations must be observed when connecting the balance to the mains: The Scale should only be connected to the mains voltage socket with the power adapter... -
Page 12: Application Menu
Application Menu Display messages and key functions Display messages: Low battery indicator Negative value indicator Zero indicator Key Functions: The ON/OFF key is to turn the Scale On or Off The HOLD key is to store the weight value. ... -
Page 13: Program Option
Program options Interface Settings Press and hold the “Hold” key, and then press ON/OFF key to turn on the scale, display will show A-ON or A-OFF Press UNIT key, display will show “L-ON” or “L-OFF” Press UNIT key again, display will show “P-XX” ... -
Page 14: Calibration
*** This is the filter range, 0.5d, 3d, 5d or 10d that the scale displays, for example, if we use LVS 700lb x 0.2lb for weighing a 300lb cow, if we set it to be 0.5d, then the scale will show 299.8lb, 300lb, 300.2lb..., if we set it to be 3d, then the scale will show 299.4lb, 300lb, 300.6lb... -
Page 15: Maintenance & Service
Press the “hold” key, display will show CAP, press the “hold” key again, display shows CALu=, then press the “Unit” key to select unit of measurement kg. or lb., a triangle icon will display to indicate kg. Or lb., press the “Hold” key to confirm, it will show CALu= again. -
Page 16: Transportation & Storage
Our warranty does not cover misuse or neglect including but not limited to battery or water damage, overloading, and chewed or cut wires. If the product is found to have been misused or damaged by the customer, LW measurements is not responsible for the cost of return.
