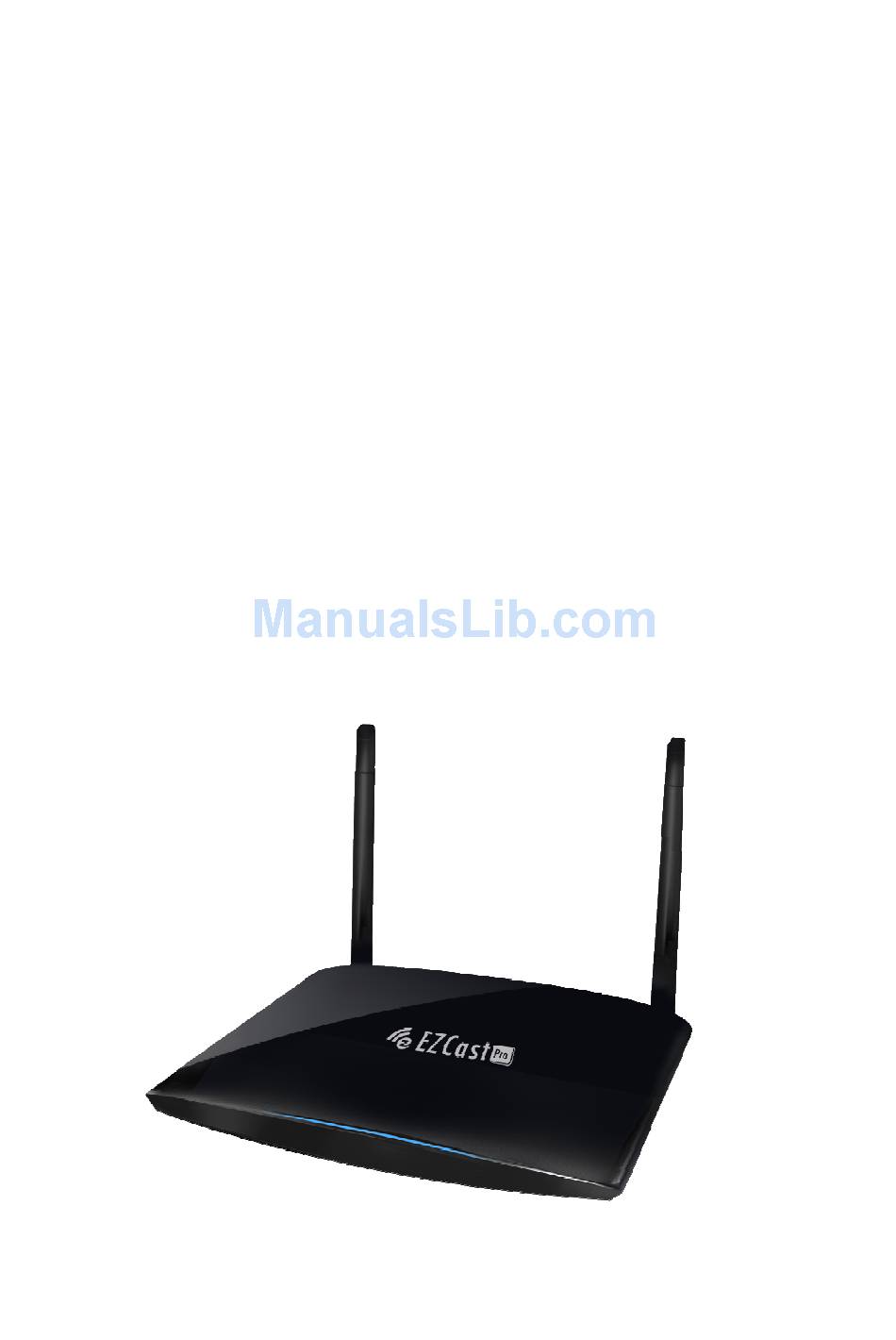

  • Page 1 EZCast EZCast Pro Box...
  • Page 2 User’s Manual Rev. 1.02 History: Revision Change Note Date V1.00 Initial version 2016/4/14 V1.01 MiscellaneousModification 2016/4/26 V1.02 Function changes 2016/11/20...

  • Page 3: What's In Box

    Introduction Thanks for choosing EZCastPro Box B02, it is based on popular EZCast Pro appand adding new dual WiFi to support 2.4Ghz and 5Ghz at the same time. It’s the most advanced WiFi Display device ever, which supports most Wireless display standardslike Miracast,...

  • Page 4: Hardware Installation

    5V-1.5A DC adapter with cable x1 VGA cable x1 HDMI cable x1 Audio out cable x1 UART cable x1 QSG x1 Hardware Installation There will be an HDMI cable and USB adapter inside of the box, use the 5V-1.5A DC adapter to power upEZCastPro Box, and plug HDMI or VGA cable to your TV or Projector.

  • Page 5: Led Indication

    LED Indication There will be 4 different LEDs color for different status in front of EZCast Pro Box, you can refer to it to know the working status:...

  • Page 6: App Installation

    LAN: Turns on when LAN port is connected DC:Power on/off indication App Installation IOS and Android users: Please search “EZCast Pro” in Apple’s App Store or Google Play and install it. Or Use the QR scanner app to scan the QR code on EZCastPro Box’s main page.

  • Page 7: Get Started

    Get Started Enteryour NB/PC/Smartphone/Tablet’s WiFi setting, find the SSID (ProBox_xxxxxxxx/ProBox5G_xxxxxxxx, or Pro B02_xxxxxxxx/Pro B02-5G_xxxxxxxx)and connect with it. The Dev means device’s host name, you can change it in the setting later. You may connect Pro Box’s 2.4Ghz or 5Ghz WiFi with different devices but they are under differentsubnet.
  • Page 8 If there is any new FW available, the updated icon will be shown on device. The Miracode is a direct IP link shortcut, you can turn it off in administrator mode later. The main screen may change based on different connecting methods (direct or via router) There may be another 4 digits CastCode, which is a display gate keeper to let users who can see this code to cast content.
  • Page 9 Click “EZCastPro” icon, the device will be listed, you can select thedevice you like to cast if there are more than one. If you are not linking to EZCast Pro, youcan only use several functions in offline mode. *Note:EZCastProapponlyworkswithEZCastProhardwarenow,it’snotcompatiblewithnorma lEZCastproducts.
  • Page 10 Please remember to reconnect again. There is another link mode“Infrastructure mode”, which allows you tolink with EZCast Pro Box through router instead of SoftAP mode. However, the performance maynot as good as direct link, and you will need to enter the setting toenable it if need it.
  • Page 11 EZCast Pro through home router if you have established the connection with router. Via Router Only: In this mode, the SoftAP of 2.4Ghz/5Ghz WiFi will be turned off, you can use it under some particularpurpose so no one can link to EZCast...
  • Page 12 Pro directly. App Tips You can cast your multimedia data wirelessly now, however, please be noted some features like cloud video or web will require internet connection. Please be noted EZMirror(Miracast) mode will disconnect current WiFi and you will need to connect to internet by your phone (3G or WiFi) if you want to keep internet surfing.

  • Page 13: App Features

    (*based on iOS app for your reference) Photo You will have to allow EZCast Pro to share your camera roll andenable the location service before using Photo function. In Photo viewer, you can select photo and it will be displayed onyour TV/Projector.
  • Page 14 EZCast Pro app for future use. You can also sync subtitle file to EZCast Pro, just make sure thefilename is the same with your video and sync through iTunes, itwill be automatically shown with video playing.
  • Page 15 Music The music player allows you to stream music through WiFi, andwe can support playlist. Live Camera Live camera is a real object camera which allows you to streamthe image from mobile device’s camera, and take a snap shot toedit.
  • Page 16 You can adjust image quality, switch from Front/Rear camera. Youcan enable Sketch and save the current image to album. Document The document viewer can support MS-office, PDF, and Apple’siWorks. Before you start to cast, please remember to sync thedocument files to your iOS device through iTunes.
  • Page 17 Please be noted some documents may not be displayed the same as shownon PC. Please be noted some documents may not be displayed the same as shownon PC. EZCast Pro comes with a built Pro comes with a built-in browser, and we also in browser, and we also categorizeseveral popular websites for you.
  • Page 18 Cloud Storage We will link to your personal Dropbox and *Google Drive accountto We will link to your personal Dropbox and *Google Drive accountto We will link to your personal Dropbox and *Google Drive accountto let you access your cloud storage anywhere. All content will beshown let you access your cloud storage anywhere.
  • Page 19 adocument file Comment We treasure your feedback either good or bad, so we created treasure your feedback either good or bad, so we created treasure your feedback either good or bad, so we created aninnovative way to communicate with you. You can send aninnovative way to communicate with you.
  • Page 20 When you are the first user link to EZCast Pro and open the app,you will become the “Host”. Host has the authority to control the display, that means Host rolecan use all features without limitation. The next or later coming users will...
  • Page 21 Host’s permission to display. EZCast Pro device will allow max. 4 users to display on screentogether, but only Host can decide the position he wants, otherguest’s screens will be placed automatically after the request isallowed.
  • Page 22 You can enable AirView function to see the current display contenton EZCast Pro hardware, this is a great tool for display sharing. This function will not need Host’s permission to enable. ＊ This feature doesn’t support video or audio streaming.
  • Page 23 ＊ Please be noted EZBoard will Please be noted EZBoard will require internet connection. EZChannel...
  • Page 24 Once you enter EZChannel, you can enjoy default featured channel, public channel or your friend’s channel. Please be noted some features will require logging in. You can subscribe your channel here, review your playlists(collections) or install Chrome plug-in in the setting. ＊...
  • Page 25 DLNA is an industrial standard which allows you to streammultimedia formats through WiFi/LAN In the main menu, you can also use DMLA app to push multimediafiles to EZCast Pro for streaming. EZMirror(Miracast, this is only available for Windows and Android)
  • Page 26 EZMirror is fully compatible with Miracast, you can click theEZMirror button in EZCast app, and the receiver will be switchedto Miracast mode. Once you turn it on, there will be a 60seconds countdown for yourmobile phone to connect with the receiver. Please select...
  • Page 27 We also recommend you link your smart phone to your We also recommend you link your smart phone to your We also recommend you link your smart phone to your homenetwork at the same time to keep internet connection. homenetwork at the same time to keep internet connection. homenetwork at the same time to keep internet connection.
  • Page 28 to cast their content. This will prevent accidentally interruption by some users not in the same conference room.. AirDisk AirDisk allows you to play the content on USB disk, just plug the USB storage device to Pro Box’s USB port, and you can play the content inside of the USB drive ＊...
  • Page 29 Example: Non-admin mode mode (Guest/Host) Example: Admin Administrator mode The Advanced functioncontain functioncontains all advanced setting/control d setting/control including Conference onference Control, Device Management, Network setup, Device Management, Network setup, Admin Setup, Host Authority control, Admin Setup, Host Authority control, Add CA and Access Control Add CA and Access Control or Reboot and Upgrade FW Reboot and Upgrade FW…etc.
  • Page 30 This is an advanced control for all connected devices, you can select the position and place it. You can disconnect all at one time, too. Please be noted some special mode like Miracast will not be controlled by it. Device Management (Default for Host/Admin only) You can modify device setting here, includinglanguage, device’s host name(not SSID), change resolution, change EZAir mode while playing video (only mirror or stream video), turn on/off...
  • Page 31 usersconnection. Network Setup (Default for Admin, but can be enabled for Host by Administrator) You can adjustnetwork related setting here. Please be noted some settings will require reboot.
  • Page 32 Admin Setup (Only for Admin) You can adjust more detailed functions here, and you can also release some authorities for Host to control the device, and here are some major features descriptions. Password...
  • Page 33 Admin password change, the defaultpassword is “000000”, you will have to change it in the 1 time log-in as admin. *Please be noted to preserve the Administrator passwordcarefully, due to security reason, if you forget it or lose it, this only way to grant it is to contact us to reset it. Host Authority The admin can release some functions to Host so that the host can get some control, too.
  • Page 34 Access Control The admin can decide if the connected devices can go for internet through EZCast Pro device or not. Add CA for WiFi enterprise (802.1x), this is for WiFi Enterprise connection, consult with your MIS for the CA if needed.
  • Page 35 Reboot Control (Default for Admin only, but can be released to Host) You can reboot the device if you need. Reset to Default Reset all parameters to default. You can also hold the hardware reset button for 10 seconds aside...
  • Page 36 of Pro LAN device to reset to default if you forget admin password. About Show some device information like version and others.
  • Page 37 ©2014 Actions Microelectronics Co., Ltd. All right reserved. EZCast, and EZCast Pro are trademarks of Actions Microelectronic Co., Ltd., registered in China and other countries. Other product and company names mentioned herein may be trademarks other respective companies. FCC STATEMENT 1.
  • Page 38 第十四條低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時， 應改善至無干擾時方得繼續使用。前項合法通信，指依電信法規定作業之無線電通信。低功 率射頻電機須忍受合法通信或工業、科學及醫療用電波輻射性電機設備之干擾。 ＊您可以在官網下載到最新版完整手冊以及相關品問題：www.iezvu.com 或 www.iezcast.com ©2014 Actions Microelectronics Co., Ltd. :EZCast與EZCast Pro為Actions Microelectronic Co., Ltd., 炬力北方股份有限公司在大陸地區與其他國家註冊之商標，說明書中提到的相關產 品名稱或商標則屬於相對應之該公司所有。...
