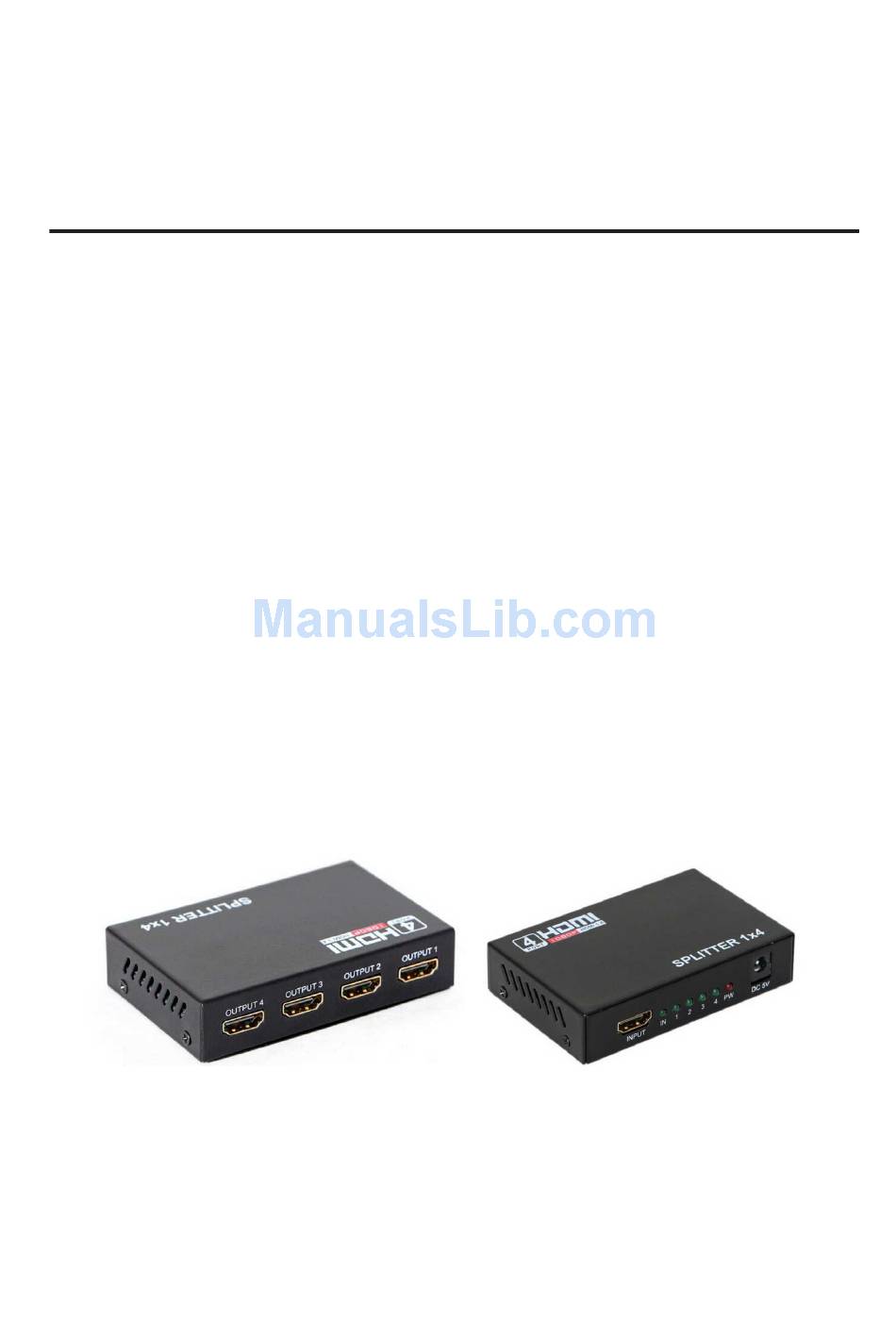

- Page 1 U S E R M A N U A L HDMI Splitter 1x4 (HDMI1.4v) Model No：ON-104C...
- Page 2 INTRODUCTION Dear customer Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. Our series of HDMI Converters, switchers, extenders, matrixes and splitters are designed to make your A/V device use more convenient, more comfortable, more productive and more cost-efficient.
- Page 3 The accessories with the machines lists as picture： 5V Power Adaptor 1 pc of Manual Power Adaptor Figure 1.0 Front Panel Showing Picture Input: HDMI input interface IN：HDMI input led status light 1- 4：HDMI output led status light PW ： Power Led Status Light DC5V：...
- Page 4 Operating and Connecting： Connect one cable from HDMI source devices into HDMI Splitter input. Connect one cable from each display (monitor or projector) into the HDMI Splitter outputs. Connect 5V power supply to the HDMI 1x4 Splitter. SPECIFICATIONS: SN104C HDMI resolution ……………………………..24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i Support video color format …………………...……..….……..24bit/deep color 30bit, 36bit, 48bit Support audio format……..….DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD HD (HBR) M a x b a n d w i d t h …...
- Page 5 Notes: Please use the machine as the instruction listed to keep the long use lifetime of the machine. The machine should be placed at the spot far from the Damp, High-Temperature, Dusty, Erosive, and oxidative environment. All parts will be free from the strong shake, hit, fall. Touching the power adaptor with the wet hands is prohibited.
