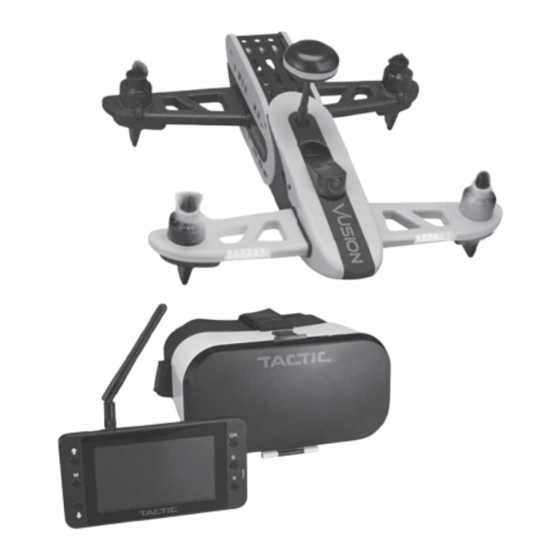

INSTRUCTION

MANUAL

WARNING

Please read and understand this manual, the operation and all safety aspects

required for the safe operation of the product. Before use, if you feel that this

product is not for you, please return it to the place of purchase.

Manual Specifications and Description Changes

The instruction manual, warranties, and other associated documentation are

subject to change without notice. Hobbico assumes no responsibility for

inadvertent errors to this manual.

™

RISE0200/05 v3

Table of Contents

Need help?

Do you have a question about the FPV RACER and is the answer not in the manual?

Questions and answers

Summary of Contents for RISE VUSION FPV RACER

Page 1 INSTRUCTION MANUAL WARNING Please read and understand this manual, the operation and all safety aspects required for the safe operation of the product. Before use, if you feel that this product is not for you, please return it to the place of purchase. Manual Specifications and Description Changes The instruction manual, warranties, and other associated documentation are subject to change without notice.
Page 2: Safety Precautions
INTRODUCTION Thank you for purchasing the VUSION FPV RACER. We want the time you spend with your new R/C quadcopter to be fun and successful so please read the entire manual before beginning setup. If for any reason you think this R/C model is not for you, return it to the dealer immediately.
Page 3: Battery Warnings
NEVER store your quadcopter with the battery plugged into the quadcopter. ● DO NOT attempt to charge your battery if it becomes swollen or hot. ● The VUSION FPV RACER does not have a voltage cutoff/failsafe. When the alarm sounds, land the quad and disconnect the battery.
Page 4 Size: 250mm (9.8in) diagonally motor to motor Width: 241mm (9.5in) CONTENTS Length: 252mm (9.9in) Height: 69mm (2.7in) ● RTF RISE VUSION FPV RACER Prop: 5 x 4.5 ● Transmitter Blade Length: 127mm (5in) ● FPV Goggle with Monitor Empty Weight: 502g (17.7oz.) without battery ●...
Page 5 SETUP The VUSION FPV RACER is completely assembled. All the bolts have been set to the proper torque and have thread locking compound applied where needed to keep them secure. FPV ANTENNA Always attach the FPV VTX antenna before connecting the battery to the Vusion.
Page 6 RADIO SYSTEM Insert 4 AA batteries in the battery compartment in the back of the transmitter. Turn on the transmitter and connect the battery to the Vusion. The quadcopter should beep twice when it is linked to the transmitter. NOTE: Always turn the transmitter on first.
Page 7: Takeoff And Landing
FPV. TAKEOFF AND LANDING Turn on the transmitter and connect the flight battery to the VUSION FPV RACER. Place the quadcopter on a level surface and let it sit for 10 seconds to let the flight controller set up the gyros. Calibrate the sensors before your first flight (page 10).
Page 8 BATTERIES The VUSION FPV RACER uses a 1500mA 3 cell LiPo. Typical flight time is 5 to 8 minutes depending on the flying style. The flight controller does have a low voltage cutoff to protect the LiPo from damage.
Page 9: External Receiver
WARNING: Remove the props before connecting an external receiver to the Vusion. The VUSION FPV RACER can be adapted to use an external receiver (one wire for each channel) with the RISE2509 Cable Set. Note: The stock transmitter must be used if recording photos or video by the on board DVR is desired.
Page 10: Maintenance
Turn on the transmitter and connect the battery to the Vusion. Perform a sensor calibration as described in Maintenance Section to verify that the control board is receiving signals from the receiver. The quadcopter will not enter the calibration mode if the receiver is wired incorrectly. Arm the motors by holding the yaw control to the right.
Page 11 LINK TRANSMITTER If the Vusion does not make a double chime when it is powered up and the transmitter is on, it may need to be relinked. 1. Turn off the transmitter. 2. Remove the rear cover. Press down on the rear edge and slide the cover Push out of the frame.
Page 12: Spare Parts
SEPARATE FRAME To remove the Camera, VTX or Control Module, the frame must be separated. All 4 arms must be removed first. SPARE PARTS 1 RISE2020 FPV VTX Antenna GOGGLES PARTS 2 RISE2009 Prop Nuts CW/CCW TACZ5610 FPV-G1 Head Strap 3 RISE2010 Props CW/CCW 2 Yel/2 Black TACZ5612 FPV-G1 Face Plate Foam 4 RISE2019 Camera VTX CASE...
Page 14: Battery Precautions
BATTERY PRECAUTIONS The RISE Vusion uses a lithium polymer (LiPo) battery. Follow these precautions to ensure safe and trouble-free operation. • ALWAYS disconnect the battery from the quadcopter when not in use. • Do not attempt to use this charger with NiCd or NiMH battery packs.
Page 15: Ic Rss Warning
FCC IC PRECAUTIONS IC RSS WARNING This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. IC RADIATION EXPOSURE STATEMENT This equipment complies with IC RF radiation exposure limits set forth for an uncontrolled environment.
Page 16: Ce Compliance Information For The European Union
CE COMPLIANCE INFORMATION FOR THE EUROPEAN UNION NSTRUCTIONS FOR DISPOSAL OF WASTE EQUIPMENT BY PRIVATE USERS IN THE EUROPEAN UNION: This symbol on the product or its packaging indicates this product must not be disposed of with other household waste. Instead, it is the user’s responsibility to dispose of their waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment.
