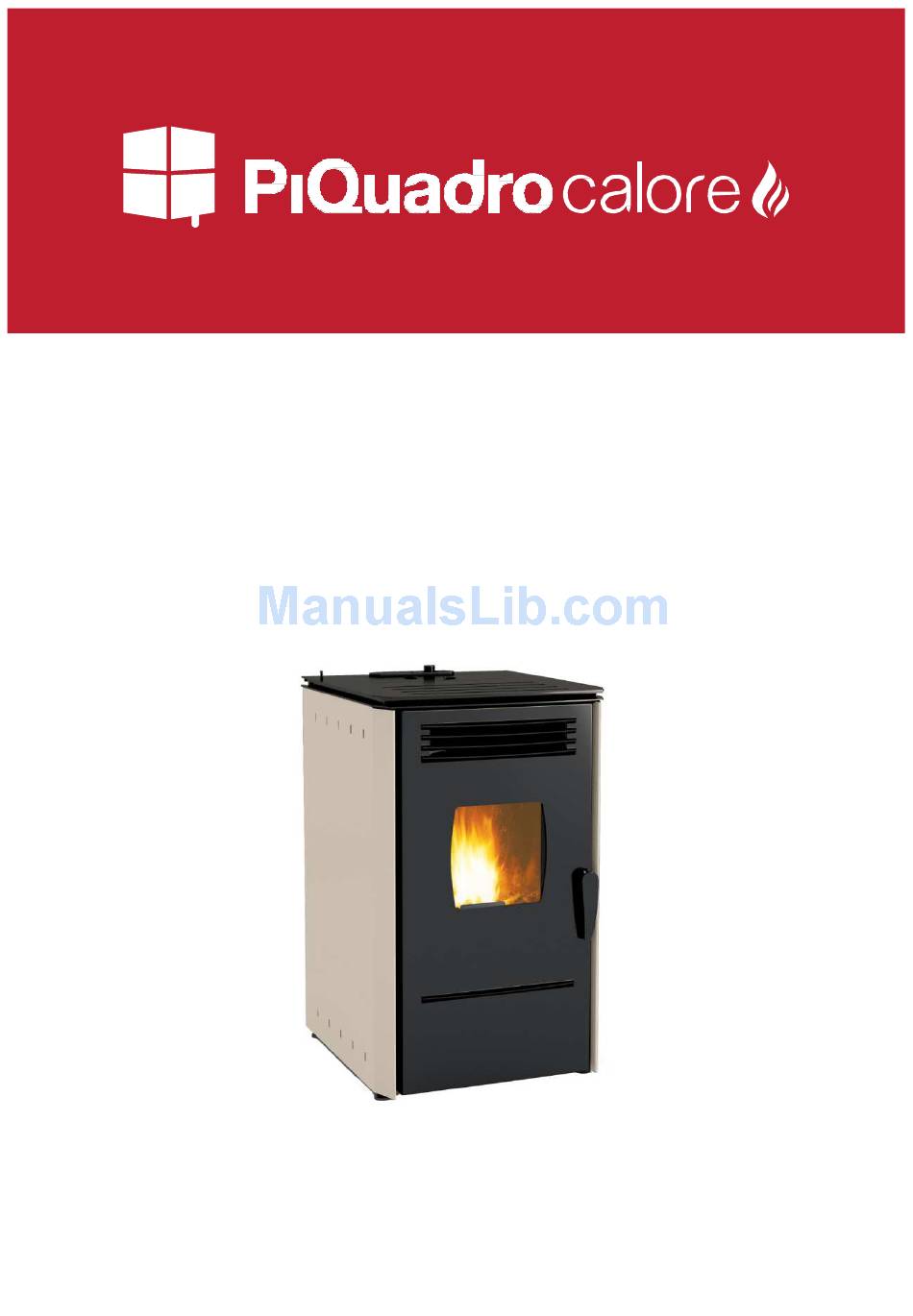

- Page 1 PELLET STOVE: BRUSCHETTA OPERATING, INSTALLATION AND MAINTENANCE MANUAL MOD. BRU70D - BRU70M...
-
Page 2: Table Of Contents
Operating, installation and maintenance manual BRUSCHETTA BRU70D - BRU70M Table of contents GENERAL NOTICE ............................4 SYMBOLS ............................4 PURPOSE AND CONTENTS OF THIS MANUAL .................. 4 INTENDED USE........................... 4 GENERAL INFORMATION .......................... 4 SAFETY STANDARDS ..........................4 WARRANTY ............................... 5 MANUFACTURER'S LIABILITY ........................ - Page 3 Operating, installation and maintenance manual BRUSCHETTA BRU70D - BRU70M RECOMMENDATIONS FOR TECHNICIANS ..................18 WARRANTY CONDITIONS AND CLAIMS ..................... 19 WARRANTY CERTIFICATE PiQuadro A+3 S.r.l..................21...
-
Page 4: General Notice
Operating, installation and maintenance manual BRUSCHETTA BRU70D - BRU70M 1. GENERAL NOTICE This manual is intended for owners, installers, users and maintenance personnel of the Bruschetta series stoves and is an integral part of the product. PiQuadro A+3 heating appliances are built and tested in accordance with the safety requirements specified by the European directives. -
Page 5: Warranty
Operating, installation and maintenance manual BRUSCHETTA BRU70D - BRU70M 4. WARRANTY Faulty stoves or mechanical and electrical components are covered under a two-year warranty. During the warranty, disassembling or replacement of the stove spare parts must be carried out by your Service Retailer. Unauthorized disassembling or replacements void the manufacturer's warranty. -
Page 6: Stove Description
Operating, installation and maintenance manual BRUSCHETTA BRU70D Operating, installation and maintenance manual BRUSCHETTA BRU70D - BRU70M 7. STOVE DESCRIPTION The pellet stove was built with materials conceived and designed especially for this purpose. The stove main parts and contro The pellet stove was built with materials conceived and designed especially for this purpose. The stove main parts and contro The pellet stove was built with materials conceived and designed especially for this purpose. -
Page 7: Technical Information
Operating, installation and maintenance manual BRUSCHETTA BRU70D - BRU70M 7.1 TECHNICAL INFORMATION STOVE MODEL BRU70M BRU70D Min./max. rated power 3 - 7 3.50 - 7 Min./max. consumption Kg/h 0.7 – 1.8 0.7 – 1.8 Pellet tank capacity Fume exhaustion outlet diameter Voltage/Frequency V/Hz 230/50... -
Page 8: Installation
Operating, installation and maintenance manual BRUSCHETTA BRU70D - BRU70M 8. INSTALLATION Only skilled and authorised technicians can install and connect the stove verifying that it functions properly, in compliance with current regulations and assembling instructions. PiQuadro A+3 s.r.l. declines any responsibility for damages to objects and/or persons caused by improper installation. -
Page 9: Safely Connect/Operate The Stove
Operating, installation and maintenance manual BRUSCHETTA BRU70D - BRU70M 8.3 SAFELY CONNECT/OPERATE THE STOVE The stove is connected to the power supply system through a cable provided by the manufacturer. The technician is responsible for its correct and safe connection to the power system. Please check that: •... -
Page 10: Connection To An Insulated Or Double-Wall Flue
Operating, installation and maintenance manual BRUSCHETTA BRU70D - BRU70M 8.5 CONNECTION TO AN INSULATED OR DOUBLE-WALL FLUE The internal dimensions of the external flue pipe must be of minimum 10 x 10 cm, or 10 cm diameter, and of maximum 20 x 20 cm, or 20 cm diameter. -
Page 11: Useful Information About Chimneys
Operating, installation and maintenance manual BRUSCHETTA BRU70D - BRU70M 8.8 USEFUL INFORMATION ABOUT CHIMNEYS The flue must be compliant with current building regulations. The picture below shows how to connect the fume exhaustion pipe to a pre-existing flue (Figure A1 Figure A2). 9. - Page 12 Operating, installation and maintenance manual BRUSCHETTA BRU70D - BRU70M WARNING Be careful: there may be burning residues. Reposition the flame retardant plate and the ash pan; Reposition the ash pan making sure that the bigger hole on its right side its with the ignition resistance pipe (Figure 18). 18);...
-
Page 13: Routine Maintenance
Operating, installation and maintenance manual BRUSCHETTA BRU70D - BRU70M 10. ROUTINE MAINTENANCE IMPORTANT clean the brazier every time you switch the stove on (Position F) once every 2-3 days have the ash pan (Position I) and the brazier support cleaned (Position L). We suggest you disassemble the flame trap (Position M) and the inspection plug once a month (Position M1) cleaning up the area by using an appropriate vacuum cleaner. -
Page 14: Switching Off
Operating, installation and maintenance manual BRUSCHETTA BRU70D - BRU70M Fig. 19 Fig. 20 In its min. and/or max. position, the stove doesn't function on the basis of room temperature, but only works at min. and/or max. power Led status and its meaning are described in the following table (Table 8). Table. -
Page 15: Alarm Messages
Operating, installation and maintenance manual BRUSCHETTA BRU70D - BRU70M 11.2 ALARM MESSAGES A LED in the control panel will flash in case of alarm. Here is a description (Table 5) of what the control panel does, depending on the different working stages of the stove. ALARM MESSAGES ALARM NAME IS DISPLAYED IF... - Page 16 Operating, installation and maintenance manual BRUSCHETTA BRU70D - BRU70M Er03 Block Extinguishing for Exhausting Temperature lowering Er05 Extinguishing for Exhausting over Temperature Block Er06 Pellet Thermostat open (flame return from the brazier) Block Er07 Encoder Error: No Encoder Signal (in case of P25=1 or 2) Block Er08 Encoder Error: Combustion Fan regulation failed (in case of P25=1 or 2)
- Page 17 Operating, installation and maintenance manual BRUSCHETTA BRU70D - BRU70M Display Click Long Click Long Click Long Click Long Whith click of P1. tA= Room Temperature Room Exhausting Combustion Product tF= Exhausting Temperature Temperature Temperature Fan Speed Code UF= Combustion Fan Speed [RPM/Volt]] Long Long...
-
Page 18: General Instructions
Operating, installation and maintenance manual BRUSCHETTA BRU70D - BRU70M 13. GENERAL INSTRUCTIONS WARNING Switch the stove off and let it cool down at room temperature before carrying out maintenance. Wait for at least an hour after shutting down the device. WARNING Always use anti-heat gloves to avoid possible skin burns. -
Page 19: Warranty Conditions And Claims
Operating, installation and maintenance manual BRUSCHETTA BRU70D - BRU70M 17. WARRANTY CONDITIONS AND CLAIMS The device comes along with two years of warranty, as established by European Directive 1999/44/EC on purchase goods. The starting date is the one you find on your receipt, invoice or document proving that you actually purchased the device on that specific day. - Page 20 Operating, installation and maintenance manual BRUSCHETTA BRU70D - BRU70M...
-
Page 21: Warranty Certificate Piquadro A+3 S.r.l
Operating, installation and maintenance manual BRUSCHETTA BRU70D - BRU70M 18. WARRANTY CERTIFICATE PiQuadro A+3 S.r.l. MODEL SERIAL NUMBER SELLER: ……………………………………………………………………………………. Stamp PURCHASE DATE …………………………………………………………………………………… BUYER Name ....................... Street:........................ E mail..........City …...............Postal code......Country........E mail............... Signature …………………………………. Phone: ........... Mobile............. IMPORTANT: In order for your warranty to be valid you must fill in the present form and send it by mail to PiQuadro A+3 S.r.l., within 8 days from the purchase date. - Page 22 Operating, installation and maintenance manual BRUSCHETTA BRU70D - BRU70M Via Papa Giovanni XXIII 61045 PERGOLA (PU) ITALY T. +39 0721/736733 - F. +39 0721/739315 www.piquadrocalore.com service@piquadrocalore.com...
