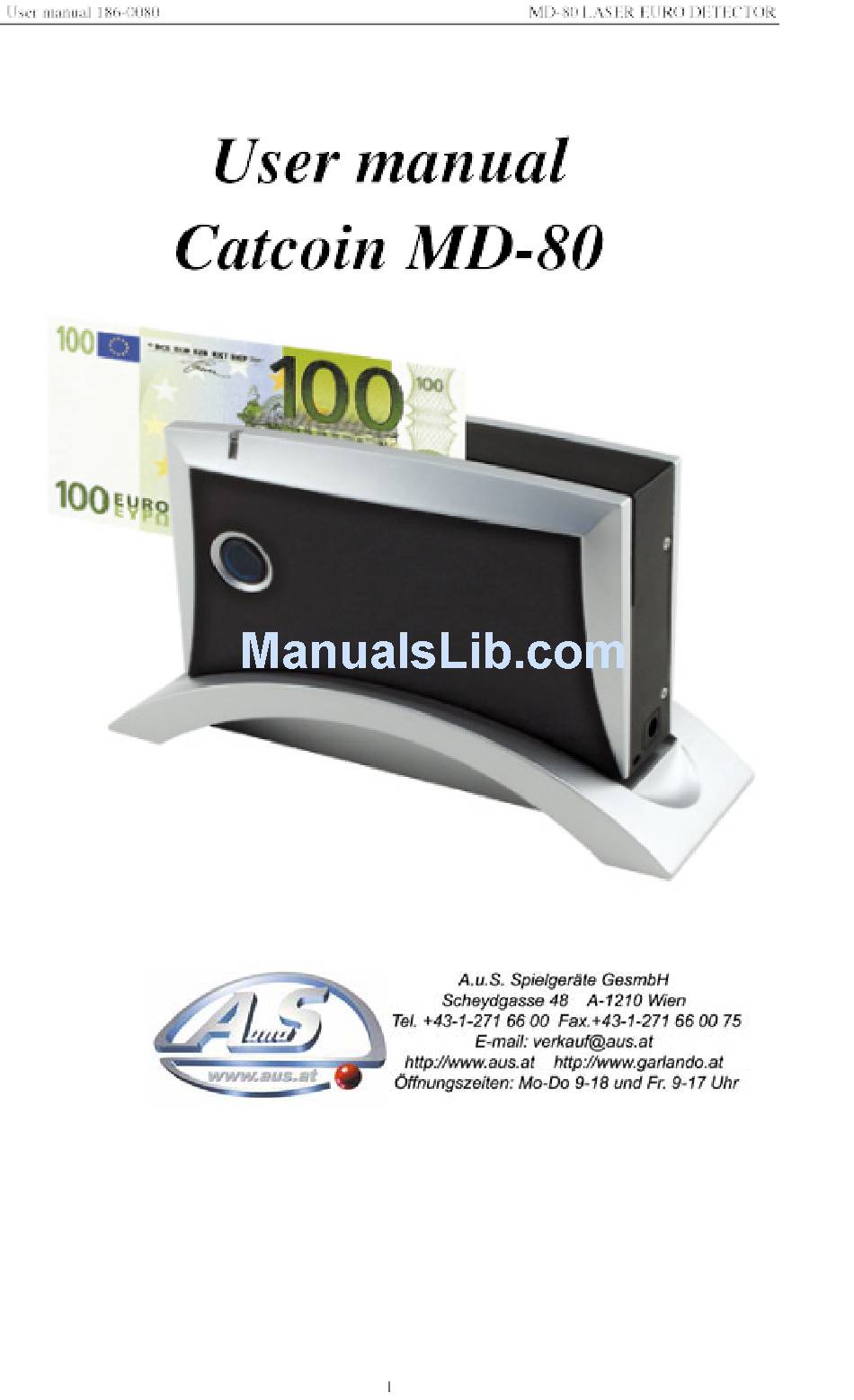

AUS MD-80 User Manual

Laser euro detector

Hide thumbs

Table Of Contents

Table of Contents

Need help?

Do you have a question about the MD-80 and is the answer not in the manual?

Questions and answers

Summary of Contents for AUS MD-80

Page 2 User manual 186-0080 MD-80 LASER EURO DETECTOR USER MANUAL MD-80 About this Manual This manual consists of the following chapters: Introduction This chapter introduce the features of the device, list a checklist of items that are shipped with the package.
Page 3 The MD-80 has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
Page 4 User manual 186-0080 MD-80 LASER EURO DETECTOR Structure F i g u r e 1 Discerning indicator (blue & red); ① Power key (containing a blue indicator); ② Pedestal; ③ Scan area; ④ Socket for the power cable; ⑤...
Page 5 Operation Power Supply Working with AC/DC adapter: 1. Connect the DC output plug into the DC socket of the MD-80; 2. Insert the adapter into the mains( 230V/110V ); 3. The MD-80 will automatically turn on; Working with built-in battery: 1.
Page 6 The time of passing of the note should not exceed the 5 seconds. If it goes over that time, the MD-80 will not give a scanning signal. If a note is detected as a false one, pass it again, be sure that you are doing it on the right position.
Page 7 User manual 186-0080 MD-80 LASER EURO DETECTOR Maintenance The following indications will help you take profit of the working of the device. A. Do not expose the device to extreme environmental conditions, where temperature and humidity are too high. B. Do not try to disassemble the device.
Page 8 User manual 186-0080 MD-80 LASER EURO DETECTOR Specification Detecting Currency --------------------------- EURO Detecting Method --------------------------- spectrum Warning mode ------------------------------- indicator, sound Mains ---------------------------------------- 220V/ 50Hz or 110V/60Hz Backup battery (optional) Power consumption --------------------------- MAX 3W Battery capacity --------------------------- 7.5V 700mAH...
