QuickSpecs

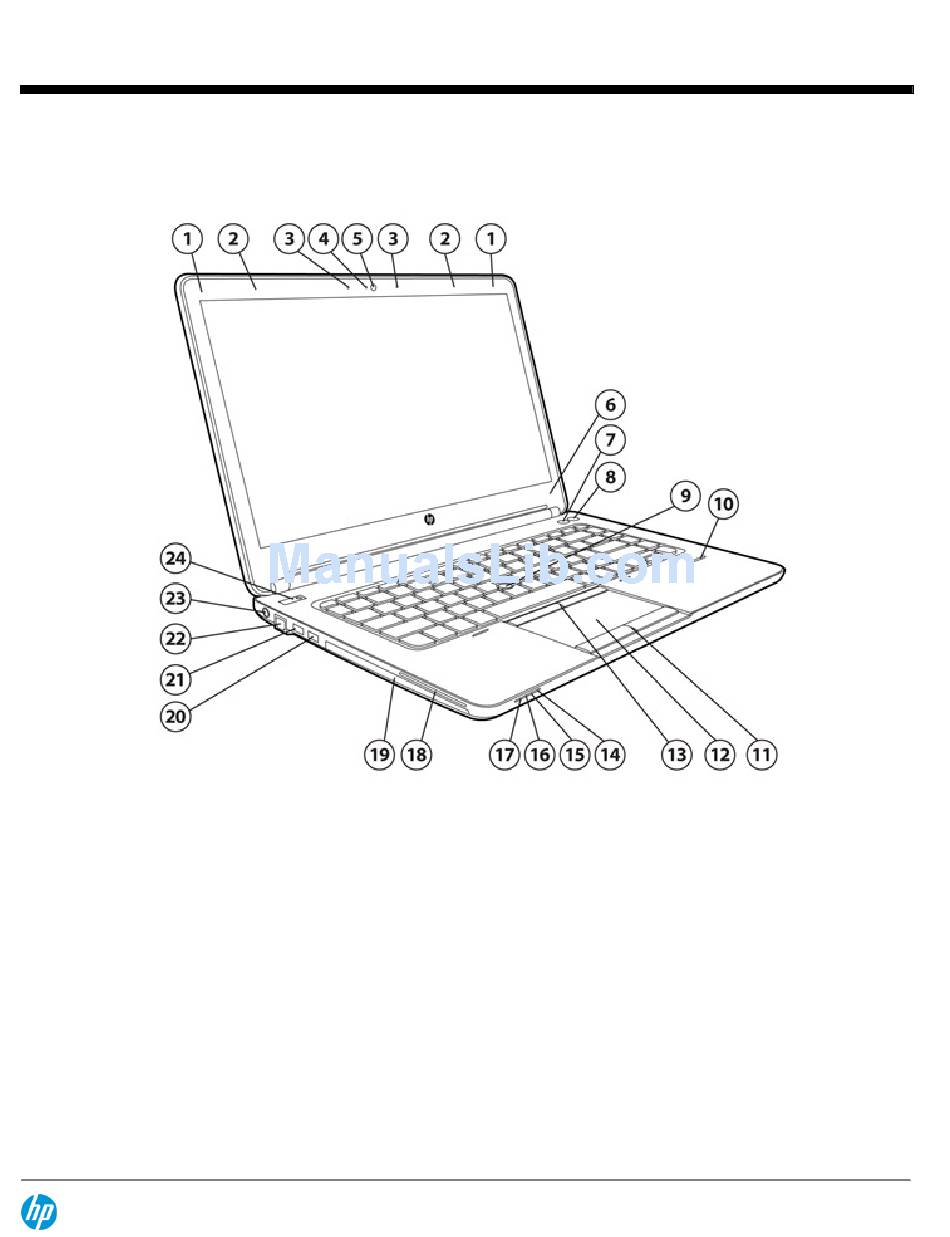

Overview

HP ProBook 645 G1 Notebook PC

WLAN antennas

(2)*

WWAN antennas

(2)*

Internal microphone array

Webcam light (select models only)

Webcam (select models only)

Internal display switch

Wireless button

Volume mute button

Pointing stick (select models only)

10. Fingerprint reader

11. Touchpad buttons

12. Touchpad zone

* The antennas are not visible from the outside of the computer. For optimal transmission, keep the areas immediately around

the antennas free from obstructions.

** Models without optional webcam have single integrated microphone on left side of display panel.

(2)**

DA - 14689 EMEA — Version 9 — March 27, 2014

Front/Left

13. Pointing stick buttons (select models only)

14. Hard drive light

15. AC adapter/Battery light

16. Power light

17. Wireless light

18. Smart Card Reader

19. Optical Drive (select models only)

20. USB 3.0 port (1)

21. USB 3.0 charging port (1)

22. RJ-45 (network) jack/lights

23. Power connector

24. Power button

HP ProBook 645 G1 Notebook PC

HP ProBook 655 G1 Notebook PC

Page 1

Table of Contents

Need help?

Do you have a question about the ProBook 645 G1 and is the answer not in the manual?

Questions and answers

Summary of Contents for HP COMPACT ProBook 645 G1

Page 1 HP ProBook 645 G1 Notebook PC QuickSpecs HP ProBook 655 G1 Notebook PC Overview HP ProBook 645 G1 Notebook PC Front/Left WLAN antennas (2)* 13. Pointing stick buttons (select models only) WWAN antennas (2)* 14. Hard drive light Internal microphone array (2)** 15.
Page 2 HP ProBook 645 G1 Notebook PC QuickSpecs HP ProBook 655 G1 Notebook PC Overview Right Audio-out (headphone) jack/Audio-in (microphone) jack External VGA monitor port USB 3.0 ports (2) Vents (2) DisplayPort 1.2 Security cable slot Bottom DA - 14689 EMEA — Version 9 — March 27, 2014...
Page 3 HP ProBook 645 G1 Notebook PC QuickSpecs HP ProBook 655 G1 Notebook PC Overview Service cover Service cover release lock Battery release latch Service door release latch SIM card slot Battery bay Docking connector Vents HP ProBook 655 G1 Notebook PC...
Page 4 HP ProBook 645 G1 Notebook PC QuickSpecs HP ProBook 655 G1 Notebook PC Overview Volume mute button USB 3.0 ports (1) Pointing stick (select models only) USB 3.0 charging port (1) Fingerprint reader (select models only) RJ-45 (network) jack/lights Touchpad buttons...
Page 5 HP ProBook 645 G1 Notebook PC QuickSpecs HP ProBook 655 G1 Notebook PC Overview Bottom Service cover Service cover release lock Battery release latch Service door release latch SIM card slot Battery bay Docking connector Vents DA - 14689 EMEA — Version 9 — March 27, 2014...
Page 6 HP ProBook 645 G1 Notebook PC QuickSpecs HP ProBook 655 G1 Notebook PC Overview At A Glance Windows 8 versions, Windows 7 versions, or FreeDOS 2.0 New thinner and lighter design - PC-ABS (Polycarbonate-Acrylnitrile/Butadiene/Styrene) durable material is nearly 20% thinner than previous generation;...
Page 7: Product Names
HP ProBook 645 G1 Notebook PC QuickSpecs HP ProBook 655 G1 Notebook PC Features PRODUCT NAMES HP ProBook 645 G1 Notebook PC HP ProBook 655 G1 Notebook PC OPERATING SYSTEM Preinstalled Windows 8 64* Windows 8 Pro 64* Windows 7 Professional 32 (available through downgrade rights from Windows 8 Pro 32)**...
Page 8 HP ProBook 645 G1 Notebook PC QuickSpecs HP ProBook 655 G1 Notebook PC Features GRAPHICS Integrated graphics: AMD Elite Quad-Core A10-5750M Accelerated Processor with AMD Radeon™ HD 8650G Graphics AMD Elite Quad-Core A8-4500M Accelerated Processor with AMD Radeon™ HD 7640G Graphics AMD Elite A6-4400M Accelerated Processor with AMD Radeon™...
Page 9: Optical Drives
HP ProBook 645 G1 Notebook PC QuickSpecs HP ProBook 655 G1 Notebook PC Features Video signal available through DVI port in optional HP Docking Station (sold separately) supports resolutions up to 1600 x 1200 at both full and reduced blanking, and 1920 x 1200 at reduced blanking...
Page 10 HP ProBook 645 G1 Notebook PC QuickSpecs HP ProBook 655 G1 Notebook PC Features MEMORY Standard DDR 3L PC3L-12800 (1600 MHz) Two SODIMM slots supporting dual-channel memory 4 GB and 8 GB SODIMMs* Maximum Upgradeable to 16384 MB with optional 8192 MB SODIMMs in slots 1 and 2 Dual-channel Maximized dual-channel performance requires SODIMMs of the same size and speed in both memory slots.
Page 11 HP ProBook 645 G1 Notebook PC QuickSpecs HP ProBook 655 G1 Notebook PC Features AUDIO/MULTIMEDIA Audio HD Audio with DTS Sound+ (2) Integrated stereo speakers Integrated digital microphone (dual-microphone array when equipped with optional webcam) Function keys for microphone mute, volume up, volume down...
Page 12 HP ProBook 645 G1 Notebook PC QuickSpecs HP ProBook 655 G1 Notebook PC Features Hybrid Boot Measured Boot Secure Boot Absolute Persistence Module***** * HP Tools partition with an HP BIOS required for automatic recovery. ** For the use cases outlined in the DOD 5220.22-M Supplement. Does not support Solid State Drives (SSDs). Initial setup required.
Page 13 HP ProBook 645 G1 Notebook PC QuickSpecs HP ProBook 655 G1 Notebook PC Features *** The wireless hotspot application requires an active internet connection and separately purchased data plan. While HP wireless hotspot is active, on-device applications will continue to work and will use the same data plan as the wireless hotspot.
Page 14 HP ProBook 645 G1 Notebook PC QuickSpecs HP ProBook 655 G1 Notebook PC Features POWER Power Supply External 65W HP Smart AC Adapter Power cord included is 1.8 m (+/- 0.1 m) or 1.0 m (+/- 0.1 m). Total length including external AC adapter is TBD feet (TBD meter).
Page 15: Weights And Dimensions
HP ProBook 645 G1 Notebook PC QuickSpecs HP ProBook 655 G1 Notebook PC Features WEIGHTS & DIMENSIONS HP ProBook 645 Notebook PC Weight Starting at 4.40 lb (2.0 kg) with weight saver (weight will vary by configuration) Dimensions (w x d x h) 13.39 x 9.33 x 0.99 (front)/1.14 (rear) in...
Page 16: Service And Support
HP ProBook 645 G1 Notebook PC QuickSpecs HP ProBook 655 G1 Notebook PC Features SERVICE AND SUPPORT HP Services offers limited 1-year warranty options depending on country; 1-year limited warranty on primary battery. On-site service and warranty upgrades are also available.
Page 17: System Unit
HP ProBook 645 G1 Notebook PC QuickSpecs HP ProBook 655 G1 Notebook PC Technical Specifications SYSTEM UNIT Stand-Alone Power Nominal Operating Requirements (AC Power) Voltage Average Operating Power TBD W Max Operating Power < 65 W Temperature Operating 32° to 95° F (0° to 35° C) (not writing optical) 41°...
Page 18 HP ProBook 645 G1 Notebook PC QuickSpecs HP ProBook 655 G1 Notebook PC Technical Specifications * Configurations of the HP ProBook 645 and HP ProBook 655 that are ENERGY STAR qualified are identified as HP ProBook 645 ENERGY STAR and HP ProBook 655 ENERGY STAR on HP websites and on www.energystar.gov.
Page 19 HP ProBook 645 G1 Notebook PC QuickSpecs HP ProBook 655 G1 Notebook PC Technical Specifications 15.6" diagonal LED- Outline Dimensions 14.17 x 8.83 x 0.15 in (36.0 x 22.43 x 0.38 cm) backlit HD anti-glare SVA (W x H x D) eDP 1.2 flat (1366x768)
Page 20 HP ProBook 645 G1 Notebook PC QuickSpecs HP ProBook 655 G1 Notebook PC Technical Specifications 7200 rpm SATA Drive Weight 0.25 lbs (115 g) Hard Drive Capacity 320 GB Height 0.37 in (9.5 mm) Width 2.75 in (70 mm) Interface ATA-8, SATA 2.6, 3.0 Gb/s, NCQ...
Page 21 HP ProBook 645 G1 Notebook PC QuickSpecs HP ProBook 655 G1 Notebook PC Technical Specifications SATA 6 Gb/s 128 GB*, 2.5- Drive Weight 73 Grams inch Solid State Drive Capacity 128 GB Height 0.276 in (7 mm) Width 2.76 in (70 mm)
Page 22 HP ProBook 645 G1 Notebook PC QuickSpecs HP ProBook 655 G1 Notebook PC Technical Specifications DVD+/-RW SuperMulti DL Access Times Random <140ms CD (typical) < 160 ms DVD (typical) Drive Max Data Transfer Rate 24X CD-ROM 8X DVD 24X CD-R...
Page 23 HP ProBook 645 G1 Notebook PC QuickSpecs HP ProBook 655 G1 Notebook PC Technical Specifications HP Fingerprint Reader Mobile Voltage Operation 3.0V-3.6V Operating Temperature 14° - 167°F (-10° - 75°C) Current Consumption 36 mA peak Image Low Latency Wait for...
Page 24 HP ProBook 645 G1 Notebook PC QuickSpecs HP ProBook 655 G1 Notebook PC Technical Specifications (PCS) UMTS/WCDMA with receive diversity: 2100MHz (UTRA FDD Band I), 1900MHz (UTRA FDD Band II), 900MHz (UTRA FDD Band VIII), 850 MHz (UTRA FDD Band...
Page 25 HP ProBook 645 G1 Notebook PC QuickSpecs HP ProBook 655 G1 Notebook PC Technical Specifications * Mobile Broadband is an optional feature sold separately or as an add on feature. Connection requires wireless data service contract, network support, and is not available in all areas. Contact service provider to determine the coverage area and availability.
Page 26 HP ProBook 645 G1 Notebook PC QuickSpecs HP ProBook 655 G1 Notebook PC Technical Specifications Temperature, non- -40° to 185° F (-40° to 85° C) operating, 96 hours (from MIL-STD 202 Method 108) Humidity, Non-operating 95% relative humidity for 48 hours @ 185° F (85° C) (non-condensing) LED Activity LED Off - Radio Off;...
Page 27 HP ProBook 645 G1 Notebook PC QuickSpecs HP ProBook 655 G1 Notebook PC Technical Specifications Dimensions 0.19 x 1.06 x 1.18 in (4.75 x 26.8 x 30 mm) Operating Voltage 3.3v +/- 9% Temperature Operating 14° to 158° F (-10° to 70° C) Non-operating -40°...
Page 28 HP ProBook 645 G1 Notebook PC QuickSpecs HP ProBook 655 G1 Notebook PC Technical Specifications Network Architecture Ad-hoc (Peer to Peer) Infrastructure (Access Point Required) Models Roaming IEEE 802.11 compliant roaming between access points Output Power 2.4G: +13.5dBm minimum 5G: +12dBm minimum Maximum output power must be able to achieve modular regulatory certification with notebooks that have antennas >20cm from the user...
Page 29 HP ProBook 645 G1 Notebook PC QuickSpecs HP ProBook 655 G1 Notebook PC Technical Specifications Data Rates and 3 Mbps data rate; throughput up to 2.17 Mbps Throughput Synchronous Connection Oriented links up to 3, 64 kbps, voice channels Asynchronous Connection Less links 2178.1 kbps/177.1 kbps asymmetric or 1306.9 kbps symmetric...
Page 30 HP ProBook 645 G1 Notebook PC QuickSpecs HP ProBook 655 G1 Notebook PC Technical Specifications * Wireless access point and internet service required. Availability of public wireless access points limited. AUDIO/MULTIMEDIA - DTS SOUND+ Hardware Implementation IDT 92HD91 Function Key...
Page 31 HP ProBook 645 G1 Notebook PC QuickSpecs HP ProBook 655 G1 Notebook PC Technical Specifications HP 65W Smart AC Adapter Dimensions 4.17 x 1.85 x 1.1 in (10.6 x 4.7 x 2.8 cm) Weight 0.62 lb (280 g) Input 100 to 240 VAC...
Page 32 HP ProBook 645 G1 Notebook PC QuickSpecs HP ProBook 655 G1 Notebook PC Technical Specifications HP 6-cell (55 WHr) Long Dimensions (H x W x L) 0.8 x 1.8 x 8.0in (2.0 x 4.7 x 20.5cm) Life Primary Battery Weight (max) .72lb, (.323kg)
Page 33: Environmental Data
HP ProBook 645 G1 Notebook PC QuickSpecs HP ProBook 655 G1 Notebook PC Technical Specifications Environmental Data Eco-Label This product has received or is in the process of being certified to the following approvals and may be labeled with one or more of these marks: Certifications &...
Page 34 HP ProBook 645 G1 Notebook PC QuickSpecs HP ProBook 655 G1 Notebook PC Technical Specifications Declared Noise Emissions (in accordance with Sound Power Sound Pressure ISO 7779 and ISO 9296) (LWAd, bels) (LpAm, decibels) Typically Configured - Idle 3.37 Fixed Disk - Random writes 3.42...
Page 35 HP ProBook 645 G1 Notebook PC QuickSpecs HP ProBook 655 G1 Notebook PC Technical Specifications HP ProBook 655 G1 Notebook PC System Configuration The configuration used for the Energy Consumption and Declared Noise Emissions data for the Notebook model is based on a "Typically Configured Notebook".
Page 36: All Models
HP ProBook 645 G1 Notebook PC QuickSpecs HP ProBook 655 G1 Notebook PC Technical Specifications This product is 97.5 % recycle-able when properly disposed of at end of life. Packaging Materials External: PAPER/Corrugated 513.5 g Internal: PLASTIC/EPE (Expanded Polyethylene) 33.4 g PLASTIC/Polyethylene low density 26 g The PAPER/Corrugated contains at least 70% recycled content.
Page 37: Country Of Origin
HP ProBook 645 G1 Notebook PC QuickSpecs HP ProBook 655 G1 Notebook PC Technical Specifications Plastic packaging materials are marked according to ISO 11469 and DIN 6120 standards. END-OF-LIFE MANAGEMENT AND RECYCLING Hewlett-Packard offers end-of-life HP product return and recycling programs in many geographic areas. To recycle your product, please go to: http://www.hp.com/go/reuse-recycle or contact your nearest HP sales office.
Page 38: Options And Accessories (Sold Separately And Availability May Vary By Country)
HP ProBook 645 G1 Notebook PC QuickSpecs HP ProBook 655 G1 Notebook PC Options and Accessories (sold separately and availability may vary by country) Type Description Part # Cases HP Professional Series Carrying Case (up to 15.6") H4J90AA HP Professional Slim Top Load Case (up to 17.3") H4J91AA HP Business Backpack (up to 17.3")
Page 39 HP ProBook 645 G1 Notebook PC QuickSpecs HP ProBook 655 G1 Notebook PC Options and Accessories (sold separately and availability may vary by country) Copyright © 2014 Hewlett-Packard Development Company, L.P. All rights reserved. Intel, Core, and Celeron are registered trademarks or trademarks of Intel Corporation in the U.S. and/or other countries.
