Argos FS-CG-140X140X80 Instruction Manual

105w palm sander

Advertisement

105W PALM SANDER
INSTRUCTION MANUAL
FS-CG-140X140X80
ORIGINAL INSTRUCTIONS

Advertisement

Table of Contents
loading

Summary of Contents for Argos FS-CG-140X140X80

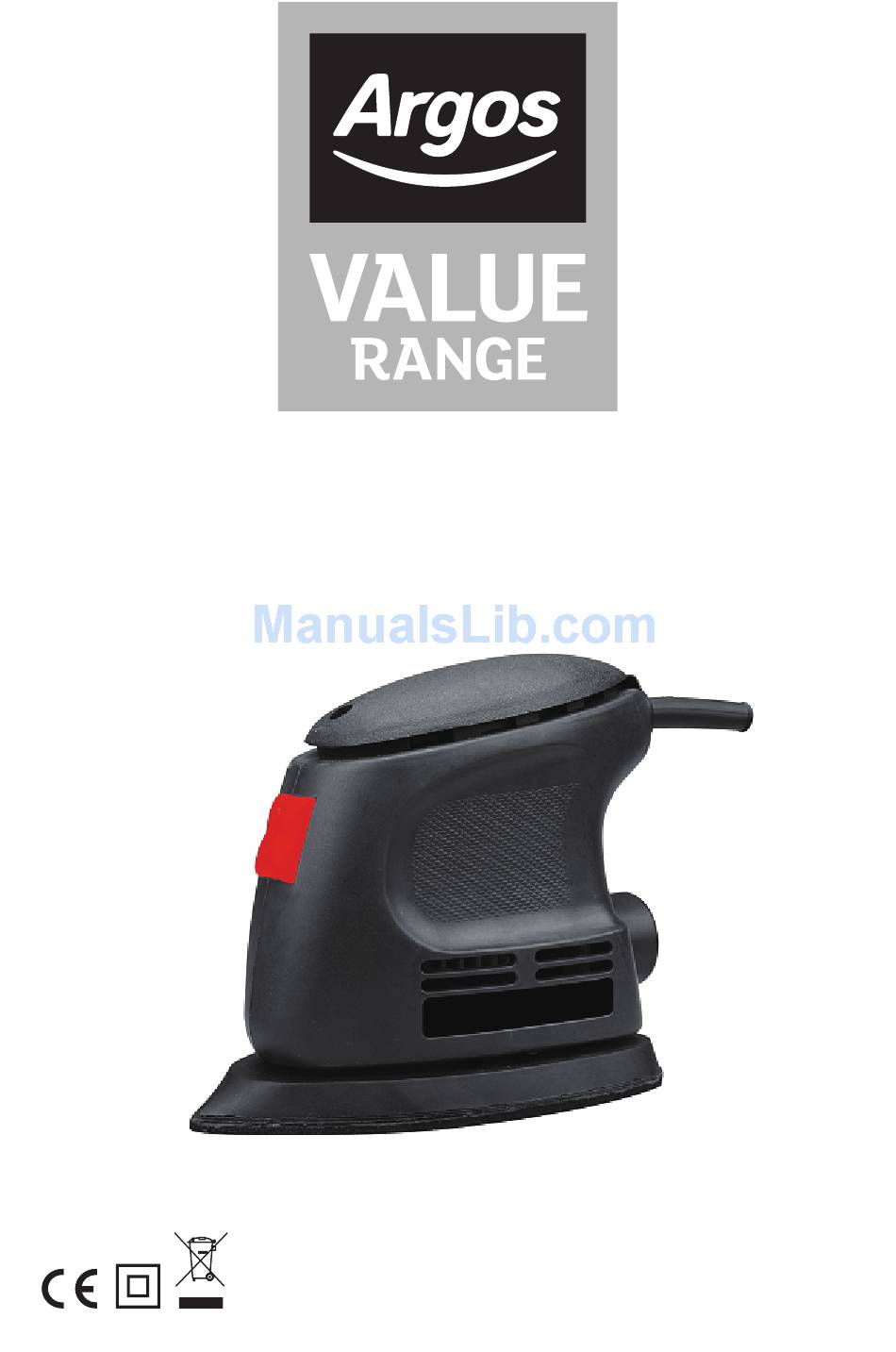

  • Page 1 105W PALM SANDER INSTRUCTION MANUAL FS-CG-140X140X80 ORIGINAL INSTRUCTIONS...
  • Page 2: General Power Tool Safety Warnings

    ORIGINAL INSTRUCTIONS GENERAL POWER TOOL suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk SAFETY WARNINGS of electric shock. WARNING: Read all safety f) If operating a power tool in a damp warnings and all instructions. location is unavoidable, use a residual Failure to follow the warnings and current device (RCD) protected...
  • Page 3 ORIGINAL INSTRUCTIONS b) If the replacement of the supply cord hazards. is necessary, this has to be done by 4) POWER TOOL USE AND CARE the manufacturer or his agent in order a) Do not force the power tool. Use to avoid a safety hazard.
  • Page 4 ORIGINAL INSTRUCTIONS SYMBOLS WARNING: Some dust particles created by power sawing, contain To reduce the risk of injury, chemicals known to cause cancer, birth user must read instruction defects or other reproductive harm. manual Some examples of these chemicals are: •...
  • Page 5: Component List

    ORIGINAL INSTRUCTIONS COMPONENT LIST 1. Sanding pad 2. On/Off switch 3. Dust extractor connection 4. Dust port CHECK THE DELIVERY PARTS Carefully remove the machine from its packaging and check as the following parts are complete: -- Palm sander -- Sandpaper x 3 -- dust port -- operating instructions If any parts are missing or damaged, please contact your...
  • Page 6: Technical Data

    ORIGINAL INSTRUCTIONS TECHNICAL DATA Voltage 230-240V~50Hz Power 105W Rated speed 13000/min Pad size: 140x140x80mm Protection class Machine weight 0.9kg NOISE INFORMATION A weighted sound pressure 72dB(A) A weighted sound power 83dB(A) & K 3dB(A) Wear ear protection when sound pressure is over 80dB(A) VIBRATION INFORMATION Vibration total values (triax vector sum) determined according to EN 60745:...
  • Page 7: Intended Use

    ORIGINAL INSTRUCTIONS OPERATING INSTRUCTIONS NOTE: Before using the tool, read the instruction book carefully. INTENDED USE The machine is intended for dry sanding of wood, plastic, metal, Filler as well as coated surfaces. Important! ASSEMBLY Keep the cooling vents on the motor housing clean and unobstructed at all 1.
  • Page 8 ORIGINAL INSTRUCTIONS Switch off: changing the orbital stroke rate, Press ON/OFF switch at the position ”O” the sanding plate stroke rate can be reduced whereby the orbital action is maintained. With moderate pressure, move the machine in a circular pattern or alternately in lengthwise and crosswise directions over the work piece.
  • Page 9: Plug Replacement

    ORIGINAL INSTRUCTIONS PLUG REPLACEMENT Your Power Tool is supplied with a fitted plug, however if you need to fit a new plug follow the instruction below. IMPORTANT The wires in the mains lead are coloured in accordance with the following code: Blue = Neutral Brown = Live As the colours of the wires in the mains lead of this appliance may not correspond...
  • Page 10 ORIGINAL INSTRUCTIONS DISPOSAL Do not dispose of electrical appliances with your domestic waste! The packaging comprises exclusively environmentally- friendly material. Dispose of it in your local recycling containers. General inspection. Regularly check that all the fixing .They may vibrate loose over time. GUARANT EE This product is selected for DOMESTIC USE ONLY and not for business use.
  • Page 11 We hereby certify that the product stipulated above complies with all the relevant provisions of the following EC new approach directive/s. This declaration of conformity is issued under the sole responsibility of the manufacturer Type of Product: 105W Palm Sander Model Number: FS-CG-140X140X80 Cat / Article Number:7113213 Product Description: Photograph:...
