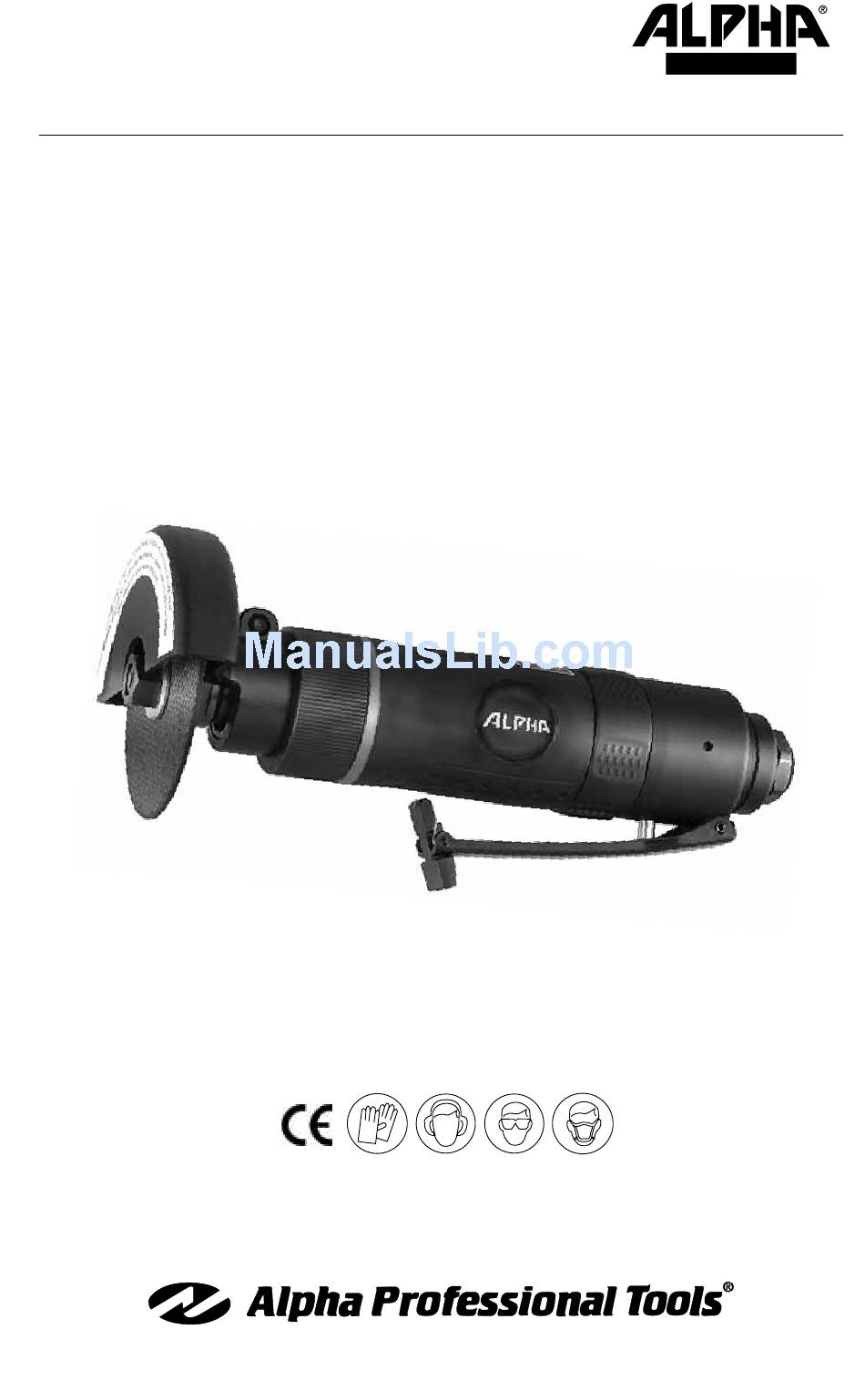

MANUAL

Alpha

Pneumatic

Reversible

Cut-Off Tool

Part No: COTR-03

Version 2

Safety Warning: Always wear eye and respiratory protection as

well as proper personal safety equipment when using this product.

Comply with ANSI B7.1 and OSHA requirements.

103 Bauer Drive, Oakland, NJ 07436 • 800-648-7229 • Fax: 800-286-0114

www.alpha-tools.com

Table of Contents

Need help?

Do you have a question about the COTR-03 and is the answer not in the manual?

Questions and answers

Summary of Contents for Alpha Professional Tools COTR-03

Page 1 Alpha Pneumatic ® Reversible Cut-Off Tool Part No: COTR-03 Version 2 Safety Warning: Always wear eye and respiratory protection as well as proper personal safety equipment when using this product. Comply with ANSI B7.1 and OSHA requirements. 103 Bauer Drive, Oakland, NJ 07436 • 800-648-7229 • Fax: 800-286-0114...
Page 3: Table Of Contents
Safety Instructions for Power Tools ..............2 COTR-03 Features ...................4 COTR-03 Overview ..................5 Removal/Installation the Blade .................6 COTR-03 Schematic ..................8 COTR-03 Parts List ..................9 Accessories and Factory Service ..............11 Product Registration ..................12 for repair information call: Headquarters, Oakland, NJ — (800) 648-7229 ext.505...
Page 4: Introduction
INTROduCTION Thank you for purchasing an Alpha Pneumatic Reversible Cut-Off Tool. A wide ® range of accessories help you perform many different tasks. For your safety, please read this manual thoroughly before you start operating this polisher. abOuT The SymbOlS According to the hazard level, all safety notes in this manual are classified into “DANGER”, “WARNING”, and “CAUTION”.
Page 5 DON’T FORCE TOOL. It will do the job better and safer at the rate for which it was designed. WEAR PROPER APPAREL. Do not wear loose clothing or jewelry as it can get caught in moving parts. Rubber gloves and insulated non-skid footwear are recommended.
Page 6: Cotr-03 Features
14. MAINTAIN TOOLS WITH CARE. Keep tools clean at all times for best and safest performance. 15. AVOID ACCIDENTAL STARTING. Do not carry a “connected” tool, or make adjustments, or change blades without making sure the tool is disconnected from the air supply. 16.
Page 7: Cotr-03 Overview
Reversible Cut-Off Tool COTR-03 OveRvIeW Part No: COTR-03 Version 1 SPeCIFICAtIONS: Free Speed ..............20,000 RPM Cutting Disc Dimensions ............ 3” (75mm) Air Inlet ................. 1/4” NPT Safety Warning: Always wear eye and respiratory protection as Hose Size ID ..............3/8” (10mm) well as proper personal safety equipment when using this product.
Page 8: Removal/Installation The Blade
remOvAL/INStALLAtION tHe BLADe CAUTION! Place the Spanner on the bolt flange (See Fig.1) Figure-1 Insert the Key Wrench inside the screw NOTE: Screw has a reverse thread.(See Fig.2) Figure-2 Turn the Hex. Key Wrench in a clockwise rotation to remove the screw from the spindle.
Page 9 remOvAL/INStALLAtION tHe BLADe CAUTION! After the screw has been removed from the spindle, place the Spanner on the Spindle and the second Spanner on the bolt flange. (See Fig.4) Figure-4 Turn the Spanner located on the bolt flange in a counter- clockwise rotation to remove from the spindle.
Page 10: Cotr-03 Schematic
COTR-03 SChemaTIC ®...
Page 11: Cotr-03 Parts List
COTR-03 PaRTS lIST ® DRAWING NO. PART NO. DESCRIPTION QUANTITY 3010-0001 Motor Housing 3010-0002 Spring Pin (3x22) 3010-0003 Air Inlet 3010-0004 Throttle Lever 3010-0005 3010-0006 Reverse Valve 3010-0007 Spring Pin (2x16) 3010-0008 Spring 3010-0009 Rubber Spacer 3010-0010 Valve Stem...
Page 12 COTR-03 PaRTS lIST ® DRAWING NO. PART NO. DESCRIPTION QUANTITY 3010-0027 Bolt Flange 3010-0028 Screw (L M5x35) ABM0338 Ultracut ABM 3” (75mm) 3010-0030 Washer (M5) 3010-0031 Spring Pin (2x4) 3010-0032 Spring (5) 3010-0033 O-Ring (2) (15.8x2.4) 3010-0034 Reverse Valve Knob 3010-0035 O-Ring (31x1.5)
Page 13: Accessories And Factory Service
® workmanship for a period of one year from the date of original retail purchase (proof of purchase required). If Alpha Professional Tools receives notice of such ® defects during the warranty period, our obligation assumed under this warranty is limited to the repair or replacement of parts, without charge.
Page 14: Product Registration
PRODUCT REGISTRATION CARD Model No. COTR-03 Serial No. Company Name: ______________________________________________ Name: ______________________________________________________ Address: ____________________________________________________ City: _______________________State: ________Zip: ________________ Telephone: ___________________________________________________ Purchase Date: _______________________________________________ Dealer’s Name: _________________________________ Note: Serial & Model Number must be included for proper registration. (800) 648-7229 Register online at: www.alpha-tools.com/productregistration.aspx...
