Page 1: User Guide

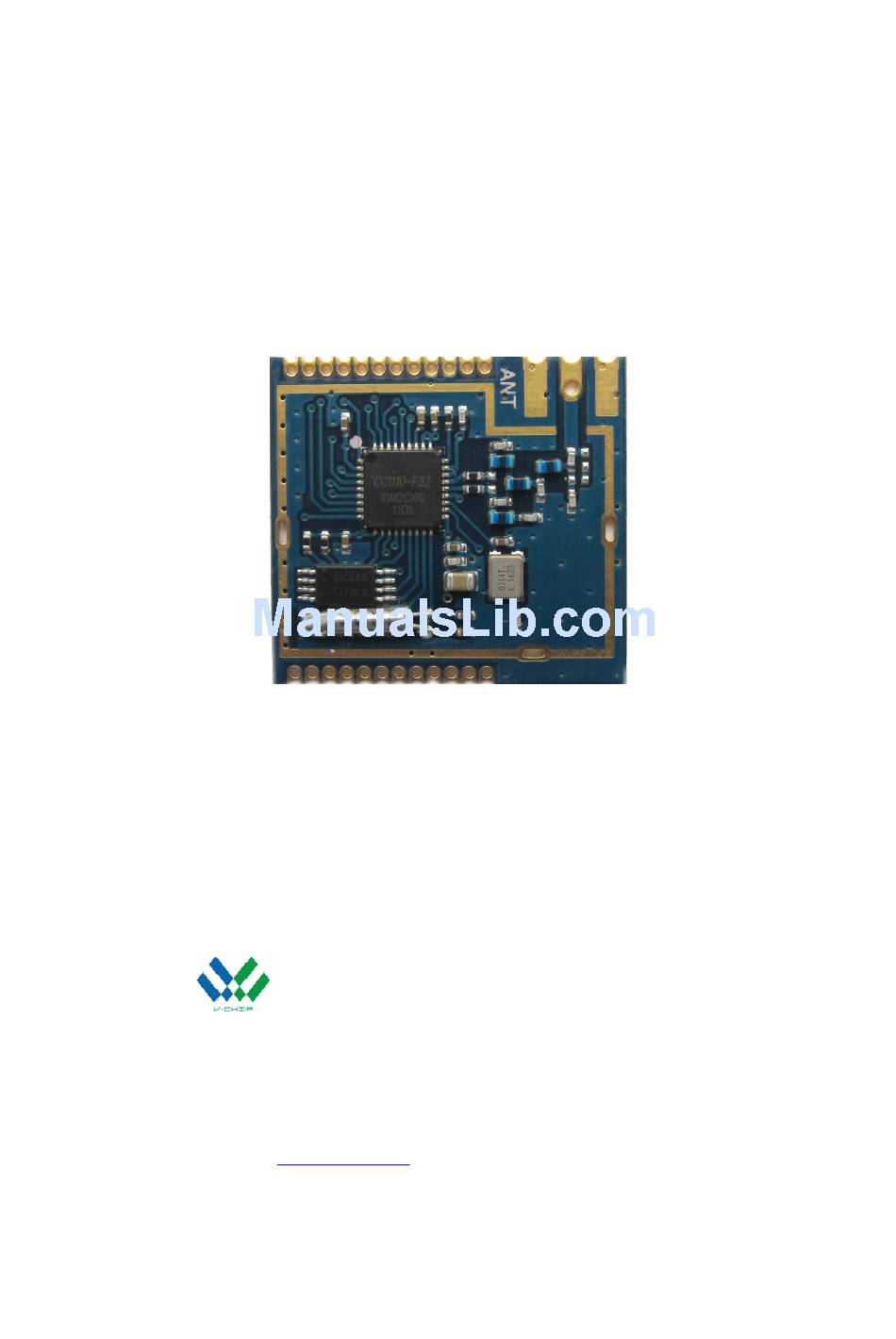

VT-CC1110-433M Wireless Wireless Module Module User User Guide Guide User User Guide Guide V-CHIP MICROSYSTEMS Co. Ltd Address: Room 612-613, Science and Technology Service Center Building, NO.1, Qilin Road, Nanshan District, Shenzhen, Guangdong TEL：0755-88844812 FAX：0755-22643680 E-mail：sales@digirf.com Post Code：518052 Web Site：www.digiRF.com... - Page 2 Description Description VT-CC1110-433M is based on RF Transceiver CC1110 of TI Chipcon，it’s a small size and ultra low power UHF wireless module. combines the excellent performance of the state-of-the-art RF transceiver CC1101 with an industry-standard enhanced 8051 MCU. The circuit is mainly intended for the ISM (Industrial, Scientific and Medical) and SRD (Short Range Device) frequency bands at 315, 433, 868 and 915 MHz, The MAX RF output power can be set as high as +10dBm, with data rate as high as 500Kbps.
- Page 3 4． The antenna will strongly affect the communication distance, please select matched antenna and connect it correctly. 5． The module mount will affect the communication distance. COPYRIGHT @ 2012 Shenzhen V-CHIP MICROSYSTEMS Co. Ltd VERSION: VT-CC1110-APR-2012...
- Page 4 P1_3 D I/O CC1110 P1_3 P1_4 D I/O CC1110 P1_4 P1_5 D I/O CC1110 P1_5 P1_6 D I/O CC1110 P1_6 P1_7 D I/O CC1110 P1_7 RF I/O Antenna Impedance 50ohm COPYRIGHT @ 2012 Shenzhen V-CHIP MICROSYSTEMS Co. Ltd VERSION: VT-CC1110-APR-2012...
- Page 5 After wake up from Sleep State, the module get into Idle State. Except the Sleep State, each state can be switch by SPI interface, also programmed to auto-switch. CC1110’s radio control state diagram is shown as below, for detail information in the CC1110 datasheet. COPYRIGHT @ 2012 Shenzhen V-CHIP MICROSYSTEMS Co. Ltd VERSION: VT-CC1110-APR-2012...
- Page 6 25.9mm 24.5mm P1_5 R0.6mm P1_3 P0_0 19mm P1_4 P2_2 1.6mm 1.27mm P1_7 P2_1 P1_6 P2_0 1.6mm 6.68mm P1_1 P1_2 R0.8mm P0_2 P0_5 R0.425mm 1.67mm P0_3 P0_4 5.6mm 12.75mm 24mm 0.9mm COPYRIGHT @ 2012 Shenzhen V-CHIP MICROSYSTEMS Co. Ltd VERSION: VT-CC1110-APR-2012...
- Page 7 COPYRIGHT @ 2012 Shenzhen V-CHIP MICROSYSTEMS Co. Ltd VERSION: VT-CC1110-APR-2012...
- Page 8 COPYRIGHT @ 2012 Shenzhen V-CHIP MICROSYSTEMS Co. Ltd VERSION: VT-CC1110-APR-2012...
- Page 9 NOTICE NOTICE V-CHIP MICROSYSTEMS Co. Ltd (below called V-CHIP) reserve the right to make corrections, modifications, enhancements, improvements, and other changes to its products and services at any time and to discontinue any product or service without notice. Customers should obtain the latest relevant information before placing orders and should verify that such information is current and complete.
