Summary of Contents for DeepSea Power & Light LSL-1000

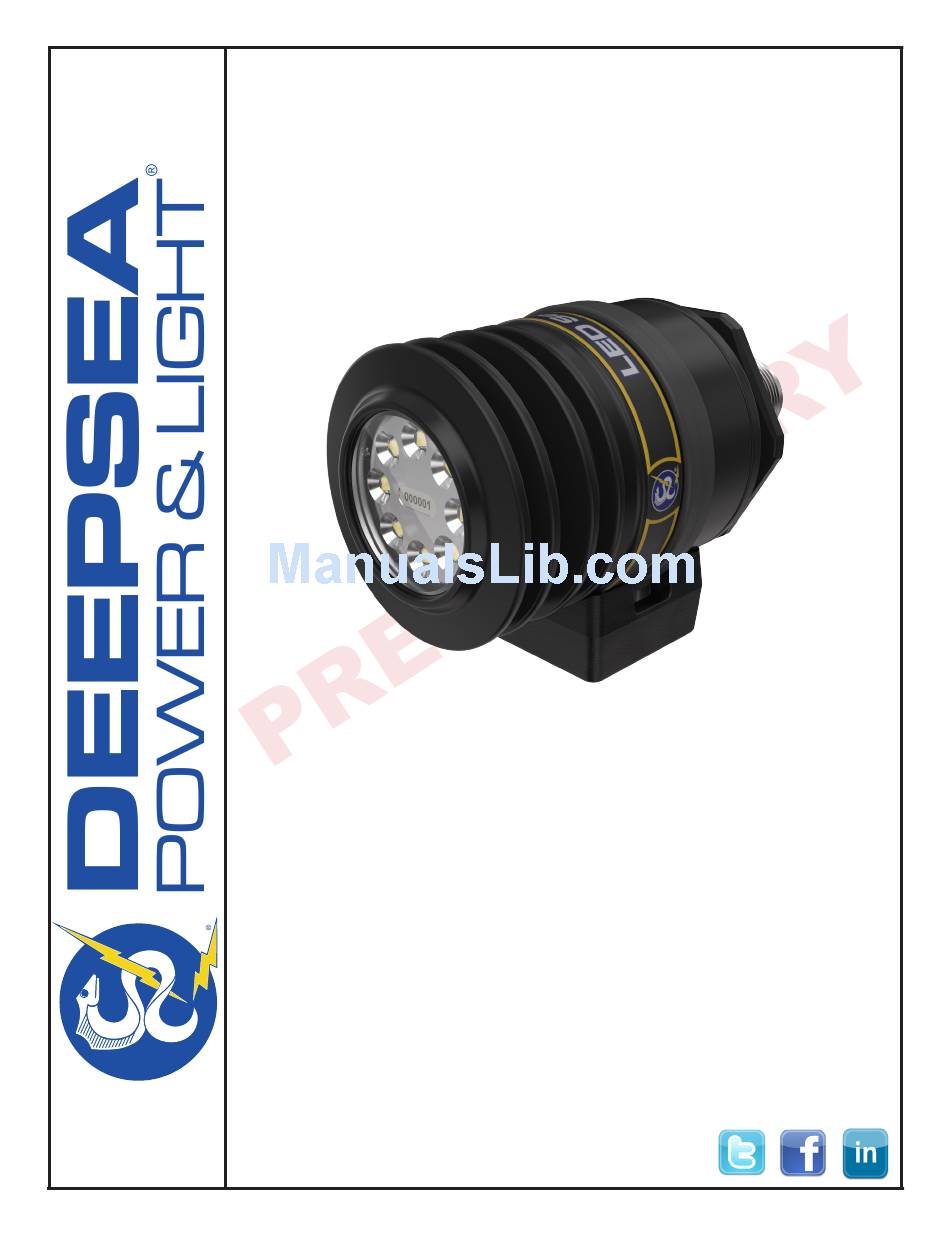

- Page 1 LED Sealite ® 1000, 2000 Operator’s Manual 4033 Ruffin Road www.deepsea.com San Diego, CA 858-576-1261 sales@deepsea.com 92123- 1817 USA 858-576-0219 Original Instruction REV 02/13/17...
-
Page 2: Specification Overview
Operator’s Manual LED SeaLite ® Specification Overview LSL-1000 LSL-2000 Optical Specifications Typical Lumen Output 9,000 (Flood) Efficacy 56 lm/w 85 lm/w Wide : 2,300 lx Flood: 5,600 lx Spot: 14,000 lx Dual Beam: 9,400 lx Day Light White 5000 K ~ 6500 K... -
Page 3: Specification Overview
Operator’s Manual LED SeaLite ® Specification Overview Standard Endcap 5.01 4.76 127.3 120.9 3.73 3.48 94.9 88.5 2.48 2.48 3.10 3.10 63.0 63.0 78.7 78.7 1.59 1.59 40.3 40.3 1.60 1.35 40.6 34.2 SPOT FLOOD mm [inch] Extended Endcap Option 5.59 5.34 142.1... -
Page 4: Table Of Contents
Pre & Post Dive Inspection ......................5 Troubleshooting ..........................6 RMA Procedure for Repair ......................6 Limited Warranty ..........................6 Appendix A LSL-1000 Driver Characteristics ................7-8 Appendix B LSL-2000 Driver Characteristics ................9-10 Appendix C Dimming Curve ......................11-13 Appendix D Beam Patterns ......................14 Appendix E SeaSense Information ..................... -
Page 5: General Notes & Warnings
Operator’s Manual LED SeaLite ® Safety Symbols In this operator’s manual and on the product, safety symbols are used to communicate important safety information. This section is provided to improve understanding of these symbols. This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death. -
Page 6: Pre & Post Dive Inspection
Operator’s Manual LED SeaLite ® Pre & Post Dive Inspection All shipments should be sent to the address below: DeepSea Power & Light Check to make sure that the rear bulkhead connector, Attn: RMA #### mating connector, and all mounting hardware are secure 4033 Ruffin Road before deployment. -
Page 7: Appendix A Lsl-1000 Driver Characteristics
Operator’s Manual LED SeaLite ® Appendix A LSL-1000 Driver Characteristics LSL-1000: Real Power vs. RMS Input Voltage Input Voltage, V-rms LSL-1000: Peak RMS Current vs. RMS Input Voltage Input Voltage, V-rms... - Page 8 Operator’s Manual LED SeaLite ® LSL-1000: Power Factor vs. RMS Input Voltage 0.94 0.92 0.90 0.88 0.86 0.84 0.82 0.80 0.78 Input Voltage, VAC LSL-1000: Thermal Operating Limits 100% 100% 100% -10°C -5°C 0°C 5°C 10°C 15°C 20°C 25°C 30°C 35°C...
-
Page 9: Appendix B Lsl-2000 Driver Characteristics
Operator’s Manual LED SeaLite ® Appendix B LSL-2000 Driver Characteristics LSL-2000: Input Power vs. DC Input Voltage 100% 10 12 14 16 18 20 22 24 26 28 30 32 34 36 38 40 42 44 46 48 Input Voltage, VDC Low Input Range High Input Range Low Output Range... - Page 10 Operator’s Manual LED SeaLite ® LSL-2000: Thermal Operating Limits 100% 100% 100% -10°C -5°C 0°C 5°C 10°C 15°C 20°C 25°C 30°C 35°C 40°C Ambient Water Temperature 10VDC 20VDC 48VDC...
-
Page 11: Appendix C Dimming Curve
Operator’s Manual LED SeaLite ® Appendix C Dimming Curve SeaSense™ Serial Dimming Curve 100% 95 100 LOUT Command Value LSL-1000 TRIAC Phase Dimming Curve 100% Phase Angle... - Page 12 Operator’s Manual LED SeaLite ® LSL-2000 0~5V Analog Dimming Curve 100% 0.0V 0.5V 1.0V 1.5V 2.0V 2.5V 3.0V 3.5V 4.0V 4.5V 5.0V Dimming Voltage, V LSL-2000 0~10V Analog Dimming Curve 100% Dimming Voltage, V...
- Page 13 Operator’s Manual LED SeaLite ® LSL-2000 4~20mA Analog Dimming Curve 100% 10mA 12mA 14mA 16mA 18mA 20mA Dimming Control Current, mA...
-
Page 14: Appendix D Beam Patterns
20.0° 20.0% 10.0° 10.0% 0.0° 0.0% -10.0° -20.0° -30.0° -40.0° -50.0° -60.0° -70.0° -80.0° -90.0° 100% % Output LED SeaLite Daylight White Flood LED SeaLite Daylight White Spot LSL-1000-6KA-DW-075-PV-SUBMC3 LSL-1000-6KA-DW-035-PV-SUBMC3 5680 14400 Peak Lux: Peak Lux: FWHP Angle: FWHP Angle:... -
Page 15: Appendix E Seasense Information
Operator’s Manual LED SeaLite ® Appendix E SeaSense Information ™ The DSPL SeaSense serial protocol is used to control enabled products in real-time over standard EIA-485 (RS-485) and EIA-232 (RS-232) industrial serial communications interfaces. While the physical topology of these serial interfaces can differ significantly, this protocol is designed to operate equally well in each environment.
