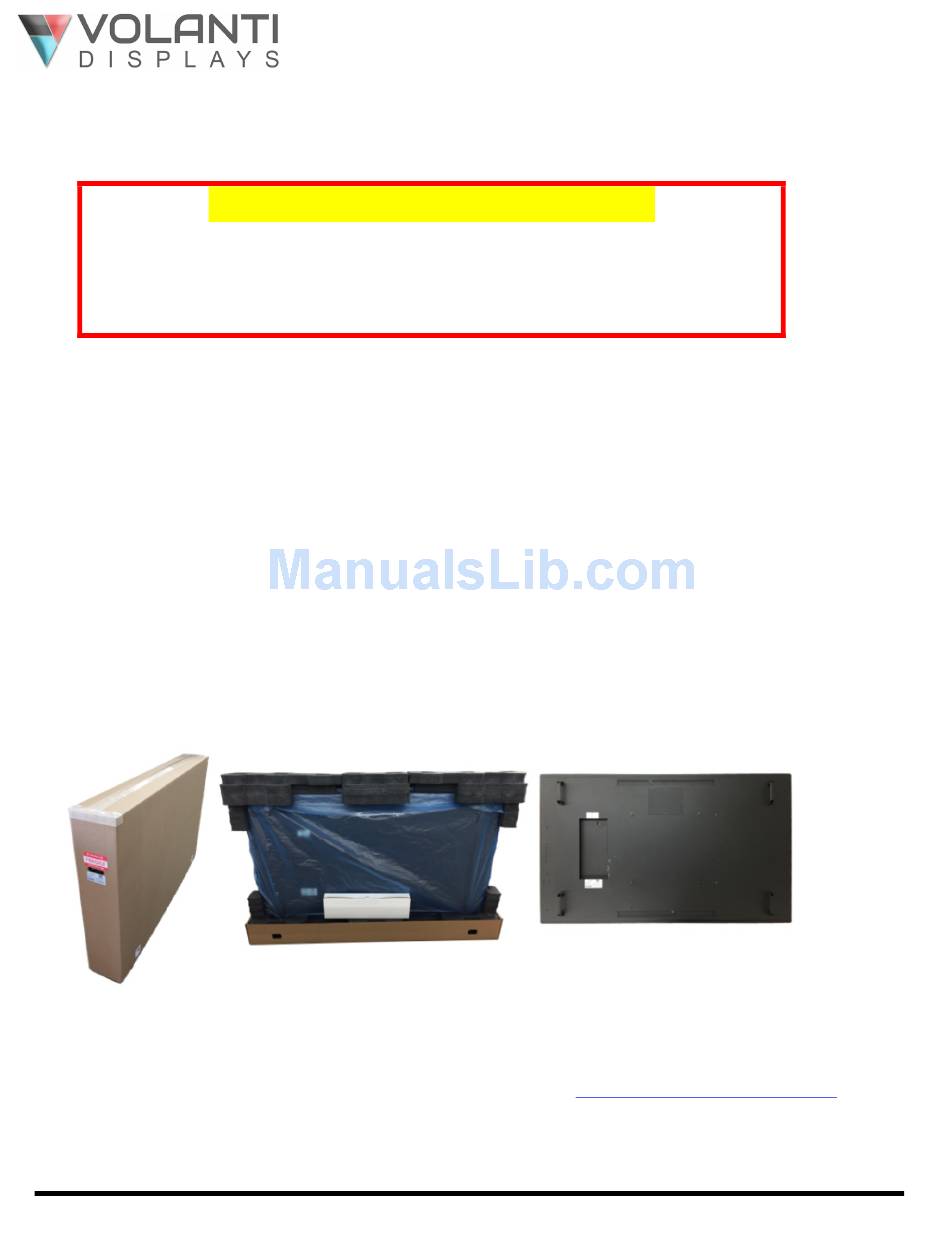

Unpacking & Installation Guide
WHEN THE MONITOR ARRIVES
Immediately inspect the packaging looking for damage, in addition
check the Tip 'N Tell indicators. Take photos if appropriate and
consider rejecting the shipment if serious damage is evident.
PREPARATION
You will need:
• A place to mount the monitor – the monitor should be taken from the packaging
direct to its wall or cart mounting location
• VESA compatible mounting brackets - to install on the back of the monitor
before removing it from its packaging base.
• Cautions: The monitor is heavy, it is not waterproof and runs from AC power –
care and appropriate qualification is required for handling.
Packing Specifications:
Packing box size:
•
Packed weight:
•
Monitor size:
•
Monitor weight:
•
Monitor mounting:
•
Volanti Displays Contact:
Tel: +1-408-579 1620
© Copyright Volanti Displays 2016
66"L x 9.5"W x 41"H
125lbs
60"L x 35"W x 3.6"T (2.5" with handles removed)
105lbs
VESA standard 400mmx400mm 9recommended) and
600mmx400mm mounting holes using M6 screws (supplied).
Email:
www.volantidisplays.com
Volanti Display
65" Multi-Touch Monitor
info@volantidisplays.com
Page 1 of 7
