HUMIDIFIER
Precaution:
The installer should be an experienced service
technician. DISCONNECT ELECTRICAL POWER
BEFORE BEGINNING INSTALLATION. Do not
install where temperatures fall below
32° F / 0° C or where plenum temperatures
exceed 150° F / 66° C. When wiring into a
multi-speed blower circuit see Step 6.
Installation:
The humidifier may be mounted with the
6˝ outlet to the right or left by inverting the
cabinet and reversing the positions of the
side panel. The humidifier may be mounted
on the supply or return air plenum with
equal efficiency.
FOR INSTALLATION ON A VERTICAL PLENUM
SURFACE OF ANY FORCED AIR FURNACE
Additional Materials That May Be Necessary:
1. 1/4˝ diameter plastic supply tubing
(or 1/4˝ copper supply tubing for hot
water applications).
2. 6˝ diameter galvanized by-pass pipe
(provided with "B" models, which include
a bypass kit).
3. 18 Gage electrical wire and wire nuts
4. Current sensing relay (part number HEP-GA50
suggested) or air pressure proving switch
(part number HEP-12500 suggested).
5. #8 self piercing sheet metal screws.
Proprietary Notice
This document and the information disclosed herein are
proprietary data of Daikin North America LLC. Neither this
document nor the information contained herein shall be
reproduced, used, or disclosed to others without the written
authorization of Daikin North America LLC except to the
extent required for installation or maintenance of recipient's
equipment.
Liability Notice
Daikin North America LLC does not accept any liability for
installations of humidity equipment installed by unqualified
personnel or the use of parts/components/equipment that
are not authorized or approved by Daikin.
Copyright Notice
Copyright 2013, Daikin North America LLC All rights reserved.
HVAC Installer: Read and save these instructions. This guide to be left with equipment owner. Equipment Owner:
in the product registration card to register this product. Product registration is required to get the benefits of the warranty,
except that failure by residents of California or Quebec to register the products will not diminish their warranty rights.
IO-HE12-A
HE12
Evaporative Bypass Humidifier
Warm Air

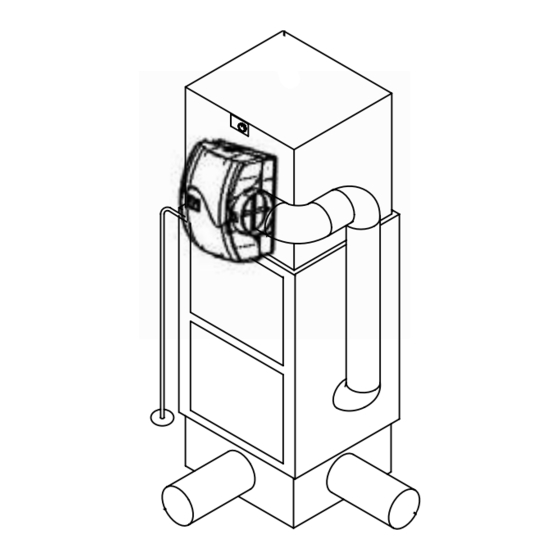

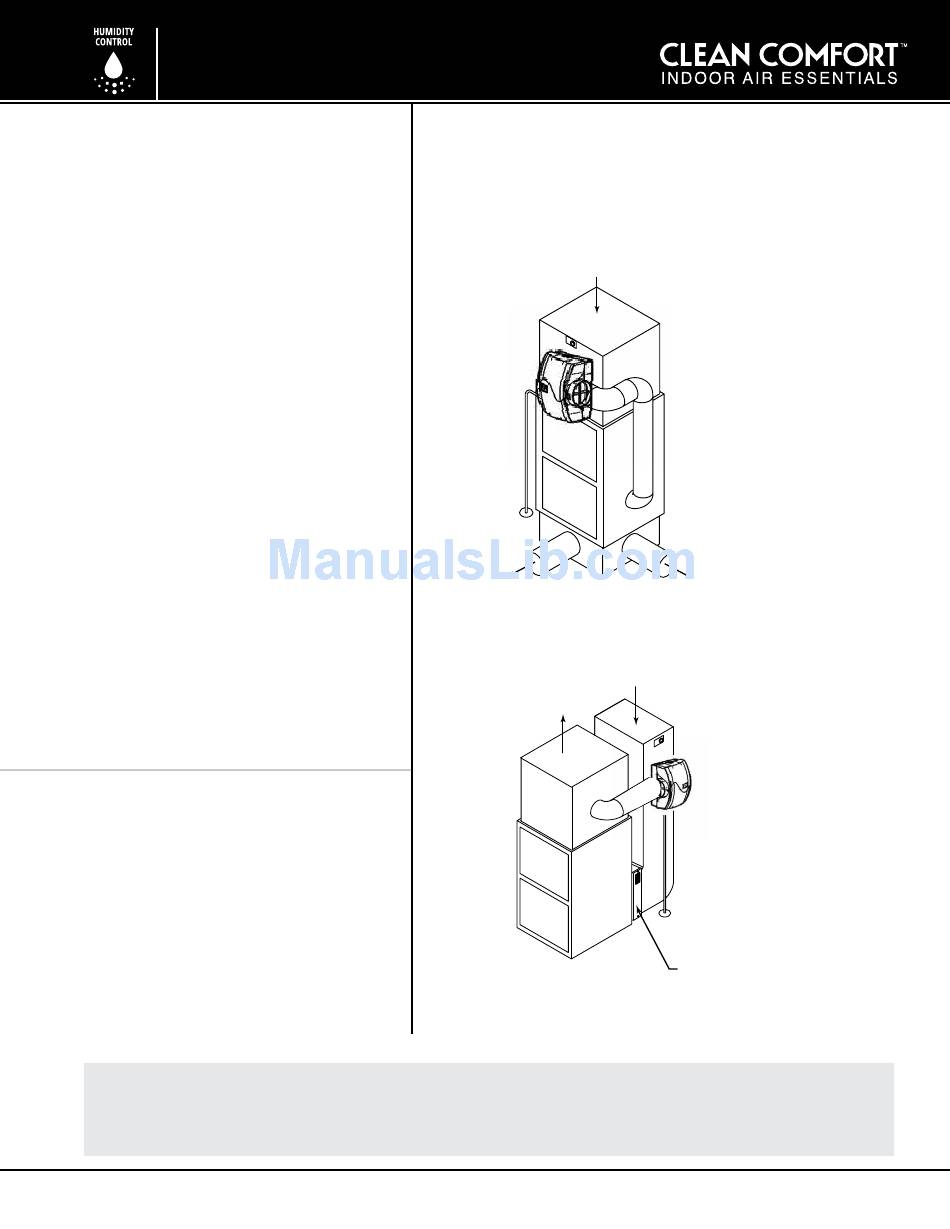

Typical Installation For Bypass Humidifiers
Important:
See the full warranty text at your dealer or at the end of this document.
WWW.CLEANCOMFORT.COM
Return Air
Drain
DOWN FLOW
Return Air
Warm Air
Drain
UP FLOW
Warm Air
Clean Comfort High Efficiency
Media or Electronic Air Cleaner
Fill out and send
10/13
Advertisement
Table of Contents
Summary of Contents for CLEAN COMFORT HE12
- Page 1 Drain Daikin North America LLC does not accept any liability for installations of humidity equipment installed by unqualified Clean Comfort High Efficiency personnel or the use of parts/components/equipment that Media or Electronic Air Cleaner are not authorized or approved by Daikin.
- Page 2 Attach by-pass pipe to humidifier here 8-7/8˝ The Clean Comfort Model HE12 may be installed on Connect by-pass pipe to collar and humidifier cabinet. Using holes at top and bottom of side panel discharge, either the supply or return plenum of a forced air handling system.
- Page 3 7H – To constant power using COMMON LEAD SPEED CURRENT BLOWER 24V relay and current SENSING MOTOR RELAY sensing relay FURNACE HUMIDISTAT BOARD 115v. 60CY. (HOT) (HOT) ON-OFF SWITCH ON-OFF SWITCH 115v. 60CY. 24 V. TRANSFORMER 24 V. TRANSFORMER WWW.CLEANCOMFORT.COM IO-HE12-A...
-
Page 4: Care And Maintenance
HEP- P101 COMPRESSION NUT Humidistats (Not Shown): HEP-P189 BRASS TUBE INSERT HE12 “A” Models = HEP-GFX3 HE12 “M” Models = HEP-MHX3 CARE AND MAINTENANCE Your humidifier is engineered to give helpful and body (part number HEP-900-6). Clean the mineral deposits trouble-free humidification. - Page 5 Where can I purchase 1. Replacement parts can be purchased through the installing contractor. replacement parts? * The humidistat is generally located on furnace return plenum, or on an inside wall in the living space. TECHNICAL SUPPORT • 1-855-303-1821 • www.cleancomfort.com WWW.CLEANCOMFORT.COM IO-HE12-A...
- Page 6 Approximate size of home that can be humidified by each humidifier model, based on air tightness of the home. Loose Average Tight Model (0.75 AC/H) (0.50 AC/H) (0.30 AC/H) HE12 800 sq. ft. 1200 sq. ft. 2000 sq. ft. HE17 1115 sq. ft. 1650 sq. ft. 2800 sq. ft.
- Page 7 • If you have any difficulty with this method, you can call Daikin How to Contact Daikin at 1-855-303-1821 for assistance. You may contact Daikin about warranty questions or claims using the following contact information: by mail at 43800 Grand River, Novi, Michigan, 48375 or, by telephone at 1-855-303-1821. WWW.CLEANCOMFORT.COM IO-HE12-A...
- Page 8 Product Information: Serial Number: ________________________________________________________________________ Model: ______________________________________________________________________________ Install Date: Month ______________________ Day ___________ Year _________________________ Mail Form To: Owner Information: Clean Comfort Contractor Name: _____________________________________________________________________ Attn: Warranty Dept. Address: _____________________________________________________________________________ 43800 Grand River Ave. Address 2: ____________________________________________________________________________ Novi, MI 48375...
