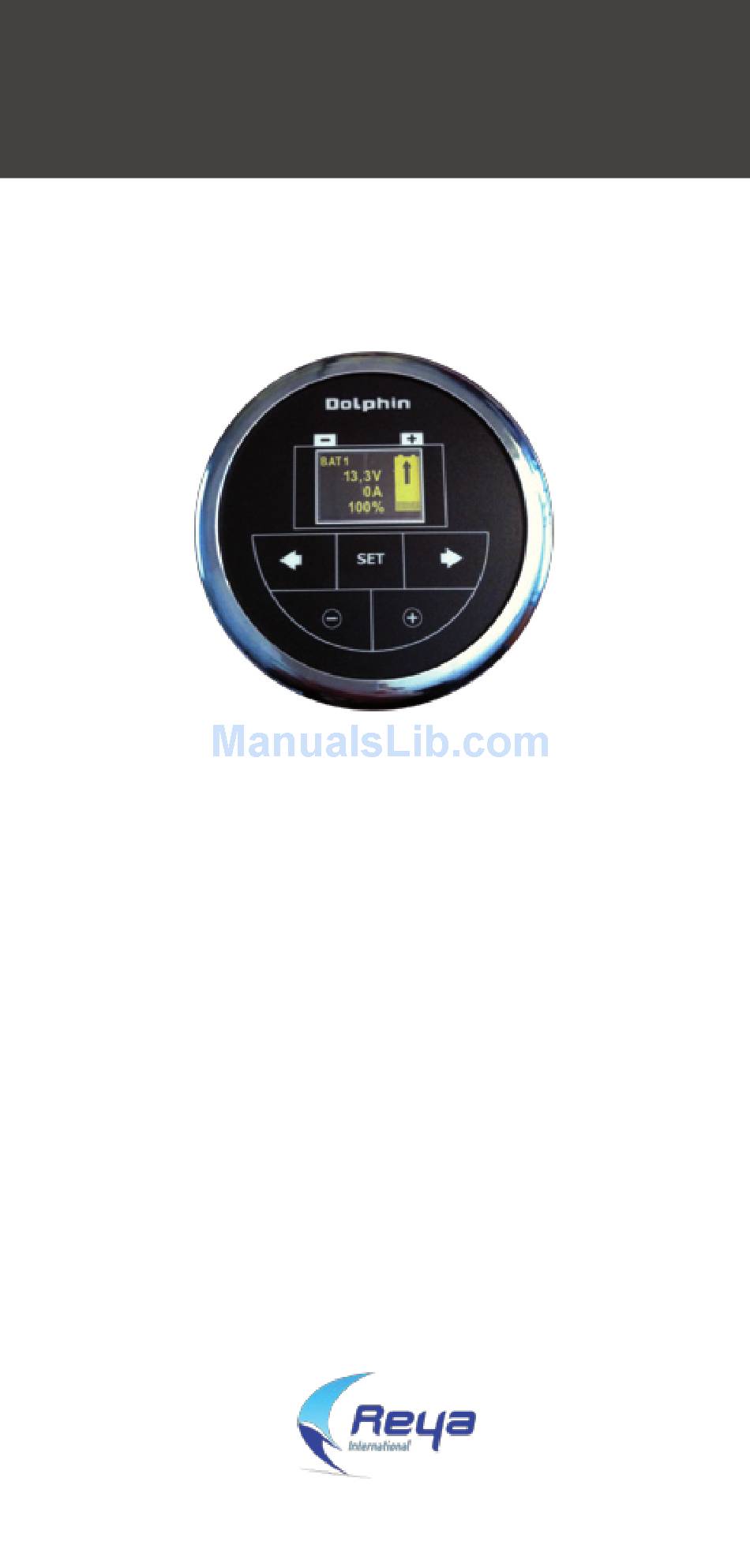

- Page 1 OPERATING AN USERS MANUAL BATVIEW 2 State of charge controller 12V-24V Code REYA : 399032...
- Page 2 TO PREVENT ANY RISK TO PREVENT ANY RISK Batview2-rev 01 Batview2-rev 01 BEFORE OPERATION THIS MANUAL CONTAINS VITAL AND ESSENTIAL INFORMATION. IN Connection precautions ORDER TO AVOID ELECTRICAL SHOCKS OR OTHER DAMAGE, THE OWNER SHOULD READ To prevent any risk of electric shock or irreversible AND UNDERSTAND THIS IMPORTANT damage to the equipment, you should comply DOCUMENT BEFORE OPERATING THE...
-
Page 3: General Characteristics
CONTENTS OF BATVIEW PACKAGING GENERAL CHARACTERISTICS Batview2-rev 01 Batview2-rev 01 4A angled connectors 10 points The Peukert coefficient allows the actual capacity of a battery to be estimated. For example, a ca- 4A angled connectors pacity of 100Ah is applicable for a C/20 discharge 6 points rate, i.e. - Page 4 INSTALLATION GUIDE GENERAL CHARACTERISTICS Batview2-rev 01 Batview2-rev 01 INFLUENCE OF THE PEUKERT EXPONENT: Quick installation guide The Peukert exponent allows the life of a bat- tery, which is not linear, to be better estimated. In the example opposite, for a 350A bat- tery, with a discharge capacity of 20 hours (C20) stated by the battery manufacturers, we could actually expect use of 17.5A per...
- Page 5 CONNECTIONS INSTALLATION GUIDE Batview2-rev 01 Batview2-rev 01 PRECAUTIONS TO BE TAKEN FOR INSTALLATION List of terminals 4 All connection errors (polarity reversals in particu- lar) cause irreversible damage to the equipment. Dry alarm contact You should, therefore, pay particular attention to this. (normally open) Dry alarm contact 4 For the measuring wires for each shunt (ri-...
-
Page 6: Installation
INSTALLATION INSTALLATION Batview2-rev 01 Batview2-rev 01 1 SHUNT WIRING BATVIEW2... - Page 7 INSTALLATION INSTALLATION Batview2-rev 01 Batview2-rev 01 2 SHUNTS WIRING BATVIEW2...
-
Page 8: Technical Specifications
TECHNICAL SPECIFICATIONS Batview2-rev 01 Batview2-rev 01 Tested settings General 8V DC to 35V DC (measuring accuracy Battery capacity Between 30 and 5000Ah Battery voltage +/-2%) Operating t° -10°C to +50°C Permanent +/-350A (measuring accuracy Storage t° -20°C to +70°C Battery current +/-5%) Relative humi- 10% to 70% without condensation... -
Page 9: Settings Mode
SETTINGS MODE Batview2-rev 01 Batview2-rev 01 Settings mode Factory settings (default settings): 4 Temperature expressed in degrees Celcius. 4 A single set of batteries. 4 Capacity of house batteries: 340Ah. 4 Type of shunt: 300A. 4 Low battery voltage alarm: 11.0V. 4 Type of house batteries: With free electrolyte (FREE) Factory settings are operational until the user en-... - Page 10 Batview2-rev 01 Batview2-rev 01...
- Page 11 ALARMS ALARMS Batview2-rev 01 Batview2-rev 01 Set the Alarme mode This mode results in the closure of an RCT dry loop (terminals 1, 2, 3). The maximum switchable cur- The device switches to Alarm mode when it de- rent for the dry loop relay is 1A at 36V DC max.: tects 4An undervoltage fault on any one of the 4 sets of batteries.
