WARRANTY
(For the Original Owner Only)
K-Star Pool/Spa Heater is guaranteed for a period of one year from the date
of its purchase to the original owner against any manufacturing defects.
Exception: factory installed heating elements carry a 90 day limited
manufacturer warranty from date of heater installation only.
Any warranty claim must be pre-authorized by Consolidated Pool & Spa
Industries Inc. and claim must include: Model number, Serial number and
Date of purchase. Any defective unit shall be returned freight prepaid only.
Consolidated Pool & Spa Industries Inc. will not be responsible for
disconnection-reconnection charges.
The above warranty shall be considered void if:
i.
The installation instructions are not followed.
ii.
Unit is powered without any water circulation.
iii.
The power is disconnected and unit is not thoroughly drained at time of
winterizing.
iv.
The Unit has been mishandled.
v.
If corrosion of the unit's internal parts occurs by unit being exposed to a
salt water system, a system that uses salt to create a sanitizer or improper
water chemistry (applies to all non-titanium heater models only). Warranty
Registration must be done within ten days of purchase of the unit, by
mailing warranty card below to:
361 Rowntree Dairy Road, Unit 4
Woodbridge, ON L4L 8H1 Canada
Tel: 905.264.6496 Fax: 905.264.6508
Email:info@consolidatedpool.com
(For Warranty Information, Please Mail to Manufacturer.)
Customer's Name :
Address :
Phone :
Unit
Serial # :
Model # :
Date Purchased :
Installer's Name :
INSTRUCTION MANUAL

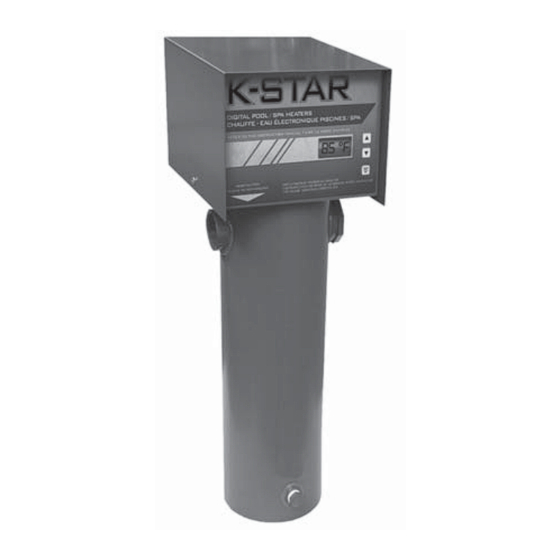

"K-STAR" DIGITAL
Electric Pool/Spa Heaters
MODELS:
K-5-D / K-10-D / K-15-D
(Regular elements/digital Thermostat)
K-5-TT-D / K-10-TT-D / K-15-TT-D
(Titanium elements/digital Thermostat)
361 Rowntree Dairy Road, Unit 4
Woodbridge, ON L4L 8H1 Canada
Tel: 905.264.6496 Fax: 905.264.6508
Email:info@consolidatedpool.com
Advertisement
Summary of Contents for K-Star K-5-D
- Page 1 INSTRUCTION MANUAL (For the Original Owner Only) “K-STAR” DIGITAL K-Star Pool/Spa Heater is guaranteed for a period of one year from the date of its purchase to the original owner against any manufacturing defects. Electric Pool/Spa Heaters Exception: factory installed heating elements carry a 90 day limited manufacturer warranty from date of heater installation only.
- Page 2 Then completely empty the tank by removing the drain plug located at the bottom of the K-Star Heater may be installed indoors or outdoors with clearance heater body. Drain plug must be left out all winter. Cover the control of at least 6’away from water and minimum of 6”...
- Page 3 The “lock” condition is part of the security/safety feature of this heater The Heater shall be installed as per Figure 02.The water inlet and and it is to ensure, that user will physically check the thermostat unit outlets are connected to straight pipe connectors of the heater. and verify the unit is in optimal operating condition before turning the Heater back on.
- Page 4 Table 01 Notes: Heater will show “OFF” on display, if temperature is below All Models Max GPM/Flow Rate the lowest set point (70 degree. F / 20 degree. C). Therefore the heater is in the off-position. Start to follow point 3 for Pool K-5 (all Models) or Spa application to turn heater on and to set it to desired K-10 (all Models)
- Page 5 Selecting RANGE (choose POOL or SPA application) For installation see wiring Schematic fi gure 03. 2a) After point 1 has been completed, the display will show FIGURE 03. WIRING SCHEMATIC “RA “(for RAnge) for one second. Press UP or DOWN button to toggle between “P “(for Pool) or “S “(for Spa) mode.
- Page 6 Wiring Diagrams – All Models 3) Operating Instructions Must be strictly followed for warranty to be valid. Before starting the heater, activate the pump and make sure that the air is out of the heater chamber (Tank). Water circulation (Pump) must be on at all times when unit is running.
