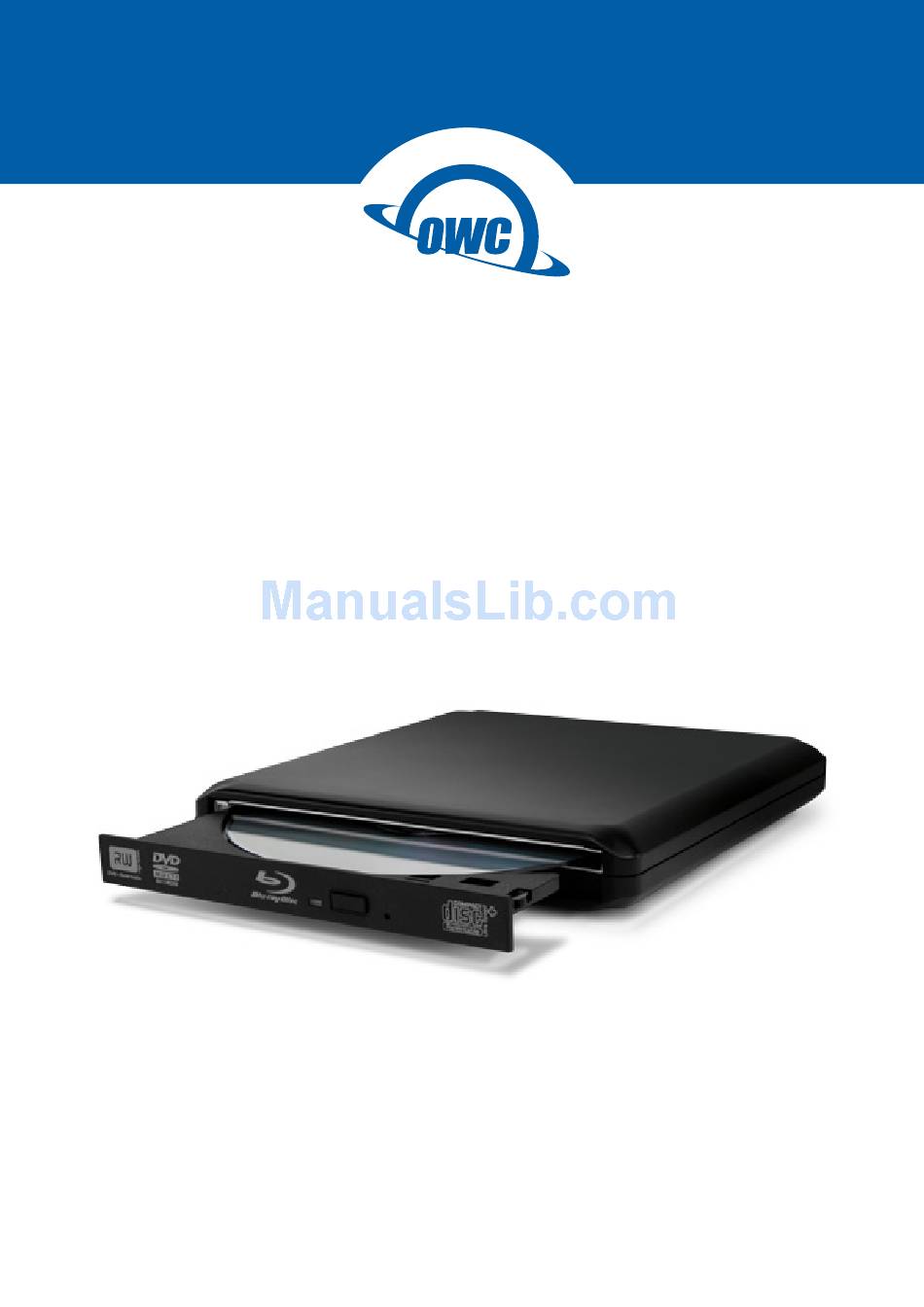

- Page 1 S L I M Assembly Manual & User Guide...
- Page 2 Contents Introduction ............1 1.1 Package Contents 1.2 Rear View 1.3 About This Manual Assembly ............2 Support ..............4 3.1 Connection Tips 3.2 Disc Burning Compatibility 3.3 Contacting Technical Support Table of Contents OWC Slim...
- Page 3 Introduction 1.1 Package Contents 1. OWC Slim enclosure * 2. USB ‘Y’ cable (Std-A to mini-B) 3. Screw packet ** (not shown) * Optical drive not included on all models. ** Included with empty enclosures 1.2 Rear View 1. DC input for optional power supply (sold separately) 2.
- Page 4 — it will unlock. Remove it and set it aside. 2. Slide the drive mechanism through the front opening until it is fully connected to the SATA port at the rear of the case (highlighted in red) and is flush with the front of the case. Assembly OWC Slim...
- Page 5 5. Flip the assembled enclosure over and insert the shorter Phillips screw in the location shown. Affix the screw then cover the screw hole with the included rubber foot. Assembly OWC Slim...
- Page 6 Support 3.1 Connection Tips Use the included USB ‘Y’ cable to connect the OWC Slim to your computer. Plug the USB mini-B connector into the optical drive. Plug the two Standard-A USB connectors into your computer. Both are needed in order for the drive to operate normally. Depending on the power available in your computer you may need to purchase a power adapter.
- Page 7 3.3 Contacting Technical Support 8am - 5pm (CT) Monday - Friday (866) 692-7100 (North America only) +1 (815) 338-4751 (International) Email Support and Live chat: www.owcdigital.com/support Support OWC Slim...
- Page 8 OWC reserves the right to make changes or revisions in the product design or the product manual without reservation and without obligation to notify any person of such revisions and changes.
