Summary of Contents for Avio AV3233

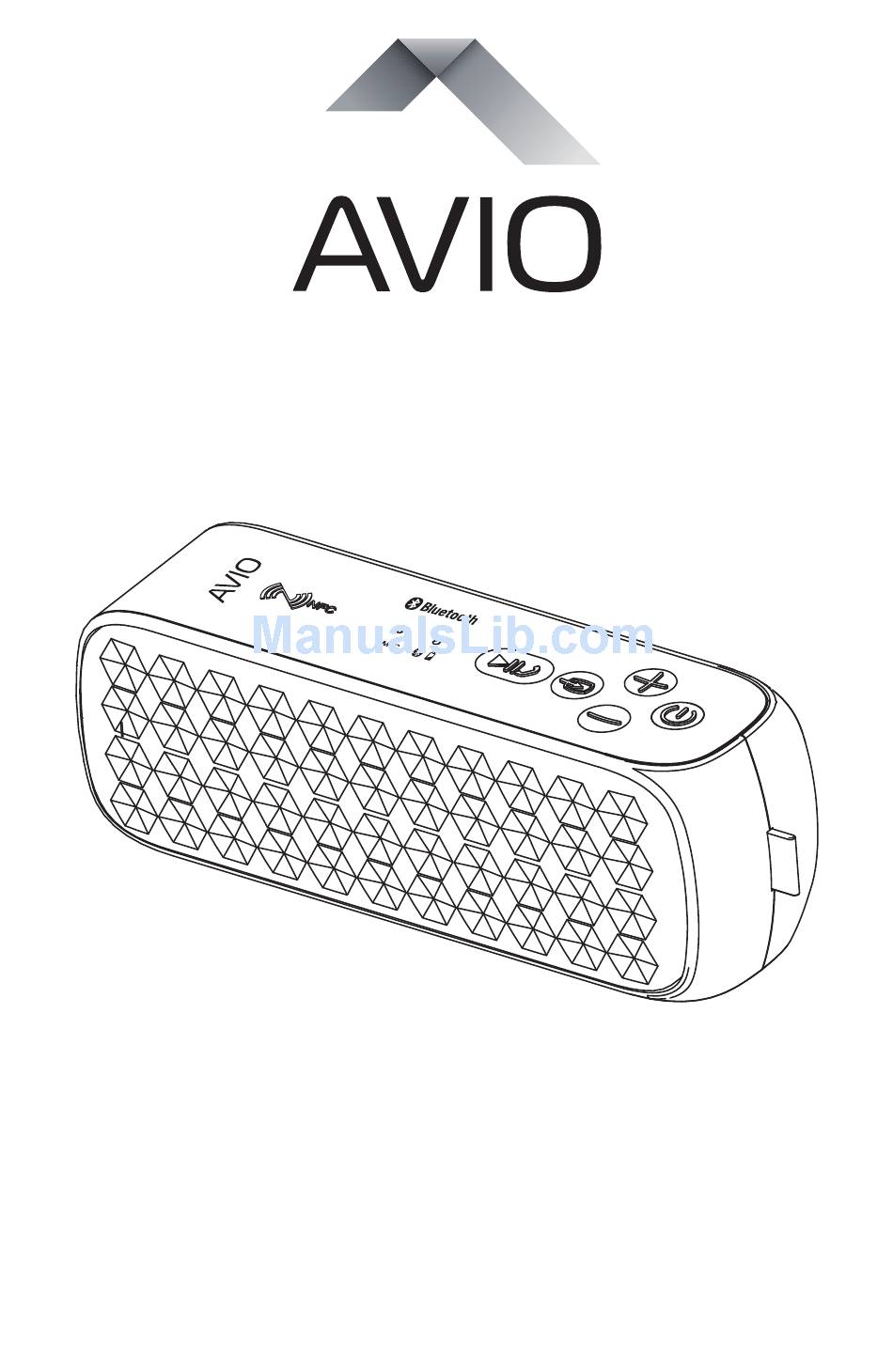

- Page 1 Instruction Manual Water Resistant Bluetooth Speaker - White w Orange Tag Model: AV3233 Please retain this manual for future use...
- Page 3 Index Important Safety Instructions ............- ..................- Overview ..................- Operation Cleaning the Speaker ..............- Trouble Shooting ................................ Specifications ................Guarantee Card - 1 -...
- Page 4 Important Safety Instructions When using any electrical apparatus always observe safety regulations and use basic safety precautions to reduce the risk of fire, electric shock and personal injury, including the following. 1. Read, Keep and Follow these instructions, heeding all Warnings.
- Page 5 8. WARNING. No objects filled with liquid, such as vases, shall be placed on any electrical apparatus. 9. Do not immerse in any liquid whilst in use or in cleaning. Clean only with a damp cloth, dry with a dry towel. Do not use harsh abrasives as these may damage plastic parts.
- Page 6 16. Only use attachments/accessories specified by the manufacturer. 17. Unplug this apparatus during lightening storms or when unused for long periods of time. 18. Attention is drawn to the environmental aspects of disposing of any battery. 19. Refer all servicing to qualified personnel. Servicing is required when the apparatus has been damaged in any way, such as when the power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the...
- Page 7 - by clients in hotels, motels and other residential type environments - bed and breakfast type environments 24. If the apparatus is provided with a replaceable or non replaceable Lithium battery, the following applies - CAUTION: Danger of explosion if the battery is incorrectly replaced.
- Page 8 Overview Thank you for purchasing this AVIO Bluetooth water resistance speaker. You can now enjoy audio playback from your Bluetooth enable device through this AVIO speaker. Features: - Wireless connection using bluetooth between your personal device and AVIO bluetooth speaker - Rechargeable lithium-ion battery provides hours of entertainment.
- Page 9 Before using your AVIO bluetooth speaker, it is important that it is completely charged (100%) before using for the first time. To charge your bluetooth speaker, take your supplied micro USB cable an connect to your bluetooth speaker and an appropriate USB charging port.
- Page 10 The Speaker's LED status indicators are located at the top of the speaker. They illuminate power and other functions. LED will flash Red while charing. LED will be blue when the battery is fully charged. LED will flash red for reminding. LED will flash blue whilst waiting for a bluetooth connection.
- Page 11 The function buttons are located at the top of the speaker. - 9 -...
- Page 12 1. Microphone for when taking calls when your mobile phone is connected to the speaker with Bluetooth. 2. LED Indicator-illuminates to show various functions of the speaker. -Press to play or pause a song. If the speaker is connected to a mobile phone and a call comes in, press once to take or hang up the call.
- Page 13 Pairing occurs when two Bluetooth devices communicate with each other and establish a connection. A record of information about this connection is stored in the memory of each device. Once you pair a device with the speaker you should not have to pair it again.
- Page 14 Making a Line-in Connection ① Connect the Bluetooth speaker to your audio device using a 3.5mm line-in audio cable. ② Under the situation of the Bluetooth speaker is on, the Bluetooth speaker will detect the audio device automatically and enter line-in play mode. Important －Make sure the speaker is not charging by removing the Micro-USB cable.
- Page 15 Trouble shooting Problem Possible solutions The speaker Most likely the battery does not have any doesn’t turn on power left. Plug the speaker into a power source to charge the speaker. Please try the following solutions. Bluetooth 1.If the device is asking for a passkey use device is not “000”...
- Page 16 Bluetooth 2.1+EDR, NFC. Input Micro SD card Line in 4ohm 2 ×1.5 "Fullrange speaker + 85 × 45mm Speakers Passive Radiator SystemType 2.0Bassflex Output Frequency Response 100Hz~17KHz ±3dB Integrated Classs-D Audio Amplifier 2×3W(RMS) Distortion Ratio ≦1% @500mV/1kHz Signalto NoiseRatio ≧75dB(A Weighted) Embedded Embedded or replaceable...
- Page 17 Guarantee Card This product is guaranteed against faulty materials and workmanship for a period of one years from the date of purchase. The obligation to the purchaser under this warranty is limited to servicing the unit and replacing defective parts when the product is returned freight prepaid to the retailer.
