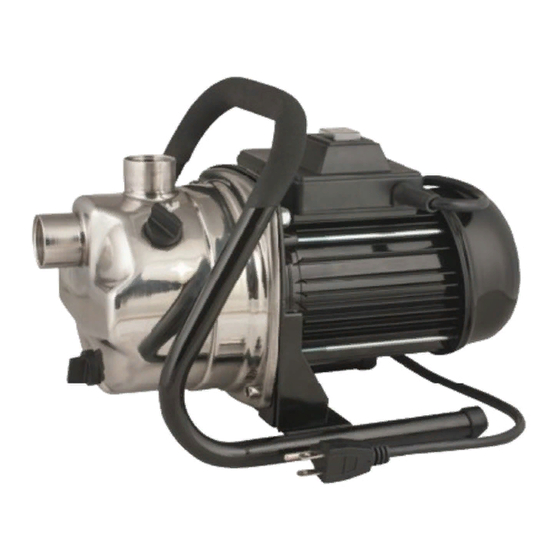

INSTALLATION AND OPERATING
INSTRUCTIONS FOR PORTABLE
LAWN SPRINKLING PUMP MODEL
6913867
Questions, problems, missing
parts? Before returning to your
STOP
retailer, call our customer service
department at 1-800-742-5044,
7:30 a.m. - 5 p.m., EST, Monday
- Friday.
Power supply
required
Maximum water
temperature
Individual branch
circuit required
Discharge connection 1 in. NPT
Suction connection
Water depth rating
Discharge Pressure
(PSI)
5 PSI
10 PSI
17 PSI
25 PSI
30 PSI
40 PSI
50 ft.
SAFETY INFORMATION
Please read and understand this entire manual
before attempting to assemble, operate or install the
product.
115 volts, 60 Hz
77°F (25°C)
15 Amp minimum
1 in. NPT
Maximum of 25 ft.
Gallons per Hour
800
700
600
500
400
200
100
© 2015 All rights reserved. Pg 1
Description
This pump is designed to sprinkle lawns and small
gardens from lakes, ponds, or rivers, empty or fi ll
stock tanks, remove standing water from fl ooded
areas, transfer water or boost water pressure.
Flammable liquids such as gasoline, chemicals or
corrosive liquids should never be used with this
pump.
Safety Guidelines
This manual contains information that is very
important to know and understand. This information
is provided for SAFETY and to PREVENT
EQUIPMENT PROBLEMS. To help recognize this
information, observe the following symbols.
DANGER -
imminently hazardous situation which, if not
avoided, will result in death or serious injury.
WARNING -
potentially hazardous situation which, if not
avoided, could result in death or serious injury.
CAUTION -
potentially hazardous situation, which, if not
avoided, may result in minor or moderate injury.
NOTE: Indicates important information, that if not
followed, may cause damage to equipment.
General Safety Information
1. Read these rules and instructions carefully.
Failure to follow these instructions could cause
serious bodily injury and/or property damage.
DANGER -
submersible.
WARNING -
chemicals known to the State of California to cause
cancer and birth defects or other reproductive
harm.
Danger indicates an
Warning indicates a
Caution indicates a
This pump is non-
This product contains
SW1011 A
Advertisement
Related Manuals for Barracuda PUMPS 6913867
Summary of Contents for Barracuda PUMPS 6913867
- Page 1 INSTALLATION AND OPERATING INSTRUCTIONS FOR PORTABLE LAWN SPRINKLING PUMP MODEL 6913867 Description Questions, problems, missing parts? Before returning to your This pump is designed to sprinkle lawns and small STOP retailer, call our customer service gardens from lakes, ponds, or rivers, empty or fi ll department at 1-800-742-5044, stock tanks, remove standing water from fl...
- Page 2 Pump Outlet WARNING - Pump only clear water. Do not pump fl ammable or explosive fl uids such as gasoline, fuel oil, kerosene, etc. Do not use in a fl ammable and/or explosive atmosphere. Personal Pump Inlet injury and/or property damage could result. NOTE: This pump is not designed to handle salt water, brine, laundry discharge or any other application which may contain caustic chemicals...
- Page 3 On/o WARNING - switch Never cut off the round grounding prong on the power cord. Cutting the cord or plug will make the pump unsafe to operate and void the warranty. 2. Turn the pump switch to the “off” position. 3.
- Page 4 Troubleshooting Chart Symptom Possible Cause(s) Corrective Action Motor will not run 1. Disconnect switch is off 1. Be sure switch is on 2. Fuse is blown 2. Replace fuse 3. Starting switch is defective 3. Replace starting switch 4. Wires at motor are loose, 4.
