Summary of Contents for Gigatek DSP840
- Page 1 Customer Display **DSP840** Installation Manual TM951041...

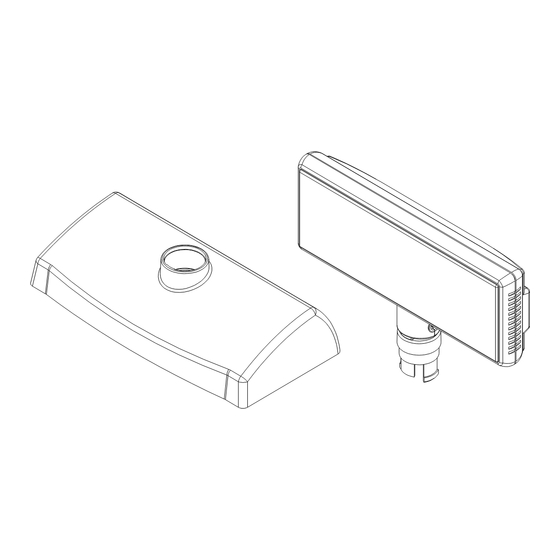

- Page 2 Required Items The following items are used to attach the Display to the Stand. S TA ND D IS PL AY EXTENSION SUPPORT (DSP840) P ILLA R A P ILLA R B P IL LA R C ACCESSORY UNIT (DSP840)
- Page 3 Assembling Steps 1. Get the Stand and the Stand Plate. Stand Stand Plate 2. Get the DISPLAY unit and place the Cable from the Display through the extension pillars to the Stand. When extending the height of the Stand, attach the extension pillars with different heights: Low, Mid-low, Mid-high and High shown as below to the Stand.
- Page 4 3. Insert the tab on the Display (or the extension Pillar) into the hole on the Stand until you feel it clicked. Connect the cable from the Display to the RJ connector (TO DSP) inside the Stand until you feel it clicked. Also connect the enclosed D-connector cable (CABLE TO PC) to the “...
- Page 5 Cover the Stand Plate back and fasten the screws. Mounting hole to fit the special screw 6. You may use the enclosed mounting screws (one Special screw and two Wood screws) to fix the Display on the wooden table surface. Get the Mounting hole on the Stand Plate to fit the Special screw first and then fix the two Wood screws.
- Page 6 The Display/Pillar/Stand Dimensions...
- Page 7 The Display/Pillar/Stand Dimensions...
