Summary of Contents for Brandt BDVD1291

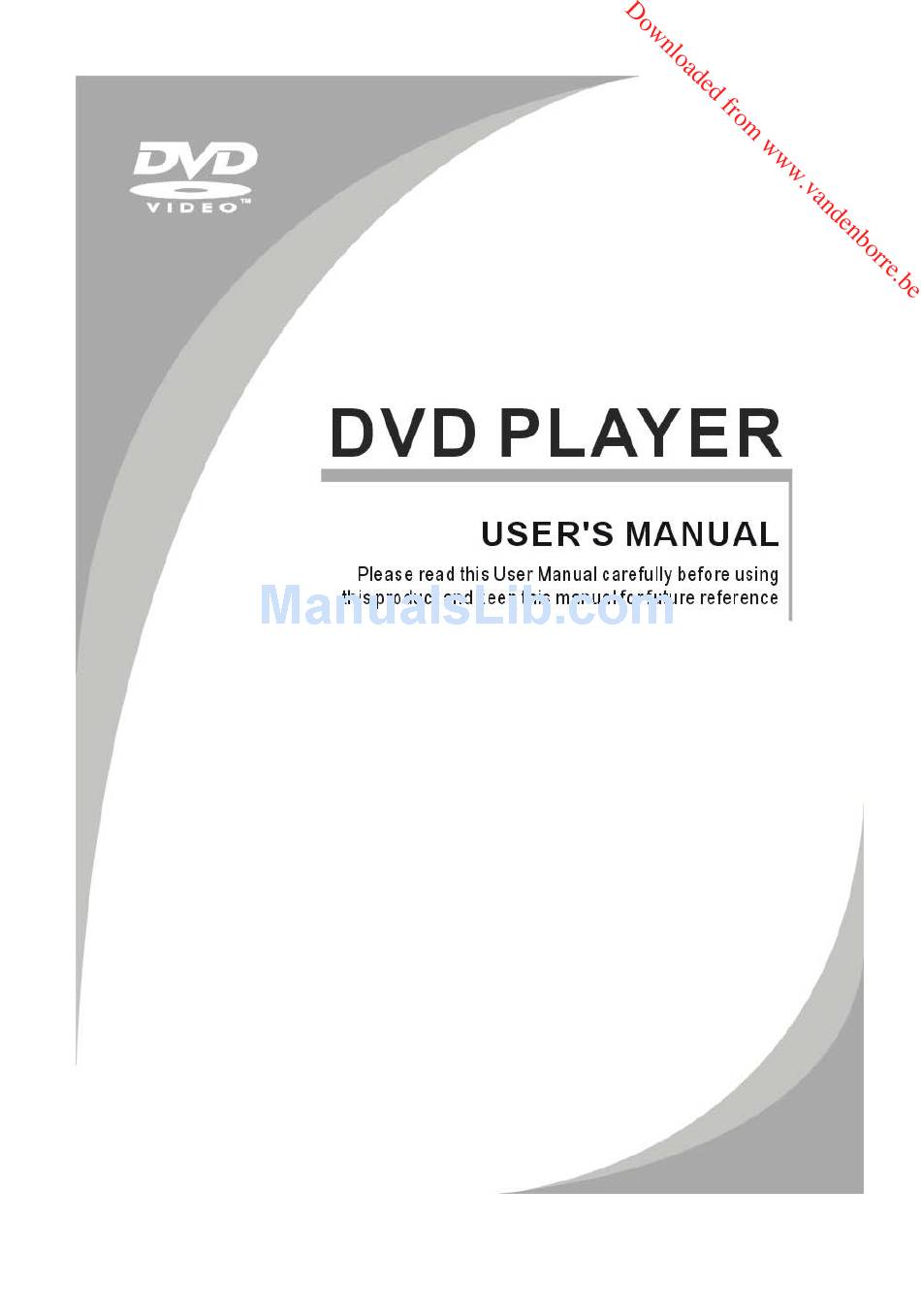

- Page 1 BDVD1291...
-
Page 2: Table Of Contents
Content Introduction Important Safety Instructions .................. 2 Caution ........................5 ........................5 Features Front Panel and Rear Panel Illustration...………………………………………………. 6 Remote Control ………………………………………………………………………….. 7 Connections ……………………………………………………………………………….. 8 Advanced Features Basic Operation ...................... 8 System setup ......................10 MP3/WMA/JPEG/MPEG4 playback ................14 Program Play Operation ................... 1 5 Others Troubleshooting ...................... -
Page 3: Important Safety Instructions
Important Safety Instructions Mains Supply This power adapter is designed to operate from a 100-240 Volt, 50/60Hz AC mains supply. Other power sources may damage it. If the power adapter or its lead gets damaged it must be replaced by a qualified service agent with an approved adapter of the same type and rating. - Page 4 WARNING: This appliance is intended for domestic household use only and should not be used for any other purpose or in any other application, such as for non-domestic use or in a commercial environment. Prior to cleaning or other maintenance, the appliance must be disconnected from the supply mains.
- Page 5 NOTES ON DISCS Handling Discs Do not touch the play side of the disc. Hold the disc by the edges so that fingerprints do not get on the surface. Never stick paper or tape on the disc. Storing Discs After playing, store the disc in its case. Do not expose the disc to direct sunlight or source of heat and never leave it in a parked car exposed to direct sunlight.
-
Page 6: Caution
Caution • Please use the original box and packing materials for safe transportation of this product. • It is normal for the cover and rear panel to become warm after the player has been operating for an extended period of time. •... -
Page 7: Front Panel And Rear Panel Illustration
Front Panel and Rear Panel Illustration Front Panel 1. Power 2. Tray Door 3. Display 4. Remote sensor 5. Open/Close button 6. Play/Pause Button 7. USB port for USB device Back Panel 8. Digital Audio Coaxial Output 9. SCART Output... -
Page 8: Remote Control
Remote Control 1. OPEN/CLOSE 14. MUTE – turns sound off and on 2. POWER (stand-by) 15. GOTO – title, chapter, track, time 3. 0-9 NUMBER KEY 16. USB – choose USB device or disc 17. AUDIO – select sound track 4. -
Page 9: Connections
Connections CONNECT DVD PLAYER TO TV SET WITH SCART SOCKET Use a SCART cable (not supplied) to connect DVD player and your TV. Set the [Video Out] to [RGB] for most TVs (see ‘1.2 System Display Setup’). CONNECT DVD PLAYER TO AV AMPLIFIER WITH DIGITAL AUDIO (COAXIAL) ... - Page 10 MENU During DVD playback, press and hold MENU to return to the disc root menu. DISPLAY Press DISPLAY repeatedly to show various playing information. Multi Speed Fast Motion Playback Repeatedly press FWD button to fast forward play. It has five speeds: x2, x4, x8, x16 and x32. Repeatedly press REV button to fast reverse play.
-
Page 11: System Setup
SYSTEM SETUP Press the SETUP button on the remote control, the SETUP MENU will be displayed. There are three pages named System, DMP and Disc on top of setup menu, press Left/Right button to switch among them, and then press Up / Down button to select left-hand side items you want to set. - Page 12 SYSTEM SETUP TV Standard Select the different TV system. Note: This setting should be matched to your TV. To find out which systems your TV supports, please refer to its specifications. If set to AUTO the player output will be in the same TV system as the DVD video.
- Page 13 SYSTEM SETUP 2. DMP Menu 2.1 Photo Settings Interval Time Set interval time during slide show. Transition Effect Set transition effect for slide show. Show Type ‘Fit screen’ re-sizes the photo to fit the screen. ‘Full screen’ shows the photo without re-sizing it. Color Tone You can choose ‘normal’...
- Page 14 SYSTEM SETUP 3.2 Disc Audio Setup Digital Out Please read your digital audio amplifier instructions to find out the best setting, PCM or RAW. Analog out Not used. Downmix Setting for down-mixing surround sound movies to 2-channel analog audio output. ‘Lo/Ro’ suits a stereo audio system, ‘Lt/Rt’...
-
Page 15: Mp3/Wma/Jpeg/Mpeg4 Playback
MP3 / WMA / JPEG / MPEG4 PLAYBACK MP3 / WMA / MPEG4 (MP4) / JPEG (JPG) files on disc or on USB produce a similar browser menu: Press Left, Right, Up and Down buttons to highlight a file or folder. Press OK or Play/Pause button to open the folder or play the file. -
Page 16: Program Play Operation
PROGRAM PLAY OPERATION Program operation during CD-DA, VCD and DVD playback Press PROG button (hold for more than 1.5s) during CD digital audio, VCD or DVD playback and the system will display the program menu as below. • Only ‘Title’ or ‘Track’ column will appear for CD digital audio and VCD. Press up/down button to move the highlight into the ‘Program list’... - Page 17 PROGRAM PLAY OPERATION Program operation during MP3 / WMA / MPEG4 / JPEG file playback Press Left, Right; Up and Down buttons to highlight each file you want to add to the program list then press the Right button to add it. Press PROG button (hold for more than 1.5s) after you have added files into the program list, then the system will display the program menu.
- Page 18 Prohibited User Operations Commercial DVD video discs prevent certain functions from working at certain points during disc play, for example in the main menu. You will see a hand symbol on-screen when the function is prohibited. Change to disc or power off to clear the program.
-
Page 19: Troubleshooting
Troubleshooting If you have any questions, please consult the troubleshooting guide below. NO PICTURE OR SOUND ‘BAD DISC’ DISPLAYED • Ensure the power button is on. • Ensure the disc is not warped, damaged or deformed. • Ensure the power outlet is operational. •... -
Page 20: Specifications
Specifications Power requirements: AC 100-240 Volt ~ 50/60Hz Power consumption: 15W Video standard: NTSC/PAL Discs Compatibility: DVD, DVD+/-R/RW, VCD, . CD-DA, CD-R, CD-RW Video out Video out: 1.0V (p-p)/75 ohms, sync, negative polarity Audio out Audio out level: 2V rms -1/+0.2 Frequency response: 20Hz to 20Hz S/N ratio: >90dB Total harmonic distortion: <0.025%...
