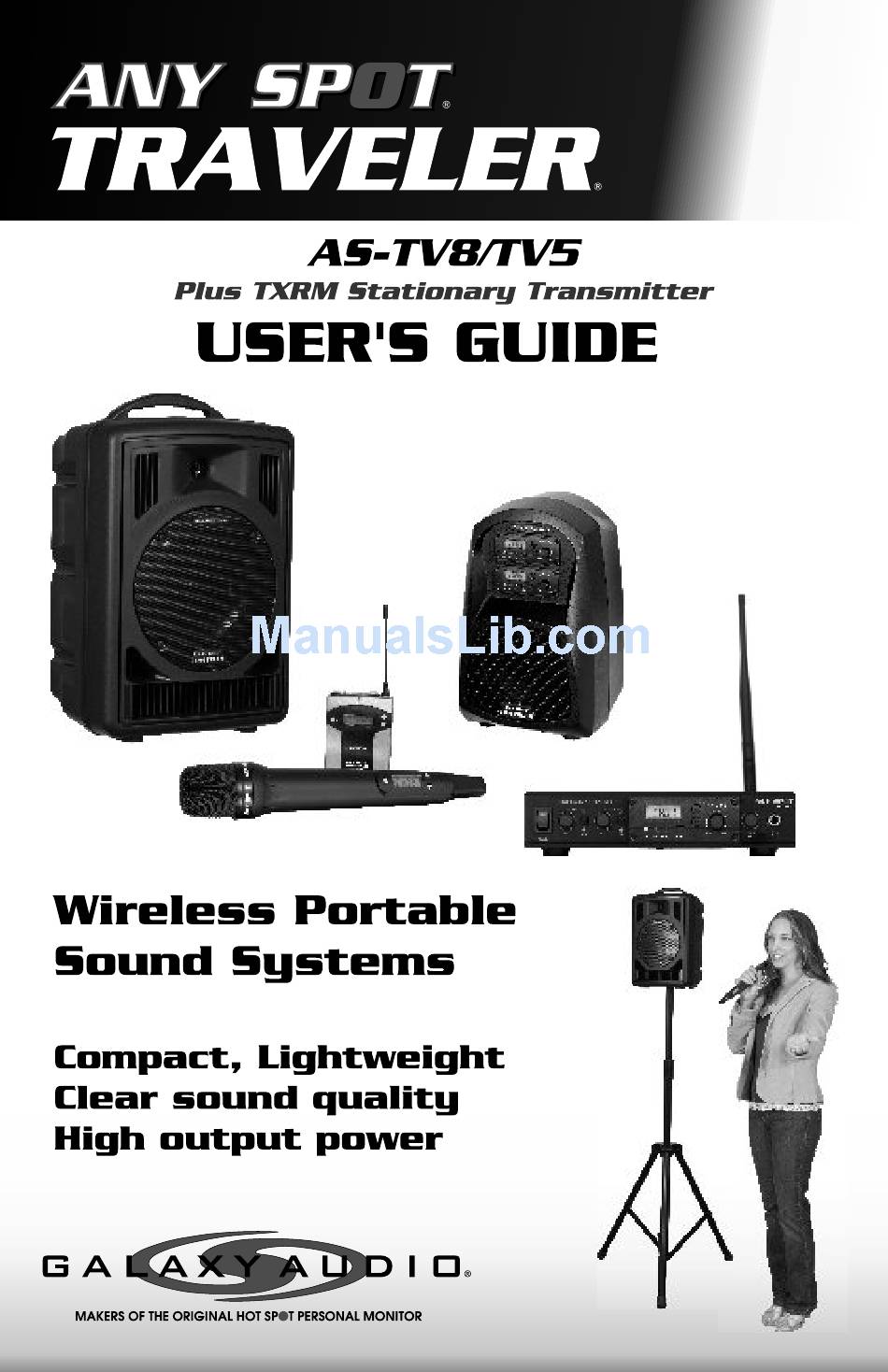

Any Spot AS-TV8 User Manual

Wireless portable sound system with txrm stationary transmitter

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

Download this manual

Table of Contents

Need help?

Do you have a question about the AS-TV8 and is the answer not in the manual?

Questions and answers

Summary of Contents for Any Spot AS-TV8

Page 2: Table Of Contents
Contents Introduction.....................1 Before using the TV8 or TV5..............2 Front Panel Configuration of AS-TV8 Series..........3 Rear Panel Configuration of AS-TV8 Series ........4-6 Description of Functions of AS-TV8 Series.........7-9 Operation of the AS-TV8...............10 Power Supply/Charger................10 Power Switch..................10 Mixer.....................10 In/Out Jacks..................10 Speaker Out Jack.................10 Wireless Mic/Audio Link Receiver ............11...
Page 3: Introduction
Operating Manual for AS-TV8/TV5 Series **Please visit www.galaxyaudio.com for the latest updates** Introduction Thank you for purchasing the TV8 / TV5 series wireless portable sound systems. These units feature an “all in one” design that allows them to be configured with a variety of different function modules to suit your specific needs.
Page 4: Before Using The Tv8 Or Tv5
Before Using the TV8 or TV5 Both the TV8 and TV5 use a universal AC switching power supply/charger that will operate on voltages of 100~240V,50/60Hz. The TV8 power supply is internal, while the TV5's is external. Verify that the voltage to which you are connecting is in this range and then connect the AC power cord from the Traveler to the wall outlet.
Page 5: Front Panel Configuration Of As-Tv8 Series
Front Panel Configuration of AS-TV8 Series AS-TV8 Series Handle 1" Horn 8" Woofer Speaker Grille Heat Sink...
Page 6: Rear Panel Configuration Of As-Tv8 Series
Rear Panel Configuration of AS-TV8C2 Series AS-TV8C2 Receiver Modules CD/CMP Player Power Switch Mixer Speaker Out In/Out Jacks Power Supply/ Charging Input...
Page 7 Rear Panel Configuration of AS-TV8CE2 Series AS-TV8CE2 Receiver Modules CD/CMP Player Digital Echo System Power Switch Mixer Speaker Out In/Out Jacks Power Supply/ Charging Input...
Page 8 Rear Panel Configuration of AS-TV8CT2 Series AS-TV8CT2 Receiver Modules CD/CMP Player Audio Link Transmitter Power Switch Mixer Speaker Out In/Out Jacks Power Supply/ Charging Input...
Page 9: In/Out Jacks
Description of Functions for AS-TV8 Series A. Power Supply/Charging Input 1. AC Power Cable connector 2. Batteries (behind cover) 3. Battery cover B. Power Switch and Charge Indicator 1. Power LED 2. Charging indicator 3. Power On/Off switch C. Mixer 1.
Page 10: G. Anti-Shock Cd/Cmp Player
F. Wireless Microphone/Audio Link Receiver (AS-TV8/TV5) 1. LCD display 2. A/B diversity indicator 3. RF indicator 4. AF level indicator 5. Channel Set 6. Channel selector 7. Power switch & mic. volume (3) (4) (5) (6) (7) G. Anti-Shock CD/CMP Player 1.
Page 11 H1. Digital Echo System (for AS-TV8CE2 ) 1. Master echo volume control 2. Delay repeat control 3. Delay time control 4. Wired mic 1 volume control 5. Wired mic 2 volume control 6. Wired mic 1-1/4" input jack 7. Wired mic 2-1/4" input jack H2.
Page 12 Operation of TV8 Portable Sound System A. Power Supply/Charger (see page 7) 1. There is a universal AC switching power supply/charger built into the system that will operate on voltages of 100~240V,50/60Hz. Verify that the voltage to which you are connecting is in that range and then connect the AC power cord from the AC IN (A1) to the wall outlet.
Page 13 F. Wireless Mic/Audio link Receiver (see page 8) This system may include one or two receivers with selectable PLL 96 channel operation. These modules receive signals from wireless Mics or from another Traveler equiped with an Audio Link Transmitter. 1. Turn the power switch (F7) clockwise to turn on the receiver. 2.
Page 14: Digital Echo System
H1. Digital Echo System (see page 9) 1. Turn the Echo Control (H1-1) clockwise to turn on the echo system. Then use this control to adjust the level of echo in the mix. Echo will be applied to all 3 mic inputs. 2.
Page 15: Rear Panel Of As-Tv5 Series
I. Rear Panel of TV5. (11) (10) (7) (6) (5) 1. DC Power Input 2. Power Switch 3. Power LED 4. Charge LED 5. Aux Out Jack 6. Aux In Jack 7. 1/4" Mic Input 8. Mic Volume 9. Aux Volume 10.
Page 16: Operation Of Tv5 And Optional Modules
Operation of TV5 and Optional Modules (See Page 13) For AC power operation or Charging: Connect the DC end of the Power Supply/Charger cable to the DC In Jack (I1). Then connect the other end (AC plug) to the AC wall outlet. See page 2 for more information on Charging, Power Switch, and LED Indicators.
Page 17: Description Of Functions For Handheld Microphone Front
Description of Functions for Handheld Microphone AS-TVHH/TVHHC Front Panel Wind Screen: Protects cartridge with Pop Filter. Main Body: Contains Wireless Transmitter PCB. SET button for channel settings LCD panel: Channel and frequency display. UP and DOWN buttons: For Channel select and Frequency display.
Page 18 Description of Functions for Handheld Microphone AS-TVHH/TVHHC Rear Panel Volume Control: Three level settings, including mute, LOW and HI. MUTE Pushing point: Slide the battery cover down by pressing here. Battery Cover Lower Housing: Remove to slide battery cover off or to connect charger...
Page 19: Operation Of Handheld Microphone
Operation of Handheld Microphone AS-TVHH/TVHHC A. Battery Installation Steps: 1. Turn off the microphone before inserting batteries. 2. Press in the latch to release the lower housing and slide it off. 3. Press in the latch to release the battery cover and slide it down. 4.
Page 20 4. Press the Down button to display a lower numbered channel. 5. Press the SET button to activate the selected channel. E. LCD Indications: :Three bars means batteries are fully charged. :One bar indicates low batteries. Replace or recharge the batteries.
Page 21 G. Troubleshooting: 1. LED doesn't light when power switch is pressed to turn on mic. a. Make sure that the batteries are not discharged. b. Make sure that the batteries are installed correctly. 2. LCD shows when power switch is pressed to turn mic off. Press the SET, UP and DOWN buttons at the same time in order to turn the microphone off automatically.
Page 22: Description Of Functions For Body Pack Transmitter
Description of Functions for Body Pack Transmitter AS-TVMBP 1. Mini XLR Mic input jack (TA3M) 2. Power switch 3. Mute button 4. Antenna 5. Power light 6. Charging Jack 7. LCD light 8. Set button 9. Channel select button 10. Sensitivity control 11.
Page 23: Operation Of Bodypack Transmitter
Operation of Bodypack Transmitter A. Battery Installation: 1. Switch the transmitter off before inserting batteries. 2. Slide the battery cover off. 3. Insert 2 disposable batteries (1.5V AA) or 2 rechargeable batteries (1.2V AA). 4. Observe correct polarity when inserting batteries. 5.
Page 24 E. Battery Charging Steps: 1. Insure that the batteries are the rechargeable type. 2. Switch Power to OFF position. 3. Insert AS-TVMBP into its own intelligent charger stand (AS-DCTVMBP). 4. Batteries will recharge automatically. 5. For more details of charger stand please refer to AS- DCTVMBP user guide.
Page 25 Maintenance Avoid Excessive Heat Don't leave transmitter or receiver in hot sun, on a radiator, or near other sources of high temperature. Avoid Rough Handling The transmitter and receiver may be damaged if dropped. Storage Before storage, fully charge the batteries in both transmitters and receivers. If possible, recharge once a month during storage and again before first use.
Page 26: As-Txrm Stationary Transmitter
AS-TXRM Stationary Transmitter The AS-TXRM is a stand alone version of our AS-TVTX Audio Link Transmitter module. The module is housed in a standard half-rack sized enclosure, and includes a variety of inputs and outputs as well as mixing controls. The TXRM is great for transmitting the entire mix from a mixing console to one or more Traveler speakers equipped with wireless receivers.
Page 27: Setup And Operation Of Txrm
Setup and Operation of TXRM (See Page 24) Starting with both the main power switch off (1) and the transmitter (8) power switch off, plug the included power supply into the DC In jack (18), and then plug the other end into an AC outlet. Connect the supplied antenna to the Antenna Jack (11).
Page 28: Specifications
CAUTION Danger of explosion if the batter y is incorrectly installed. Replace only with the same or the equivalent type. S p e c i f i c a t i o n s Portable Amplifier Speaker 92 dB, 1Watt @ 1 M Sensitivity Maximum SPL 112 dB...
Page 29 S p e c i f i c a t i o n s Portable Amplifier Speaker 92 dB, 1Watt @ 1 M Sensitivity Maximum SPL 112 dB Frequency response Hz ~ kHz (audio) Speakers 5" Full Range Receiver module AS-TVREC x 2 @ diversity Output power 30 W RMS, 50 W MAX.
Page 30 Wireless Mic/Audio link Receiver Module Oscilla tio n type PLL synthesized control OSC Adju stable fr equency Pre-programmed max. 96 switchable channels Swit chin g bandwid th Max. 12 MHz -10 ºC ~ 50 ºC Ambie nt tempera ture 50 kHz, with level limiting Maxim um deviatio n Dynamic ra nge 110 dB...
Page 31: Digital Echo Module (Tv8)
Wireless Mic/Audio link Receiver Module (continued) Antenna Built-in or external Dim ensio ns ( L x W x H ) 5.25" x 3.46" x 1.45" (133 x 88 x 37 mm) Weig ht 3.88 oz. (110 g) Audio Link Transmitter Module (also used in TXRM) RF output 10mW...
Page 32: Bodypack Transmitter
SET, UP, DOWN keys Channel sele ct Hi/Low /Mut e sw itch AF contro ls 1. 2 V (Ni-MH 130 0 mAh) * 2 AA type recha rgea bl e batt ery Batt er y 1. 5V * 2 AA Alkal ine di sposa bl e Batt er y li fe Ni- MH re chargeable 11 hou rs typi cal Batt er y li fe Alk ali ne dis posable 14 hou rs typi cal Ante nna...
Page 33 REGISTRATION CARD Registration information is used ONLY by GALAXY AUDIO and will be kept strictly confidential.
Page 35: Limited Warranty
1. Hot Spot Series, Micro Spot Series, Audio Solutions (including Cricket, Jacks In the Box, & Check Mate) are products covered by 3 year warranty. 2. Any Spot Wireless, including Wireless Personal Monitor (WPM), Assistive Listening System, 500 Series Wireless Microphone, 700 Series Wireless Microphone, Lightweight Headset Microphones, Tour Guide/Translator System, Wireless Camera Kit are covered by a 1 year warranty.

This manual is also suitable for:

As-tv5
