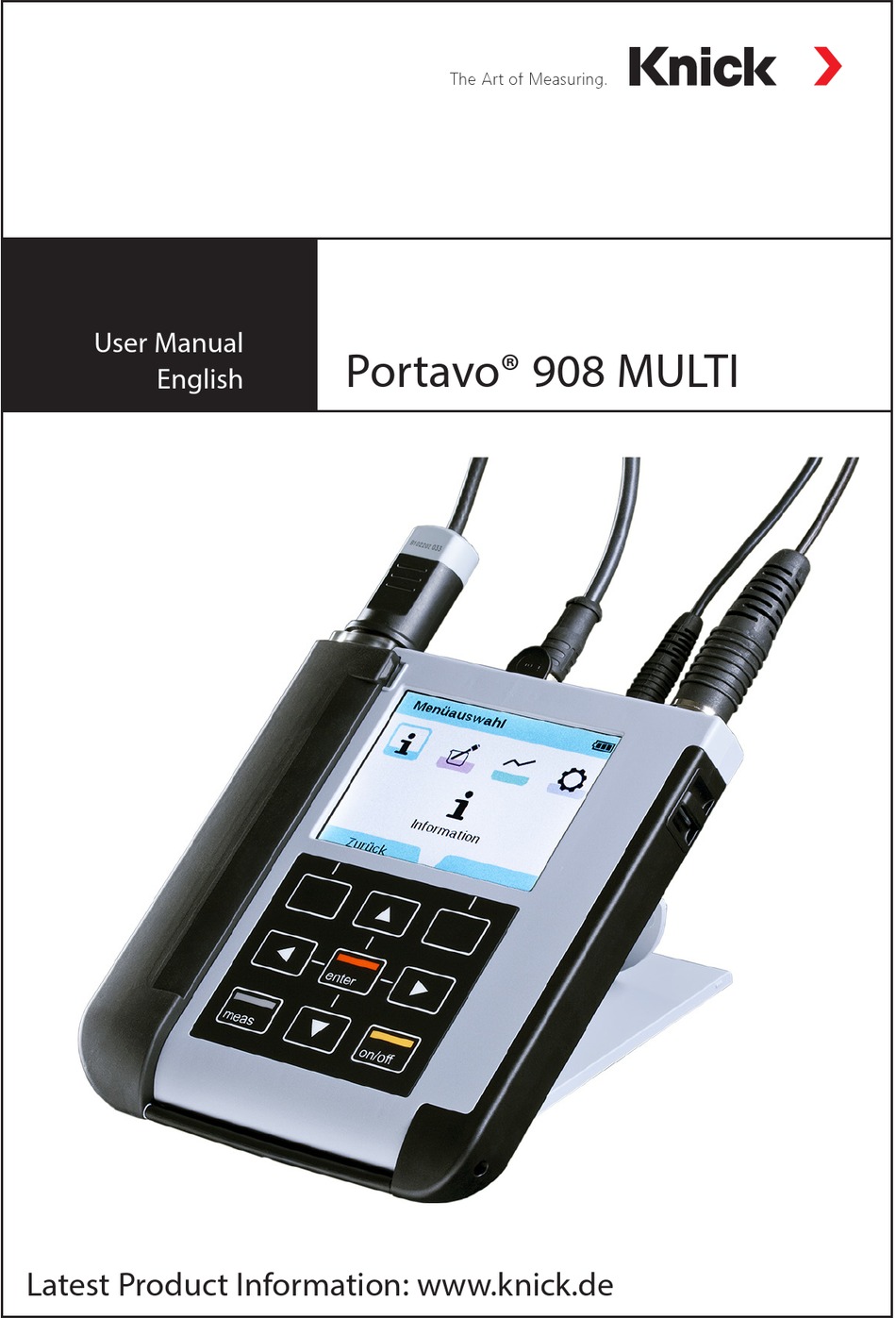

Knick Portavo 908 MULTI User Manual

Hide thumbs Also See for Portavo 908 MULTI:
Table of Contents

Advertisement

Quick Links

Download this manual
User Manual
Betriebsanleitung
Stratos®Pro
English
Aktuelle Produktinformation: www.knick.de
Latest Product Information: www.knick.de
Portavo® 908 MULTI
Stratos Pro A2... pH
deutsch
Betriebsanleitung
Aktuelle Produktinformation:
www.knick.de
The Art of Measuring.
A2... PH
II 1G Ex ia IIC T3/T4/T6
14163 Berlin
14163 Berlin
SE 706X/1-NMSN
SE 706X/2-NMS
14163 Berlin
BVS 10 ATEX E0
BVS 10 ATEX E089 X
II 1G Ex ia IIC T
SE 706X/1-NM
II 1G Ex ia IIC T3/T4/T6
BVS 10 ATEX E
14163 Berlin
II 1G Ex ia IIC
SE 706X/2-NMSN
14163 Berlin
SE 706X/2-NM
BVS 10 ATEX E089 X
II 1G Ex ia IIC T3/T4/T6
BVS 10 ATEX E
II 1G Ex ia IIC

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Portavo 908 MULTI and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Knick Portavo 908 MULTI

Summary of Contents for Knick Portavo 908 MULTI

  • Page 1 BVS 10 ATEX E II 1G Ex ia IIC User Manual Betriebsanleitung Stratos Pro A2... pH Portavo® 908 MULTI Stratos®Pro English deutsch A2... PH Betriebsanleitung x ia IIC T3/T4/T6 ATEX E 089 X Aktuelle Produktinformation: Aktuelle Produktinformation: www.knick.de Latest Product Information: www.knick.de www.knick.de...
  • Page 3 Basics Return of Products Under Warranty Please contact our Service Team before returning a defective device. Ship the cleaned device to the address you have been given. If the device has been in contact with process fluids, it must be decontaminated/ disinfected before shipment.

  • Page 4: Table Of Contents

    Table of Contents Package Contents ......................6 Documentation ......................7 Overview of the Portavo 908 ..................8 Value-Added Features ...........................9 Protective Cover ............................10 Hook ................................. 10 Display and Keypad ............................. 11 Start-Up ........................12 Inserting the Batteries ..........................12 Connecting a Sensor ........................... 13 Switching On the Meter ..........................
  • Page 5 How to Enter the Rescue PIN Code ................ 54 pH Product Line ...................... 56 pH Sensors ..............................56 Knick CaliMat (pH) Buffer Solutions ....................... 57 Accessories for pH, ORP ..........................57 Conductivity Product Line ..................58 Conductivity Sensors ..........................58 Conductivity Standards..........................

  • Page 6: Package Contents

    Package Contents Check the shipment for transport damage and completeness. The package of the Portavo 908 MULTI includes: Portavo 908 MULTI Meter incl. 4 batteries (AA) and premounted quiver Carrying strap Data carrier with detailed user manuals and Paraly SW 112 software USB cable, 1.5 m...

  • Page 7: Documentation

    Safety Instructions In official EU languages and others. • EU Declarations of Conformity Quickstart Guides Installation and first steps: • Operation • Menu structure • Calibration • Error messages and recommended actions Various languages on CD-ROM and on our website: www.knick.de...

  • Page 8: Overview Of The Portavo 908

    Overview of the Portavo 908 The Portavo 908 MULTI is a portable multi­ parameter meter for use with Memosens sensors or the Model SE 340 optical oxygen Quiver sensor. The micro USB port allows the meter to be connected to a printer for printing currently measured values or a calibration record including sensor data.

  • Page 9: Value-Added Features

    Overview of the Portavo 908 Value-Added Features Memosens The Portavo 908 can communicate with Memosens sensors. These digital sensors are automatically identified and the meter switches to the appropriate measurement method. When a Memosens sensor is connected to the meter, it is indicated by the logo shown on the right.

  • Page 10: Protective Cover

    Overview of the Portavo 908 Protective Cover The front of the meter is protected by a cover, which can be completely flipped over and secured to the back for operation. Hook A fold­out hook on the back allows the meter to be suspended. This leaves your hands free for the actual measurement.

  • Page 11: Display And Keypad

    Overview of the Portavo 908 Display and Keypad Display and keypad correspond directly via softkeys. Menu Icons Menu selection Information Calibration Information Return Start logger Data logger Configuration Softkeys Function is shown in the display above the key Arrow keys Selecting / Adjusting entries enter Confirming an adjustment on/off...

  • Page 12: Start-Up

    Start-Up Check the shipment for transport damage and completeness (see Package Contents). NOTICE! Do not operate the device when one of the following conditions applies: • the device shows visible damage • the device fails to perform the intended function •...

  • Page 13: Connecting A Sensor

    Start-Up Connecting a Sensor You can connect a Memosens sensor for pH/ORP, conductivity or oxygen measure- ment to the Portavo 908. The Model SE 340 optical oxygen sensor can also be con- nected. The meter automatically recognizes the connected sensor and accordingly selects the corresponding process variable.

  • Page 14: Switching On The Meter

    Start-Up Switching On the Meter You can use meas or on/off to switch the meter on: • With meas, the meter immediately switches to measuring mode. • With on/off, first a self test is performed and then the calibration data and settings are displayed before the meter switches to measuring mode.

  • Page 15: Information

    Information Oxy Cond 1) In measuring mode, press the Menu softkey. 2) Select “Information” and confirm by pressing enter. 3) Select the desired submenu and confirm by pressing enter. The different submenus are described below. Calibration Record Shows the data of the last calibration performed on the currently connected sensor. When the right softkey has been set to “Print”...

  • Page 16: Sensor Network Diagram (Ph And Oxy Only)

    Information Sensor Network Diagram (pH and Oxy only) Provides single-glance information on the following parameters of the connected sensor: • Slope • Zero point (operating point for Memosens ISFET) • Sensocheck (pH) or leakage current (ISFET and Oxy) • Response time •...

  • Page 17: Sensor Monitor

    Information Oxy Cond Sensor Monitor Shows the raw values available fom the connected sensor: mV, temperature, glass impedance pH ISFET mV, leakage current, temperature mV, temperature Cond Resistance, conductance, temperature Sensor current, leakage current, polarization voltage, partial pressure, air pressure, temperature Oxy, optical Partial pressure, temperature Messages...

  • Page 18: Device Info

    Information Oxy Cond Device Info Shows the following device information: • Device name • Serial number • Software version • Hardware version • Air pressure • Battery Device Test A device self-test is automatically run in the background at regular intervals. It checks the memory modules listed below.

  • Page 19: Ph Configuration

    Interval On: 00 … 99 days Calimatic | Manual | Data entry Cal mode Auto | 1-point | 2-point | 3-point Cal points Buffer set Mettler-Toledo 2.00/4.01/7.00/9.21 Knick CaliMat 2.00/4.00/7.00/9.00/12.00 Ciba 2.06/4.00/7.00/10.00 NIST technical 1.68/4.00/7.00/10.01/12.46 NIST standard 1.679/4.006/6.865/9.180 Hach 4.01/7.00/10.01/12.00 2.00/4.01/7.00/10.00...
  • Page 20 Configuration “pH Configuration” menu selection – part 2 + Time/Date 24 h | 12 h Time format dd.mm.yyyy | yyyy-mm-dd | dd/mm/yyyy | mm/dd/yyyy Date format Time hh:mm:ss Date Date format as configured + Display Appearance Modern | Retro Lighting Permanent | 60 min | 30 min | 10 min | 5 min | 1 min | 30 sec Bright | Standard | Dim...

  • Page 21: Orp Configuration

    Configuration ORP Configuration 1) In measuring mode, press the Menu softkey. 2) Select “Configuration” and confirm by pressing enter. 3) Make the desired adjustments. The following table gives you an overview. Factory settings are shown in bold print. “ORP Configuration” menu selection – part 1 Language Deutsch | English | Español | Italiano | Français | Português | Русский...
  • Page 22 Configuration “ORP Configuration” menu selection – part 2 + Data logger Meas.point Note Non-circular | Circular Recording Logger type Shot Interval 00.00.01…12:59:59 | 00:02:00 Difference 1st difference On | Off pH 0.0…16.0 | pH 1.0 Delta pH Delta mV 0 … 2000 mV | 1 mV On | Off 2nd diff.

  • Page 23: Conductivity Configuration

    Configuration Cond Conductivity Configuration 1) In measuring mode, press the Menu softkey. 2) Select “Configuration” and confirm by pressing enter. 3) Make the desired adjustments. The following table gives you an overview. Factory settings are shown in bold print. “Conductivity Configuration” menu selection – part 1 Deutsch | English | Español | Italiano | Français Language Português | Русский...
  • Page 24 Configuration Cond “Conductivity Configuration” menu selection – part 2 + Calibration Contacting (conductive) conductivity sensors: Cal mode Auto | Entry of solution | Cell constant Toroidal (inductive) conductivity sensors: Auto | Entry of solution | Cell factor | Installation factor | Zero point NaCl 0.01 mol/l | NaCl 0.1 mol/l | NaCl sat.
  • Page 25 Configuration Cond “Conductivity Configuration” menu selection – part 3 + Data logger Meas.point Note Non-circular | Circular Recording Logger type Shot Interval 1…12:59:59 | 00:02:00 Difference 1st difference On | Off Delta cond 0 … 2000 mS/cm | 1.0 µS/cm 0 …...

  • Page 26: Oxygen Configuration

    Configuration Oxygen Configuration 1) In measuring mode, press the Menu softkey. 2) Select “Configuration” and confirm by pressing enter. 3) Make the desired adjustments. The following table gives you an overview. Factory settings are shown in bold print. “Oxygen Configuration” menu selection – part 1 Deutsch | English | Español | Italiano | Français | Language Português | Русский...
  • Page 27 Configuration “Oxygen Configuration” menu selection – part 2 + Display Modern | Retro Appearance Permanent | 60 min | 30 min | 10 min | Lighting 5 min | 1 min | 30 sec Bright | Standard | Dim Brightness + Data logger Meas.point Note...

  • Page 28: Ph Calibration

    1) Select the number of calibration points and the buffer set as shown in the table below and press the Start softkey. Auto | 1-point | 2-point | 3-point Cal points Mettler-Toledo 2.00/4.01/7.00/9.21 Knick CaliMat 2.00/4.00/7.00/9.00/12.00 Ciba 2.06/4.00/7.00/10.00 NIST technical 1.68/4.00/7.00/10.01/12.46 NIST standard 1.679/4.006/6.865/9.180...

  • Page 29: Manual Calibration

    Calibration Manual Calibration (Calibration with manual specification of the number of calibration points and the buffer solution) 1) Select the number of calibration points and press the Start softkey. 2) Adjust the temperature-corrected value (see buffer table) for the 1st/2nd/3rd buffer solution and press Continue (repeat this step for each calibration point).

  • Page 30: Orp Calibration

    Calibration ORP Calibration 1) In measuring mode, press the Menu softkey. 2) Select “Calibration” and confirm by pressing enter. 3) Select the desired “Calibration mode” and confirm by pressing enter. 4) The “TAG” menu allows the sensor TAG to be edited. To do so, set “TAG”...

  • Page 31: Isfet Calibration

    Calibration ISFET ISFET Calibration 1) In measuring mode, press the Menu softkey. 2) Select “Calibration” and confirm by pressing enter. 3) Select the desired “Calibration mode” and confirm by pressing enter. 4) The “TAG” menu allows the sensor TAG to be edited. To do so, set “TAG”...

  • Page 32: Conductivity Calibration

    Calibration Cond Conductivity Calibration 1) In measuring mode, press the Menu softkey. 2) Select “Calibration” and confirm by pressing enter. 3) Select the desired “Calibration mode” and confirm by pressing enter. 4) The “TAG” menu allows the sensor TAG to be edited. To do so, set “TAG”...

  • Page 33: Entry Of Solution" Calibration

    Calibration Cond “Entry of Solution” Calibration (Calibration by entering the conductivity with display of the cell constant) 1) Press the Start softkey. 2) Immerse the sensor in the solution. 3) Enter the temperature-corrected conductivity value and press enter. 4) Finally, you can Apply these values or Cancel the calibration. Cell Constant / Cell Factor Calibration (Calibration by entering the cell constant (cell factor) with display of the conductivity)

  • Page 34: Oxygen Calibration

    Calibration Oxygen Calibration 1) In measuring mode, press the Menu softkey. 2) Select “Calibration” and confirm by pressing enter. 3) Select the desired “Calibration mode” and confirm by pressing enter. 4) Select “Membrane module replacement” if you wish to save a change of mem- brane or electrolyte in the connected sensor.

  • Page 35: Zero Calibration

    Calibration Zero Calibration (Zero calibration with oxygen-free medium, e.g., nitrogen 5.0) 1) Place sensor in oxygen-free medium and wait for a stable measured value. 2) Press the Start softkey. Calibration will be performed. 3) Finally, you can Apply these values or Cancel the calibration. Data Entry Calibration (Calibration by entering known sensor values) 1) Press the Start softkey.

  • Page 36: Measuring

    Measuring Oxy Cond Once you have completed all preparations, you can start with the actual measurement. 1) Connect the desired sensor to the meter. Some sensors require a special preparation. Please proceed according to the operating instructions for the sensor. 2) Switch the meter on using the on/off or meas key.

  • Page 37: Printing

    Printing Oxy Cond Printing You can print out the currently measured values and the calibration record. Via the micro USB port, you can connect the Portavo 908 to a suitable printer. To do so, use the included USB adapter (A female to B male). The following printer protocols are supported: HP-PCL, Epson, Samsung, and IBM.

  • Page 38: Printing A Calibration Record

    5) Press the right softkey: Print (see previous page for configuration). You will receive a printout of the calibration record with date and time stamp (example): calibration record 04.01.2016 09:19 Date Device 1nLormac1on Manufacturer Knick Serial no. 0003791 908 MULTI Device type SW version 1.5.0 Build 10931 Sensor information...

  • Page 39: Data Logger

    Data Logger Oxy Cond The Data Logger The meter provides a data logger. Prior to use, it must be configured and then activated. You can choose from the following logger types: • Shot (manual logging by pressing the Save value softkey) •...

  • Page 40: Operating Modes Of The Data Logger (Logger Type)

    Data Logger Oxy Cond Operating Modes of the Data Logger (Logger Type) Shot In this mode, a measured value is recorded each time the Save value softkey is pressed. In the measuring mode (meas), it is always possible to hold a value and then save it.
  • Page 41 Data Logger Oxy Cond Interval and Difference (Combined) When the delta range related to the last DIFF entry is exceeded, a new entry is created (example: entry A) and the delta range is displaced upwards or downwards by the delta value. As long as the measured value remains within the delta range, logging is performed at the preset interval.

  • Page 42: Configuring The Data Logger

    Data Logger Oxy Cond Configuring the Data Logger Prerequisite: Data logger is stopped. The “Data logger” menu shows the number of occupied entries as well as the number of free entries. Configuration can also be done in the “Configuration” menu under “Data logger”.
  • Page 43 Data Logger Oxy Cond Configuring the data logger (default in bold print) Without Meas.point Without Note Non-circular Recording Circular Logger type Shot Interval 00:00:01…12:59:59 | 00:02:00 Interval On Off Difference 1st difference pH 0.0…16.0 | pH 1.0 Delta pH 0 … 2000 mV | 1 mV Delta mV 0 …...

  • Page 44: Starting/Stopping The Data Logger

    Data Logger Oxy Cond Starting/Stopping the Data Logger With the data logger activated, automatic switch-off is disabled. Every time the meter has been switched off, the data logger must be restarted. Depending on the assignment of the right softkey (see “Configuration”, page 19) you can start/stop the data logger as follows: Right softkey 1) Press right softkey Start logger / Stop logger.
  • Page 45 Data Logger Oxy Cond Example 1: Viewing the logger data Data Logger Primary mea- Measured sured value temperature Date and time Meas.point Note Sensor Analog Scroll using arrow keys Graphic Return Example 2: Curve characteristic Data Logger Select entry using arrows.

  • Page 46: Paraly Sw 112 Software

    Paraly SW 112 Software Oxy Cond Paraly SW 112 Software The Paraly SW 112 software supplements the Portavo series. It allows convenient management of the data that have been acquired by the meters as well as simple and clear configuration of the meters. Paraly SW 112 starts automatically when the Portavo USB port is connected to the computer.

  • Page 47: Error And Status Messages

    Error and Status Messages Oxy Cond Error and status messages appear as plain text on the display. By pressing enter and Help, more detailed help texts can be displayed. Information on the sensor condi- tion is indicated by the “Sensoface” icon (friendly, neutral, sad) possibly accompanied by an info text.

  • Page 48: Sensoface" Messages

    Error and Status Messages Oxy Cond “Sensoface” Messages The “Sensoface” icon provides information on the sensor condition: Sensoface Meaning Sensor is okay Calibrate the sensor soon Calibrate or replace the sensor Info and Help Texts When an error or status message appears on the screen, proceed as follows to view the corresponding info or help text: 1) Press enter.

  • Page 49: Error Messages

    Error and Status Messages Oxy Cond Error Messages Error Message Remedy Replace the batteries Replace the batteries. blinks ERR 1 Primary variable range Check whether the measurement conditions ERR 2 ORP range correspond to the adjusted measuring range. ERR 3 Temperature range ERR 4 Zero point...

  • Page 50: Option 001 Sop

    Options Oxy Cond Option 001 SOP The option meets specific requirements of the pharmaceutical and biotechnological industries. SOP Cal Here, you specify which buffers are to be used in which sequence. You can combine buffer solutions from different buffer sets. Please note that the minimum distance allowed between two buffer solutions is Δ 2 pH.
  • Page 51 Calimatic | Manual | Data entry | SOP cal Cal mode Adapt SOP cal Cal points 1-point | 2-point | 3-point Buffer 1 Buffer set Mettler-Toledo 2.00/4.01/7.00/9.21 Knick CaliMat 2.00/4.00/7.00/9.00/12.00 Ciba 2.06/4.00/7.00/10.00 NIST technical 1.68/4.00/7.00/10.01/12.46 NIST standard 1.679/4.006/6.865/9.180 Hach 4.01/7.00/10.01/12.00 2.00/4.01/7.00/10.00...
  • Page 52 Options Selecting SOP Calibration 1) In measuring mode, press the Menu softkey. 2) Select “Calibration” and confirm by pressing enter. 3) Select the “SOP cal” calibration mode and confirm by pressing enter. Performing an SOP Calibration The sequence of buffers to be used is displayed as specified in the configuration. After each calibration step, the identified buffer is marked off in the display.
  • Page 53 Options Oxy Cond User Management (Access Control) You can create up to 4 users with different access rights for configuration or calibration. Enabling the User Management 1) In measuring mode, press the Menu softkey. 2) Select “Configuration” and confirm by pressing enter. 3) Select “User management”...

  • Page 54: How To Enter The Rescue Pin Code

    Options Oxy Cond How to Enter the Rescue PIN Code 1) In measuring mode, press the Menu softkey. 2) Select “Configuration” using the cursor keys. 3) Press the  and  keys simultaneously. 4) Set User to “ADMIN”. 5) Select “PIN code” and enter the rescue PIN code. Confirm by pressing enter.
  • Page 55 Options Oxy Cond Enabling the Option 002 Temp.Cal (included in Option 001 SOP) 1) In measuring mode, press the Menu softkey. 2) Select “Configuration” and confirm by pressing enter. 3) Select Option “002 Temp.cal” and enter your activation code. Selecting Temperature Calibration 1) In measuring mode, press the Menu softkey.

  • Page 56: Ph Product Line

    pH Product Line pH Sensors Digital pH Sensors Ref. No. pH/temp sensor (plastic body, length 120 mm) SE 101 NMS pH/temp sensor (glass body, length 110 mm) SE 102 NMS You can also connect other Memosens sensors for pH or ORP as well as the SE 5xx Series Memosens pH/ORP combo sensors.

  • Page 57: Knick Calimat (Ph) Buffer Solutions

    (for meter, sensor, various small parts and user manual) Replacement quiver (5 units) ZU 0929 Flexible Memosens lab cable, M8 4-pin CA/MS-001XFA-L Flexible connecting cable for Memosens sensors, M12 8-pin CA/MS-001XDA-L Li-ion battery ZU 0925 Please visit our website for more information on our product range www.knick.de.

  • Page 58: Conductivity Product Line

    Conductivity Product Line Cond Conductivity Sensors Digital Conductivity Sensors Order No. 2-electrode sensor with graphite electrode and SE 615/1-MS polysulfone body, 120 mm, NTC 30k You can also connect other Memosens sensors of the SE 6xx Series. Temperature Detectors Pt1000 temperature detector ZU 6959 Pt1000 temperature detector with tilted tip ZU 0156...

  • Page 59: Conductivity Standards

    Flexible Memosens lab cable, M8 4-pin CA/MS-001XFA-L Flexible connecting cable for Memosens sensors, M12 8-pin CA/MS-001XDA-L Flexible connecting cable for SE 680 sensor, M12 4-pin, M8 4-pin CA/M12-001M8-L Li-ion battery ZU 0925 Please visit our website for more information on our product range: www.knick.de.

  • Page 60: Oxygen Product Line

    Flexible connecting cable for Memosens sensors, M12 8-pin CA/MS-001XDA-L Li-ion battery ZU 0925 membrane kit ZU 0564 (4 x membrane module, O-ring set, 25 ml electrolyte) electrolyte ZU 0565 Please visit our website for more information on our product range: www.knick.de.

  • Page 61: Specifications

    Specifications Connections 2x socket, 4 mm dia., for separate temp. detector 1x M8 socket, 4 pins, for flexible Memosens lab cable 1x micro USB-B for data transmission to PC or printer connection 1x M12 socket, 8 pins, for flexible connecting cable for Memosens sensors or SE 340 sensor (optical oxygen) Air pressure measurement 700 …...
  • Page 62 Specifications Communication USB 2.0 Profile HID, driverless installation Usage Data exchange and configuration via Paraly SW 112 software Diagnostics functions Sensor data Manufacturer, sensor type, serial number, wear, operating time, (Memosens only) remaining lifetime, max. temperature, adaptive calibration timer, calibration and adjustment data, SIP, CIP and autoclaving counter Calibration data Calibration date;...
  • Page 63 Manual Manual calibration with entry of individual buffer values Data entry Data entry of zero and slope Calimatic buffer sets * -01- Mettler-Toledo 2.00/4.01/7.00/9.21 -02- Knick CaliMat 2.00/4.00/7.00/9.00/12.00 -03- Ciba (94) 2.06/4.00/7.00/10.00 -04- NIST technical 1.68/4.00/7.00/10.01/12.46 -05- NIST standard 1.679/4.006/6.865/9.180 -06- HACH 4.01/7.00/10.01/12.00...
  • Page 64 Specifications Memosens input M8 socket, 4 pins, for flexible Memosens lab cable or M12 socket, 8 pins, for flexible connecting cable for Memosens sensors Display ranges -1999 … +1999 mV Temperature -50 … +250 °C / -58 … +482 °F Sensor standardization * ORP calibration (zero adjustment) Permissible calibration range...
  • Page 65 Specifications Memosens conductivity M8 socket, 4 pins, for flexible Memosens lab cable or input M12 socket, 8 pins, for flexible connecting cable for Memosens sensors Measuring range SE 615/1-MS 10 µS/cm … 20 mS/cm sensor Measuring cycle Approx. 1 s Temperature compensation Linear 0 …...
  • Page 66 Specifications Memosens input for M8 socket, 4 pins, for flexible Memosens lab cable or amperometric oxygen M12 socket, 8 pins, for flexible connecting cable for Memosens sensors Display ranges Saturation 0.000 ... 200.0 % Concentration 000 μg/l … 20.00 mg/l Partial pressure 0.0 …...

  • Page 67: Index

    Battery capacity 12 Battery compartment 12 Battery icon 12 Battery life, increasing 42 Battery replacement 12 Benchtop stand 10 Buffer set (pH configuration) 19 Buffer sets 57 Buffer sets, configuring (pH) 46 Buffer solutions, Knick CaliMat 57 Buttons and functions 11...
  • Page 68 Index Calibration (Cond), auto 32 Calibration (Cond), cell constant 33 Calibration (Cond), entry of solution 33 Calibration, conductivity 32 Calibration in air (Oxy) 34 Calibration, ISFET 31 Calibration, ORP 30 Calibration (Oxy), data input 35 Calibration, oxygen 34 Calibration (Oxy), zero point 35 Calibration (pH), Calimatic 28 Calibration (pH), data input 29 Calibration (pH), manual 29...
  • Page 69 Index Configuration (ORP) 21 Configuration (oxygen) 26 Configuration (pH) 19 Configuring the data logger 42 Connecting cable for Memosens 13 Connecting cable for Memosens (accessory) 57, 59, 60 Connections 13 Connection, USB (battery) 12 Control buttons and functions 11 Creating a user (Option 001 SOP) 53 Curve characteristic (data logger) 45 Data input, Oxy calibration 35 Data input, pH calibration 29...
  • Page 70 Individual buffer sets (pH) 46 Information (menu) 15 Info texts 48 Inserting the batteries 12 Installation factor, calibration 33 Interval and difference (logger type) 41 Interval (logger type) 40 Introduction 8 ISFET calibration 31 Keypad 11 Keypad test 18 Knick CaliMat buffer solutions 57...
  • Page 71 Index Li-ion battery (accessory) 57, 59, 60 Limit value (logger type) 41 Lithium-ion battery (start-up) 12 Logger type “Difference” 40 Logger type “Interval” 40 Logger type “Interval and difference” 41 Logger type “Limit value” 41 Logger type “Shot” 40 Loss of PIN code 53 Manual calibration (pH) 29 meas, switch-on 14 Measured values, printout 37...
  • Page 72 Index O2 electrolyte (accessory) 60 O2 membrane kit (accessory) 60 on/off, switch-on 14 Operating modes of data logger 40 Operating time of membrane (optical oxygen) 15 Operating time of sensor (sensor information) 15 Optical oxygen measurement 9 Option 001 SOP 50 Option 001 SOP, enabling 51 Option 002 Temp.cal 50 Option 002 Temp.cal, enabling 55...
  • Page 73 Index Package contents 6 Paraly SW 112 software 46 Passcode lost 53 pH buffer solutions 57 pH calibration 28 pH configuration 19 pH/ORP sensor, calibration 29 pH sensors, product line 56 pH, specifications 63 PIN code, changing (Option 001 SOP) 53 PIN code lost 53 Ports 13 Power-on 14...
  • Page 74 Index Safety instructions 7 Saving a membrane module replacement (Oxy) 34 Self-test 18 Sensoface messages 48 Sensor connection 13 Sensor information 15 Sensor monitor 17 Sensor network diagram 16 Sensors for conductivity, product line 58 Sensors for oxygen, product line 60 Sensors for pH, product line 56 Sensor verification (Option 001 SOP) 54 Sensor without temperature detector 36...
  • Page 75 Index Table of error messages 49 Table of info texts 48 TAG entry (Cond) 32 TAG entry (ISFET) 31 TAG entry (ORP) 30 TAG entry (Oxy) 34 TAG entry (pH) 28 Technical data 61 Temp.cal (Option) 55 Temperature detectors (accessory) 56, 58, 60 Temperature, manual adjustment 36 Temperature probe, connection 13 Toggling the measured value display 36...
