Page 1: User Manual
WIFI Video Door Phone User Manual ---------------------------------------------------------------------------------------------------- Please read this user’s guide carefully before using this products... -
Page 2: Table Of Contents
Catalogue Products Introduction…………………………………………………………1 Products Description…………………………………………………………2 Installation………………………………………………………………………3 E-lock Wire Diagram…………………………………………………………4 Specification……………………………………………………………………5 App Installation…………………………………………………………………6 Pairing Code……………………………………………………………………7 Intercom Setting………………………………………………………………8 Visitor Record…………………………………………………………………9 Doorbell Setting………………………………………………………………10 Talking Record………………………………………………………………11 Add User………………………………………………………………………12 About Software………………………………………………………………13 Accessories…………………………………………………………………14 Failure Diagnosis……………………………………………………………15 Work environment……………………………………………………………16 Notice …………………………………………………………………………17 Warranty………………………………………………………………………18 Attention:The illustrations in this manual, the screen display, All in order to more directly in detail expound the operation of the products, due to the different version upgrades and production batch, they might a little different from the machine with you, If mentioned in this manual content does not accord with your machine, please refer to our machine... -
Page 3: Products Introduction

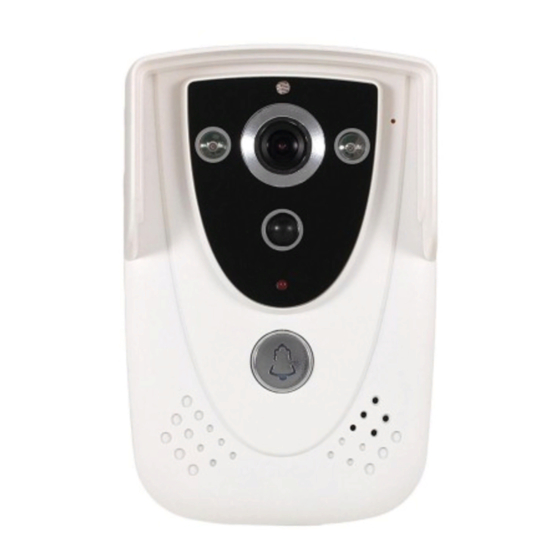

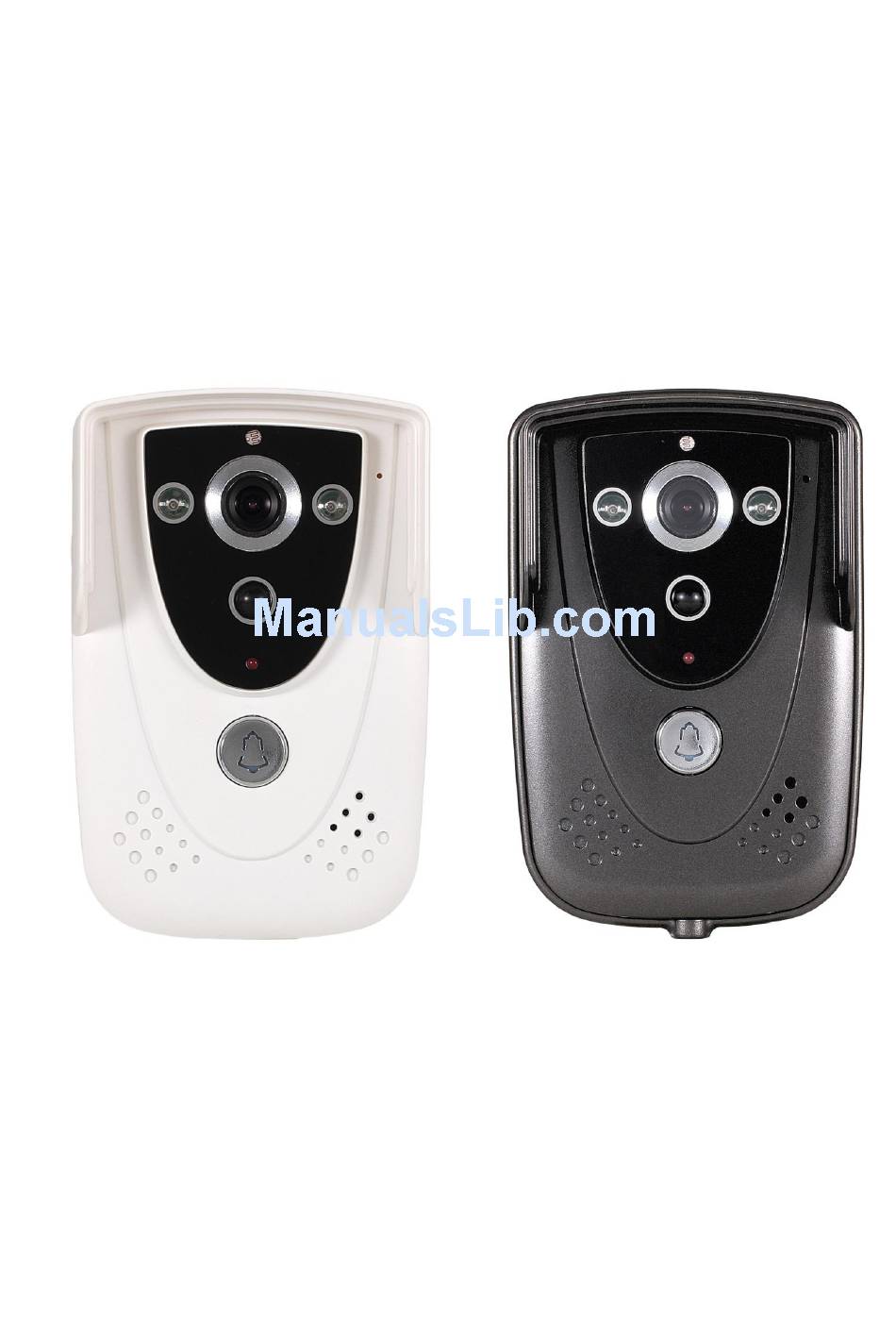

1. Products Introduction WiFi video doorbell connects to network via wireless router or network cable.Mobile devices include smartphone or tablet,could connect to the doorbell;After the visitor rings,mobile devices could interact with doorbell via real time video and audio,user can view the visitor,then decide to whether intercom or open the door etc. -
Page 4: Installation
3. Installation 1.Back Cover installation wire diagram: Step1: Connect wire,then install the waterproof sponge Step2: Install the waterproof cover and screws 2.Outdoor unit recommended location: A: Height: about 1.4 meter B. near to wifi router... -
Page 5: E-Lock Wire Diagram
4. E-lock Wire Diagram:... -
Page 6: Specification
Specification: Model SY-WIFI005 Lens 1/4 / F2.4 / 120 degree Pixel 3 million IR LED 2 PCS IR Distance About 3m Power Supply DC12V 1A Power Standby:1.5W Work:3.8 W Size 155*95*45MM 6. APP Installation Support OS： Android & IOS （1）For Android: ：... - Page 7 7. Hotspot Configuration （1）Start the doorbell Connect power supply to start the equipment,then heard a short music ( start time approx 40 seconds ),then the doorbell will connect to network.There are 2 ways of network connection: wireless WIFI and network wire. A.
- Page 8 A1. Search successful”.please click “ok”,the ID number and password will be filled in automatically,then go to Step B . A2. “Network is not ok”,please check wifi network of mobile device.(The main interface icon “ENNIO” is white color,then shows the network is ok) A3.
-
Page 9: Visitor Record
8. Visual talkback （1） ： Visual talkback/Remote monitoring,can be set under the “doorbell set up”. Choose “visual talkback”,the visitor also can be heard the voice from mobile phone;Choose “remote monitoring”,the visitor can’t hear the voice from mobile phone. （2）：Photograph: Can click this icon to take the picture when “in the talk”,the picture will be stored “Visitor record”. （3）：Open/Close the handsfree: Can open or close the handsfree when in the talk. - Page 10 10. Doorbell Set up Click “Doorbell set up”,then click the “Doorbell1”: Doorbell ID：Each doorbell had an individual ID,can copy this ID to send to another users. Doorbell nickname：The default nickname is “Doorbell1 to 4”,can click it to edit the nickname. Select the current call doorbell: Select the doorbell want to call Video call default state: choose “Visual talkback”...
-
Page 11: Call Log
11. Call Log Show the doorbell calling record,including dialed, received, missed,unlocking records.Click the upper right corner icon to clear the history. -
Page 12: Add User
12. Add User One doorbell max to support 8 users,if another user need to add the doorbell,check as below: A. If user is at home,power on the doorbell(make sure the mobile phone and doorbell use the same wifi network),click the search icon within 5 minutes to add the doorbell. -
Page 13: Accessories
14. Accessories 12V1A Power Supply 1 pc WIFI Outdoor camera 1 pc terminal wire 1 pc unlock wire 1 pc Screws 1 set Tools 1 set Failure Diagnosis Problem Solution Confirm 2PIN red&black power wire to plug the correct position,one is power port,another is unlocking The indicator isn’t on when plug power supply port,due to need to connect the convert wire,please make sure the positive and negative are not reversed. -
Page 14: Work Environment
Work Environment (1) Working temperature -25°C—+50°C (2) Working humidity range: less than 85% 17. Notices (1) The product should be placed where is stable , windy , air-dry, non-sunshine ,non strong magnetic and non-dusty； (2) Don't clean the surface with chemicals but with soft and clean dry cloth； (3) Don’t press several buttons at the same time；...
