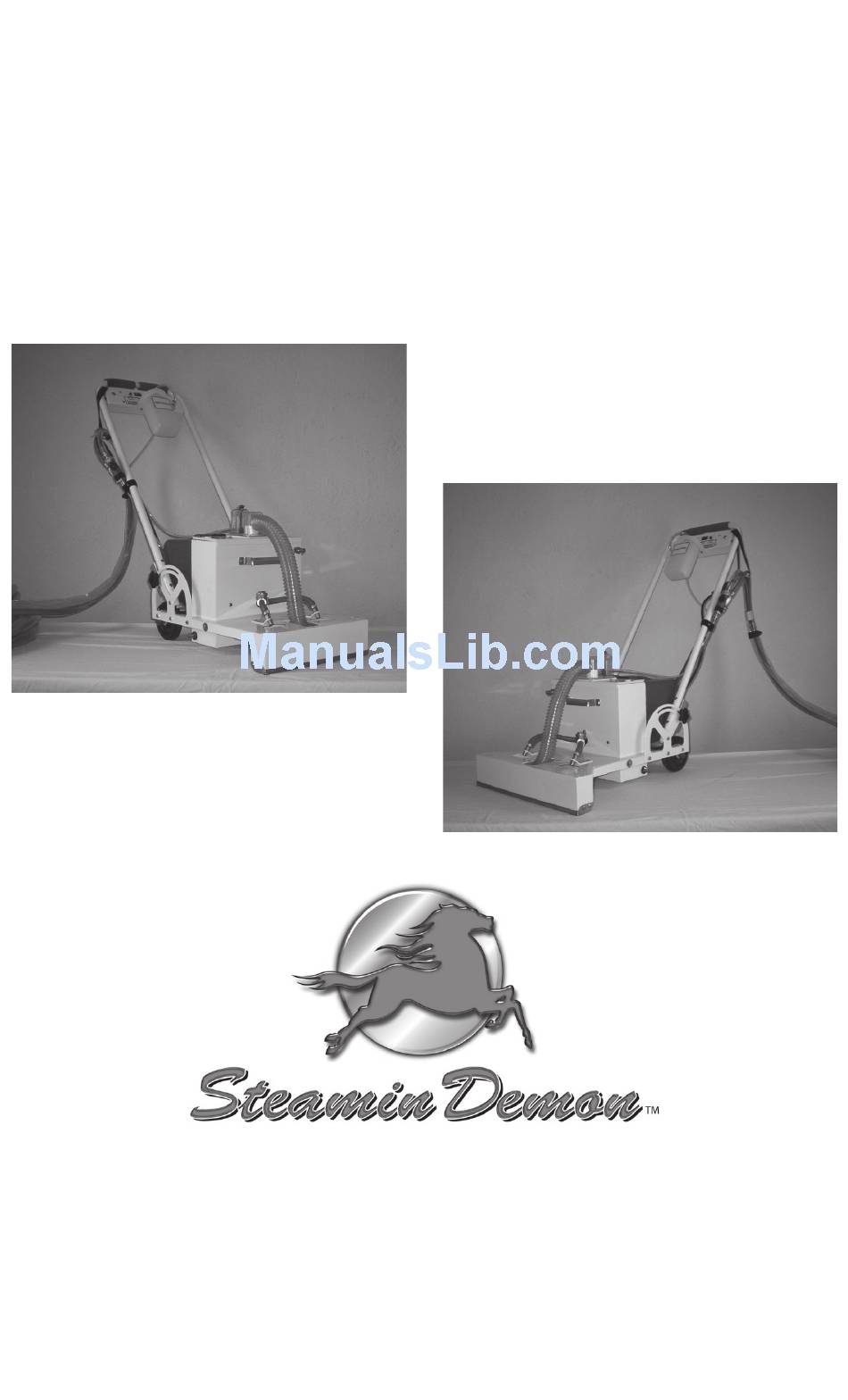

Page 1: Operating Manual
Steamin Demon XL15 & XL20 High-Flow Carpet Cleaning System Operating Manual For Assistance Call Toll-Free 1-888-413-6748 (Fax: 740-587-1394, Email: info@steamindemon.com) - Page 2 NOTES...
-
Page 3: Table Of Contents
Table of Contents Section One Page # I. Pre Extraction A. Installing Filter Bag and Cleaning Vac Shoe B. Chemicals C. Sink Fittings D. Unrolling Hoses E. Hooking up to the Faucet F. Prespraying and Spotting Carpets II. Extraction procedure A. -
Page 4: Section One
Section One I. Pre-Extraction Hold dink A. Cleaning the Machine- To ensure clamps proper machine performance you must either at the end or the beginning of each day replace the filter bag (fig. 2) and clean the vacuum shoe (fig. 3). Once a Remove vac hose week you need to clean the float switch to remove lid... -
Page 5: Sink Fittings
faucet. Make sure when you remove << Figure 5: Filling the aerator its washer comes out with it. defoamer bottle Sometimes the aerator comes out but the with Bubble Blaster washer stays in the faucet. To remove the washer, insert your finger in the faucet and work the washer out (fig. -
Page 6: Prespraying And Spotting Carpets
E. Hooking the Machine to the Faucet Inner Threads 1. Tighten the garden hose swivel nut (fig. 11) on the sink fitting. Turn hot water valve all the way open and open the pressure valve (fig. 11). If you are Outer Threads Washer doing commercial carpet and are... -
Page 7: Extraction Procedure
II. Extraction Procedures A. Before You Begin- Before starting your machine , familiarize yourself with the control panel (fig 16). This panel has five switches. 1. Vacuum switch: This rocker switch turns your vacuum motor on and off. It should remain ON during the entire ex- traction process. -
Page 8: Swing Check Valve
chine firmly on the carpet (fig.19). 4. At the end of your cleaning pass, turn jet spray switch OFF and continue walk- ing the machine backwards a few inches. This will allow the machine to pick up any excess moisture. 5. -
Page 9: Hose Techniques
them. This machine is very efficient at Push engine compartment cover back 2 inches removing these residues. To protect your vacuum motor from the soap suds that can build up in your recovery tank, peri- odically pull the defoamer switch up. IMPORTANT: When using extra hoses Thumb knobs... -
Page 10: Hoses
23) to manually activate the discharge pump. This will drain the recovery tank of any remaining dirty water. Dial-a-mix 2. Unplug the electric cord. sprayer 3. Replace bag filter (fig 2). Fan tip Water 4. Once a week clean the float switch and removed channel the safety water filter. -
Page 11: Iv. Hand Tool Attachments
XL15 and XL20 machines, for a period of one year from date of purchase. In addition, if Steamin Demon Company’s Demon Clean... -
Page 12: Section Three: Trouble-Shooting
SECTION THREE: TROUBLE-SHOOTING Problem Cause Solution Recovery tank 1. Closed drain valve(s) 1. Open all drain valves will not drain 2. Dirty float switch 2. Clean float switch 3. Hot pump 3. Remove thumb knobs and push engine compartment cover back a few inches 4.
