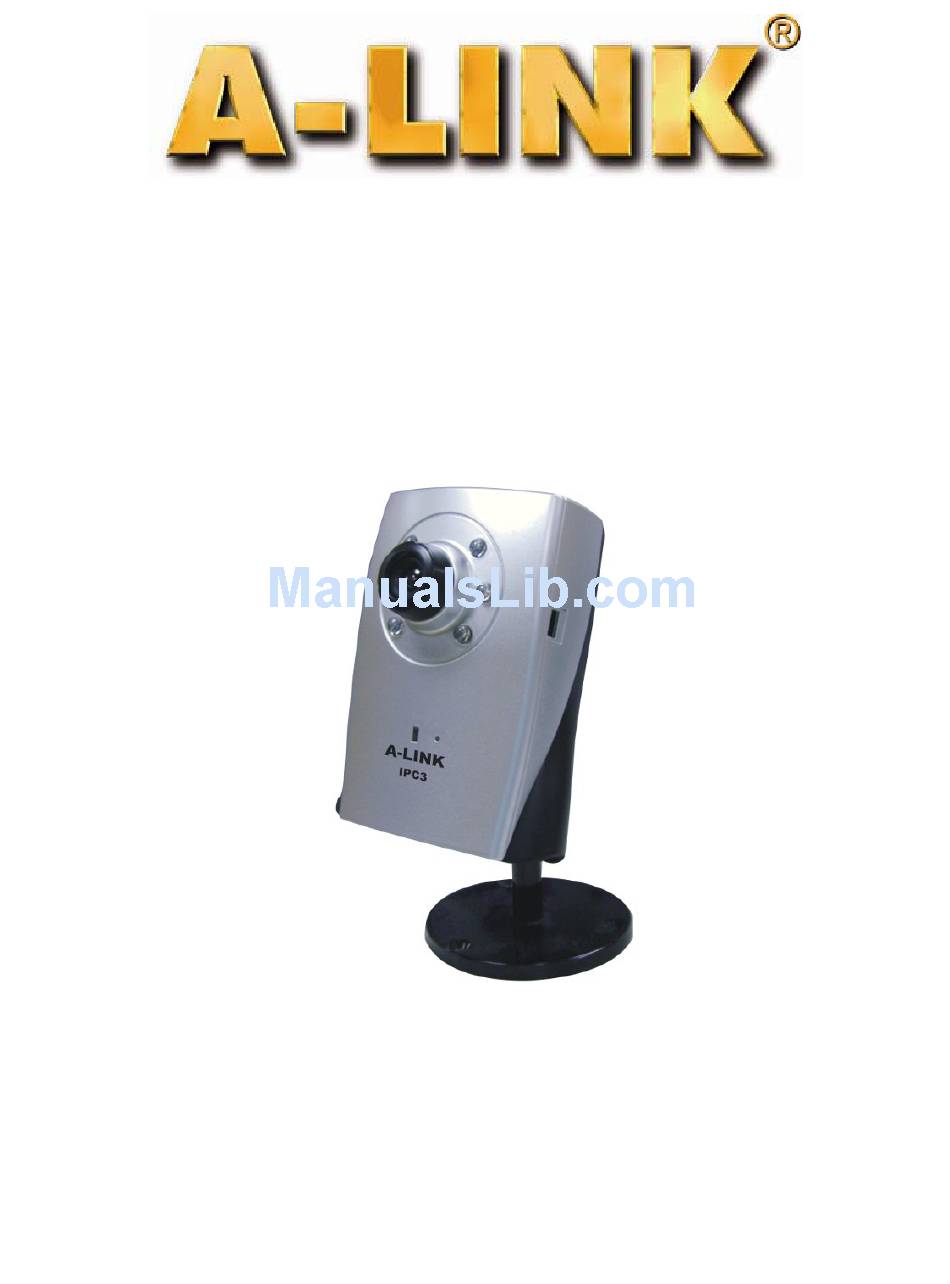

- Page 1 IPC3 1.3 Mega-Pixel / Multi-Profile IP Camera Ver. 1.0...
-
Page 2: Table Of Contents
Quick Installation Guide Table of Contents 1. System Requirements ......................3 2. Physical Installation......................4 2.1 IP Camera Connectors ..................4 2.2 IP Camera Installation ..................4 3. IP Camera administration ....................6... -
Page 3: System Requirements
About multi-profile Multi-profile stands for simultaneously video streams. These Network Cameras can generate H.264, MPEG4 and MJPEG streaming simultaneously to different clients. Moreover, the resolution can be different from one client to another. This state-of-art design is considerable to fit in various network environments. -
Page 4: Physical Installation
2. Physical Installation 2.1 IP Camera Connectors DC Power LAN Socket Jack Factory Audio Default Reset Output Jack LAN Socket Please use Category 5 “straight through” cable to connect the Network Camera to a 100Mbps Fast Ethernet network switch or hub or PoE injector. Audio Output Jack Audio-out Jack allows this device to output audio or alerting sound. - Page 5 2. Place the Camera on the table or fix it onto ceiling or wall Use three screws to fix the Network Camera onto the ceiling or wall. You could also put the Network Camera on the table directly. Fixed it by Screws 3.
-
Page 6: Ip Camera Administration
3. IP Camera administration When you have installed your networked device over your network environment, to start Network Camera web configuration, you must have the web browsers installed on computer for web management. Microsoft internet Explorer 6.0 or higher Mozilla Firefox 3.5 or higher At first, user may use “IP Wizard II”... - Page 7 The A-Link IPC3 must be installed and powered ON. If the A-Link IPC3 default IP Address (192.168.0.100) is already used by another device, the other device must be turned OFF until the device is allocated a new IP Address during configuration.
