Summary of Contents for Sitepower SPG8000

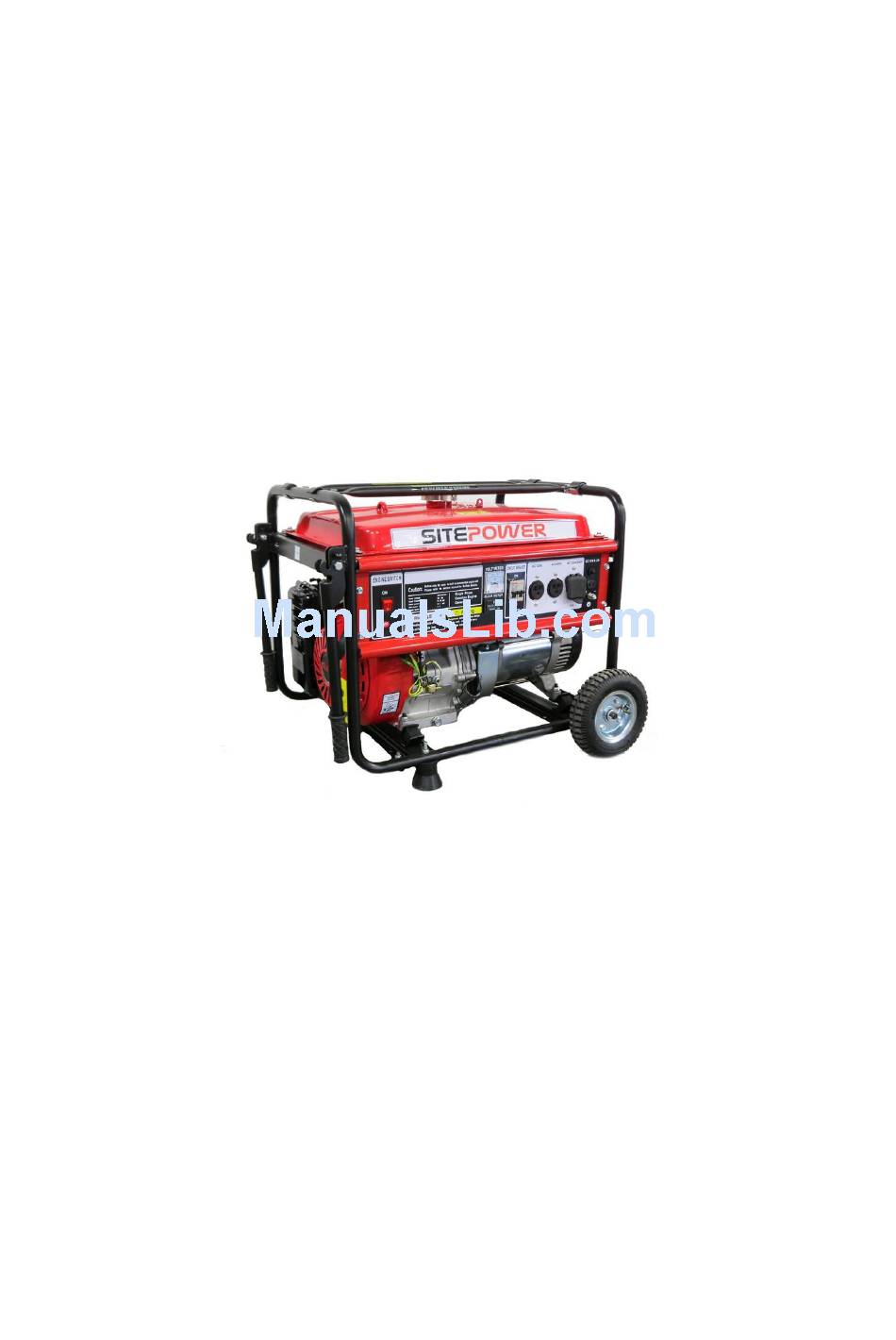

- Page 1 GASOLINE GENERATOR SET SPG8000 PORTABLE GENERATOR INSTRUCTION MANUAL IMPORTANT! Please make certain that persons who are to use this equipment thoroughly read and understand these instructions and any additional instructions provided prior to operation.
- Page 2 WARNING The generator is a potential source of electrical shock if misused. DO NOT expose the generator to moisture, rain or snow. DO NOT let the generator get wet, and do not operate it with wet hands.
-
Page 3: Table Of Contents
CONTENTS SAFETY INFORMATION………………………………………………… 3 COMPONENT IDENTIFICATION…………..……………………………… 4 PRE-OPERATION CHECK……………………………………………………7 STARTING THE ENGINE/STOPPING THE ENGINE………………..…….8 OPERATING INSTRUCTIONS………………………………………….……10 MAINTENANCE…………………………………………..……………………11 STORAGE…………………………………………………..……………………14 …………………………………..…………16 TROUBLE SHOOTING ……………………………..…………..17 EASY START INSTRUCTION... -
Page 4: Safety Information
☆ SAFETY INFORMATION Read and understand this instruction manual before operating your generator. You can help prevent accidents by being familiar with your generator’s controls, and by observing safe operating procedure Operator Responsibility Know how to stop the generator quickly in case of emergency. Under stand the use of all generator controls, output receptacles, and connections. -
Page 5: Component Identification
☆ COMPONENT IDENTIFICATION... -
Page 6: Engine Switch
◆ MANUAL START Engine Switch To start and stop the engine. Switch position: OFF: To stop the engine. ON: To run the engine ◆ELECTRIC START Engine Key To start and stop the engine. Key position: OFF: To stop the engine. Key can be removed / inserted. ON: To run the engine after starting. -
Page 7: Choke Rod
Choke Rod The choke is used to provide an enriched fuel mixture when starting a cold engine. It can be opened and closed by operating the choke rod manually. Pull the rod out toward CLOSED to enrich the mixture for cold starting. AC Receptacle Only a 230V appliance is being connected to any of the 230V 3-prong receptacles。... -
Page 8: Pre-Operation Check
AC Circuit Breaker The AC circuit breaker will automatically switch OFF if there is a short circuit or a significant overload of the generator at the receptacle. If the AC circuit breaker is switched OFF automatically, check that the appliance is working properly and does not exceed the rated load capacity of the circuit before switching the AC circuit breaker ON again. -
Page 9: Starting The Engine/Stopping The Engine
1. Remove the oil filler cap and wipe the dipstick clean. 2. Check the oil level by inserting the dipstick into the filler neck without screwing it in. 3. If the level is low, fill to the top of the oil filler neck with the recommended oil. Fuel ◆Check the fuel gauge, and refill the tank if the fuel level is low. - Page 10 2. Turn the fuel valve lever to the ON position. 3. The choke will be closed if the engine is cold, pull the choke rod out to the CLOSED position. 4. Turn the engine switch to the ON position. 5. Pull the starter grip lightly until resistance is felt, then pull briskly. WARNING: Do not allow the starter grip to snap back against the engine.
-
Page 11: Operating Instructions
Stopping the Engine In an emergency: To stop the engine in an emergency, move the engine switch to the OFF position. In normal use: 1. Turn the AC circuit breaker to the OFF position. 2. Turn the engine switch to the OFF position. 3. -
Page 12: Maintenance
Make sure that the electrical rating of the tool or appliance does not exceed that of the generator. Never exceed the maximum power rating of the generator. Power levels between rated and maximum may be used for no more than 30 minutes. WARNING: Substantial overloading will open the circuit breaker. -
Page 13: Maintenance Safety
Always follow the inspection and maintenance recommendations and schedules in this instruction manual. Maintenance Safety Make sure the engine is off before you begin any maintenance or repairs. Let the engine and exhaust system cool before touching. To reduce the possibility of fire or explosion, be careful when working around gasoline. Use only a nonflammable solvent, not gasoline, to clean parts. -
Page 14: Air Cleaner Service
Air Cleaner Service A dirty air cleaner will restrict air flow to the carburetor. To prevent carburetor malfunction, service the air cleaner regularly. Service more frequently when operating the generator in extremely dusty areas. WARNING: Never run the generator without the air filter. Rapid engine wear will result. 1. -
Page 15: Storage
3. Reinstall the filter, O-ring, and sediment cup. 4. Turn the fuel valve lever ON and check For leaks. Spark Plug Service To ensure proper engine operation, the spark plug must be properly gapped and free of deposits. If the engine has been running, the muffler will be very hot. - Page 16 STORAGE RECOMMENDED SERVICE PROCEDURE TO PREVENT TIME HARD STARTING Less than 1 month No preparation required 1 to 2 months Fill with fresh gasoline and add gasoline conditioner. 2 months to 1 year Fill with fresh gasoline and add gasoline conditioner. Drain the carburetor float bowl.
-
Page 17: Troubleshooting
☆ TROUBLESHOOTING Note: Troubleshooting problems may have similar causes and solutions. PROBLEM POSSIBLE CAUSE SOLUTION Is there fuel in the tank? Refill the fuel tank. Is there enough oil in the engine? Add the recommended oil. The engine Is the spark plug in good Readjust gap and dry the spark plug. -
Page 18: Easy Start Instruction
☆Easy Start Instruction 1)、Apply at least 1 gallon of gasoline or until gasoline gauge shows over 2 gallons full. 2)、Apply engine oil (10-30w) until you can see oil surface at the top. Apply oil cap, low oil kill switch is know activated. 3)、Turn on/off switch to ON position (located on control panel).
