USING YOUR RANGE

BACK PANEL LIGHT

On conventional upper oven only. To
turn on light, press button marked
"BACK PANEL" which is located at the
base of the control panel.
On microwave oven model: Press "ON"
pad located at base of microwave con-
trol panel.
To replace fluorescent surface light:
Before replacing light, DISCONNECT
POWER TO RANGE. Be sure bulb and
range parts are cool. Do not touch a hot
bulb with a damp cloth as the bulb may
break.
On conventional upper ovens: Re-
move three screws holding trim piece
along top edge of glass OR two screws
holding trim piece along side edge of
glass. Support glass while removing
screws so glass will not fall forward. Re-
move bulb and replace. Restore power,
check light operation prior to replacing
glass panel. Reset clock.
On microwave oven model, refer to the
separate microwave oven use and care
booklet for instructions on removing the
cooktop light bulb.

LOWER OVEN LIGHT

To turn on oven light, press rocker
switch, located on manifold panel, to the
"ON" position.

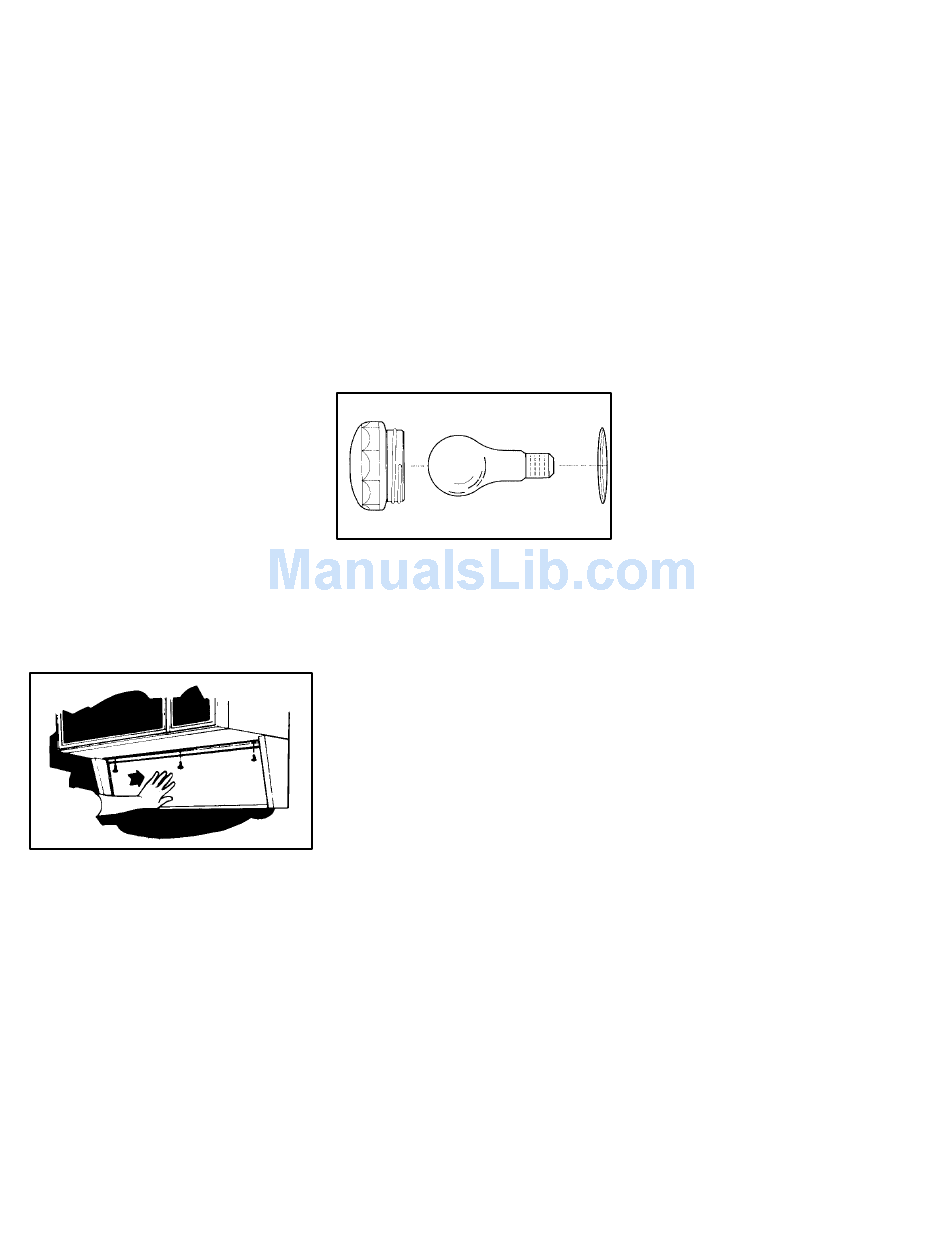

To replace oven light: Before replac-
ing light bulb, DISCONNECT POWER
TO RANGE. Be sure bulb is cool. Do not
touch a hot bulb with a damp cloth as the
bulb may break. Use a dry potholder
and carefully unscrew bulb cover and
bulb.
Replace with a 40 watt appliance bulb
and bulb cover. Reconnect power to
range and reset clock.
-8-

UPPER OVEN LIGHT

On conventional oven only. To turn on
oven light, push in button, located at
base of control panel.
On microwave oven, oven light turns on
whenever the door is opened or the
oven is in a cook or defrost operation.
To replace conventional oven light:
Before replacing light bulb, DISCON-
NECT POWER TO RANGE. Be sure
bulb is cool. Use a dry potholder and
very carefully remove bulb. Replace
with a 40 watt APPLIANCE bulb. Recon-
nect power to the range and reset clock.
On microwave oven model, refer to the
separate microwave oven use and care
booklet for instructions on removing the
oven light bulb.
