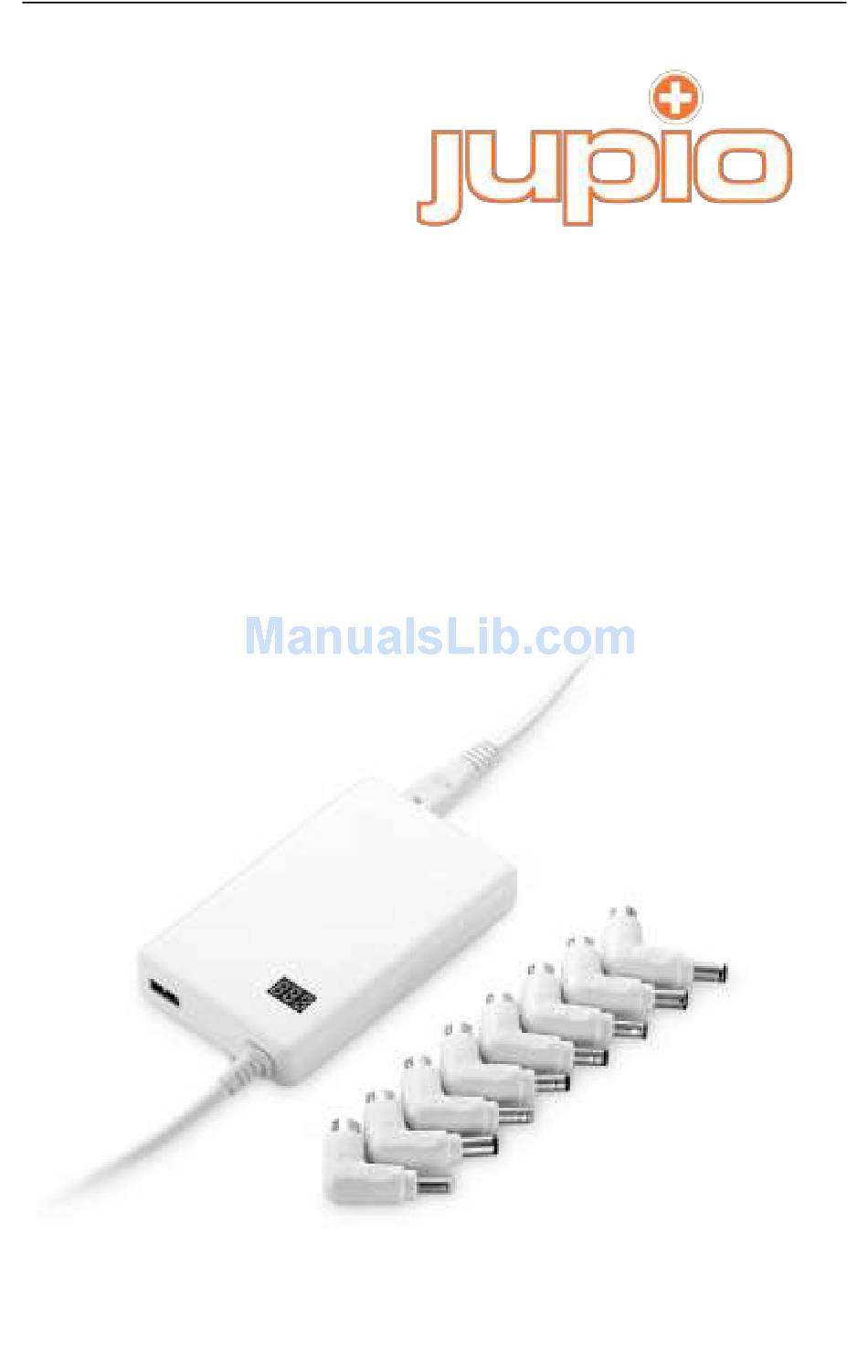

  • Page 1 ULTRA SLIM DESIGN Universal Notebook Charger JNC0020...

  • Page 2: User Manual

    4. LED display shows current voltage. 5. The JNC0020 uses SCM computer controlling techniques, double panel PCB and uses special ABS+PC housing material to make sure you always work safely and environmental friendly.

  • Page 3: Package Content

    Product Diagram: AC Input LED display DC Joint USB output DC Tips AC cable Product Specification: AC Input: 100~240V , 2A 50-60Hz DC Output: 12~24V 6A 90W(MAX） USB output: DC 5V 2.1A (MAX） Size: 114*70*17mm Net Weight: 239g Package Content: 1.
  • Page 4 Operation Steps 1. When you want to charge your laptop, connect the AC plug into the wall socket (picture A), without any tip, the LED display shows a value between 15.0V and 15.6V (picture B). Choose the right tip, such as N04, connect it with the DC output (picture C), then the LED displays the N04's voltage (picture D).

  • Page 5: Important Safety Information

    6. If there is any strange sound, smoke or smell, immediately disconnect the cables. 7. Do not open or disassemble the JNC0020 (it may cause fire or electric shocks) 8. Do not put any sharp objects into the venting hole of the product (It may cause fire or electric shocks) 9.
  • Page 6 Notebook DC Tips Specification: Connectors Output Range Replacement Voltage Voltage Spec. COMPAQ: 18.5V1.1A,18.5V2.7A,18.5V3.8A, A(N04） 18.1-19.9V 4.8*1.7*10.7mm 18.5V3.5A,18.5V4.5A,18.5V4.9A, ASUS: 19V2.64A, NEC: 19V2.64A etc TOSHIBA: 15V2A,15V2.7A,15V3A,15V4A, B(N13） 14.3-15.7V 6.3*3.0*10.7mm 15V5A,15V6A NEC: 15V4A etc ACER: 19V/3.16A,19V/3.42A,19V/4.74A; C(N18） 18.1-19.9V 5.5*2.1*10.7mm LITEON:19V/3.16A,19V/3.42A;NEC:19V/3.16A etc BENQ:19V2.1A, DELL: 18V1.9A,19V2.4A,19V1.58A 19V3.16A HP: 18V2.3A,19V2.4A,19V3.16A；...
  • Page 7 Laptop DC Tips Specification Output Range Connectors Replacement Voltage Voltage Spec. L(N16) 20.9-23.1V 3.5*1.35*9.5 mm SHARP: 22V/1.8A, 22V/2.04A etc. M(N24) 19.0-21.0V 7.9*12 5.5 mm IBM/LENOVO: 20V/4.5A, 20V/3.25A etc. N(N25) 22.8-25.2V 7.7*2.5*4.3 mm APPLE: 24V/1.875A,24V/2A, 24V/2.65A etc. O(N26) 22.8-25.2V 9.5*3.5*4.0 mm APPLE: 24V/1.875A,24V/2A, 24V/2.65A etc.
  • Page 8 This also accounts for tampering with the warranty seals. 3. Jupio is not responsible for the hard disks or the data contained in our optical or magnetic devices. 4. This warranty does not cover the damage done to other equipments used in conjunction with this product.
