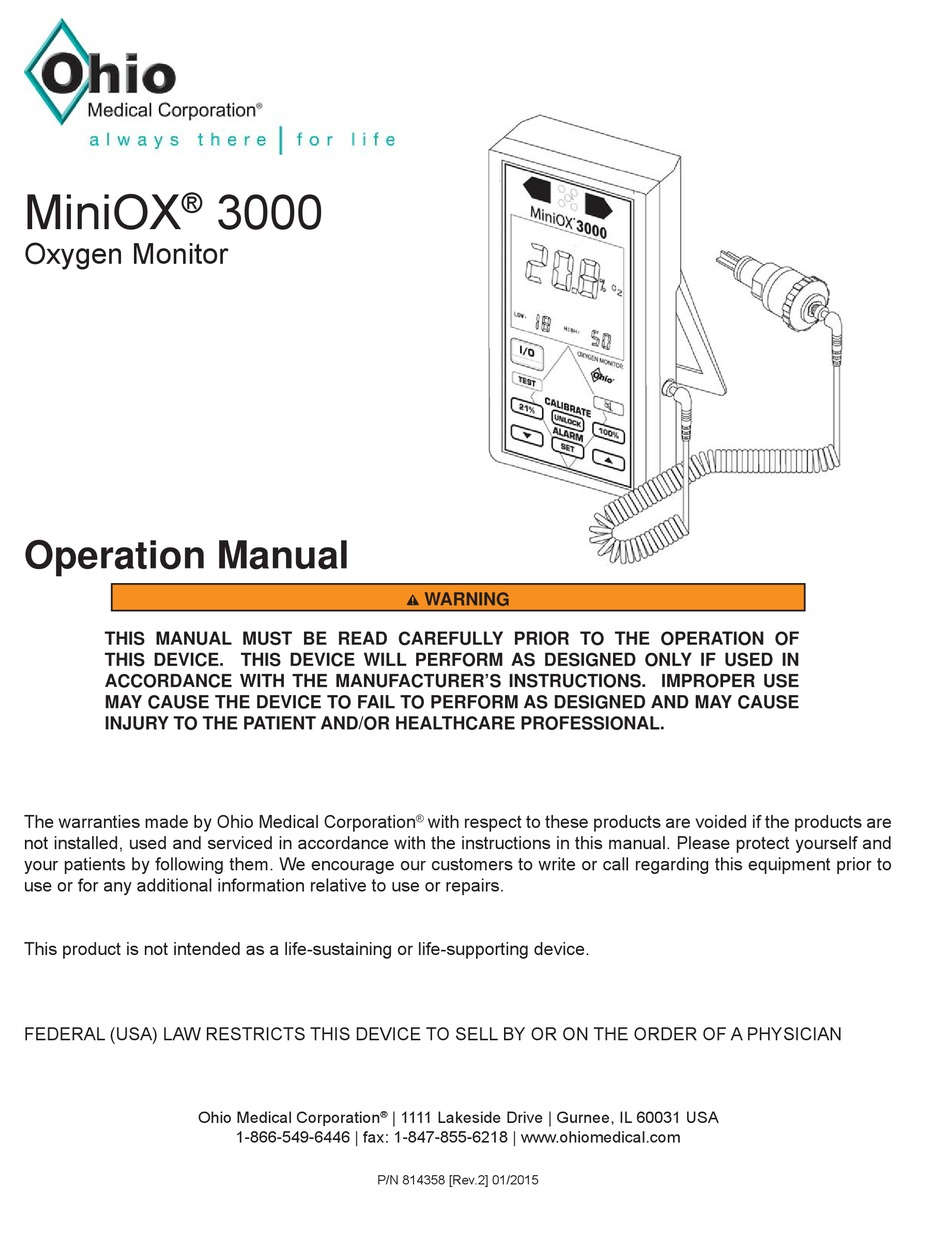

MiniOX
®
Oxygen Monitor
Operation Manual
THIS MANUAL MUST BE READ CAREFULLY PRIOR TO THE OPERATION OF
THIS DEVICE. THIS DEVICE WILL PERFORM AS DESIGNED ONLY IF USED IN
ACCORDANCE WITH THE MANUFACTURER'S INSTRUCTIONS. IMPROPER USE
MAY CAUSE THE DEVICE TO FAIL TO PERFORM AS DESIGNED AND MAY CAUSE
INJURY TO THE PATIENT AND/OR HEALTHCARE PROFESSIONAL.
The warranties made by Ohio Medical Corporation
not installed, used and serviced in accordance with the instructions in this manual. Please protect yourself and
your patients by following them. We encourage our customers to write or call regarding this equipment prior to
use or for any additional information relative to use or repairs.
This product is not intended as a life-sustaining or life-supporting device.
FEDERAL (USA) LAW RESTRICTS THIS DEVICE TO SELL BY OR ON THE ORDER OF A PHYSICIAN
3000
Ohio Medical Corporation
1-866-549-6446 | fax: 1-847-855-6218 | www.ohiomedical.com
WARNING
with respect to these products are voided if the products are
®
| 1111 Lakeside Drive | Gurnee, IL 60031 USA
®
P/N 814358 [Rev.2] 01/2015

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MiniOX 3000 and is the answer not in the manual?

Questions and answers

Summary of Contents for Ohio Medical Corporation MiniOX 3000

  • Page 1 ACCORDANCE WITH THE MANUFACTURER’S INSTRUCTIONS. IMPROPER USE MAY CAUSE THE DEVICE TO FAIL TO PERFORM AS DESIGNED AND MAY CAUSE INJURY TO THE PATIENT AND/OR HEALTHCARE PROFESSIONAL. The warranties made by Ohio Medical Corporation with respect to these products are voided if the products are ®...
  • Page 2 P/N 814358 [Rev.2] 01/2015...
  • Page 3 ® Ohio Medical Corporation Medical Instrument Warranty This product is sold by Ohio Medical under the warranties set forth in the following paragraphs. Such warranties are extended only with respect to the purchase of this product directly from Ohio Medical or Ohio Medical’s Authorized Dealers as new merchandise and are extended to the fi...

  • Page 4: General Warnings And Cautions

    FAILURE TO COMPLY WITH THESE CAUTIONS Monitor beyond the scope of the maintenance COULD RESULT IN INSTRUMENT DAMAGE AND/OR instructions or by anyone other than an authorized FAILURE OF UNIT TO PERFORM TO SPECIFICATIONS. Ohio Medical Corporation service person could WC-1 P/N 814358 [Rev.2] 01/2015...
  • Page 5 MiniOX ® 3000 Oxygen Monitor General WARNINGS and CAUTIONS Defi nition of Warnings and Cautions Statement citing a potential safety hazard and  WARNING possible injury to yourself or others. Statement citing a possibility of damage to the  CAUTION instrument or other property.

  • Page 6: Table Of Contents

    MiniOX ® 3000 Oxygen Monitor Table of Contents Section 1 Introduction ..................1-1 General Description........................1-1 Operating Principles......................... 1-2 MiniOX 3000 Oxygen Sensor .................... 1-2 ® MiniOX 3000 Instrument ....................1-2 ® Operator Interface ......................1-2 Internal Functions ......................1-2 Data and System Status .....................
  • Page 7 MiniOX ® 3000 Oxygen Monitor Table of Contents Mounting the Instrument with a Pole Bracket ................3-6 Figure 3-3 Installing Sensor into Tee Adapter ..............3-7 Figure 3-4 Sensor in Breathing Circuit ................. 3-8 Figure 3-5 MiniOX 3000 Oxygen Monitor with Pole Mounting Bracket ......3-8 ®...

  • Page 8: Introduction

    MiniOX ® 3000 Oxygen Monitor Section 1, Introduction • fall below the preset (or default) low alarm setting Section 1 Introduction • rise above the preset (or default) high alarm setting The MiniOX 3000 Oxygen Monitor provides ® The MiniOX 3000 Oxygen Monitor: ®...

  • Page 9: Operating Principles

    O values. • if appropriate, activates audible and visual alarms The microprocessor also monitors internal systems, The Ohio Medical Corporation oxygen sensor is self- indicating such operating conditions as: zeroing; when no oxygen is present: • calibration required •...

  • Page 10: Low/High Oxygen Concentration Alarms

    MiniOX ® 3000 Oxygen Monitor Section 1, Introduction • daily, while in operation • an audible alarm activates • the measured concentration appears in the • each time the monitor is turned ON display • following sensor disconnection/reconnection • when environmental conditions (pressure, The operator can silence the audible alarm for humidity and temperature) change three 30-second intervals for a total of 90 seconds;...

  • Page 11: Error Handling

    MiniOX ® 3000 Oxygen Monitor Section 1, Introduction If a calibration is performed using a calibration Test Functions gas other than room air or 100% oxygen, or if the microprocessor detects a calibration error during In addition to alarms that alert the operator to low and normal operation: expired battery voltage, the MiniOX 3000 Oxygen...

  • Page 12: Setting Up The Miniox

    2. Check the sensor’s manufacturing date on the contents, contact Ohio Medical Corporation Repair at: sensor package. If the sensor is put into service within six months after this date, the sensor will 866-549-6446, Option #1 meet performance specifi...

  • Page 13: 3000 Oxygen Monitor

    MiniOX ® 3000 Oxygen Monitor Section 2, Setting Up the Monitor a. Insert the gasket into the open end of the 6. Proceed to Section 3, Operation defl ector, ensuring that the gasket is properly seated within the defl ector ...

  • Page 14: 3000 Oxygen Monitor

    MiniOX ® 3000 Oxygen Monitor Section 3, Operation • when the operating environment changes Section 3 Operation • after the monitor is turned ON • if the sensor is disconnected and reconnected to This section describes the following operational the instrument procedures and functions of the MiniOX 3000 ®...

  • Page 15: To Calibrate At 100% O , Figure 3-2

    MiniOX ® 3000 Oxygen Monitor Section 3, Operation 2. Press I/0 to turn ON the instrument. 1. Calibrate in room air (see Section 3, To Calibrate in Room Air) • “CAL” fl ashes in the display 2. Expose the sensor to 100% oxygen and allow 3.

  • Page 16: Two-Point Linearity Check

    MiniOX ® 3000 Oxygen Monitor Section 3, Operation two-point linearity check ® NOTE: The MiniOX 3000 Oxygen Monitor has a fi ve second “time out” following keypad • If the variation is still greater than ±2%, functions. If you do not press UNLOCK replace the sensor.

  • Page 17: Alarm Conditions

    MiniOX ® 3000 Oxygen Monitor Section 3, Operation • “AL” If the alarm condition is not corrected within the preset silence interval (30,60, or 90 seconds): • up/down arrows • the audible alarm reactivates 2. Using the arrow keys, scroll up or down to the If the alarm condition is corrected and then reoccurs desired High Alarm set point (16% to 100%).

  • Page 18: Error Handling

    “ERR” and error code (01 to Note error code and see Appendix E, Error Codes 08) display, visual and audible Microprocessor detects internal Disconnect Battery alarms activate and monitor error Call Ohio Medical Corporation Service locks P/N 814358 [Rev.2] 01/2015...

  • Page 19: Test Functions

    ® display Figure 3-5) can be attached to a vertical or horizontal • the audible alarm and visual low alarm activate pole using the Ohio Medical Corporation Mounting • the MiniOX 3000 Oxygen Monitor proceeds ® Bracket (See Appendix F, Accessories/Replacement to the Monitoring Mode, displaying oxygen Parts).

  • Page 20: Figure 3-3 Installing Sensor Into Tee Adapter

    MiniOX ® 3000 Oxygen Monitor Section 3, Operation SENSOR CABLE RETAINING STRAP SENSOR GASKET DEFLECTOR O-RING 15mm TEE Figure 3-3 Installing Sensor into Tee Adapter P/N 814358 [Rev.2] 01/2015...

  • Page 21: 3000 Oxygen Monitor With Pole Mounting Bracket

    MiniOX ® 3000 Oxygen Monitor Section 3, Operation SENSOR CABLE RETAINING STRAP SENSOR DEFLECTOR 15mm TEE ADAPTER FASTEN RETAINING STRAP TO POSTS ON TEE Figure 3-4 Sensor in Breathing Circuit SLIDE DOVETAIL COMPLETELY INTO BRACKET INSTRUMENT MOUNTING DOVETAIL MOUNTING BRACKET INSTALLED ON POLE Figure 3-5...

  • Page 22: Maintenance And Care

    MiniOX ® 3000 Oxygen Monitor Section 4, Maintenance and Care standard 9-volt alkaline battery. To replace the Section 4 battery: Maintenance and Care 1. Verify that the monitor is turned OFF. The display  WARNING should be blank. Use only genuine Ohio Medical 2.

  • Page 23: Sensor Replacement

    3. Disconnect the old cable from the instrument. of other types of sensors has not been tested and is not endorsed by Ohio Medical Corporation. Use of 4. Attach the new cable to the sensor. Firmly press other sensor types will void your warranty.

  • Page 24: Sensor And Cable

    Adapter Because of the variability of cleaning, disinfection Cleaning and sterilization processes, Ohio Medical Corporation The sensor defl ector, retaining strap and tee cannot provide specifi c sterilization instructions, nor adapter may be cleaned by wiping them with a cloth can the sterility of an item be ensured.

  • Page 25: Appendix A Specifi Cations

    MiniOX ® 3000 Oxygen Monitor Appendix A, Specifi cations Appendix A Specifi cations Table A-1. Specifi cations LOW/HIGH O Pulsating alarm, fl ashing LEDs ALARM SYSTEM ALARM + 1% of full scale (RTP*) as calibrated in the environment of use (total accuracy, including ACCURACY linearity, is 2%) +1% of full scale (RTP*)

  • Page 26: Effects Of Pressure, Humidity And Temperature

    MiniOX ® 3000 Oxygen Monitor Appendix B, Effects of Pressure, Humidity and Temperature Appendix B pressure in which it is used. Effects of Pressure, Humidity and Do not expose the sensor to pressure outside Temperature the range of 600 to 900 mmHg (23.62 to 35.43 ...

  • Page 27: Interferent Gases And Vapors

    MiniOX ® 3000 Oxygen Monitor Appendix C, Interferent Gases and Vapors Appendix C Interferent Gases and Vapors Table C-1. Interferent Gases and Vapors Interferent VOLUME % DRY INTERFERENCE EQUIVALENT OF % O Carbon Dioxide 0.1% Cyclopropane 0.2% Desfl urane 7.5% 0.1% Diethyl Ether 0.3%...

  • Page 28: Appendix D Troubleshooting

    Monitor is turned OFF or Battery is ex- Display is blank If monitor does not respond, replace the battery pired. If problem persists, call Ohio Medical Corporation service Press I/O to run ON monitor No Response to keypad Battery is expired...

  • Page 29: Appendix E Error Codes

    Read Only Memory (ROM) error Analog error Timing error Keypad error* Battery error ** LCD error *Press SET. If error reoccurs, call Ohio Medical Corporation Repair **Replace battery. If error reoccurs, call Ohio Medical Corporation Repair P/N 814358 [Rev.2] 01/2015...

  • Page 30: Accessories And Replacement Parts

    ® MiniOX 3000 Oxygen Monitor Appendix F, Accessories and Replacement Parts Appendix F Accessories and Replacement Parts Table F-1, Accessories and Replacement Parts ITEM PART NO. Oxygen Sensor 406931 Mounting Bracket (Pole) 474664 Mounting Bracket (Wall) 10023945 Coiled Cable 472045 Tee Adapter 473021 Retaining Strap...
  • Page 31 NOTES P/N 814358 [Rev.2] 01/2015...
  • Page 32 Ohio Medical Corporation ® 1111 Lakeside Drive Gurnee, IL 60031 USA phone: 1-866-549-6446 fax: 1-847-855-6218 www.ohiomedical.com P/N 814358 [Rev.2] 01/2015...
