Summary of Contents for Prestige Prestige P945W

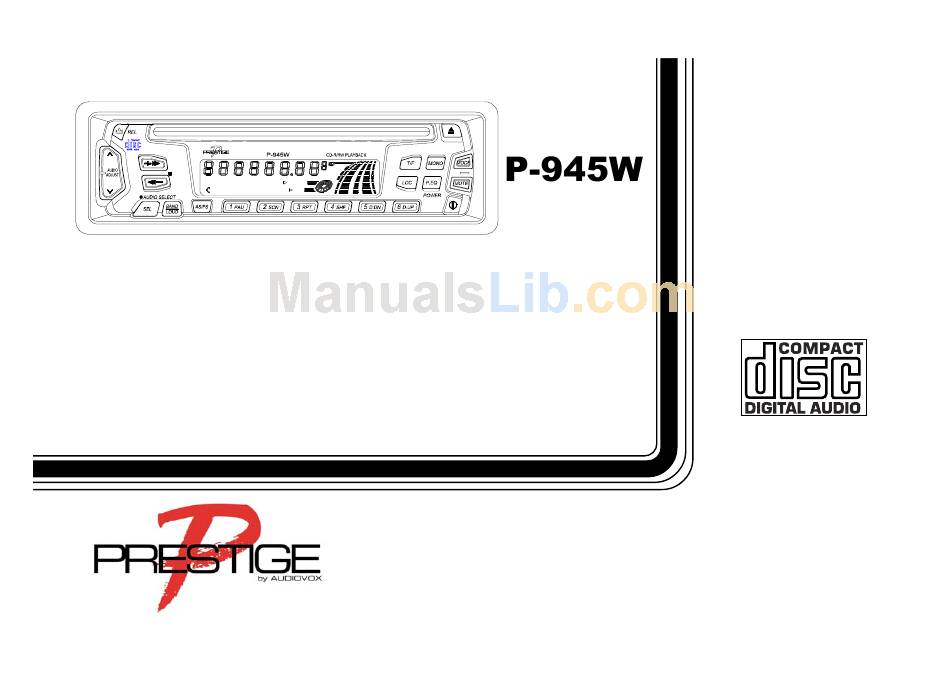

- Page 1 TUNE/ SKIP/ TRACK ME/CR EON LOC TAPE IN LOUD MONO AM/FM/MPX RADIO WITH DETACHABLE FRONT PANEL, COMPACT DISC PLAYER, CD CHANGER CONTROLS AND QUARTZ CLOCK Released 3-27-02. CLAS ROCK LEVEL METER OWNER'S MANUAL...
-
Page 2: Table Of Contents
INDEX Page Operating Instructions ... 3 - 9 Specifications ... 10 CD Changer Controls ... 11 Setting the Clock ... 12 CD Player Error Codes ... 13 CD Changer Error Codes ... 13 Care and Maintenance ... 14 Warranty ... Inside Back Cover... -
Page 3: Operating Instructions
OPERATING INSTRUCTIONS 3,4,5,6,7 POWER ON/OFF BUTTON Press this button to turn the unit on or off. If the unit is off and the ignition switch is "on", the unit will turn on automatically when a disc is inserted, or when the MODE switch or BAND switch is pressed. - Page 4 normal indication 5 seconds after the last adjustment or when another function is activated. TREBLE CONTROL To adjust the treble level, first select the Treble mode by pressing the SEL button so that the TRE indication appears on the display panel. Within 5 seconds of choosing the Treble mode, press the AUDIO ADJUST VOL treble response as desired.
-
Page 5: Seek Tuning
FM3 will appear on the display panel according to your selection. Press the Mode button to return to disc play from the begin- ning of the last track in play. MANUAL UP/DOWN TUNING (+ SEEK TUNING The radio tuning function is normally in automatic seek tuning mode. - Page 6 LIQUID CRYSTAL DISPLAY PANEL FUNCTIONS The Liquid Crystal Display (LCD) panel displays the frequency, time, and all activated functions, including five bar graphs which provide a visual representation of the audio signal. NOTE: It is a characteristic of LCD panels that, if subjected to cold temperatures for an extended period of time, they may take longer to illuminate than under normal conditions.
- Page 7 SHUFFLE PLAY SELECTOR (SHF) During disc play, press this button to play the tracks on the disc in a random or shuffled order (SHF) will appear on the display panel). In Random Play mode, pressing the Forward Track Select ) or the Backward Track Select ( -) will also select tracks in a random order instead of the normal progression.
- Page 8 LOCAL/DISTANT (LOC) SELECTOR This feature is used to select the strength of the signals at which the radio will stop during Automatic Seek Tuning. Press- ing and holding this button will select the Local setting (LO- CAL will appear on the display panel) and only strong (local) stations will be received.
-
Page 9: Notes On Use Of Front Panel
NOTES ON USE OF FRONT PANEL 1. Make sure the front panel is right-side-up when attaching it to the chas- sis as it cannot be attached when up-side down. 2. Do not press very hard on the front panel when attaching it to the chas- sis. -
Page 10: Specifications
SPECIFICATIONS Size: Operating Voltage: Output Power: Output Wiring: Output Impedance: Low-Level Output: Tuning Range: Sensitivity: FM Stereo Separation: CD Frequency Response: CD Signal/Noise Ratio: CD Channel Separation: CD Distortion: 7" W 2" H 6-5/8" D 178 mm x 50 mm 168mm 12 volts DC, negative ground 160 watts maximum... -
Page 11: Cd Changer Controls
CONTROLS CONTROLS Built into this radio are controls to operate an optional CD changer. Please check with your Rampage/Audiovox car stereo specialist or call 1-800-645-4994 for recommendations of the models that will work with this radio. Adjustment of the audio functions (volume, tone, balance, and fader) for the CD changer operate in the same manner as they do for radio play. -
Page 12: Setting The Clock
a desired disc is reached, press the Scan button again and play of the selected disc will continue ( DSN will disappear from the display panel). The Disc Scan mode will also be canceled by activating the (Repeat Play or Random Play functions). DISC/TRACK REPEAT PLAY (RPT) When the Repeat button is pressed, the RPT indication will appear on the display panel and play of the selected track will... -
Page 13: Cd Player Error Codes
CD PL CD PL CD PL A A A A A YER ERR CD PL CD PL If a problem should develop while operating the CD player, an error code (ER-1, ER-2, ER-3, etc.) may appear on the display panel. This can indicate a number of problems with the unit, including a mechanical error or an error in the microprocessor control of the player. -
Page 14: Care And Maintenance
CARE AND MAINTENANCE The radio section of your new sound system does not require any maintenance. We recommend you keep this manual for reference on the many features found in this unit as well as how to set the clock. The compact disc player section also requires no routine maintenance, but proper understanding of its use and handling will help you obtain maximum enjoyment of its capabilities. -
Page 15: Warranty
. AUDIOVOX CORPORATION (the Company) warrants to the original retail purchaser of this product that should this product or any part thereof, under normal use and conditions, be proven defective in material or workmanship within 12 months from the date of original purchase, such defect(s) will be repaired or replaced with new or reconditioned product (at the Company's option) without charge for parts and repair labor. - Page 16 © 2002 Audiovox Electronics Corp., 150 Marcus Blvd., Hauppauge, N.Y. 11788 Printed in China 128-6289...
