Telic STD 32 Manual

Gsm & gprs module
Hide thumbs Also See for STD 32:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
Manual
Page 1-34
Telic STD 32
Telic GmbH – Internet: www.telic.de; E-mail:
info@telic.de
Version 03/09

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the STD 32 and is the answer not in the manual?

Questions and answers

Related Manuals for Telic STD 32

Summary of Contents for Telic STD 32

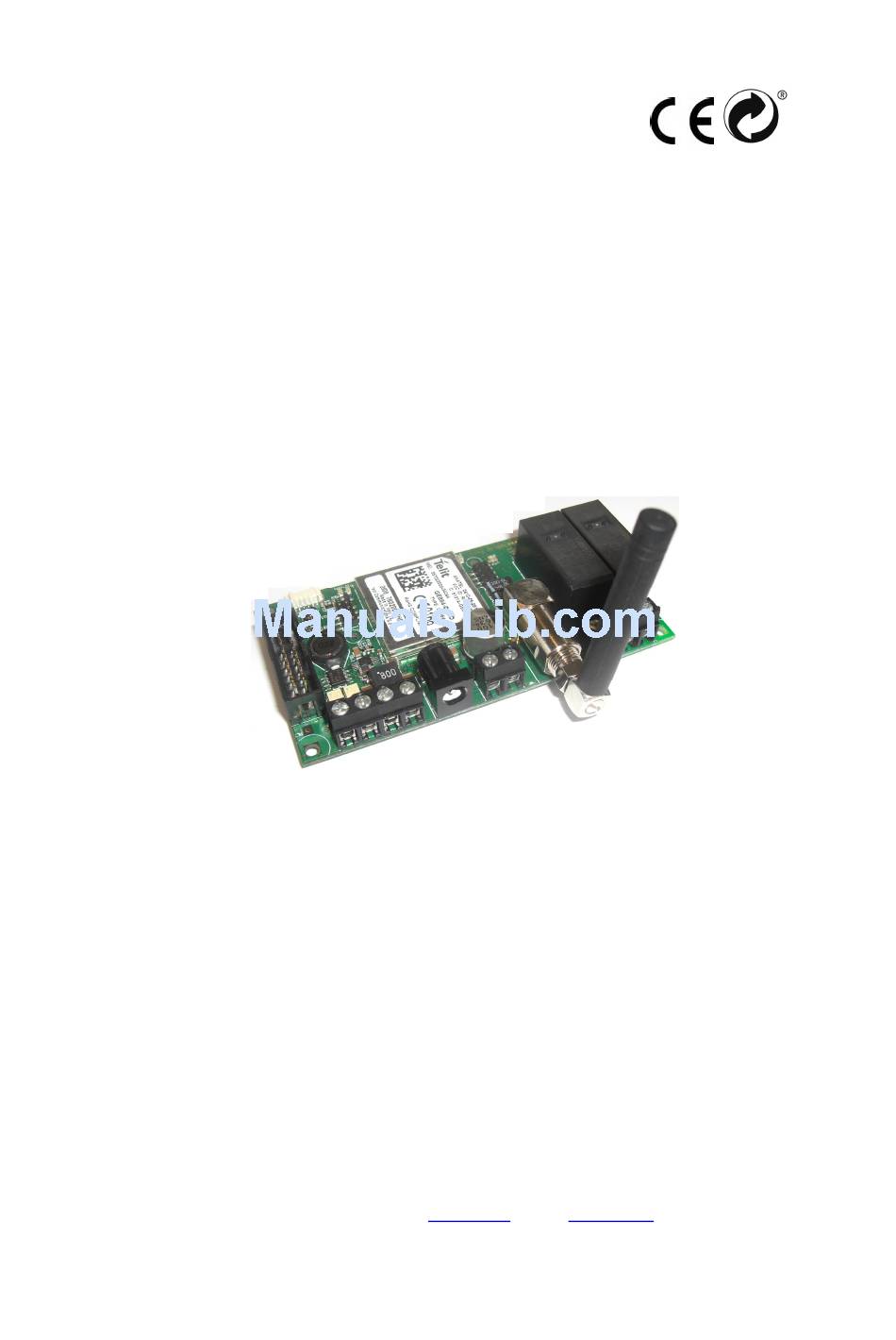

  • Page 1 Manual Page 1-34 Telic STD 32 Telic GmbH – Internet: www.telic.de; E-mail: info@telic.de Version 03/09...

  • Page 2: Table Of Contents

    Introduction.............................3 Attention, please read this .........................4 Background Information ..........................4 GSM-Network in general........................4 GPRS ...............................5 Quadband Frequencies ........................5 Internet in general ..........................5 E-mail via SMTP..........................5 Web Server............................5 Fixed IP ............................6 Operating Conditions..........................6 Proper Use .............................6 Introduction.............................7 Quick start-up ............................8 General preparations.........................8 Hardware preparations ........................8 Configuration Call..........................8 Quick configuration check........................9...

  • Page 3: Introduction

    The information in this document has been gathered after thorough inspection but they are not be taken as assurance of end product properties. The written approval of Telic GmbH is mandatory before you can pass on or reproduce this documentation for this product or the software or use the content.

  • Page 4: Attention, Please Read This

    1.1Attention, please read this This user manual contains important information for startup and use of the STD32. Read it carefully before you start working with the STD32. The warranty will be null and void should damage occur due to non-compliance with these instructions for use. We cannot accept any responsibility for consequential loss.

  • Page 5: Gprs

    Name of the SMTP Server (e.g. smtp.mailprovider.com or 192.168.234.12) User name to register to the SMTP Server Password to register to the SMTP Server On our Telic website www.telic.de you can find a list of the approved e-mail providers which we have tested.

  • Page 6: Fixed Ip

    Operate the STD32 only with a supply voltage between 5-32V DC and have in mind the polarity! (see picture1) Use a stabilized power supply with minimum 1A output current. (we recommend to use only the original Telic power supply). If you use a mains adapter for power supply it has to conform with the VDE regulations.

  • Page 7: Introduction

    System LEDs Abb. 1 As described in figure 1 the STD 32 has five pairs of screw terminals. Two pairs (In1, In2) are inputs to two optocouplers. Two pairs (Relay1, Relay2) are outputs (switches) of the 2 relays of the STD32.

  • Page 8: Quick Start-Up

    6 Quick start-up In the following section it is described step by step what you have to do to administrate the STD32 without long preparation. 6.1General preparations You need an activated SIM card of a GSM network provider. The PIN of this card has to be set to “0000”(4 times zero).

  • Page 9: Quick Configuration Check

    In case the STD32 will be disconnected from the power supply after a successful configuration by a power failure it will automatically send a SMS/E-mail with the text “START-UP ALARM” to the preconfigured telephone number as soon as the power supply is established again. 6.4 Quick configuration check To check whether the configuration was successful you can now make the following quick configuration check.

  • Page 10: Send Sms Commands

    Send SMS Commands By sending a SMS to the STD32 you can switch the outputs or make individual configuration settings. Those SMS have the following format which is described below: In order to avoid unauthorized usage, every configuration command to the STD32 must start with a 4-digit password.

  • Page 11: Examples For Sms Commands

    To activate the web-server send a SMS with the command “WEB:1:”, to deactivate the webserver “WEB:0:” A SMS with the text “O1:xxxxx.” or “O2:xxxxx.” (xxxxx = seconds) configures the switching time of the relays. The STD32 saves these settings so that they are still available after the supply voltage has been restored. If the switching time has been set to 0 by a configuration SMS the corresponding relay switches permanently at every call.

  • Page 12: Mail Functionality Via Gprs

    Removing the clip from the extended clip list: 4244 CD:+491721234567. 8 E-mail functionality via GPRS The STD32 offers you the possibility to get messages via SMS and via e-mail. Configuration of the e-mail functionality If you need a full stop "." in a parameter as it is for example in an e-mail address, the complete parameter has to be put into inverted commas (“...”) (e.g.

  • Page 13: Additional E-Mail Configuration Possibilities

    The commands “SMTPIP:<text>.”, “SMTPPORT:xxxxx.”, “SMTPUSR:<text>.” and “SMTPPWD:<text>.” are necessary to make the settings on the SMTP server side. Please contact your SMTP provider regarding the required data. Example (AOL, Germany): The SMTP server provider AOL has given you the following details: Server name: smtp.de.aol.com Server port:25 User name: Hans.Muster...
  • Page 14 With the command “FROM:<text>.” you can configure the sender e-mail address. The max. length is 75 characters. The default value is noreply@telic.de “PRIO:<x>.” sets the priority with which the e-mail will be displayed. Possible values are from 1 to 5.

  • Page 15: Access The Std32 From The Internet

    To make a picture and send it via e-mail send the SMS command “PHOTO.“. You can deactivate the camera functionality when the camera is connected to the STD32 with the command “CAM:0.“ and activate it with “CAM:x.“. The camera offers different resolutions and you can select the desired camera resolution (x): 1 = 80 x 60 3 = 160 x 120...

  • Page 16: Status"-Register

    Enter “STD32“ as user name and as password the last four digits of the IMEI number (see chapter 7). Should you have changed the password you have to enter your password. Now you will see the “Status“-Register of the STD32 web-server. This user interface is always in English. All available functions are described in detail in the following.

  • Page 17: Photo"-Register

    „Photo“-Register To retrieve a new picture from the connected Telic Camera which is available as accessory (see chapter 13) you have to select the “Photo“-Register and press the “Load“-button. How to connect the camer is described in chapter 10. Please note that the transmission of the picture may take some time depending on the quality of the GPRS network.

  • Page 18: Basic Configuration"-Register

    „Basic Configuration“-Register To make all basic settings (see chapter 7.1) click on the “Basic Configuration“-Register. Under „I/Os configuration “ you can configure the inputs and outputs of your STD32. „Output 1 time“ and „Output 2 time“: This is the same as if you would send the SMS command „O1:xxxxx.“ or „O2:xxxxx.“ Here you set the switching time (in seconds) of the relays.
  • Page 19 Here you can switch on or off the Start-SMS (START-UP ALARM). You only have to click on the drop-down menu and selected the desired value (ON = will be sent; OFF = will not be sent) „Password”: This is the same as if you would send the SMS command „PN:<4-digit password>.“ This command changes the password of the STD32 The password can include letters and figures but no special characters are allowed.

  • Page 20: Advanced Configuration"-Register

    „Advanced Configuration“-Register To make the additional configuration settings (as described in chapter 8.2) you have to click on the „Advanced Configuration“-Register. In the upper part of the „Advanced Configuration“-Register you can change the GPRS and e-mail settings. Under „Network configuration“ you can make the GPRS settings of your STD32. This is the same as if you would send the SMS command „APN:<text>.“, „APNUSR:<text>.“...
  • Page 21 This is the same as if you would send the SMS command „FROM:<text>.“ Here you can configure the sender e-mail address. The max. length is 75 characters. The default value is noreply@telic.de „FROM field subject“: This is the same as if you would send the SMS command „FROMSUB:<text>.“...
  • Page 22 In case you want to send some event messages only to certain e-mail recipients or if you want to change the standard messages you can do this via the „Advanced configuration“- Register for the individual events. „Event 1 (input 1 event) e-mail“: „Recipients for this event only (TO1)“...
  • Page 23 „Recipients for this event only (TO3)“ Here you define the recipient e-mail address (only for event 3). You can list up to 5 e-mail addresses each separated by a <;>. The max. length per e-mail address is 75 characters. Default status: no e- mail address is entered.

  • Page 24: Clip List"-Register

    „Clip List“-Register You can authorize up to 500 phone numbers to switch relay 1 via call. „Add new CLIP“ This is the same as if you would send the SMS command „CL:<nummer>.“ Enter the phone number into the text field and confirm with the „Add“-button. „CLIP list“...

  • Page 25: Configuration Via Sms

    9.10 Configuration via SMS 1.SMS („Basic Configuration“) 4244 O1:10.C2:+491721234567.CL:01529876543. 2. SMS (GPRS settings) 4244 APN:"web.vodafone.de".APNUSR:vodafone.APNPWD:vodafone. 3. SMS (SMTP settings) 4244 SMTPIP:"smtp.de.aol.com".SMTPPORT:25.SMTPUSR: "Hans.Muster". SMTPPWD:Muster. 4. SMS (E-mail settings 1) 4244 TO: “erika.muster@muster.de“.“karl.muster@test.de”. 5. SMS (E-mail settings 2) 4244 TO1: “peter.mustermann@muster.de”. 6. SMS (E-mail settings 3) 4244 SUB1:Stromausfall.BODY1:Kein Strom am Kuehlschrank.
  • Page 26 Open „Advanced Configuration“-Register and make the following settings: Confirm with „Accept“.

  • Page 27: Connecting The Camera

    This allows you to take further action if necessary (e.g. call the police if you see a burglar on the photo) To be able to use this functionality you only have to connect the Telic camera to the camera plug on the STD32 (see picture 1).

  • Page 28: Troubleshooting

    11 Troubleshooting Problem Possible Reason Solution GSM LED stays dark No supply voltage- Connect power supply GSM LED blinks twice cyclically No SIM card / Improper contact with SIM Insert SIM card properly or card carefully clean contact area of SIM card GSM LED blinks thrice PIN is not “0000”...
  • Page 29 2. Remote switching of electric devices via voice call or SMS Call/SMS =250V / 6A (12V / 1A) Load STD32 Call the configured STD32 with your mobile phone or send a sms command and you can switch any electric device up to 250V / 6A (e.g. heating system, air condition, alarm system, garage door etc.). 3.

  • Page 30: Accessories

    STD32 and which have been approved for the use with the STD32. Therefore we strongly recommend to use only accessory parts of Telic GmbH. The warranty will be null and void if you use other than the original Telic accessory parts.

  • Page 31: Technical Data

    Telic GmbH Raiffeisenallee 12b D-82041 Oberhaching Germany www.telic.de Telic reserves the right to change, correct and/or improve the content any time and without prior notice without being obliged to do so. No responsibility i staken for the correctness of the information.

  • Page 33: Annexe

    16 Annexe Please find below a table of all SMS commands: Standard Commands (s. chapter 7.2) Factory settings Status of I/Os Start-up alarm SMS on/off S:1. / S:0. Activate web-server WEB:1. Relay 1 on O1ON. Relay 1 off O1OFF. Relay 2 on O2ON.
  • Page 34 Incoming Call Event Recipient e-mail address TO4:<text>. Subject line of the e-mail SUB4:<text>. Body of the e-mail BODY4:<text>. Photo SMS Event Recipient e-mail address TO5:<text>. Subject line of the e-mail SUB5:<text>. Body of the e-mail BODY5:<text>. Photo SMS Event Recipient e-mail address TO5:<text>.
