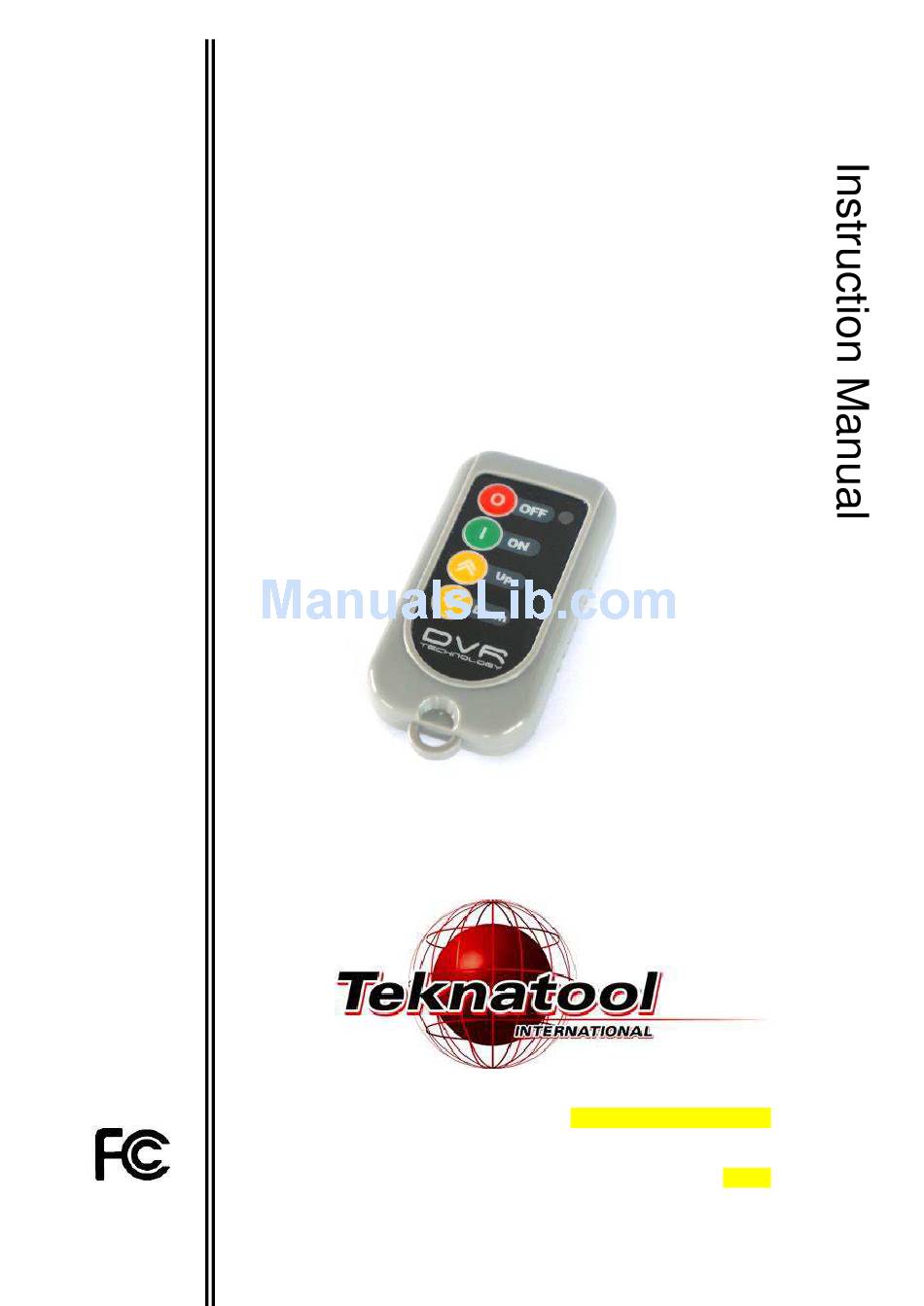

Page 1 NOVA Wireless Remote II Publication 119-0811-001 ESL 1 119-0811-001...

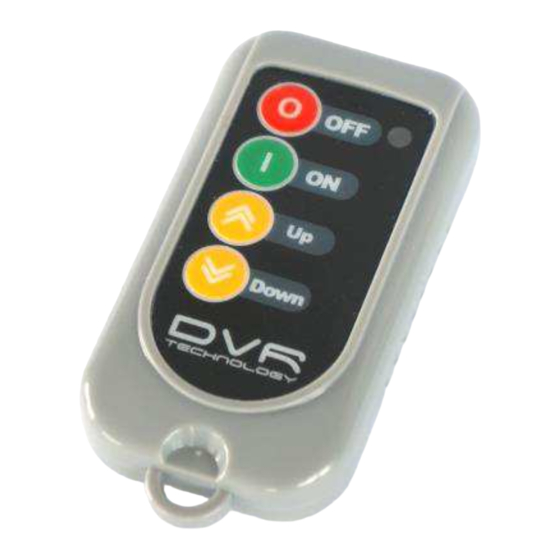

Page 2 NOVA Wireless Remote Features:  Fits on any “Remote II Ready” NOVA DVR Wood Lathe.  Wireless control convenience at your fingertips.  Start, stop and speed adjustments.  Suitably sized buttons for rapid reference and control.  Invaluable for long spindle work or large platters/bowls when you can't be close to the headstock.
Page 3 Contact Teknatool New Zealand United Kingdom Brimarc Tools and Machinery Teknatool International Ltd Phone: 0333-240-69-67 Phone: (+64) 9 477 5600 Fax: 0333-240-69-76 Fax: (+64) 9 477 5601 Email:email@brimarc.com Email: service@teknatool.com Website:www.brimarc.com/nova Website: www.teknatool.com Austria Carbatec New Zealand Phone: 0800 444 329...
Page 4: Table Of Contents
© Copyright 2001-2010 by Teknatool International; All Rights Reserved. Nova DVR is a trademark of Teknatool International Ltd. The information and specifications contained herein are subject to change. Teknatool is not responsible for errors or omissions herein or for incidental damages in connection with the furnishing or use of this information.
Page 5: General Safety Rules
KEEP WORK AREA CLEAN. Cluttered areas and benches invite accidents. Build-up of sawdust is a fire hazard. KEEP CHILDREN AND VISITORS AWAY. The Nova DVR is not recommended for children or the infirm. Such personnel and onlookers should be kept at a safe distance from the work area.
Page 6 NEVER LEAVE MACHINE RUNNING UNATTENDED. Do not leave machine unless it is turned off and has come to a complete stop. KEEP GUARDS IN PLACE. Ensure guards are in working order. USE CORRECT TOOLS. Do not use a tool or attachment to do a job for which it was not designed.
Page 7: Additional Safety Rules
ADDITIONAL SAFETY RULES: Warning! Failure to follow these rules may result in serious personal injury. IMPORTANT: THIS REMOTE IS NOT INTENDED FOR USE AS AN EMERGENCY DEVICE AND SHOULD NOT BE RELIED UPON DO NOT RELY ON THIS DEVICE AS AN EMERGENCY STOP DEVICE. DO NOT OPERATE THE WIRELESS.
Page 8: Installation Instructions
Installation Instructions: Remote: 1. Unpack the two parts from packaging. The small circuit board is the ‘Receiver Module’ which goes in the control panel of the wood lathe. The larger device is the ‘Remote’. Receiver Module (C): 2. Turn off the wood lathe and unplug its power cord. Wait 2 minutes for the control circuitry to power down.
Page 9 Inside the Control Panel: 4. Plug the Receiver to the user interface board in the position shown below. 119-0811-001...
Page 10 7. Select “Pair ID” on the screen to begin pairing procedures. 8. Press the <OFF> key on the remote to pair to the lathe, your DVR lathe and remote should now be paired. Note: If the remote still does not pair, please contact your local Teknatool Agent. 119-0811-001...
Page 11: Remote Button Layout
Remote Button Layout: 119-0811-001...
Page 12: Operating Instructions
Operating instructions: Starting and stopping: To start the lathe with the remote, press and hold the Start/Stop button for 2 seconds. To stop the lathe, just press and release the Start/Stop button once. Changing the speed: To change the operating speed of the wood lathe with the remote, simply press or hold the ‘Speed Up’...
Page 13: Troubleshooting
If the battery fails, you can unscrew the 2 screws on the bottom of the remote and replaced with a CR1632 battery. Note: The remote will still be paired with or communicate with your NOVA DVR Lathe after battery replacement. 119-0811-001...
Page 14: Remote Retro-Fit Kit
Remote Retro-Fit Kit: The NOVA DVR Wireless Remote Retro-Fit Kit enables older DVR Wood Lathes to use the NOVA DVR Wireless Remote. Fast and easy to fit with Step-by-Step instructions. Suitable for all NOVA DVR Lathes. SKU: 55519 Available online or through your NOVA Dealer.
