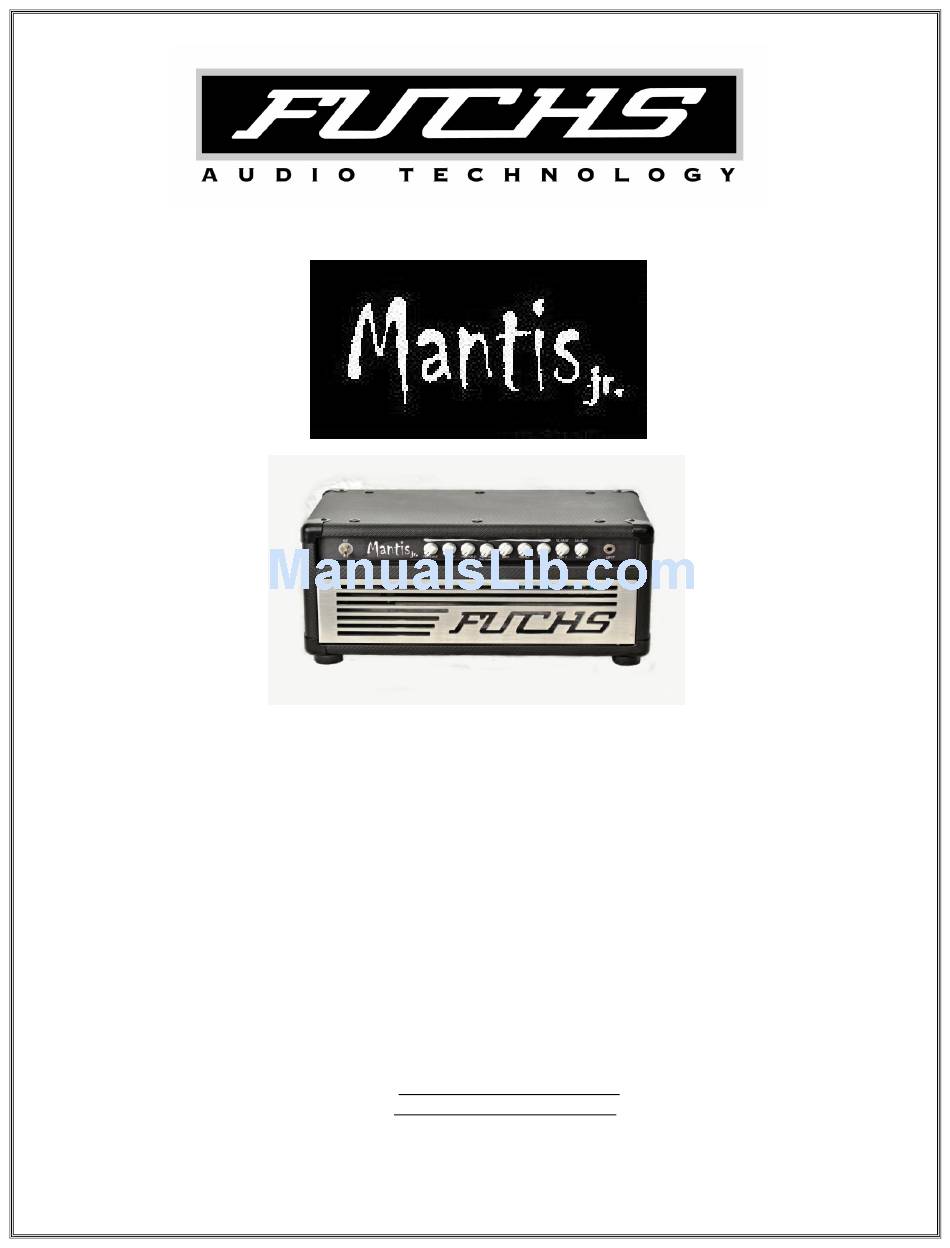

- Page 1 Instrument Amplifier V 1.0 Operations Manual For Mantis Jr (head/combo) Fuchs Audio Technology 407 Getty Ave, Clifton, NJ 07015 (973) 772-4420 (fax) 973-772-4460 Website: www.fuchsaudiotechnology.com Email: info@fuchsaudiotechnology.com 2000-2016 Fuchs Audio Technology. All rights reserved.
-
Page 2: Fuchs Audio Technology
First of all, Thank You for purchasing a Fuchs Audio Mantis Jr amplifier! The Mantis Jr was designed as part of our highly successful Casino Series but for the harder edged rock and metal player. The Mantis Jr series is available from 4-watts through 100 watts, to fill the need for a wide range of power levels having classic rock “voicing”... - Page 3 Table of Contents (by section) Introduction to the Fuchs Audio Mantis Jr Amplifier Please Read before powering up your amp Diagrams- FRONT/REAR panels, Tube bias diagram Front panel Controls, inputs & their functions Rear Panel controls, inputs/outputs Biasing power tubes & other technical info.
- Page 4 Fuchs products, to a new more affordable price range. The Mantis Jr is based on a dual 12AX7 preamp stage and a push pull output stage with power levels from 4- through 100 watts. Unlike other amps in this price range, the Lucky 7™...
- Page 5 1 minute for tubes to heat up. Then switch rear panel standby switch to “operate” position. 8) The Amplifier is now fully on and ready to use. Feel free to adjust all controls as you see fit. Mantis Jr Manual Rev 1.0l...
- Page 6 Mid Control: Adjust the Mid control to taste, it controls adjusts the mid frequency spectrum of your Mantis Low Control:Adjust the Low control to taste, it adjusts the low frequency spectrum of your Mantis Jr. Mantis Jr Manual Rev 1.0...
- Page 7 The ring connection is the send and the tip connection would be the return. Simply connect an external line level device (reverb, echo, delay) input and outputs to this point. Mantis Jr Manual Rev 1.0...
-
Page 8: Warranty Information
Fuchs Audio Technology within 30 days of purchase, or your warranty will not be in effect. Fuchs Audio Technology reserves the right to suspend or terminate the above warranty at our sole discretion, should damage from any of the above limitations and or exclusions be detected upon examination. -
Page 9: Warranty Registration Form
WARRANTY REGISTRATION FORM This completed form must be returned to Fuchs Audio Technology within 30 days of purchase along with a copy of your receipt from your authorized dealer. Please fill in all requested information on this form so we may register you for future warranty repairs or future upgrades, should they become available.
