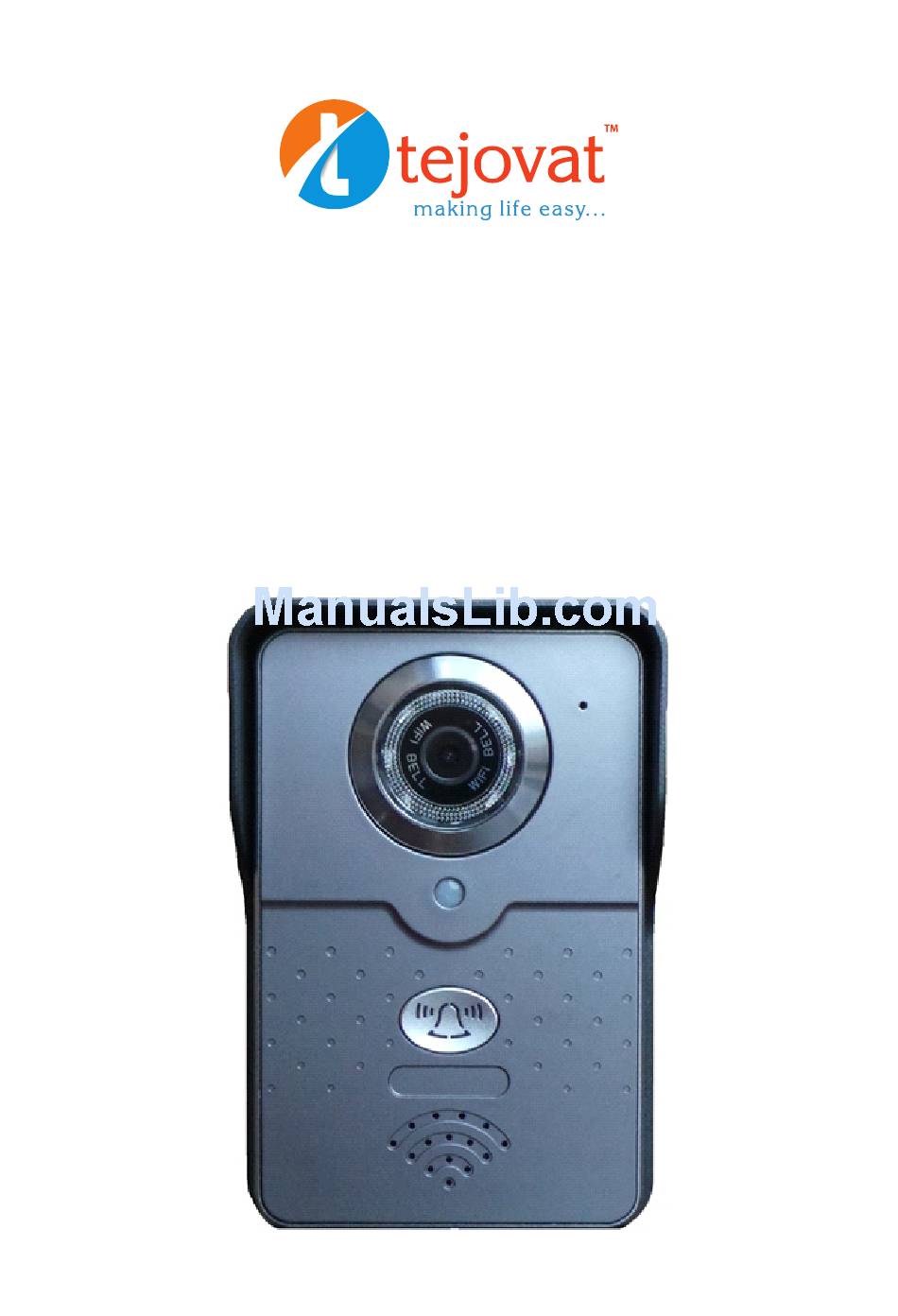

Tejovat Smart Home Products 720P HD Smart Video Doorbell TJ-SH-DP1000 User Manual Rev 1.0... - Page 3 Tejovat Technologies 1. Introduc on Tejovat DP1000 is a smart video doorbell which provides 720P HD quality pictures and videos of visitor’s on the connected smartphones. The DP1000 gets connected to your home network easily through either Wi-Fi, with the help of Smartlink interface or wired Ethernet connec on.
-
Page 4: Front Panel
Tejovat Technologies 4. Overview of Smart Video Doorbell DP1000 4.1 Front Panel • PIR Sensor: To sense movement of people, animals or other objects with the help of passive infrared technology. • IR LED: 6 IR LED’s used for night vision camera. -
Page 5: Range Test
Tejovat Technologies 5. Range Test 1. For longer range applica ons, check if the router is or can be located at the front of the building, preferably near a window or glass as this will greatly extend the range. 2. If it is not possible to have the Wi-Fi router at the front of the building, consider installing a standard “on the market”... -
Page 6: Power Supply
Tejovat Technologies 6. Power Supply If possible, locate the power supply as close as to the doorbell. Note: Most technical calls received are due to installers using CAT5 or alarm cable to power the doorbell. Neither are rated to carry enough power (1.5-amp peak). Please use following cable sizes…... - Page 7 Tejovat Technologies • Make sure the availability of electric connec on for power adapter behind the wall where you want to fit the doorbell. • On stucco, brick or concrete, use the drill bit to drill two holes to install the doorbell as well as one large whole for its power supply in the wall.
- Page 8 Tejovat Technologies 8. Lock Control Wiring Figure below shows the loca on and the Pin connec ons for door lock. Electronic lock pin connec on instruc ons are as below: 1. For normally open (NO) electromagne c locks, connect J1 ① and ② (The ② is for the public GND).
-
Page 9: One Key To Call
Tejovat Technologies 9. One Key to Call When visitor press the doorbell’s call bu on, smartphone user receives ring on his/her smartphone. User can decide to answer it or hang up. Please note that Smart Home Cloud applica on need to be installed on the mobile through either Google Play store or Apple App store. -
Page 10: Indoor Chime
Tejovat Technologies 10. Indoor Chime 10.1 General Features • A er pressing smart video doorbell’s call bu on, smartphone and indoor chime rings simultaneously. • Smart video doorbell and indoor chime uses 433 MHz frequency for their connec on, no need of wiring. - Page 11 Tejovat Technologies 10.2 Code Opera on 1. Switch ON power to the smart video doorbell and indoor chime. 2. Long press indoor chime ① volume bu on. 3. A er 5 seconds, indoor chime will quickly flash it’s light and now it’s status under code.
- Page 12 Tejovat Technologies • A er successful registra on, login into the applica on. Note: Each user has a unique username/user ID and password. The username is a phone number/ email id or user ID created during successful registra on. • Follow either Smartlink se ngs or Manual Add se ngs depending upon the case.
- Page 13 Tejovat Technologies ⑥ A er device addi on, the App will ④ Wait for the Wi-Fi connec on. ⑤ A er connec ng Wi-Fi, input the automa cally jump to the device List device password and click Save bu on on the top right corner.
- Page 14 Tejovat Technologies 11.2.4 Refresh and Remove Device The following screen shot shows how to refresh and remove doorbell. ① For removing the device, push the ② To refresh pull the screen below device screen to the right side. 11.3 Android Configura on 11.3.1 Register and Login into Applica on...
- Page 15 Tejovat Technologies ③Successful registra on by Email ④ Enter username and password and press “Login” bu on. • A er successful registra on, login into the applica on. Note: Each user has a unique username/user ID and password. The username is a phone number/ email id or user ID created during successful registra on.
- Page 16 Tejovat Technologies ①Open APP, click “+” bu on, select ③Enter Wi-Fi password and click Next. ② Click on Next when finished. Smartlink. ④Wait for the Wi-Fi connec on. ⑤A er connec ng Wi-Fi, setup the ⑥A er the device addi on, the app will device password and click Save bu on on automa cally jump to the device list.
- Page 17 Tejovat Technologies 11.3.3 Adding Device using Manual Add Op on Notes: a) If you add smart video doorbell for the second or subsequent users, select manual add op on. b) When you use RJ45 cable to connect to the door bell, choose Manual Add op on only.
- Page 18 Tejovat Technologies 12. Alarms 12.1 Alarm Informa on Following se ngs are present in the device for alarm: • Receive Alarm Message: Default is ON. If it is OFF, you will not receive visitors call and alarm. If turned ON, user ID gets added into push ID list and you receive call or alarm.
- Page 19 Tejovat Technologies 13. So ware Features 13.1 General Features Following figure shows the so ware general features of the Smart Home Cloud App. • Playback: Plays the Micro SD card recordings (Videos). • Edit: Edits doorbell name and its password.
- Page 20 Tejovat Technologies 14. Other Se ngs ① Click the se ng bu on ② choose the doorbell of doorbell se ng Following screen shot shows the list of door bells and its se ngs. 1. Device Info: Shows the current device firmware informa on.
- Page 21 Tejovat Technologies 15. Main Specifica ons Specifica on Chipset Hi3518E Resolu on 1280*720P (1.0 Megapixel) Audio Full-duplex voice intercom Alarm Mo on Detec on PIR (The human body infrared sensor detec on) Visual Angle 140°super wide angle Support Protocol ONVIF, TCP/IP, UDP, SMTP, DHCP, UPnP, P2P...
- Page 22 Tejovat Technologies 6. How to download recorded Video? Answer: Detach SD card from door bell and copy the video from it. 7. How to recover the device Admin password? Answer: If you missed the device Admin password then reset the doorbell. Please note that all your previous se ngs will be reset to factory default mode.
-
Page 23: Warranty Conditions
2. Replacement chargers are warranted only for the remaining unexpired warranty period of the original charger. 3. This warranty becomes void if: (a) The devices are powered by other than Tejovat approved chargers for the charging of the device, (b) Any of the seals on the device/charger’s enclosure are broken or shown evidence of tampering, (c) The charger is used in Equipment or service other than for which it is specified. - Page 24 Contact Us www.tejovat.com facebook.com/tejovat customercare@tejovat.com twi er.com/tejovat +91-7745002244/55 linkedin.com/company/tejovat Dealer Informa on...
