Summary of Contents for IIS E400C

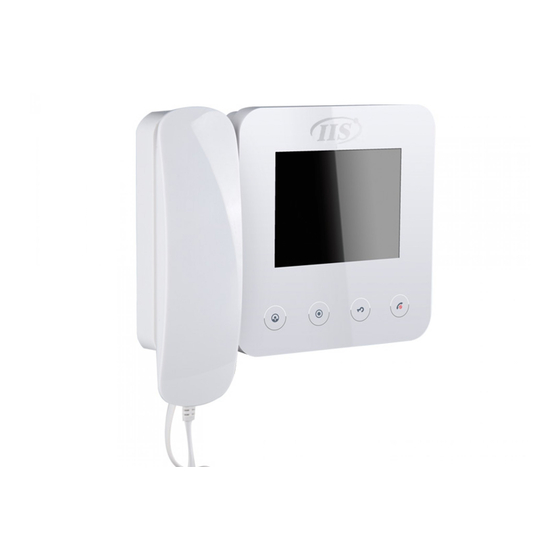

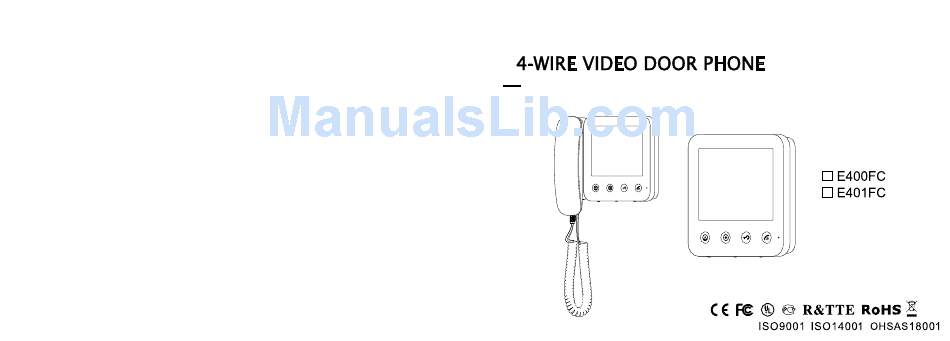

- Page 1 4” COLOUR TFT INDOOR MONITOR...
- Page 2 Please read the instructions carefully and follow directions for installing this product. 9.Colour/Brightness Adjustment Colour/brightness adjustment Max. of 4 room stations with intercommunication and call transfer function...
- Page 3 After connecting the power supply, the unit will sound “DI”, then the power LED turns red, which means the unit is powered up and in standby mode. b. When in standby mode, touch and hold to turn the unit off c.
- Page 4 3. 1 Call Transfer to talk When the room station is talking with a door station, touch to choose the room number you need to When the door station rings, touch to start talking. You need to pickup the transfer the call, then touch to transfer call.
- Page 5 A. When there are only 2 room stations, touch and you will hear “DI”, then touch to call another room station. When a room station is in talk mode, slide the talk volume B. When there are more than 2 room stations, and monitor A wants to call monitor B, touch button to adjust the talk volume.
- Page 6 When one of the room stations is in talk or monitor mode, the other will be in busy mode. After you When in standby mode, touch and hold for 3secs, untill the unit sounds “DI DI”. have completed talking or monitoring, all the units will go back to standby mode. The following LED indicates for different room numbers: Note: When the room station is in busy mode, it cannot operate room number setup and reset function.
- Page 7 13.2 Communication Trouble Alarm If the unit sounds “DI DI” every 3secs, this means there is a communication trouble between The unit is powered up. room stations. Please check the wiring and make sure the main unit is turned on. After The unit is in mute mode.
- Page 8 (Daisy Chain) main unit is open circuit...
