APEC SDR-400 Quick Start Manual

4ch hd dvr

Advertisement

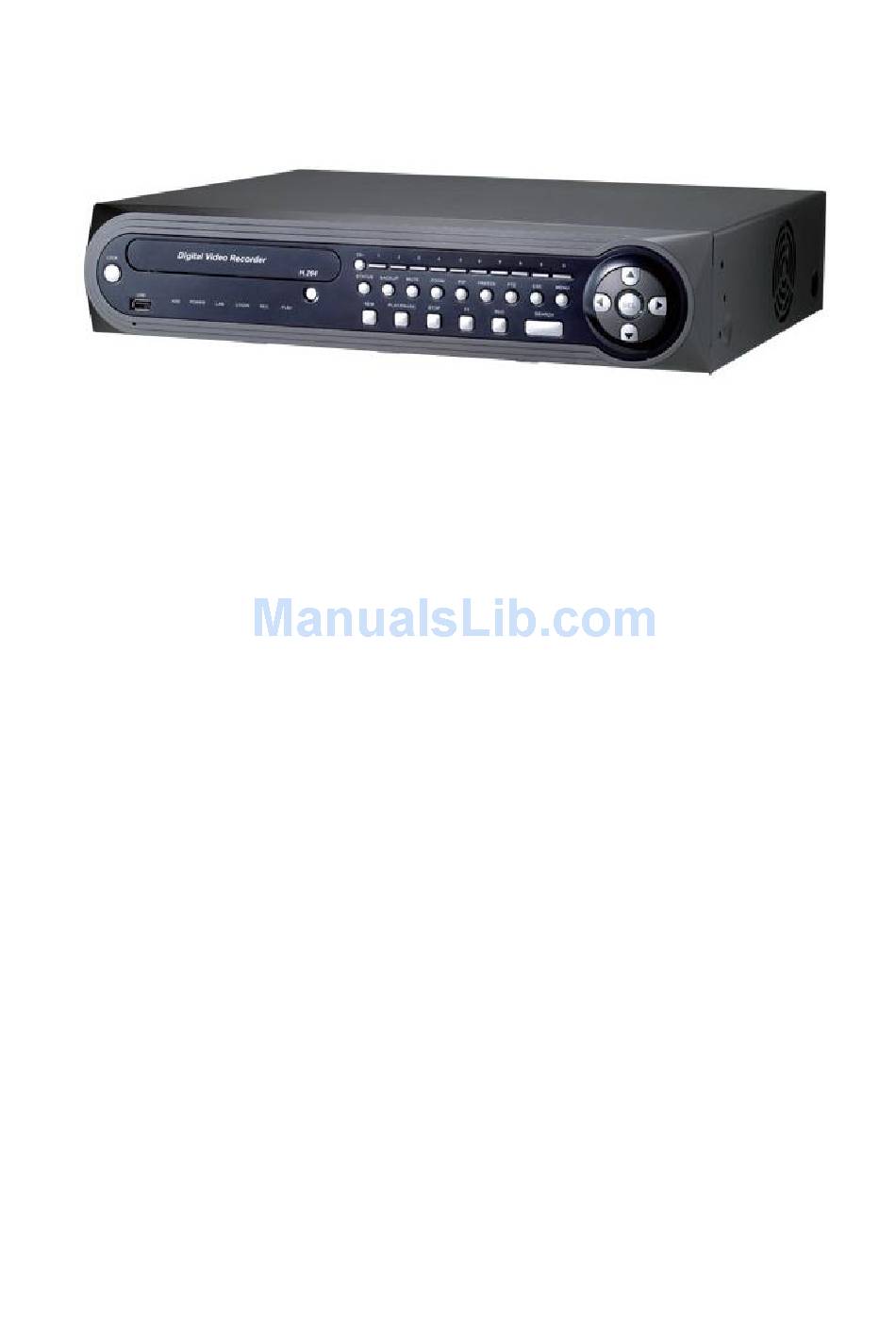

4CH HD DVR
Quick Start Guide
1. Packing........................................P.2
2. Hard Disk Installation................P.3
3. DVD-RW Installation...................P.5
4. Front Panel Controls..................P.7
5. Rear Panel Connectors..............P.8

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SDR-400 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for APEC SDR-400

  • Page 1 4CH HD DVR Quick Start Guide 1. Packing........P.2 2. Hard Disk Installation....P.3 3. DVD-RW Installation....P.5 4. Front Panel Controls....P.7 5. Rear Panel Connectors....P.8...
  • Page 2: Quick Start

    1. DVR 2. Quick Start 3. IR Remote Control Pressed "DVR1" Button before use 4. Battery 5. CD 6. Hard Disk Mount 7. Screws 8. IDE to SATA Power Cord 9. Power Cord 10. SATA Cord Note: Standard shipping products do not include HDD...
  • Page 3 Step 1) Fix the HDD to rack mount with the screws as indicated. Step 2) Remove all screws and remove the machine cover in accordance with the direction of the arrow.
  • Page 4 Step 3) Place the HDD on the HDD plate and screw it as indicated. Step 4) Connect the power and the SATA cables as indicated. Note: After installation, please initialize Hard Disk before starting to record. For more detailed information, please check out User Manual “Storage Setup” for reference.
  • Page 5: Dvd-Rw Installation

    DVD-RW Installation Standard shipping products do not include HDD and DVD-RW) Step 1) Fix the DVD-RW to rack mount with the screws as indicated Step 2) Remove all screws and remove the machine cover in accordance with the direction of the arrow.
  • Page 6 Step 3) Fix the DVD-RW rack mount with the screws into to housing as indicated Step 4) Connect the power and the SATA cables as indicated.
  • Page 7 ⑪ ⑩ ⑨ ⑧ ⑦ ① ② ③ ④ ⑤ ⑥ ① LOCK On / Off Key Lock in live mode. ② USB 2.0 USB port ③ IR Sensor Input sensor for the remote control HDD:Hard disk drive Power:Power is on ④...
  • Page 8 ○ ○ ○ ○ ⑩ ⑪ ○ ○ ○ ○ ○ ○ SDI input port for HD camera, 4 in total. SDI IN ○ VIDEO OUT BNC output port for second monitor ○ AUDIO OUT RCA output port for audio sign, 2 in total. ○...
