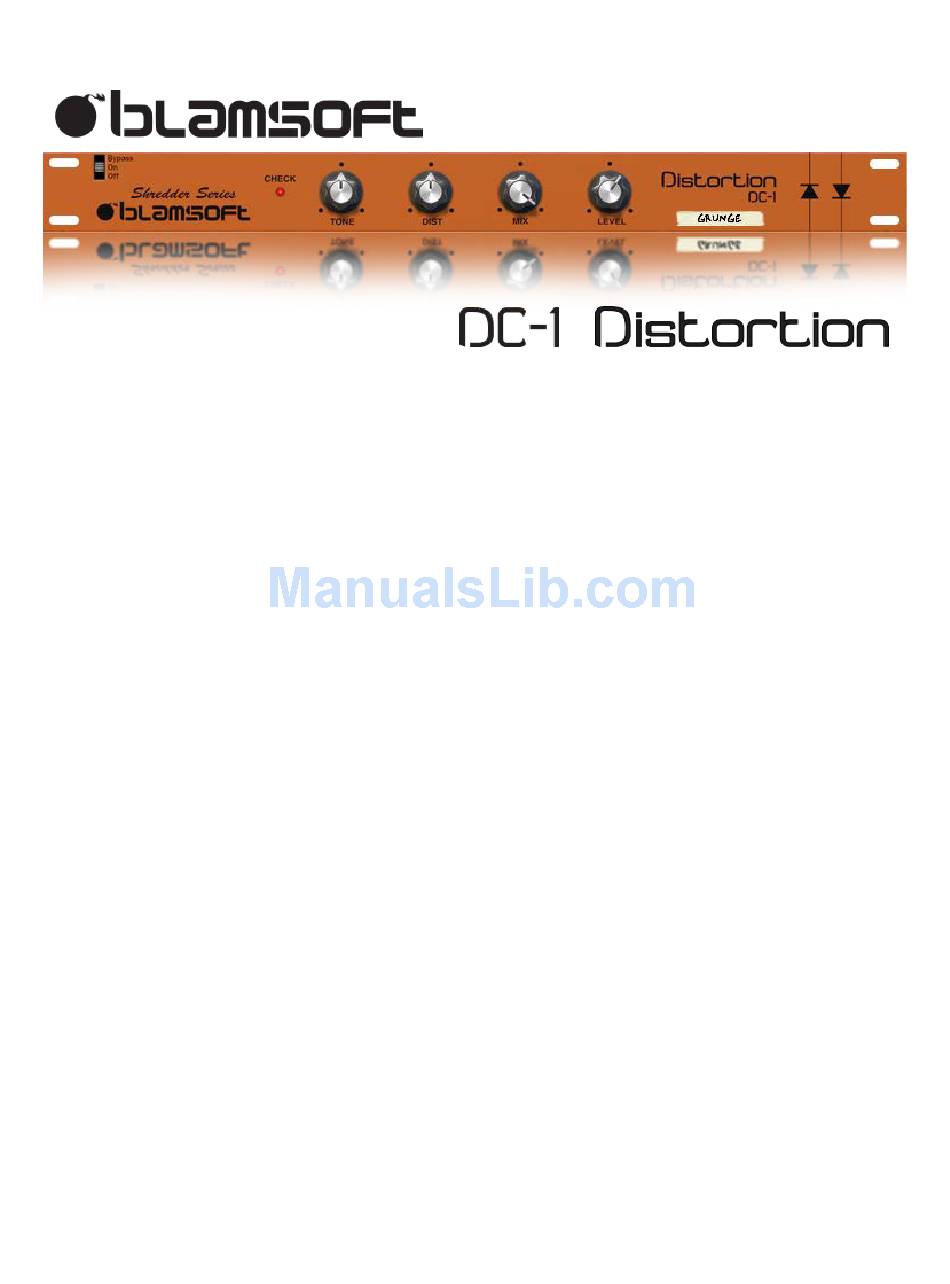

1.2.0 User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DC-1 distortion and is the answer not in the manual?

Questions and answers

Related Manuals for Blamsoft DC-1 distortion

Summary of Contents for Blamsoft DC-1 distortion

  • Page 1 1.2.0 User Manual...
  • Page 2 The Tone knob adjusts a filter that sweeps from lowpass to midcut to highpass. Basically it goes from darker to brighter sound. By viewing gain vs frequency plots it is easier to see how the sound is affected. Lowpass, Tone = 0 Frequency (Hz) © 2013 Blamsoft, Inc. All rights reserved.
  • Page 3 Midcut, Tone = 5.5 Frequency (Hz) Highpass, Tone = 11 Frequency (Hz) © 2013 Blamsoft, Inc. All rights reserved.
  • Page 4 Note that the clipping is a soft clipping, not a hard clip. This results from the analog characteristics of the diodes. Light Distortion -0.2 -0.4 -0.6 0.001 0.002 0.003 0.004 0.005 0.006 0.007 0.008 0.009 0.01 Time © 2013 Blamsoft, Inc. All rights reserved.
  • Page 5 The check LED is lit when the effect is on, has sufficient power, and has an audio input connection. If this LED is dim or off when the effect is enabled and connected, replace the 9V battery or use the included 9V power adapter. © 2013 Blamsoft, Inc. All rights reserved.

  • Page 6: Audio Connections

    Audio Connections Connect the effect to the input and output sources using these connectors. A monaural input will be duplicated on both output channels effectively acting as a splitter. © 2013 Blamsoft, Inc. All rights reserved.
