Summary of Contents for Home8Care FDS1300
-

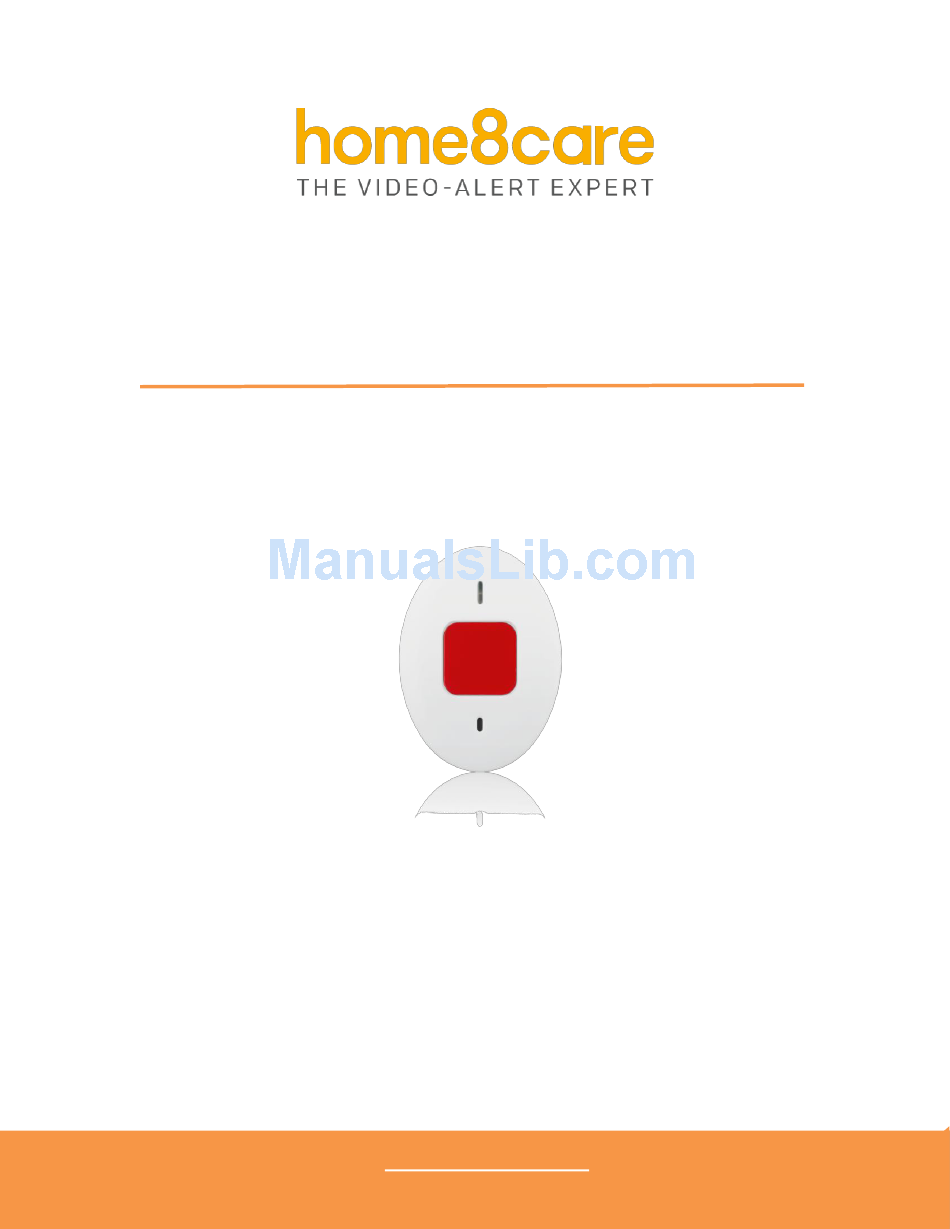

Page 1: User Manual
Fall & Medical Alert Sensor FDS1300 User Manual No fall detection system can detect 100% of all falls. home8care.com Fall & Medical Alert Sensor User Manual V1.0 2017 1-844-800-6482 | support@home8care.com... -
Page 2: Table Of Contents
Table of Contents Chapter 1. Introduction ................. 2 System Requirements ....................2 Chapter 2. Hardware Overview ..............3 Chapter 3. Fall & Medical Alert Sensor Setup ..........4 3.1 Power on the sensor ....................4 3.2 Adding the Sensor to the System ................. 4 3.3 Testing and positioning the sensor ................ -
Page 3: Chapter 1. Introduction
Chapter 1. Introduction Wear the fall detector sensor around your wrist or as a pendant to send an immediate notification to family, friends, or caregivers when it detects a fall. The sensor automatically triggers a distress signal and alerts upon the detection of a fall. -
Page 4: Chapter 2. Hardware Overview
Chapter 2. Hardware Overview This section provides an overview of the Fall & Medical Alert Sensor. Fall & Medical Alert Sensor User Manual V1.0 2017... -
Page 5: Chapter 3. Fall & Medical Alert Sensor Setup
Chapter 3. Fall & Medical Alert Sensor Setup 3.1 Power on the sensor Before using the sensor, please charge it for at least 2 hours. Note: The battery should last 7 days under normal use. To be safe, charge daily until the green LED lights-up. 3.2 Adding the Sensor to the System Before you begin using the sensor, it will need to be added to the system first. - Page 6 2. Tap “Device Management”. If you have more than one Security Shuttle, you may need to swipe left more than once to find the one you wish the sensor to connect to. After selecting the Security Shuttle, tap the plus icon “+” located to the right of “Sensor List”.
- Page 7 4. Follow the on-screen instructions. When finished, press “Next”. 5. After scanning the QR code located on the back of the sensor, the “sensor adding” process will begin. Fall & Medical Alert Sensor User Manual V1.0 2017...
-
Page 8: Testing And Positioning The Sensor
6. When the activation is completed, the sensor will be added to the device management page. In the illustration shown below, the name of the Security Shuttle is “Home” and the name of the sensor is “Fall Detector 00170xxxx”. 3.3 Testing and positioning the sensor After the “sensor adding”... -
Page 9: Rename Sensor
3.4 Rename Sensor To rename the sensor, go to “Device management”, select the sensor you want to rename, and then tap “Display Name”. 3.5 Remove Sensor from System To remove the sensor from the current Security Shuttle, tap “Remove Sensor”. Fall &... -
Page 10: Chapter 4. Starting To Use The Fall & Medical Alert Sensor
Chapter 4. Starting to Use the Fall & Medical Alert Sensor At this stage, your sensor is now ready for use. 4.1 Detection Conditions Our fall detection technology follows the basic principles of physics in that the sensor detects the movement of a human body’s velocity –... -
Page 11: Fall Detection And Notification
4.2 Fall Detection and Notification Regardless of the arming status, the Fall & Medical Alert Sensor will automatically detect a fall down situation. Once a fall is detected, the sensor will start beeping with the LED indicator blinking red. After 10 seconds, a “Fall detected” notification will be sent to all authorized users. -
Page 12: Led Indicator Status
4.4 LED Indicator Status • Charging: red LED • Fully Charged: green LED • Stand By: blinking green LED（15s in average） • Alarm: blinking red LED • Low power : blinking red and green LED Fall & Medical Alert Sensor User Manual V1.0 2017... -
Page 13: Appendix - Glossary Of Terms
Appendix – Glossary of Terms Arm: The cameras and other security related sensors in the system are actively monitoring the surroundings. Any suspicious activity that has been detected by the camera or sensor will prompt the app to immediately send a notification.
