Summary of Contents for IPS IPS265T

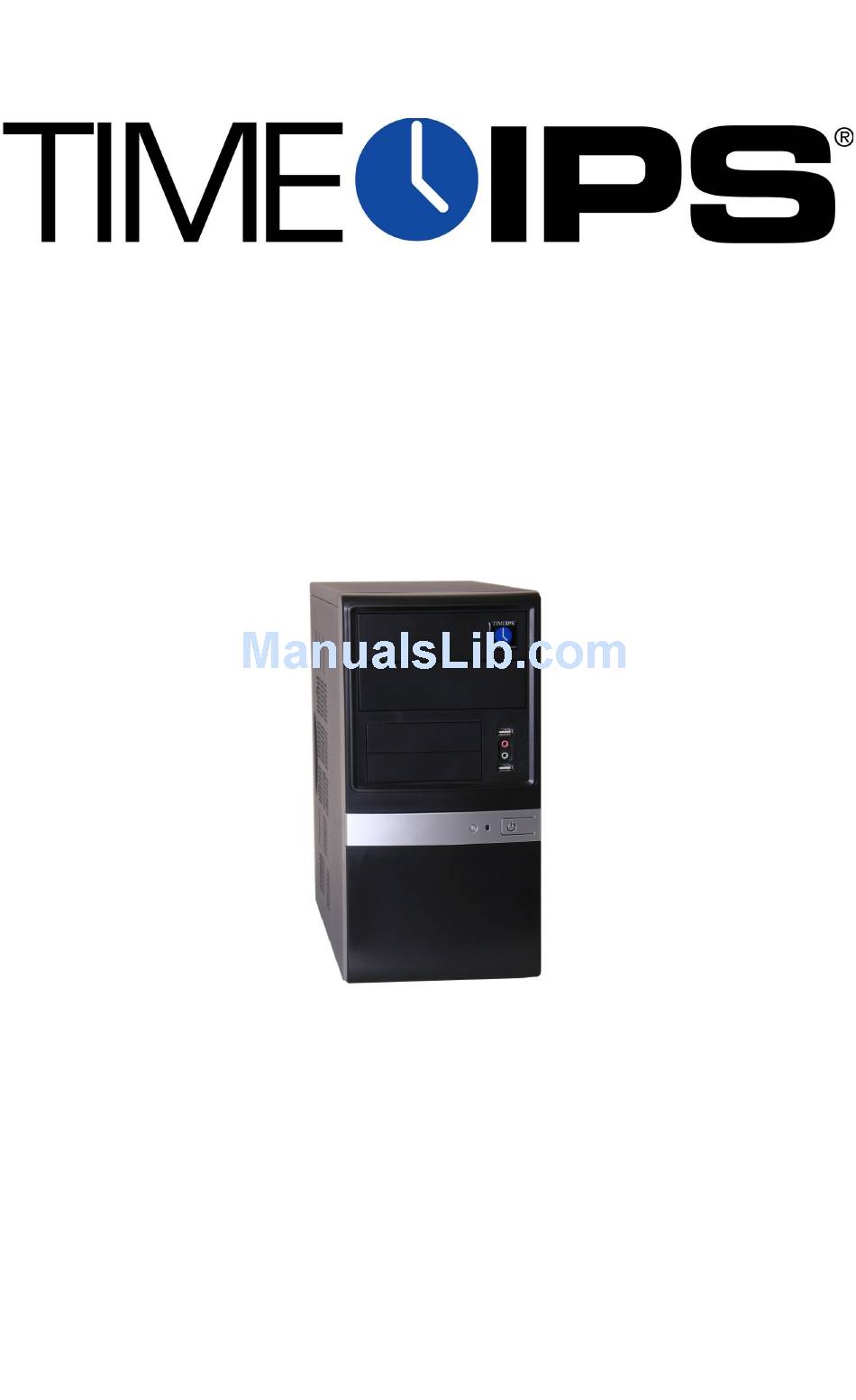

- Page 1 IPS265T / IPS275T TimeIPS Server Installation Guide...
- Page 2 FCC Declaration of Conformity (DoC) Compliance Information (according to FCC 2.1077) (1) Product: IPS265T / IPS275T. The above device complies with Part 15 of the FCC Rules. Operation is subject to the following conditions: (1) these devices may not cause harmful interference, and (2) these devices must accept any interference received, including interference that may cause undesired operation.
-
Page 3: Table Of Contents
Table of Contents Prepare and Plan......................3 Layout and Installation Considerations..............4 TimeIPS Server Overview..................5 Network Requirements..................5 Rear Ports and Connections IPS265T.................6 Rear Ports and Connections IPS275T.................7 Front Panel Controls and Connections................8 Power Backup (UPS)....................9 Power-up and Determine IP Address................10 Additional Network Settings..................11 Initial Login Using IP Address..................12... -
Page 4: Layout And Installation Considerations
Layout and Installation Considerations Overall Installation Notes: Installation of the TimeIPS system normally takes less than an hour. If you have multiple locations, a complex network or are not familiar with networking, installation may take longer. Our Technical Support department is available to assist if you have installation questions. -
Page 5: Timeips Server Overview
TimeIPS Server Overview The primary functions of the TimeIPS server include: Gathering punches from network clocks, remote clocking and telephone • clocking modules Storing time and attendance data • Processing data, including time worked, schedules, jobs, alerts, etc. • Providing an easy to access web-based reporting and management interface •... -
Page 6: Rear Ports And Connections Ips265T
Rear Ports and Connections IPS265T The TimeIPS IPS265T server has a number of ports and connections on the rear of the unit. Cooling Fan: Power Cord: Connect to Keep clear for 115VAC. For 230VAC, air circulation. flip voltage selector switch. -
Page 7: Rear Ports And Connections Ips275T
Rear Ports and Connections IPS275T The TimeIPS IPS275T server has a number of ports and connections on the rear of the unit. Master Power Switch: Shipped in the off or “0” position. Power Cord: Connect to 100-240VAC. Cooling Vents: Keep clear for air circulation. -
Page 8: Front Panel Controls And Connections
Front Panel Controls and Connections The TimeIPS IPS265T/IPS275T Series servers are designed to be operated in an office or server room and should have reasonable air circulation to prevent overheating. IMPORTANT: The TimeIPS server provides power and reset buttons on the front and a master power switch on the back. -
Page 9: Power Backup (Ups)
Power Backup (UPS) As with any server, a steady supply of clean power is essential for TimeIPS. Losing power while the server is operating may cause data loss or • corruption. Brown-outs or flickering power can cause damage to the power supply •... -
Page 10: Power-Up And Determine Ip Address
Power-up and Determine IP Address Step 1) Power On TimeIPS Connect the server to your network with an Ethernet patch cable. You will need a monitor and a keyboard (PS/2 or USB) for the initial configuration. Connect the power cable to the TimeIPS server. Flip the master power switch to the on or “1” position. -
Page 11: Additional Network Settings
Additional Network Settings Step 1) Setting a Static IP Address The TimeIPS server should be assigned a static IP address on your network. You may set a static IP address through the administration console or by visiting the web interface for your TimeIPS server. (A) To set a static IP address through the web interface please visit: http://192.168.1.115/quickset_ip.php Be sure to use the current IP... -
Page 12: Initial Login Using Ip Address
Initial Login Using IP Address Go to a PC on your Note: The actual IP address of your server network with a web may be different from this browser. example. In your web browser, enter the IP address of your server to configure TimeIPS. -
Page 13: Network Troubleshooting
Network Troubleshooting In the event you were unable to reach the web interface for your TimeIPS server, you may be having network related problems. 1) Repeat Step 2 on page 10 to make sure your server has obtained a valid IP address from your network. -
Page 14: Backups
Backups FOR YOUR PROTECTION, SECURITY AND BUSINESS OPERATING EFFICIENCY, WE STRONGLY RECOMMEND REGULAR AND FREQUENT DATA BACKUP. TimeIPS will store important personnel management data and it's critical for this data to be backed up regularly. We recommend daily backups. Local Backups TimeIPS can generate local backups at any time. -
Page 15: Network Troubleshooting Your Pc
Network Troubleshooting Your PC If you have trouble accessing TimeIPS from a PC, you may be having network related issues. Follow this checklist to verify your network settings and connectivity. If the network link and activity lights (shown on page 6 and 7) are not lit, then check all network cables, hubs and switches to verify the physical connections. -
Page 16: Technical Support
(5.4 kg) Power: 100-240VAC IPS265T: 45-60W (typical) IPS275T: 60-75W (typical) This manual is copyright 2004-2015 TimeIPS, Inc. TimeIPS and the TimeIPS logos are registered trademarks of TimeIPS, Inc. All other trademarks are the property of their respective owners.
