Summary of Contents for Generic WDV5000

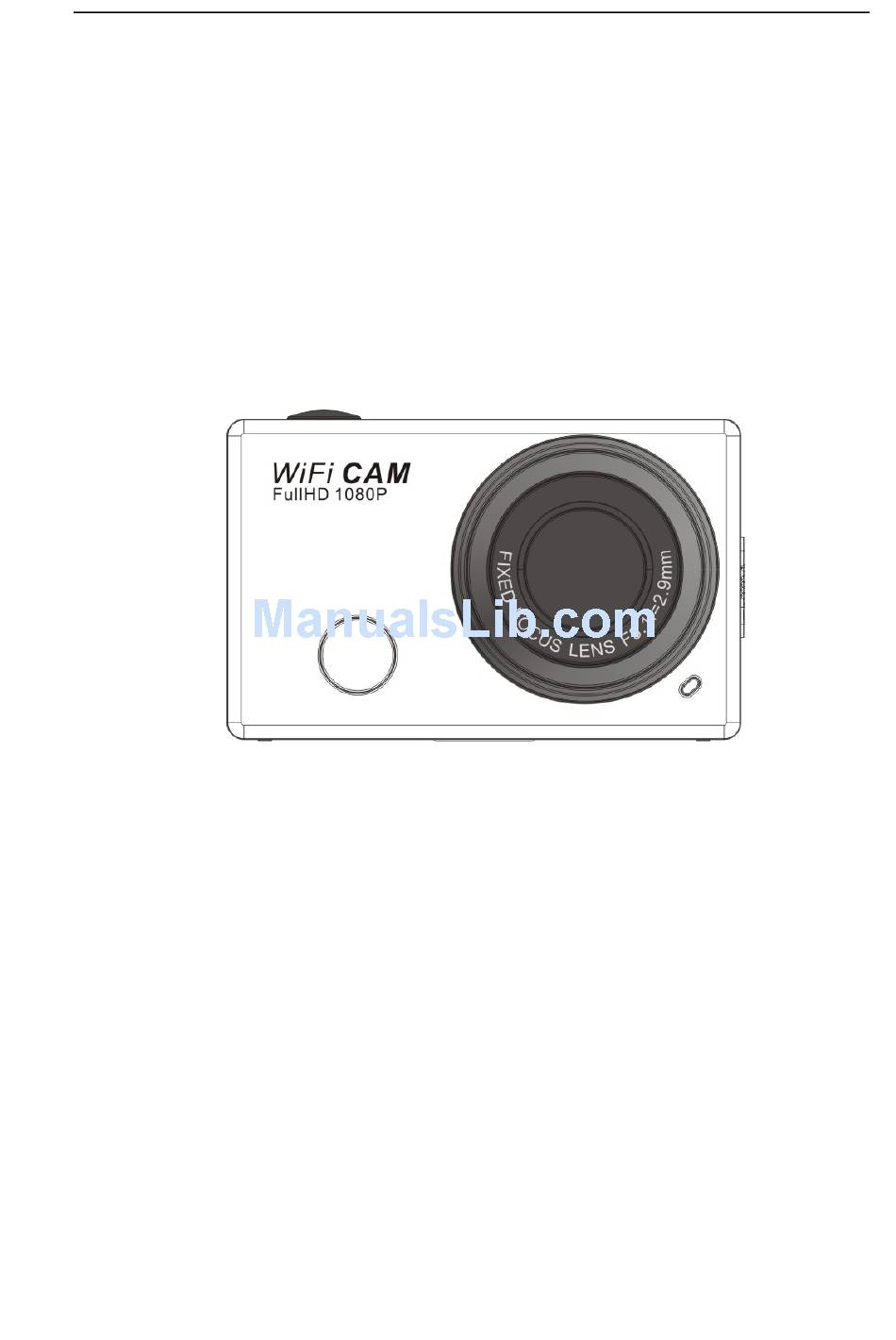

  • Page 1 WDV5000 User Manual...

  • Page 2: Appearance And Buttons

    Thank you for buying our Wi-Fi DV. Before start using this product, please read this manual carefully to maximize its performance and extend the life of the product. Appearance and Buttons 1. Shutter button 8. Micro USB port 2. Microphone Mini HDMI port 3.

  • Page 3: Lcd Display Illustration

    LCD Display Illustration Turn on the Wi-Fi DV, the LCD will display the following status and settings: 1. Camera mode 2. Video recording mode (default) 3. Wi-Fi icon (display when enabled) 4. TF card icon (display when loaded) 5. Resolution icon: In camera mode, HI stands for 8 Mega Pixels (3264x2448), and in video recording mode, it stands for FHD (1920x1080,30fps);...
  • Page 4 Note: The above icons may vary according to the status of the DV. Working Mode Flow Chart fter turn on the DV, you can press the Power/Mode button to switch the following modes in turn: Video mode (720P ,60fps) Video preview mode (1080P default) Video mode (720P,30fps) Camera mode (8MP) Camera mode (5MP)
  • Page 5 High speed card at least Class 4 is recommended; When using time delay function or recording video in professional mode, the card of Class 10 is required. Turn off the DV before inserting or removing the card. 2. Use the battery 2.1 Install the battery.
  • Page 6 Turn on/off 1. Turn on: press and hold the button for about 3 seconds, LCD displays “ON” and a beep can be heard from buzzer. 2. Turn off: press and hold the button for about 3 seconds, LCD displays “OFF” and a beep can be heard from buzzer. Note: The DV will turn off automatically if it is idle for 5 minutes.
  • Page 7 Video recording The DV is in video recording mode. mode icon Video FHD: 1080p@30fps resolution Recording time Stands for 0 hour and 00 minute. TF card icon Display when a TF card is inserted, otherwise no display. Battery level Battery is full The DV is in Mute mode, no Beep will be heard when pressing Mute icon the buttons.

  • Page 8: Enable/Disable Wi-Fi

    Start recording: Press and release the button, the icon and [:] displayed in LCD will flash. At the same time the red indicator will flash too, meaning the recording is in process. Stop recording: Press and release the button, the icon and [:] displayed in LCD will stop flashing.

  • Page 9: Enable/Disable Mute Mode

    Wi-Fi is disabled by default When Wi-Fi is enabled, the Wi-Fi icon will display on LCD 4. Enable/disable Mute mode The buzzer is enabled by default. Under the Video or Photo mode, press and hold the Shutter button to disable the buzzer and indicator to enter Mute mode. Under Mute mode, the icon will display on the screen;...
  • Page 10 Note:Before connecting or removing the HDMI cable, please stop video recording, playback and disconnect Wi-Fi first. 5.2 When HDTV is connected, it enters Playback mode, the LCD displays as below: Icon name Description Under Playback mode currently. Playback mode There are 31 files and you are viewing the 19 one.
  • Page 11 the file or formatting will appear. Press the Wi-Fi button to switch between deleting or formatting,then Press the Power button to select Yes or No, and press the Shutter button to confirm and exit. 6. Connecting to PC 6.1 Turn on the DV and connect it to the USB port of the PC via the attached USB cable.
  • Page 12 Now you can start the web cam through application. To return to U-disk mode (PCU mode), press the button again. Note:Driver is not required for web cam mode (PCC mode) on Windows XP(SP3) version or above. Remote Controller Application Buttons Power off button Signal emission port Video button...
  • Page 13 1.1 Search for ”SYMAGIX” in Google Play (for Android OS),or scan the QR code printed on the gift box to find the APP and install it according to the instruction. 1.2 Search for ”SYMAGIX” in APP Store (for iOS) or scan the QR code printed on the gift box to find the APP and install it according to the instruction.
  • Page 14 1. Video resolution 2. White balance 3. Setup (enter setup menu) 4. Enter Playback mode 5. Shutter button 6. Photo mode 7. Video mode 8. Wi-Fi signal icon 9. DV battery icon 3. iOS APP 3.1 Install SYMAGIX APP (provided by dealer or via internet) on iOS phone or tablet.

  • Page 15: Fcc Statement

    7. Photo mode 8. Video mode Note: 1. A TF card must be inserted if you need to take a photo, record a video, or download files on the terminal; 2. The Wi-Fi indicator will remain on when the terminal is connected to DV.
