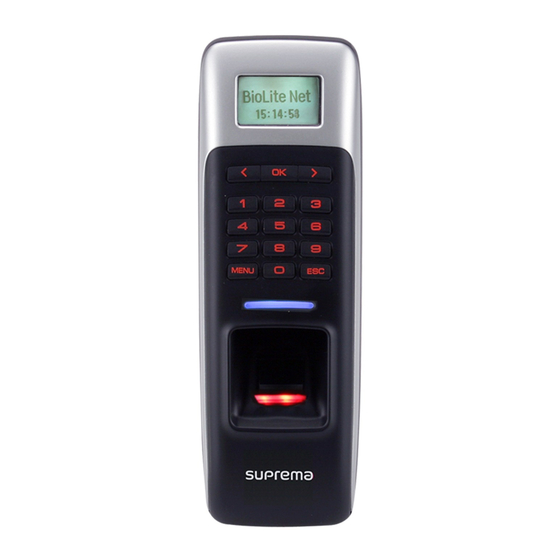

suprema BioLite Solo User Manual

Standalone outdoor fingerprint lock
Hide thumbs
Table of Contents

Advertisement

Quick Links

EN 102.00.BLS V1.13

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BioLite Solo and is the answer not in the manual?

Questions and answers

Summary of Contents for suprema BioLite Solo

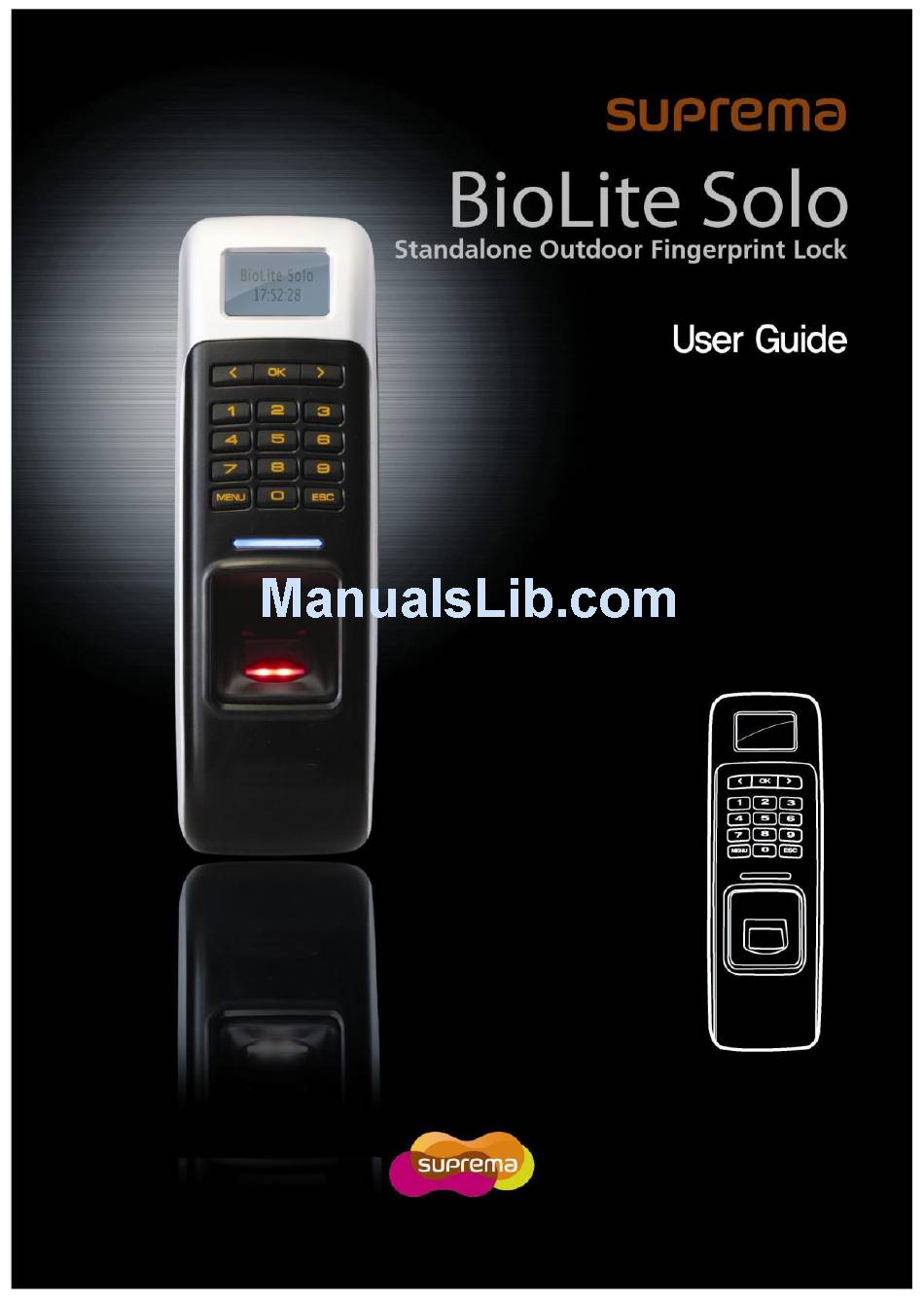

  • Page 1 EN 102.00.BLS V1.13...
  • Page 2 This manual is provided for information purpose only. All information included herein is subject to change without notice. Suprema is not responsible for any changes, direct or indirect, arising from or related to us of this manual. ⓒ Copyright 2008 Supremainc. All rights reserved.

  • Page 3: Table Of Contents

    Contents Safety Instructions ....................4 1. Before Use ......................5 1.1 Components ........................5 1.2 Body ..........................6 1.3 Methods for fingerprint input ..................7 1.4 System setup procedure ....................8 1.4.1 Registering the initial administrator ................9 1.4.2 Stand-alone configuration ..................10 1.4.3 Configuring Secure I/O ..................

  • Page 4: Safety Instructions

    Safety Instructions Installation Do not arbitrarily install or repair the product. The warranty does not apply to any product damage caused by an arbitrary installation or repair. In Use Endure that password does not Do not operate the product with exposed to unauthorized wet hands and keep the device individuals.

  • Page 5: Before Use

    1. Before Use 1.1 Components Main Body Wall mounting bracket Extended bracket (Option) Fixing Screws Knife Blocks Shrinkable Tubes (2 EA) (2 EA) Star-shape wrench Diode Adapter (For fixing bracket) (1 EA) (Option) The components shown above may differ depending on the installation environment.

  • Page 6: Body

    1.2 Body Name Description The operation status is displayed. Display 0–9 Buttons: Used to enter the ID and password. Key Pad < > Arrow Buttons: Used to move the selected item. Button: Used to select the desired function. Button: Used to enter the menu. Button: Used to exit from the menu or cancel the desired action.

  • Page 7: Methods For Fingerprint Input

    1.3 Methods for fingerprint input BioLite Solo can easily recognize fingerprints even though the angle and location of the pattern change. However, it is recommended to properly input fingerprints for more precise recognition. Selecting a finger on fingerprint enrollment Up to two fingerprints can be enrolled for each user in preparation of any abnormal situation like having a wounded finger or carrying an object with a hand.

  • Page 8: System Setup Procedure

    1.4 System setup procedure Install the system according to the environment Step 1 - Grasp the locations for installation site, door open switch, dead bolt, and such. - Install the system (see 5.4). Register an initial administrator Step 2 - Register the initial administrator for setting devices (See 1.4.1). Configure the system Step 3 - Stand alone configuration (see 1.4.2.) or...

  • Page 9: Registering The Initial Administrator

    1.4.1 Registering the initial administrator There is no administrator set for the product in the initial status. So register an administrator for configuring the environments for relay, door open switch, door open detection sensor, and such. When the product is connected, a window Enter ID appears as shown in the right figure.

  • Page 10: Stand-Alone Configuration

    1.4.2 Stand-alone configuration This configuration is the most common installation method. As shown in the figure, connect BioLite Solo to respective switches. ※ See “5.4.6 Installing the bracket.” For actual wring method, see ”5.4 System Installation.” Configure the internal relay settings as shown below. (It is explained based on the figure above.)
  • Page 11 Door Sensor Type Opening Mode Input 1 Temporary Open Internal Door Sensor Door Use ▶/◀ buttons to select Use ▶/◀ buttons to Use ▶/◀ buttons to Input 1 and press OK. select N.O and press OK. select Temporary Open *Not Use/Input0/Input1 *N.O/N.C for opening mode and press OK.

  • Page 12: Configuring Secure I/O

    1.4.3 Configuring Secure I/O This connects BioLite Solo to Secure I/O. Connect wires between BioLite Solo, Secure I/O, and respective switches as shown below. ※ See “5.4.6 Installing the bracket.” For actual wiring, see “5.4 System Installation.” Sync button should be pressed after complete the relay setting.
  • Page 13 Door Sensor Type Opening Mode SIO Input 1 Temporary Open SIO Relay 0 Door Sensor Door Use ▶/◀ buttons to Use ▶/◀ buttons to Use ▶/◀ buttons to select SIO Input 1 select N.O and press OK. select Temporary Open press OK.

  • Page 14: Configuring Environment Settings

    Setting for fingerprint sensor mode: Set the value after reading the case of fingerprint sensor mode selection in “4.1 Authorization.” 1.5 Authorization methods Finger Only Access Granted BioLite Solo ID : 2 10:33:02 The door is open with the Input the fingerprint authentication success of the user.
  • Page 15 Finger and PIN Enter ID Enter Finger Enter PIN **** Enter the ID of the Input the fingerprint Enter the password user and press OK. of the user. of the user and press OK. Access Granted ID : 2 The door is open with the authentication success message.

  • Page 16: User Management

    2. User Management This chapter explains how to enroll, modify, and delete user data. 2.1 Enrolling a user You can enroll a new user as shown below: Use ▶/◀ buttons to select the User ( ) icon and press OK. User Use ▶/◀...
  • Page 17 Enter the finger or PIN depending on the operation mode. (Password: 4–8 digit number, Fingerprint: 1 finger/1 fingers) Finger Only/Finger or PIN/Finger and PIN Place the second Place the first Place the first finger finger again finger (Skip=ESC) Place the first finger Place the same finger Place the second on the sensor.

  • Page 18: Editing A User Data

    2.2 Editing a user data You can modify the data of the previously enrolled user. Use ▶/◀ buttons to select the User ( ) icon and press OK. User Use ▶/◀ buttons to select the Edit ( ) icon and press OK. Edit Enter the ID or fingerprint of the desired user and Enter ID/Finger...
  • Page 19 Changing the operation mode of the user Item Operation Mode Finger Only Operation Mode Edit Edit Use ▶/◀ buttons to Use ▶/◀ buttons Press OK. select Operation Mode to select a operation and press OK. mode and press OK. ※Operation: *PIN Only/Finger or Pin/Finger and PIN/Finger Only Changing the security level of the user Item Security Level...
  • Page 20 Changing the PIN of the user Item Enter PIN Confirm PIN **** **** Edit Edit Edit Use ▶/◀ buttons to Enter the desired After re-entering the select PIN and press OK. password and press password of the user, press OK. Changing the access timezone (authorization trial is enabled) of the user Item...

  • Page 21: Deleting A User Data

    2.3 Deleting a user data You can delete unnecessary user data. Use ▶/◀ buttons to select the User ( ) icon and press OK. User Use ▶/◀ buttons to select the Delete ( ) icon and press OK. Delete After entering the ID or finger to delete and press Enter ID/Finger Delete When the action is successfully made, the...

  • Page 22: Configuration For Screen And Sound

    3. Configuration for Screen and Sound 3.1 Date, Time You need to set the current system date and time. Based on these settings, the values are correctly stored when you save data for “Select Weekday” or log data. Use ▶/◀ buttons to select the Screen, Sound ) icon and press OK.

  • Page 23: Backlight

    3.2 Backlight Use ▶/◀ buttons to select the Screen, Sound ) icon and press OK. Screen, Sound Use ▶/◀ buttons to select Backlight ( ) icon and press OK. Backlight Use ▶/◀ buttons to select a backlight operation status and press OK. Mode Mode Always On...

  • Page 24: Device Configuration

    4. Device Configuration 4.1 Authorization Use ▶/◀ buttons to select the Device ( ) icon and press OK. Device Use ▶/◀ buttons to select the Authorization ) icon and press OK. Authorization Use ▶/◀ buttons to select any of Access Item Access Timezone Timezone, Fingerprint, and Sensor Mode and...
  • Page 25 In case of Fingerprint Item Security Level Item Security Level Normal Fingerprint Fingerprint Fingerprint Authorization Use ▶/◀ buttons to Use ▶/◀ buttons to Use ▶/◀ buttons to select select Fingerprint and select Security Level Security Level and press OK. press OK. and press OK.

  • Page 26: In/Out

    Sensor Mode (operates the fingerprint sensor) In case of Item On Condition Sensor Mode Always On Authorization Sensor Mode Use ▶/◀ buttons to Use ▶/◀ buttons Press OK. select Sensor Mode and to select a sensor mode. press OK. Sensor Mode Always On ※...
  • Page 27 In case of Tamper On Item Tamper Tamper On Ignore In/Out In/Out Use ▶/◀ buttons to Use ▶/◀ buttons Press OK. select Tamper On and to select a tamper press OK. method. ※ Tamper: *Ignore/Locked -Locked: When the device is forcibly removed, the Device is locked. (To release the lock, the administrator must perform authorization.) In case of Door (When using the internal relay) Relay...
  • Page 28 Held Open Time(sec) Forced Open Alarm Not Use Completed Door Door Use ▶/◀ buttons to select the Enter the held open The completion message type for Forced Open Alarm. time by using the window appears. *Not Use/Sound/ Backlight/Sound Numeric buttons and press OK.
  • Page 29 Opening Mode Open Time(sec) Held Open Alarm Temporary Open Sound Door Door Door Enter the time and press Use ▶/◀ buttons to Use ▶/◀ buttons to select the type of the select the alarm type. opening mode. *Not Use/Sound/Backlight/ *Temporary Open/ Toggle Sound and Light/SIO Relay0/SIO Relay1 ※Opening Mode:...

  • Page 30: System

    4.3 System . Use ▶/◀ buttons to select the Device ( ) icon and press OK. Device Use ▶/◀ buttons to select the System ( icon and press OK. System Item Use ▶/◀ buttons to select any of Information, Information Factory Default, Delete All Log, Delete User DB, and Language and press OK.
  • Page 31 In case of Information — Continued User Item 4/200 Num. Of User Templates 6/800 Information Use ▶/◀ buttons to The number of current users select Num. Of User. and the number of fingerprints enrolled appear. Item Firmware Ver. Firmware Ver. V0.9_080603 Information Information...
  • Page 32 Use ▶/◀ buttons to select Press OK. select Language and the language. press OK. * English/ Korean/Custom ※ To use custom language, desired language resource file needs to be downloaded to t he device using AdminLite program on PC. Please contact Suprema for details.
  • Page 33 In case of Contrast Item Item Contrast System System Use ▶/◀ buttons to Use ▶/◀ buttons to Press OK. select Contrast and adjust contrast parameter. press OK. * Default value is 18 ※ Contrast value is not affected by Factory default.

  • Page 34: Faq

    5. FAQ 5.1 Error messages Error Message Solution !Unknown ID The user ID that does not exist in the device is entered. !Not Matched The entered fingerprint or password is not matched to the enrolled one. When enrolling a user fingerprint, the fingerprint that has been input !Duplicate Finger already exists in the device (when checking the duplicated case).

  • Page 35: Troubleshooting

    Door lock it after contacting the installation agency. not locked. - BioLite Solo has an embedded battery but it can be The time is not discharged by a long time use. Accordingly the time Time may not be correct.

  • Page 36: Usage Summary

    5.3 Usage summary ※ It provides the mainly used functions . button: Used to select the desired function. ※ Method for setting Function (Sequentially perform the following items.) Enter ID Select PIN Only for authorization method Enter Initial administrator registration password Enter password again Select Screen, Sound ( ) icon...

  • Page 37: System Installation

    5.4 System Installation 5.4.1 Cable specifications Type Name Color Black Door open switch SWIN 1 Brown & Black Door open sensor SWIN 0 Purple Normal Close Orange (White String) Relay Common Green (White String) Normal Open Gray (White String) Power + (12Vdc) Power GND Black Power &...

  • Page 38: Connecting Power & 485

    5.4.2 Connecting Power & 485 ※ RS-485 is used when connecting the Secure I/O. For power supply, use a product of DC 12V (± 10%) and minimum 500mA. (To share the power with other devices, use a power supply with higher current ratings.).

  • Page 39: Connecting The Relay

    Make sure to install the diode near to the door lock. Make sure to use different power supplies for the BioLite Solo and the door lock. Make sure to install the diode at both ends of the circuit as shown in the figures above (and below) in order to protect the relay contact from the reverse current that occurs when the door lock works.
  • Page 40 3. Automatic door...

  • Page 41: Connecting The Switch

    5.4.4 Connecting the switch 5.4.5 Electrical specifications Type Name Min. Typ. Max. Notes Power Voltage (V) 10.8 13.2 Use regulated DC power adaptor only Current (mA) Switch VIH (V) Input VIL (V) Pull-up 4.7k The input ports are resistance (Ω ) pulled up with 4.7k resistors Relay...

  • Page 42: Installing The Bracket

    5.4.6 Installing the bracket Fix the bracket to the place where BioLite Solo is to be installed using the fixing screws. If the installation place is on concrete, drill holes, insert knife blocks into the holes, and fix them by using fixing screws.

  • Page 43: Specifications

    5.5 Specifications Item Specification 400MHz DSP Memory 4MB Flash and 8MB RAM Fingerprint sensor 500dpi optical sensor User capacity 200 users (2 fingerprints per user) Matching speed Less than 1 second Operation mode Fingerprint, Password, Fingerprint + Password 128 x 64 Graphic LCD (Monochrome) Keypad 3x4 keypad, 3 navigation keys User interface...
