Summary of Contents for TMG DR-2

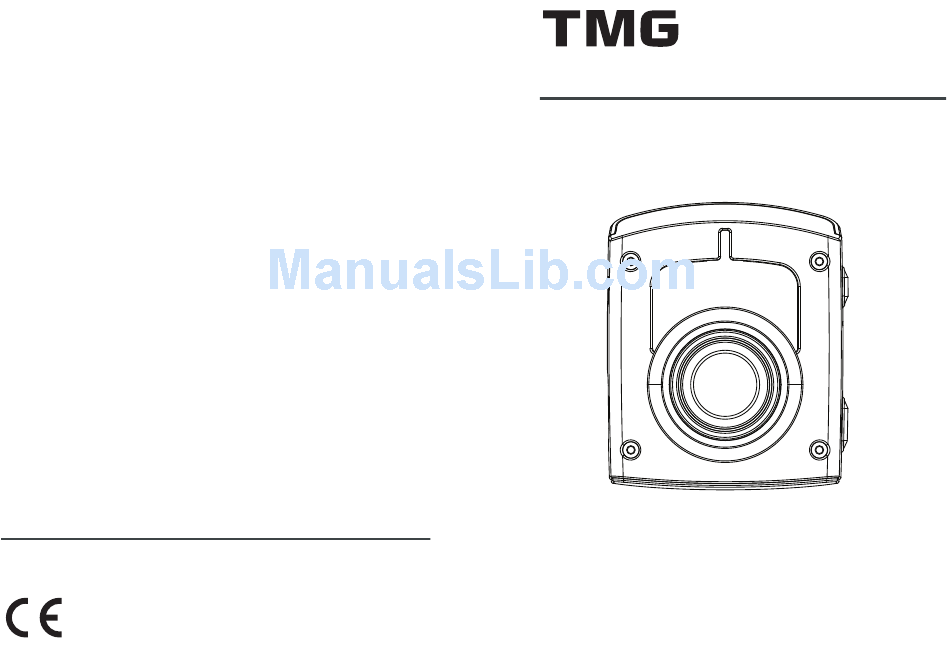

- Page 1 FullHD GPS DRIVING RECORDER Operation Manual Facets Product Design & Development Ltd. Taiwan Microwave Group www.TMG-FACETS.com TMG, the TMG logo, and other TMG marks are owned by TMG and may be registered. www.TMG-FACETS.com All other trademarks are the property of their respective owners.
-
Page 2: Table Of Contents
Table of Content Installation ............Profile ..............Introduction Specifications ............. Thank you for purchasing DR-2 GPS DRIVING Features .............. RECORDER, one of the most innovative and sophisti- Operation ............cated road safety monitoring systems available today. Firmware Update ..........Please be sure to read this manual to familiarize yourself with the features and operation of this product. -
Page 3: Installation
5. Plug in cigeratte lighter plug. It can accomodate a 2. Remove sticker cover and press the hook against windshield. 12~24V power source. 3. Hang DR-2 on the bracket. Try to insert the hook all the way to the end. Adjust angle and fasten the screw. DC12~24V 4. - Page 4 Installation- Wireless Radar Detector(Optional) Only DR-2 with built-in RF receiver works for wireless radar detector. Please make sure to acquire correct model. 1. Install it with screws, cable ties or double-sided tape be- tween grille or under the bumper. 2. Make sure there is no metal parts blocking the front of radar detector.
-
Page 5: Profile
Profile Main Features Enhanced Night View With professional optical lens, high quality night view is promised. Surroundings are well covered by 140° viewing angle. MICRO GPS POI Warning LOCK / EXIT MENU GPS warns you POI based speed cameras. Radar detector is optional for mobile radar detection. -
Page 6: Specifications
Specifications of Radar Detector(Optional) Specifications of Video Camera Input: DC 12V 1. Lens: F/2.8 X band: 10.525 GHz ± 50 MHz 2. View angle: 140° K band: 24.150 GHz ± 100 MHz 3. Built-in lithium battery New K band: 24.125 GHz ± 100 MHz 4. -
Page 7: Features
Radar signals with increasing intensity will be tracked by a chime when the countdown reaches zero. The higher the DR-2’s optional radar detector, and the alert will not be inter- speed limit is, the longer the countdown distance becomes. rupted by temporary interference to hold user’s awareness of a true threat. -
Page 8: Firmware Update
Push central stick to the right to enter menu, click it to confirm and Getting Start push it to the left to go back to previous menu. Click LOCK to exit menu. 1. Insert a Class10 SD card(maximum 32G) into DR-2. G-sensor Lock 2. - Page 9 Please use Registrator Viewer to play video on a computer. It is free to download from http://www.registratorviewer.com/. Sound On/Off Beep On/Off Insert your SD card from DR-2 first, launch Registrator Viewer Volume then you can see map and all recored information on its interface. Exposure EV-2~+2 Power Frequency 50Hz...
-
Page 10: Report To Us
Trouble Shooting Report to Us Please report new cameras or wrong database spots to us. We will update our database usually with-in 48 hours. Problem Possible Cause Solution Switch on sound by pushing central No sound Volume off stick to the right, then selecting volume to set up. -
Page 11: Warranty
License Agreement product for service. The return charge will be at our expense, TMG products are made by Facets Product Design and if the product is proven to be under warranty. For efficiency Development Ltd. in Taiwan. Facets and its licensors grant to... - Page 12 Facets and its licensors shall retain all copyright, trade completeness of data used by this product and shall not be secret, patent and other proprietary ownership rights in the liable to the user for any incidental, consequential, special, software and data. The software and data is copyrighted and indirect or exemplary damages including any fine, civil or may not be copied, even if modified or merged with other criminal penalties arising from the use of the product.
