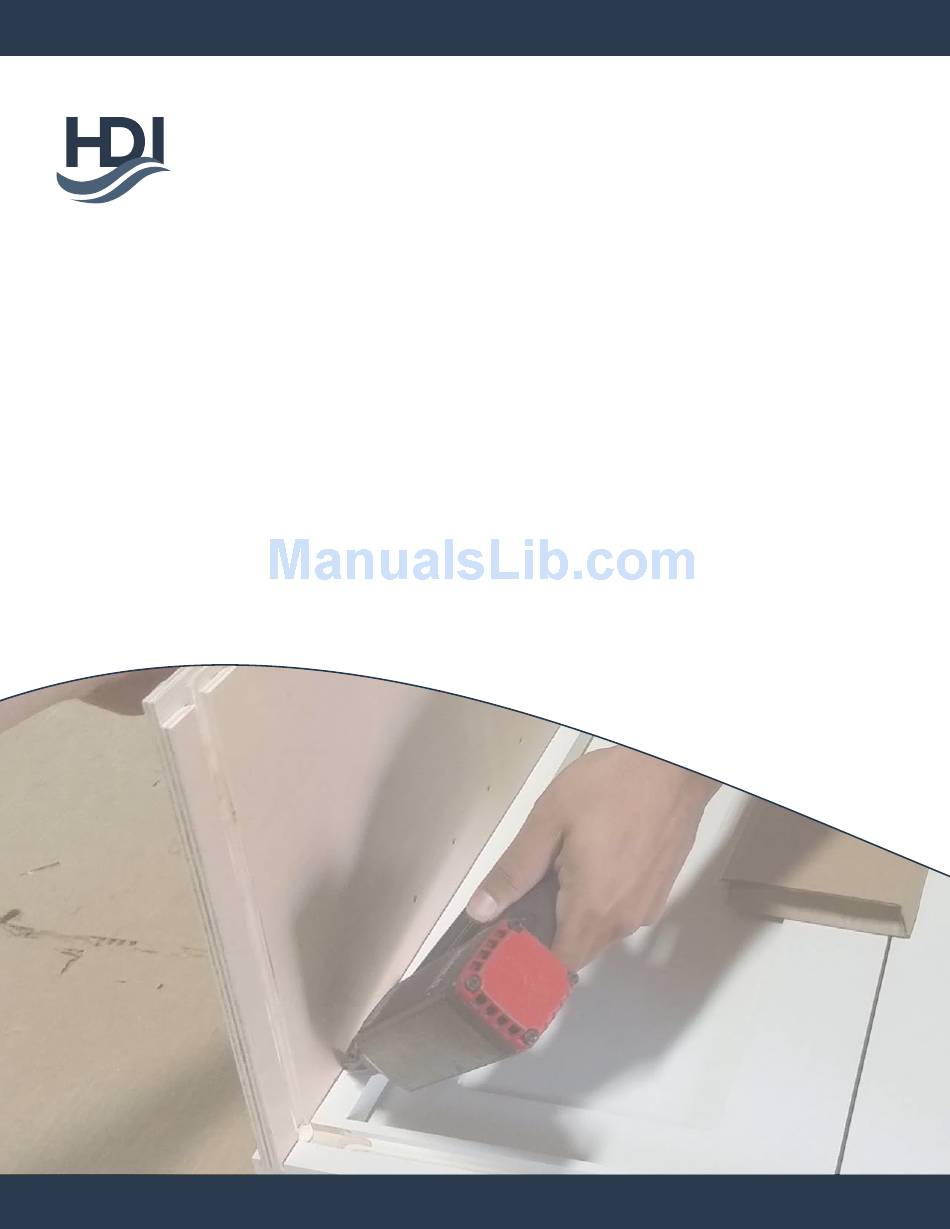

- Page 1 CABINETRY www.hdicabinetry.com Assembly Instructions...
- Page 2 • Brad Nail Gun w/ 5/8” or 3/4” nails (optional) • 1/8” hex drill bit (Euro Series) • Ruler/Measuring tape (for Euro Series lift cabinets) HDI Cabinetry 3751 62 Ave N Pinellas Park, FL 33781 ph: 727-539-1517 fx: 727-539-1531 customerservice@hdicabinetry.com www.hdicabinetry.com...
- Page 3 Use a brad nail gun with 3/4” nails and shoot at a 45 degree angle into the face frame/side panel joint (we use this method). 4. Repeat for other side panel. HDI Cabinetry 3751 62 Ave N Pinellas Park, FL 33781 ph: 727-539-1517 fx: 727-539-1531 1.01 customerservice@hdicabinetry.com www.hdicabinetry.com...
- Page 4 (we made a shim for this purpose). 8. Shoot staples or screw cabinet back panel to cabinet bottom panel. HDI Cabinetry 3751 62 Ave N Pinellas Park, FL 33781 ph: 727-539-1517 fx: 727-539-1531 1.02 customerservice@hdicabinetry.com www.hdicabinetry.com...
- Page 5 2. Screw drawer glide to cabinet face frame 3. Repeat for all glides. Step 7 1. Install wooden corner blocks by using provided screws. HDI Cabinetry 3751 62 Ave N Pinellas Park, FL 33781 ph: 727-539-1517 fx: 727-539-1531 1.03 customerservice@hdicabinetry.com www.hdicabinetry.com...
- Page 6 You will hear a click. 9. Check to make sure drawer operates smoothly and make any adjustments needed. HDI Cabinetry 3751 62 Ave N Pinellas Park, FL 33781 ph: 727-539-1517 fx: 727-539-1531 1.04 customerservice@hdicabinetry.com www.hdicabinetry.com...
- Page 7 Use a brad nail gun with 3/4” nails and shoot at a 45 degree angle into the face frame/side panel joint (we use this method). 4. Repeat for other side panel. HDI Cabinetry 3751 62 Ave N Pinellas Park, FL 33781 ph: 727-539-1517 fx: 727-539-1531 1.05 customerservice@hdicabinetry.com www.hdicabinetry.com...
- Page 8 Step 5 1. Install shelf pins in pre drilled holes and install shelves in desired location (if applicable) 2. Attach doors, wipe off any excess dust/residue. 3. Assembly is complete. HDI Cabinetry 3751 62 Ave N Pinellas Park, FL 33781 ph: 727-539-1517 fx: 727-539-1531 1.06 customerservice@hdicabinetry.com www.hdicabinetry.com...
- Page 9 Be sure to use glue in the dado channel. Secure the floor by using the provided assembly blocks. 4. Repeat the previous step for the shelf. HDI Cabinetry 3751 62 Ave N Pinellas Park, FL 33781 ph: 727-539-1517 fx: 727-539-1531 1.07 customerservice@hdicabinetry.com www.hdicabinetry.com...
- Page 10 4. Working your way around the cabinet, install the next back side panel. 5. Install the final side panel by aligning the dado channels with the shelf and floor. We recommend stapling everything in place to allow time for the glue to dry. HDI Cabinetry 3751 62 Ave N Pinellas Park, FL 33781 ph: 727-539-1517 fx: 727-539-1531 1.08 customerservice@hdicabinetry.com www.hdicabinetry.com...
- Page 11 2. Use the provided assembly blocks to secure the face frame to the support beam. HDI Cabinetry 3751 62 Ave N Pinellas Park, FL 33781 ph: 727-539-1517 fx: 727-539-1531 1.09 customerservice@hdicabinetry.com www.hdicabinetry.com...
- Page 12 4. Attach the doors to the cabinet by screwing the hinge at the pre drilled hole locations inside the cabinet. 5. Adjust hinges if necessary to ensure proper door closure. HDI Cabinetry 3751 62 Ave N Pinellas Park, FL 33781 ph: 727-539-1517 fx: 727-539-1531 1.10 customerservice@hdicabinetry.com www.hdicabinetry.com...
- Page 14 3. Put some glue in the back dado groove and insert the back panel into the slot. The back panel should be installed to be flush with the back side of the bottom panel (pictured right). HDI Cabinetry 3751 62 Ave N Pinellas Park, FL 33781 ph: 727-539-1517 fx: 727-539-1531 2.01 customerservice@hdicabinetry.com www.hdicabinetry.com...
- Page 15 Make sure everything is aligned correctly before screwing all the way. 5. Carefully, flip the cabinet on its back and then over again to the other side and screw this side panel to the cabinet box. HDI Cabinetry 3751 62 Ave N Pinellas Park, FL 33781 ph: 727-539-1517 fx: 727-539-1531 2.02 customerservice@hdicabinetry.com www.hdicabinetry.com...
- Page 16 4. If cabinet is a sink base with a false front panel, proceed to Step 1 on page 8. 5. If cabinet does not have false front panel, you are finished. HDI Cabinetry 3751 62 Ave N Pinellas Park, FL 33781 ph: 727-539-1517 fx: 727-539-1531 2.03 customerservice@hdicabinetry.com www.hdicabinetry.com...
- Page 17 1. Begin by opening the box and laying all the pieces out on a clean, flat surface. Check to make sure all contents are in the box (hardware will be packaged separately in its own box). HDI Cabinetry 3751 62 Ave N Pinellas Park, FL 33781 ph: 727-539-1517 fx: 727-539-1531 2.04 customerservice@hdicabinetry.com www.hdicabinetry.com...
- Page 18 3. Screw the back panel in place with the provide screws. We recommend at lest 2 screws per bracket. HDI Cabinetry 3751 62 Ave N Pinellas Park, FL 33781 ph: 727-539-1517 fx: 727-539-1531 2.05 customerservice@hdicabinetry.com www.hdicabinetry.com...
- Page 19 It will snap in place. 5. Drawer is now complete. Pictured right is a completed drawer base drawer box. HDI Cabinetry 3751 62 Ave N Pinellas Park, FL 33781 ph: 727-539-1517 fx: 727-539-1531 2.06 customerservice@hdicabinetry.com www.hdicabinetry.com...
- Page 20 3. Screw the drawer front attachment clip to the drawer front using the supplied 5/8” screw. 4. Attach drawer front to the cabinet box. HDI Cabinetry 3751 62 Ave N Pinellas Park, FL 33781 ph: 727-539-1517 fx: 727-539-1531 2.07 customerservice@hdicabinetry.com www.hdicabinetry.com...
- Page 21 4. Put some glue in the back dado groove and insert the back panel into the slot. The back panel should be installed to be flush with the back side of the bottom panel (pictured right). HDI Cabinetry 3751 62 Ave N Pinellas Park, FL 33781 ph: 727-539-1517 fx: 727-539-1531 2.08 customerservice@hdicabinetry.com www.hdicabinetry.com...
- Page 22 3. With installed hinges, clip the hinges to the hinge holders on the cabinet side panel. See pictures to the right. HDI Cabinetry 3751 62 Ave N Pinellas Park, FL 33781 ph: 727-539-1517 fx: 727-539-1531 2.09 customerservice@hdicabinetry.com www.hdicabinetry.com...
- Page 23 **All dimensions in millimeters (mm) Aluminum Door Back side of door Right Cabinet Side Left Cabinet Side Front Back Back Front Bottom Bottom HDI Cabinetry 3751 62 Ave N Pinellas Park, FL 33781 ph: 727-539-1517 fx: 727-539-1531 2.10 customerservice@hdicabinetry.com www.hdicabinetry.com...
- Page 24 **All dimensions in millimeters (mm) Solid Door Cabinet Side Back side of door Aluminum Door Back Front Back side of door Cabinet Top Back Bottom Front HDI Cabinetry 3751 62 Ave N Pinellas Park, FL 33781 ph: 727-539-1517 fx: 727-539-1531 2.11 customerservice@hdicabinetry.com www.hdicabinetry.com...
