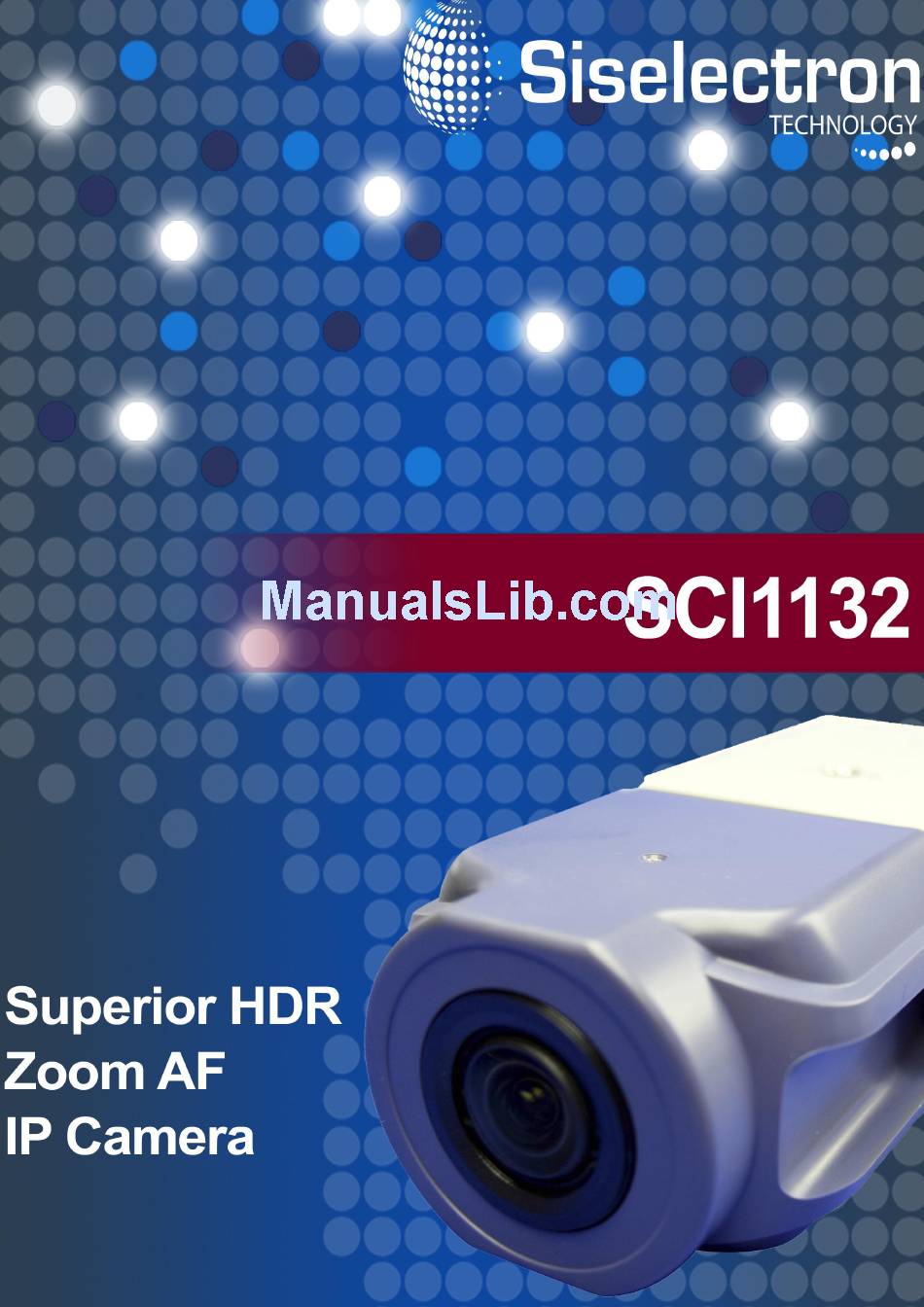

Summary of Contents for Siselectron SCI1132
-
Page 2: Table Of Contents
Table of Contents Overview ..........................2 Features ........................2 Package Contents ....................... 3 Dimensions ........................4 Connectors ........................5 Camera Cabling ........................6 Power Connection ....................... 6 Ethernet Cable Connection ..................6 Alarm I/O Connection ....................6 RS-485 Connection ..................... 7 System Requirements ...................... -
Page 3: Overview
Overview Equipped with industrial-grade streaming compression technology, the Superior HDR Zoom AF Box IP Camera supports up to 4M real-time video and quad streams codec, and offers supreme image quality while keeping efficient and valuable network bandwidth for storage management. Possessing line-by-line HDR technology, the camera provides premium performance under extreme low light contrast scenario or fluctuated lighting environments. -
Page 4: Package Contents
Package Contents Please check the package containing the following items listed below. Superior HDR Power Switch Connector Zoom AF Box IP Camera Quick Guide (bundled software and documentation) -
Page 5: Dimensions
Dimensions The dimensions of the camera are shown below. -
Page 6: Connectors
Connectors The diagram below shows the various connectors of the camera. Definition for each connector is given as follows. Connector Definition For analogue video output Network LEDs For network connection and activity indication Audio I/O Two-way audio transmission Insert the microSD card into the card slot to store videos microSD Card Slot and snapshots. -
Page 7: Camera Cabling
Camera Cabling Please follow the instructions below to complete the cable connections. Power Connection For power connection, please refer to section Connectors. Alternatively, users can power the camera by PoE if a Power Sourcing Equipment (PSE) switch is available. Refer to the section below for Ethernet cable connection. NOTE: If PoE is used, make sure PSE is in used in the network. -
Page 8: Rs-485 Connection
RS-485 Connection The RS-485 connector is the interface for connecting with the pan & tilt positioning system. 6. D + 7. D -... -
Page 9: System Requirements
System Requirements To perform the IP camera via web browser, please ensure the PC is in good network connection, and meet the system requirements as described below. Items System Requirement Minimum : 1. Intel® Core i5-2430M @ 2.4 GHz 2. 4 GB RAM Personal Computer Recommended : 1. -
Page 10: Access Camera
Access Camera For initial access to the IP camera, users can search the camera through the installer program: DeviceSearch.exe, which can be found in “DeviceSearch” folder in the supplied CD. Accessing the Camera by Device Search Software Step 1: Double click on the program Device Search.exe. Step 2: After its window appears, click on the <Device Search>... - Page 11 Step 8: A prompt window requesting for default username and password will appear. Enter the default username and password shown below to login to the camera. Login ID Password Admin 1234 NOTE: ID and password are case sensitive. NOTE: It is strongly advised that administrator’s password be altered for the security concerns.
- Page 12 Once the Viewer is successfully installed, the Home page of the IP camera will be shown as the figure below. Image and Focus Adjustment The live image will be displayed on the Home page when the camera is successfully accessed. If zoom or focus is not at the desired position, please use the function buttons on the Home page for adjustment.
-
Page 13: Setup Video Resolution
Setup Video Resolution Users can setup video resolution on Video Format page of the user-friendly browser-based configuration interface. Video Format can be found under this path: Streaming> Video Format. The default values of video resolution are as below. H.264- 2048 x 1536 @30/25 fps + Normal Mode H.264- 720 x 480 (30 fps) / 720 x 576 (25 fps) H.264- 1920 x 1080 @30/25 fps +... -
Page 14: Configuration File Export / Import
Configuration File Export / Import To export / import configuration files, users can access the Maintenance page on the user-friendly browser-based configuration interface. The Maintenance setting can be found under this path: System> Maintenance. Users can export configuration files to a specified location and retrieve data by uploading an existing configuration file to the camera. -
Page 15: Tech Support Information
Tech Support Information This chapter will introduce how to delete previously-installed Viewer in the PC and how to setup the Internet security. Delete the Existing Viewer For users who have installed Viewer in the PC previously, please remove the existing Viewer from the PC before accessing to the camera. Deleting the Viewer In the Windows <Start Menu>, activate <Control Panel>, and then double click on <Add or Remove Programs>. -
Page 16: Setup Internet Security
Setup Internet Security If ActiveX control installation is blocked, please either set Internet security level to default or change ActiveX controls and plug-ins settings. Internet Security Level: Default Step 1: Start the Internet Explorer (IE). Step 2: Click on the <Tools> tab on the menu bar and select <Internet Options>.
