Summary of Contents for UC Logic PENATES 10.SP
-

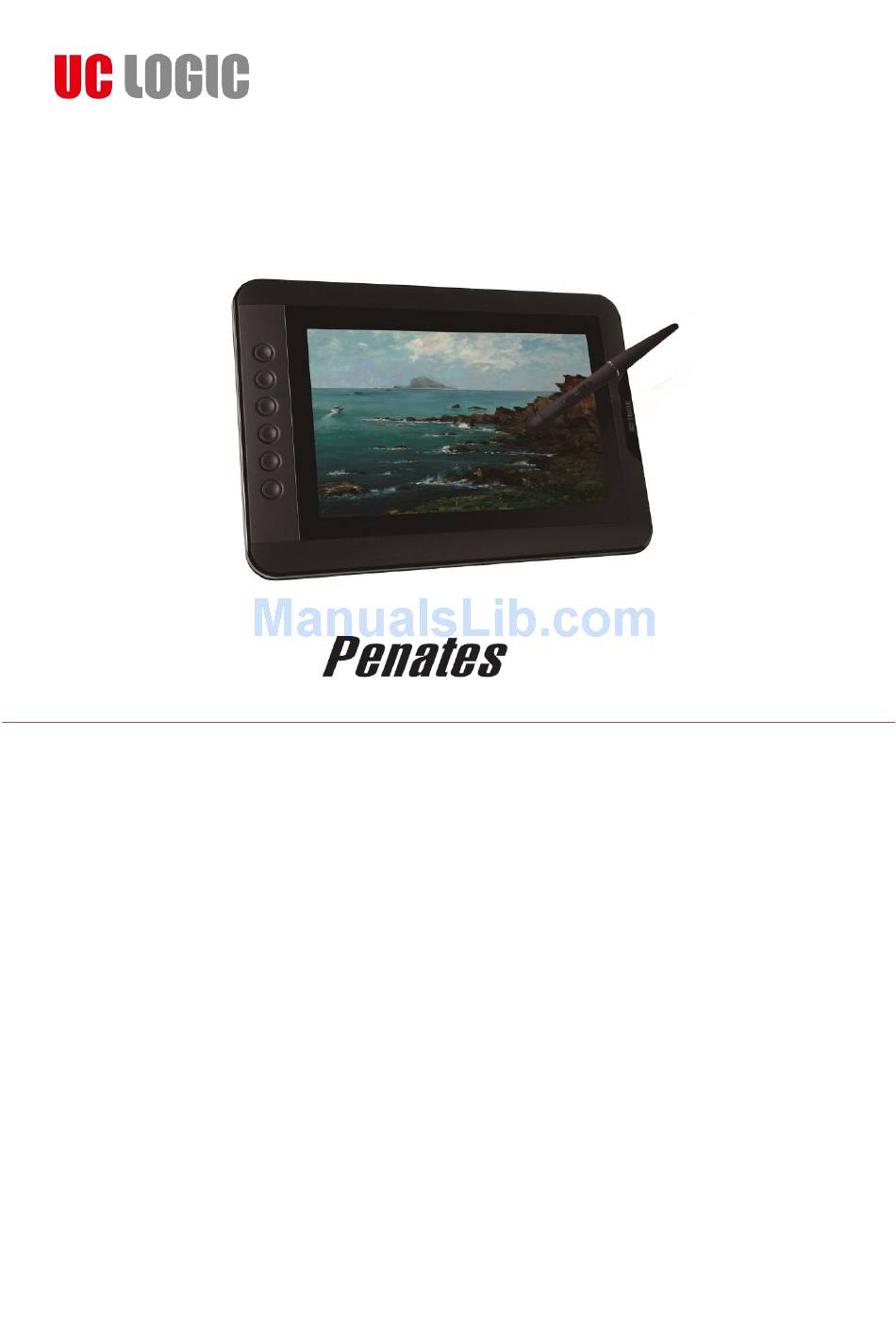

Page 1: User Manual
10.1SP Penates 10.1SP User Manual for Windows Windows 7 / 8 / 8.1 Driver Version 8.0 Version：V14.07 Release Date：2014/07... -
Page 2: Table Of Contents
Penates 10.1SP Driver Version 8.0 Contents General Information ....................3 OVERVIEW ..........................3 PENATES FUNCITONS ......................... 3 SYSTEM REQUIREMENTS ......................3 INSTALLING THE DRIVER SOFTWARE ON WINDOWS ..............3 VERYFYING HARDWARE ......................4 HARDWARE INSTALLATION ......................5 USAGE TIPS ..........................6 MAPPING TO MULTIPLE MONITORS .................. -
Page 3: General Information
Penates 10.1SP Driver Version 8.0 I. General Information OVERVIEW Welcome to the world of Penates! You’ll be able to discover how easy it is to control your personal computer by using a U Pen instead of a mouse. The function of the U Pen is able to draw a line very thin, thick, light or dark (called “pressure sensitivity”). -
Page 4: Veryfying Hardware
Penates 10.1SP Driver Version 8.0 VERYFYING HARDWARE Your Penates and package contents are shown below. If anything is missing, contact your dealer immediately. -
Page 5: Hardware Installation
Penates 10.1SP Driver Version 8.0 HARDWARE INSTALLATION Connect your Penates with a HDMI & USB interface into the computer after you have finished the driver installation and restarted the Windows system. If the device has been successfully installed, you will see a small Penates icon ( ) appear in the system tray, which is normally at the lower right corner of the screen. -
Page 6: Usage Tips
Penates 10.1SP Driver Version 8.0 USAGE TIPS Double tapping When you double tap with the digital pen (equivalent to a double click with a mouse), try to keep the pen tip away from the Penates screen, or at least try to lift the pen tip as fast as possible before the second tap. -
Page 7: Ii. Penates Configuration
Penates 10.1SP Driver Version 8.0 II. Penates configuration You may configure the Penates by modifying the functions of the pen tip and the two barrel buttons, tap [Start] > [Settings] > [Control Panel], and double-tap the Penates icon ( ), or tap on the Penates icon ( ) in the system tray, usually located at the lower right corner of the screen. -
Page 8: The Button Tab
Penates 10.1SP Driver Version 8.0 THE BUTTON TAB Button Name You may re-program the functions of the pen two-barrel buttons by selecting the button name from the drop down menu and assign a command of a traditional three-button mouse to it. According to the mouse function, you can select no action, left click, left double click, middle click, middle double click, right click, right double click or Pen/Eraser Toggle. -
Page 9: Express Keys Define Tab
Penates 10.1SP Driver Version 8.0 EXPRESS KEYS DEFINE TAB Express Keys: For Express Keys & Scroll Ring settings, you can modify these using the Express Keys configuration page. Default Return the Express Keys to the default settings. Re-define Express keys Select “Common”, “Mouse”, “Multimedia”, “Other”, “Run”, “Internet”... -
Page 10: Common
Penates 10.1SP Driver Version 8.0 Common Express key name: Rename the Express Key. Disable: Disable the Express Key name display on the Penates control panel. Default: Return the Express Key name to the default setting. Mouse Mouse function: Select Mouse mode settings. -
Page 11: Multimedia
Penates 10.1SP Driver Version 8.0 Multimedia Multimedia function: Select multimedia function settings: “Play/Pause”, “Stop”, “Previous”, “Next”, “Mute”, “Volume Up”, and “Volume Down”. Other Your Penates work zone: Select “Largest Work Zone” or “Screen Ratio”. Show setting: Show Express key name. -
Page 12: Run
Penates 10.1SP Driver Version 8.0 Run: Use the browser button to select a file and run, or type in a file name with the complete path. Start in: This is the initial folder where the program starts the execution. Parameters: The string type will be passed to the program as parameters. -
Page 13: Internet
Penates 10.1SP Driver Version 8.0 Internet Network function: Select “Previous Page”, “Next Page”, “Refresh”,” Stop”, “My Favorite”, “IE”, “Email”. Link to: Kind of Service: Select an Internet service to start. For example: browsing a website, or send an email. The exact program initiated (for example, the browser program) depends on system settings. -
Page 14: Hot Key
Penates 10.1SP Driver Version 8.0 Hot Key The key combination to press: Select any key such as alphanumeric key or cursor control key, combined with Shift, Ctrl and/or Alt key. Common function: Select some common used settings. Show Desktop: When the hot-key is set to this function, simply press it to display the desktop immediately. -
Page 15: The Pressure Tab
Penates 10.1SP Driver Version 8.0 THE PRESSURE TAB Pressure Test: There are four different colors for selecting the pressure sensitivity of the Penates, and they can be adjusted in this tab. There is a test area to see the thickness of a line by pressing down on the pen tip to the pad. -
Page 16: The Monitor Setting Tab
Penates 10.1SP Driver Version 8.0 THE MONITOR SETTING TAB If you are selecting the “Extend the displays”mode under the “Multiple Display” function, please use the Penates "Monitor Setting" page to select your Penates corresponding screen number first in order to facilitate the custmized settings. Click “OK”... -
Page 17: The Calibration Tab
Penates 10.1SP Driver Version 8.0 THE CALIBRATION TAB Calibration Check “Calibration” and select”4-Point Calibration” or “9-Point Calibration” to activate the calibration screen. Hold the pen 90 ° vertically on the calibration screen and use the pen tip to click on the center of the crosshairs in the calibration dialogue. -
Page 18: Rotate
Penates 10.1SP Driver Version 8.0 Rotate Select the degree which you would like to rotate your Penates. -
Page 19: The Monitor Tuner
THE MONITOR TUNER If you are selecting the “Extend the displays”mode under the “Multiple Display” function, you may configure the Penates monitor Brightness、Contrast and Color Temperatures. [Start] > [All Programs] > [Tablet] > [ UC Logic Monitor Tuner ] Brightness You can adjust the brightness of your Penates screen by selecting “Increase”... -
Page 20: Color Temperatures
Penates 10.1SP Driver Version 8.0 Color Temperatures You can select the default color temperature settings or the “User 1” to customize it. Restore Default Click “Restore Default” to their manufacturer settings. -
Page 21: Iii. Changing The Pen Tip
Penates 10.1SP Driver Version 8.0 III. Changing the Pen Tip Pull out the pen tip from U Pen by using the tip remover device built into the pen case. Push the pen tip into the digital pen... -
Page 22: Iv. Question & Answer
Penates 10.1SP Driver Version 8.0 IV. Question & Answer Q: How can I get the latest updated software? A: You can download the new driver from our website (www.uc-logic.com). Uninstall your old driver: Click [Start] ► [All Programs] ► [TABLET] ► [Uninstall]. Download the latest driver version in the download section and save it into your hard disk.
